| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_069T01_9000002102_14241cztM0_level2.evt | modeM0/AS1G08_069T01_9000002102_14241cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,864,960 | 91,730,880 |
| Size | 450.0 MB | 87.5 MB |
| Events in quadrant A | 3,276,485 | 605,543 |
| Events in quadrant B | 3,319,975 | 602,118 |
| Events in quadrant C | 3,356,744 | 583,787 |
| Events in quadrant D | 3,921,809 | 559,011 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13504 | 3 |
| B | 0 | 13521 | 2 |
| C | 0 | 13682 | 2 |
| D | 0 | 15687 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6131 | 29 | 0.473006% |
| B | 6131 | 55 | 0.897080% |
| C | 6131 | 39 | 0.636112% |
| D | 6131 | 92 | 1.500571% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7382 | 6133 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7382 | 6133 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7382 | 6133 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7382 | 6133 | 35 | 35 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 105557 | 638.61 | 816 | 799 | 164.0 |
| A | 8 | 15 | 32150 | 191.12 | 816 | 799 | 164.0 |
| A | 0 | 226 | 7409 | 40.29 | 816 | 799 | 164.0 |
| B | 0 | 229 | 96179 | 634.54 | 805 | 785 | 150.3 |
| B | 4 | 97 | 46318 | 302.87 | 805 | 785 | 150.3 |
| B | 0 | 189 | 19401 | 123.83 | 805 | 785 | 150.3 |
| C | 3 | 233 | 251165 | 1383.72 | 795 | 803 | 180.9 |
| C | 13 | 61 | 5379 | 25.29 | 795 | 803 | 180.9 |
| C | 14 | 234 | 5290 | 24.8 | 795 | 803 | 180.9 |
| D | 8 | 195 | 457179 | 2448.05 | 787 | 770 | 186.4 |
| D | 5 | 222 | 288305 | 1542.26 | 787 | 770 | 186.4 |
| D | 10 | 199 | 101569 | 540.66 | 787 | 770 | 186.4 |

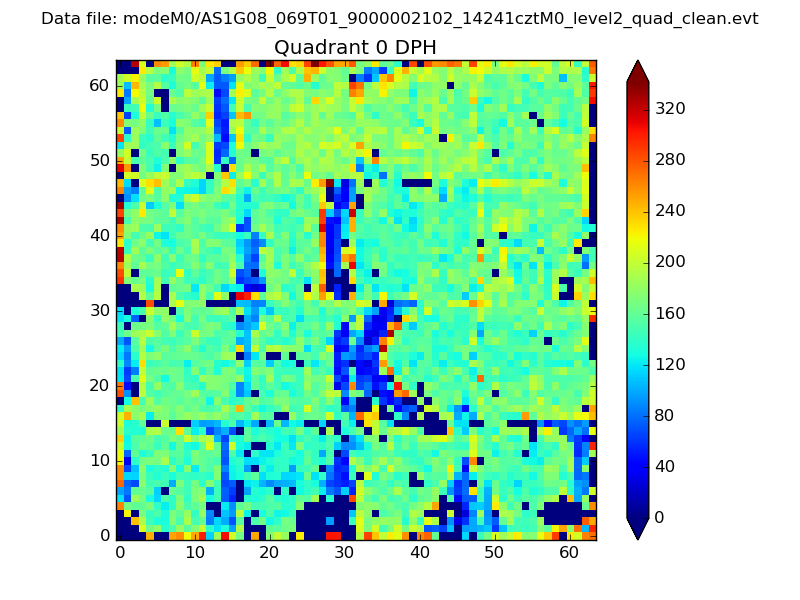

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

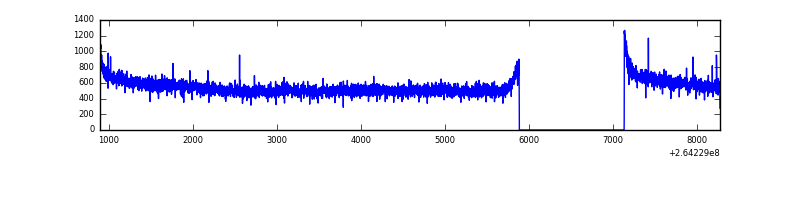

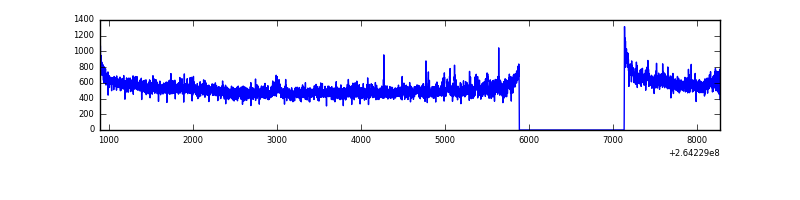

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

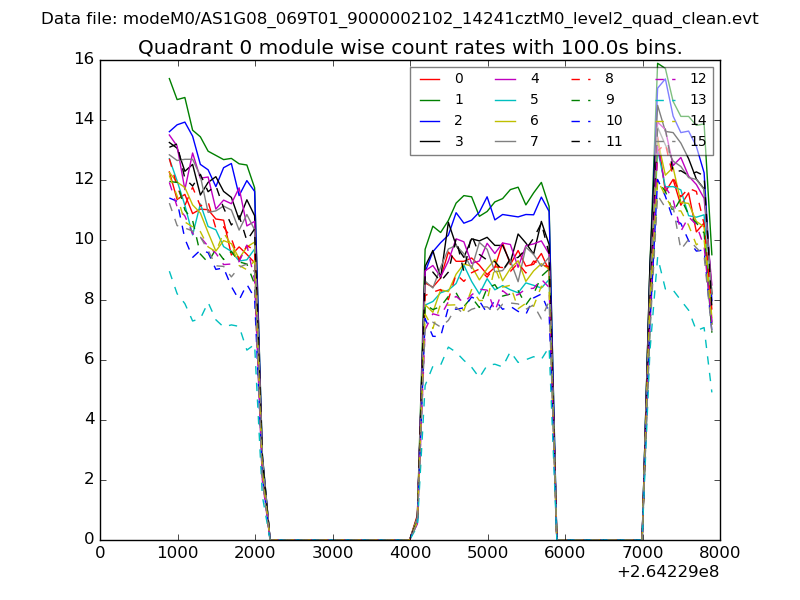

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

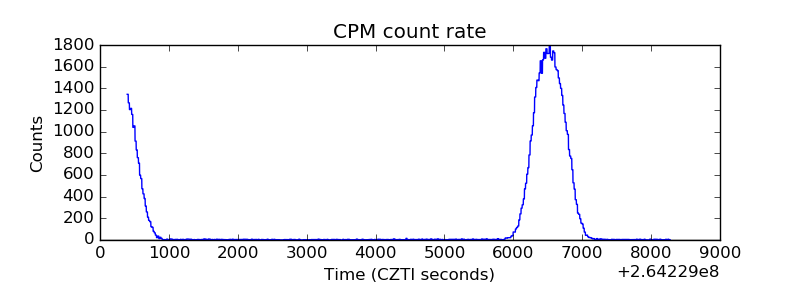

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

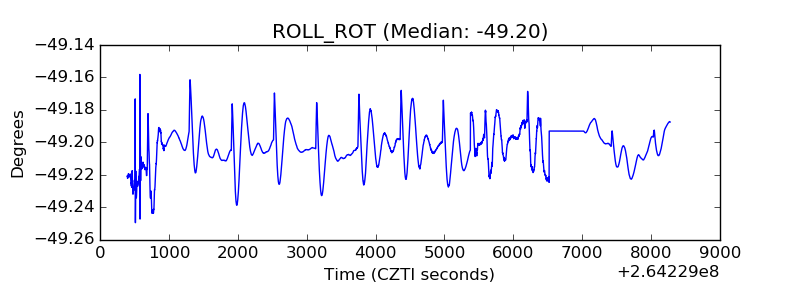

| _ROLL_ROT |  |

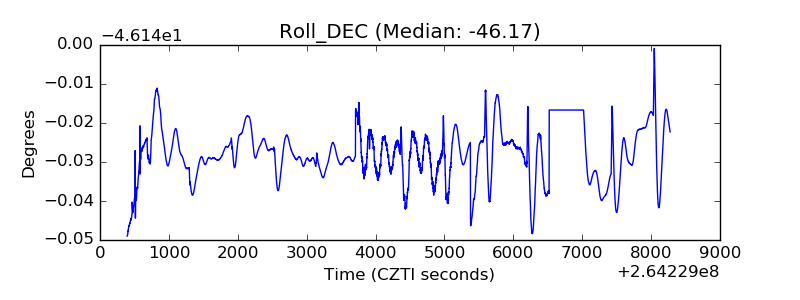

| _Roll_DEC |  |
| _Roll_RA |  |

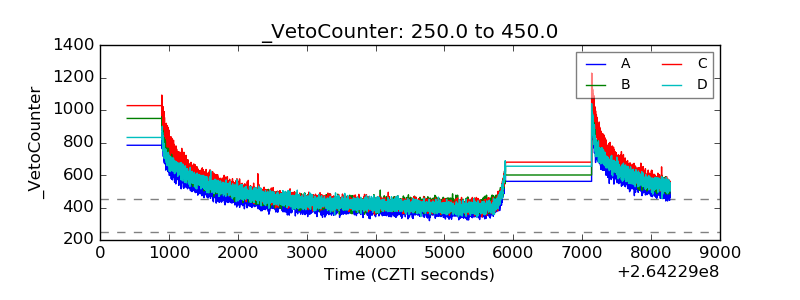

| Veto Counter |  |
