| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000002106_14294cztM0_level2.evt | modeM0/AS1A04_231T01_9000002106_14294cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,520,035,200 | 255,620,160 |
| Size | 1.4 GB | 243.8 MB |
| Events in quadrant A | 8,601,520 | 1,676,503 |
| Events in quadrant B | 9,636,014 | 1,662,528 |
| Events in quadrant C | 9,928,692 | 1,626,491 |
| Events in quadrant D | 16,636,329 | 1,517,656 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37757 | 4 |
| B | 0 | 40658 | 3 |
| C | 0 | 41153 | 3 |
| D | 0 | 62468 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18260 | 93 | 0.509310% |
| B | 18260 | 323 | 1.768894% |
| C | 18260 | 70 | 0.383352% |
| D | 18260 | 2082 | 11.401972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20111 | 18265 | 6 | 6 | 0.03% | 0.03% |  |
| B | 20111 | 18265 | 138 | 138 | 0.69% | 0.76% |  |
| C | 20111 | 18265 | 14 | 14 | 0.07% | 0.08% |  |
| D | 20111 | 18265 | 1931 | 1931 | 9.60% | 10.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 311759 | 723.43 | 2116 | 2071 | 428.1 |
| A | 8 | 15 | 73259 | 166.3 | 2116 | 2071 | 428.1 |
| A | 0 | 23 | 39791 | 88.11 | 2116 | 2071 | 428.1 |
| B | 0 | 229 | 521772 | 1305.69 | 2096 | 2041 | 398.0 |
| B | 10 | 245 | 393896 | 984.44 | 2096 | 2041 | 398.0 |
| B | 0 | 182 | 221971 | 552.52 | 2096 | 2041 | 398.0 |
| C | 3 | 233 | 1980672 | 4210.64 | 2028 | 2038 | 469.9 |
| C | 0 | 207 | 24410 | 47.61 | 2028 | 2038 | 469.9 |
| C | 13 | 61 | 14601 | 26.73 | 2028 | 2038 | 469.9 |
| D | 13 | 122 | 5927337 | 12711.24 | 1962 | 1914 | 466.2 |
| D | 12 | 110 | 894869 | 1915.57 | 1962 | 1914 | 466.2 |
| D | 1 | 52 | 763468 | 1633.69 | 1962 | 1914 | 466.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

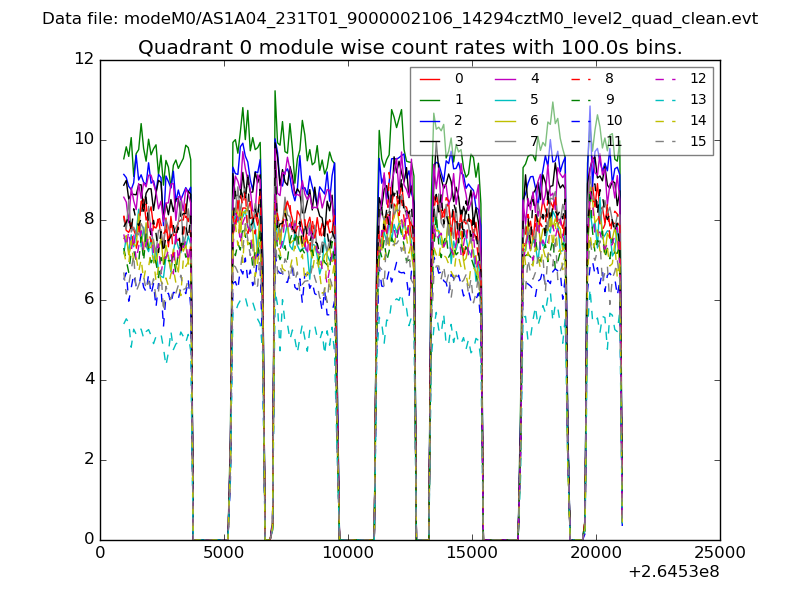

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

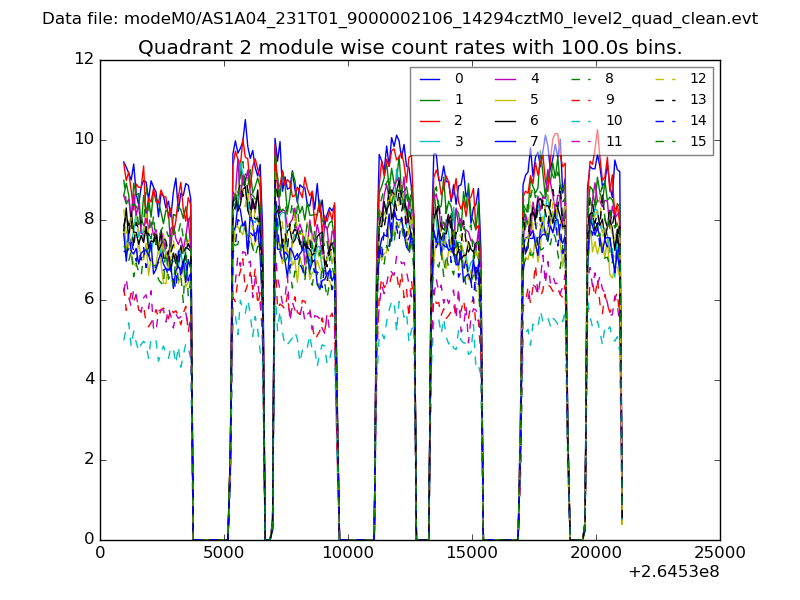

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

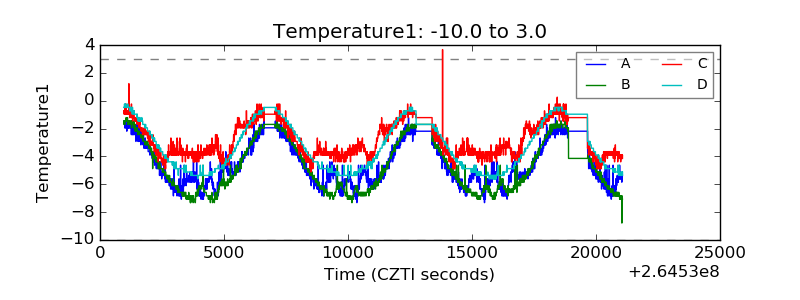

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

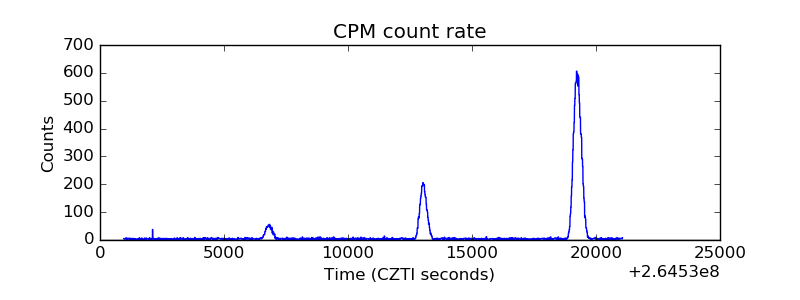

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

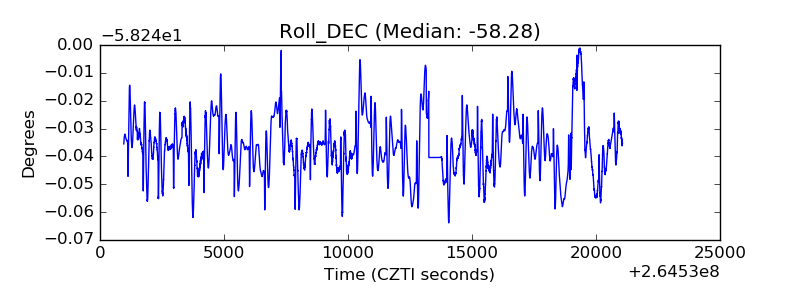

| _Roll_DEC |  |
| _Roll_RA |  |

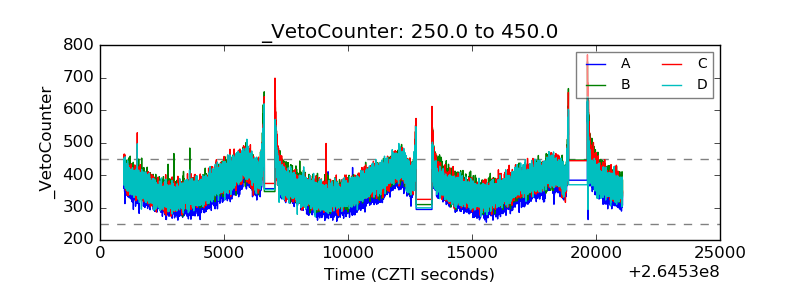

| Veto Counter |  |
