| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000002106_14295cztM0_level2.evt | modeM0/AS1A04_231T01_9000002106_14295cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,482,880 | 103,222,080 |
| Size | 478.3 MB | 98.4 MB |
| Events in quadrant A | 3,310,368 | 673,404 |
| Events in quadrant B | 3,925,668 | 668,081 |
| Events in quadrant C | 3,590,112 | 659,254 |
| Events in quadrant D | 3,886,191 | 637,790 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14407 | 3 |
| B | 0 | 16246 | 2 |
| C | 0 | 14765 | 2 |
| D | 0 | 16475 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6996 | 56 | 0.800457% |
| B | 6996 | 203 | 2.901658% |
| C | 6996 | 36 | 0.514580% |
| D | 6996 | 214 | 3.058891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

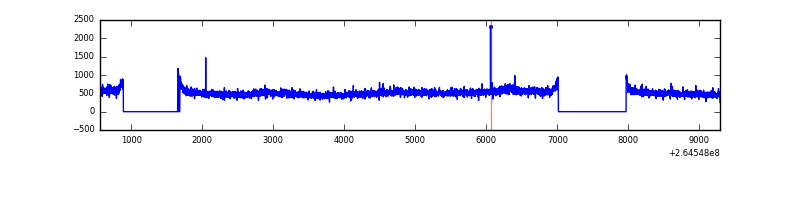

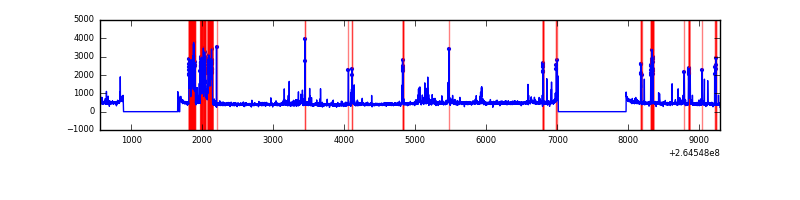

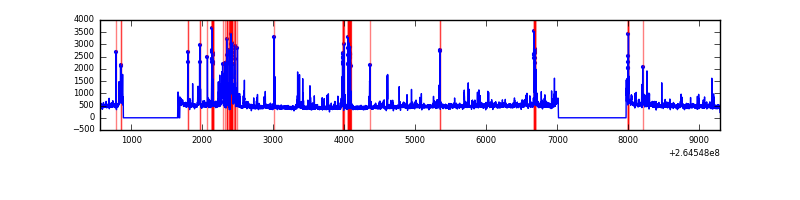

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8732 | 7000 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8732 | 7000 | 103 | 103 | 1.18% | 1.47% |  |
| C | 8732 | 7000 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8732 | 7000 | 192 | 192 | 2.20% | 2.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 59300 | 348.65 | 823 | 806 | 167.8 |
| A | 12 | 189 | 39304 | 229.46 | 823 | 806 | 167.8 |
| A | 8 | 15 | 21230 | 121.74 | 823 | 806 | 167.8 |
| B | 0 | 229 | 290614 | 1853.89 | 815 | 793 | 156.3 |
| B | 10 | 245 | 229716 | 1464.34 | 815 | 793 | 156.3 |
| B | 4 | 48 | 86304 | 546.98 | 815 | 793 | 156.3 |
| C | 3 | 233 | 494645 | 2679.82 | 792 | 794 | 184.3 |
| C | 13 | 61 | 5645 | 26.32 | 792 | 794 | 184.3 |
| C | 10 | 22 | 5401 | 25.0 | 792 | 794 | 184.3 |
| D | 12 | 110 | 606366 | 3230.43 | 784 | 763 | 187.5 |
| D | 10 | 199 | 108949 | 577.09 | 784 | 763 | 187.5 |
| D | 2 | 152 | 64263 | 338.72 | 784 | 763 | 187.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

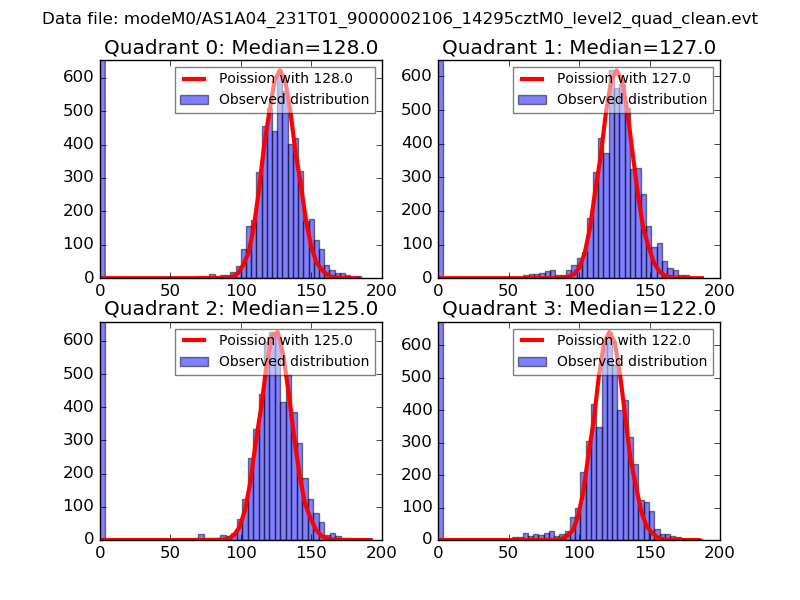

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

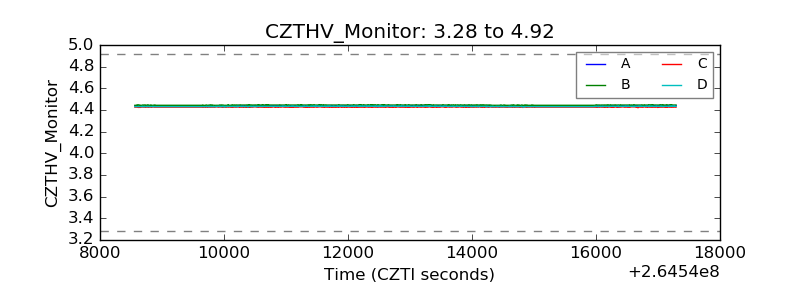

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

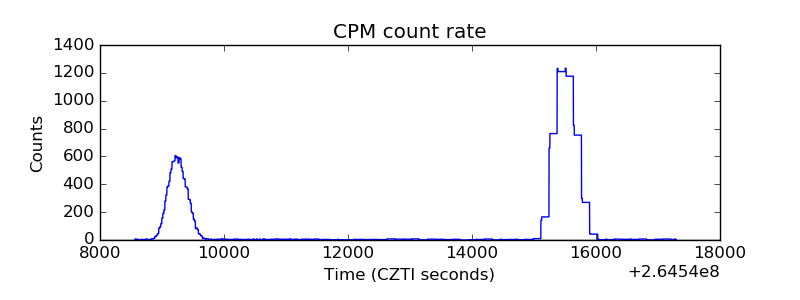

| _CPM_Rate |  |

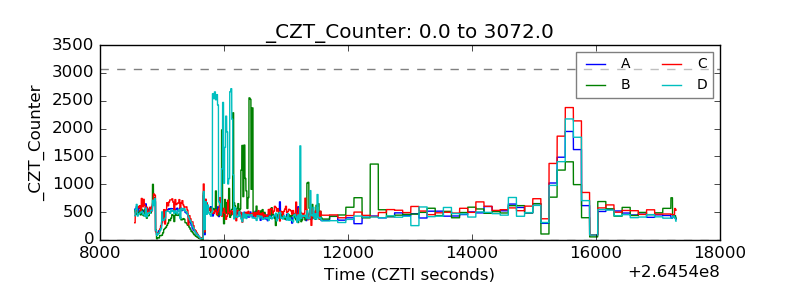

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

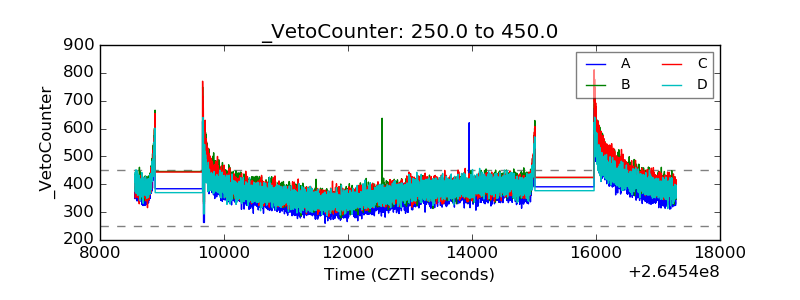

| Veto Counter |  |
