| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000002106_14296cztM0_level2.evt | modeM0/AS1A04_231T01_9000002106_14296cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,774,720 | 90,529,920 |
| Size | 455.6 MB | 86.3 MB |
| Events in quadrant A | 3,177,259 | 576,973 |
| Events in quadrant B | 3,697,653 | 575,459 |
| Events in quadrant C | 3,676,859 | 568,041 |
| Events in quadrant D | 3,465,488 | 556,721 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13670 | 3 |
| B | 0 | 15332 | 2 |
| C | 0 | 15138 | 2 |
| D | 0 | 14863 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6658 | 12 | 0.180234% |
| B | 6658 | 107 | 1.607089% |
| C | 6658 | 18 | 0.270351% |
| D | 6658 | 47 | 0.705918% |

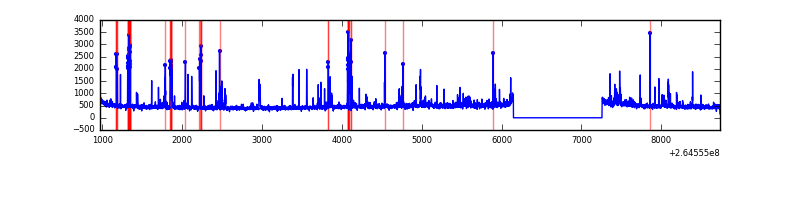

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 6660 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7769 | 6660 | 53 | 53 | 0.68% | 0.80% |  |
| C | 7769 | 6660 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7769 | 6660 | 50 | 50 | 0.64% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 44096 | 269.86 | 793 | 777 | 160.5 |
| A | 0 | 23 | 33441 | 203.48 | 793 | 777 | 160.5 |
| A | 12 | 189 | 30367 | 184.33 | 793 | 777 | 160.5 |
| B | 0 | 229 | 221362 | 1482.37 | 793 | 774 | 148.8 |
| B | 4 | 48 | 115112 | 768.36 | 793 | 774 | 148.8 |
| B | 10 | 244 | 86558 | 576.48 | 793 | 774 | 148.8 |
| C | 3 | 233 | 660612 | 3700.36 | 773 | 778 | 178.3 |
| C | 13 | 61 | 5579 | 26.92 | 773 | 778 | 178.3 |
| C | 3 | 232 | 2359 | 8.87 | 773 | 778 | 178.3 |
| D | 12 | 110 | 214971 | 1182.78 | 766 | 748 | 181.1 |
| D | 5 | 222 | 148852 | 817.72 | 766 | 748 | 181.1 |
| D | 2 | 152 | 47403 | 257.59 | 766 | 748 | 181.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

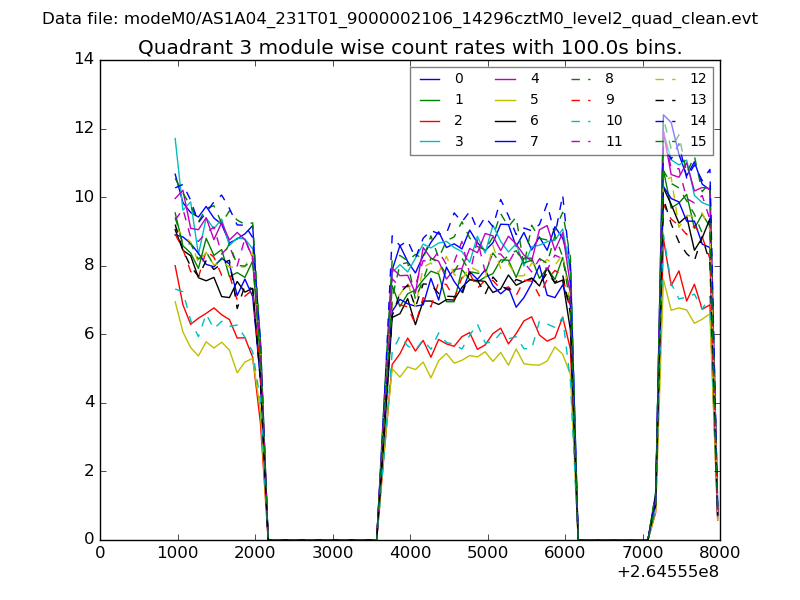

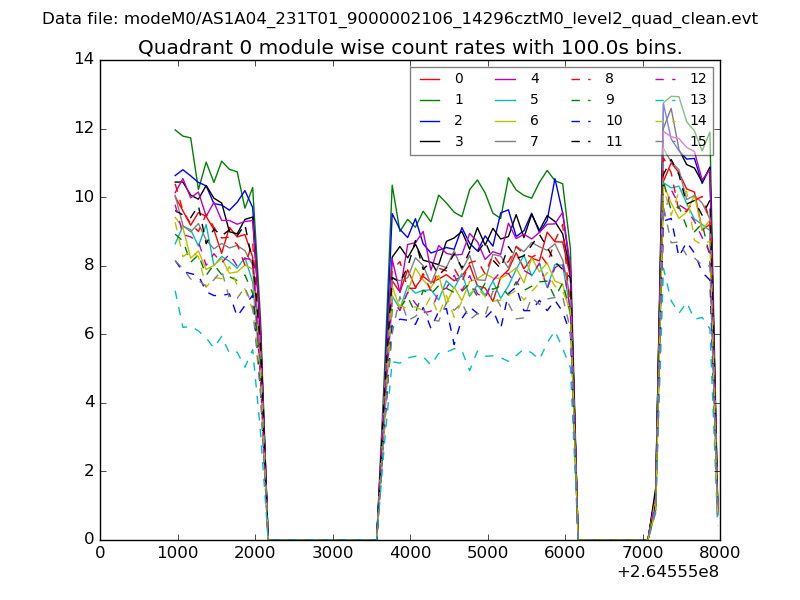

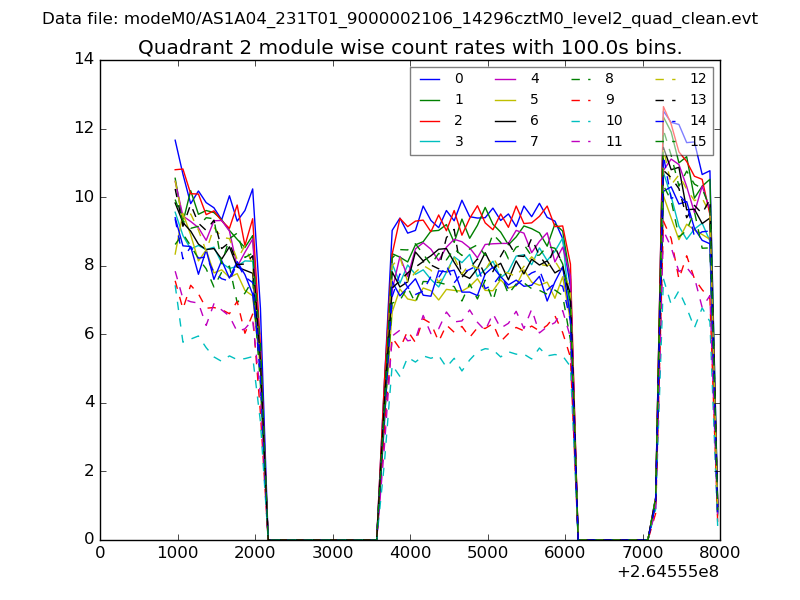

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

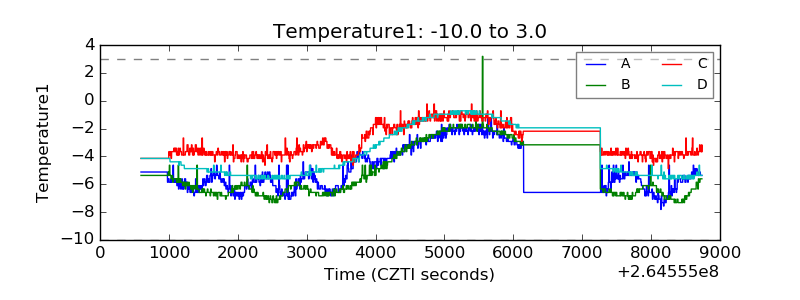

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

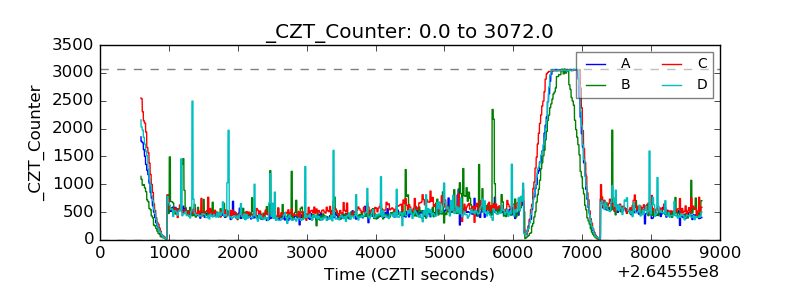

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

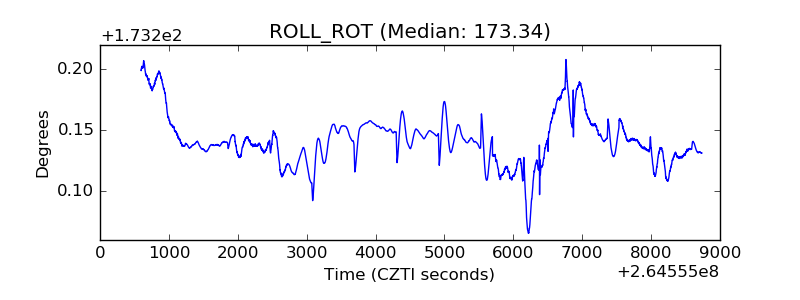

| _ROLL_ROT |  |

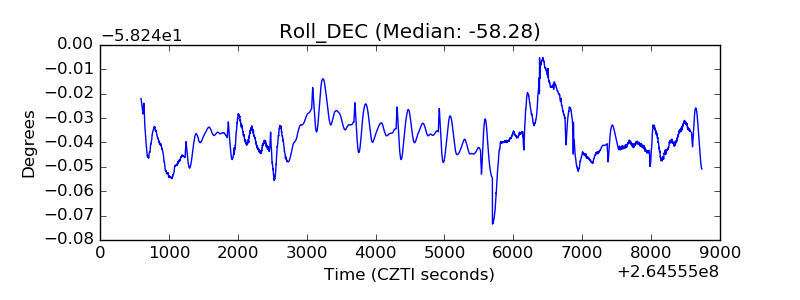

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
