| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000002106_14300cztM0_level2.evt | modeM0/AS1A04_231T01_9000002106_14300cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,877,440 | 78,949,440 |
| Size | 452.9 MB | 75.3 MB |
| Events in quadrant A | 3,118,072 | 496,979 |
| Events in quadrant B | 3,497,111 | 499,080 |
| Events in quadrant C | 3,408,019 | 499,079 |
| Events in quadrant D | 3,955,661 | 480,895 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12712 | 2 |
| B | 0 | 14010 | 1 |
| C | 0 | 13833 | 1 |
| D | 0 | 15456 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5937 | 67 | 1.128516% |
| B | 5937 | 159 | 2.678120% |
| C | 5937 | 69 | 1.162203% |
| D | 5937 | 195 | 3.284487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

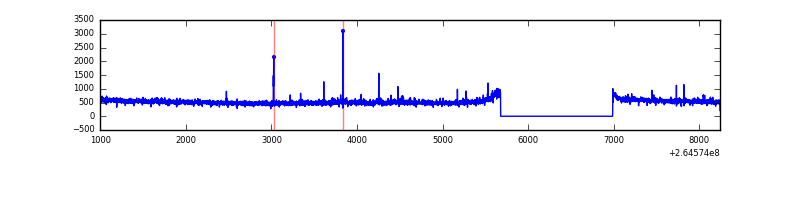

| A | 7248 | 5939 | 2 | 2 | 0.03% | 0.03% |  |

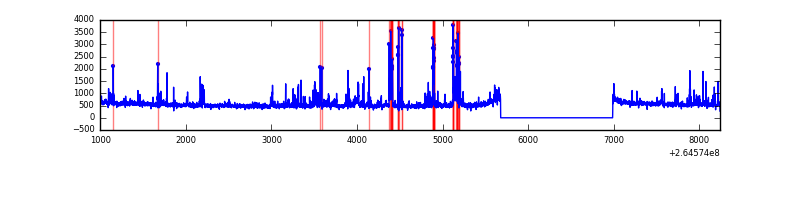

| B | 7248 | 5939 | 45 | 45 | 0.62% | 0.76% |  |
| C | 7248 | 5939 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7248 | 5939 | 177 | 177 | 2.44% | 2.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 51314 | 323.45 | 785 | 770 | 156.3 |
| A | 8 | 15 | 32010 | 199.91 | 785 | 770 | 156.3 |
| A | 4 | 2 | 11737 | 70.18 | 785 | 770 | 156.3 |
| B | 10 | 245 | 210274 | 1468.78 | 776 | 759 | 142.6 |
| B | 0 | 229 | 124015 | 864.07 | 776 | 759 | 142.6 |
| B | 4 | 142 | 51918 | 358.64 | 776 | 759 | 142.6 |
| C | 3 | 233 | 406836 | 2347.79 | 768 | 772 | 173.0 |
| C | 13 | 61 | 5607 | 27.96 | 768 | 772 | 173.0 |
| C | 14 | 234 | 4070 | 19.07 | 768 | 772 | 173.0 |
| D | 5 | 222 | 660265 | 3665.78 | 763 | 746 | 179.9 |
| D | 12 | 110 | 250212 | 1386.6 | 763 | 746 | 179.9 |
| D | 2 | 14 | 78009 | 429.45 | 763 | 746 | 179.9 |

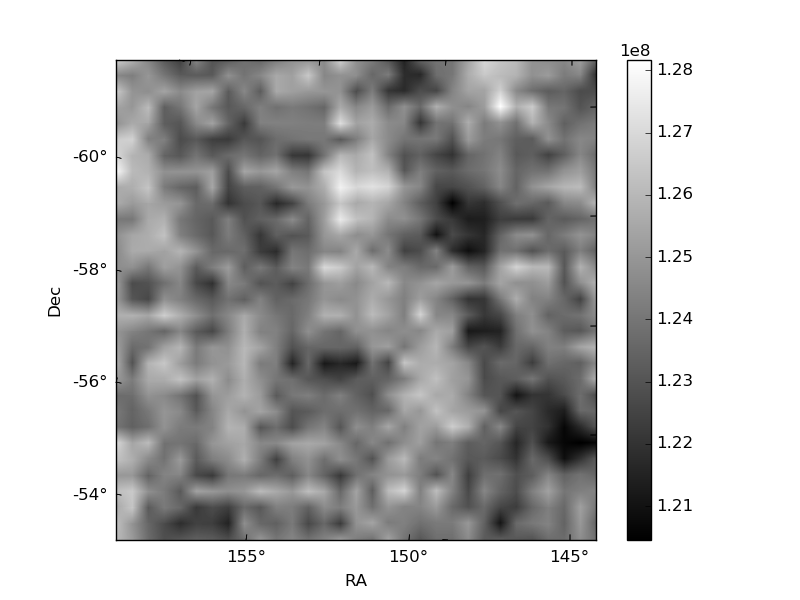

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

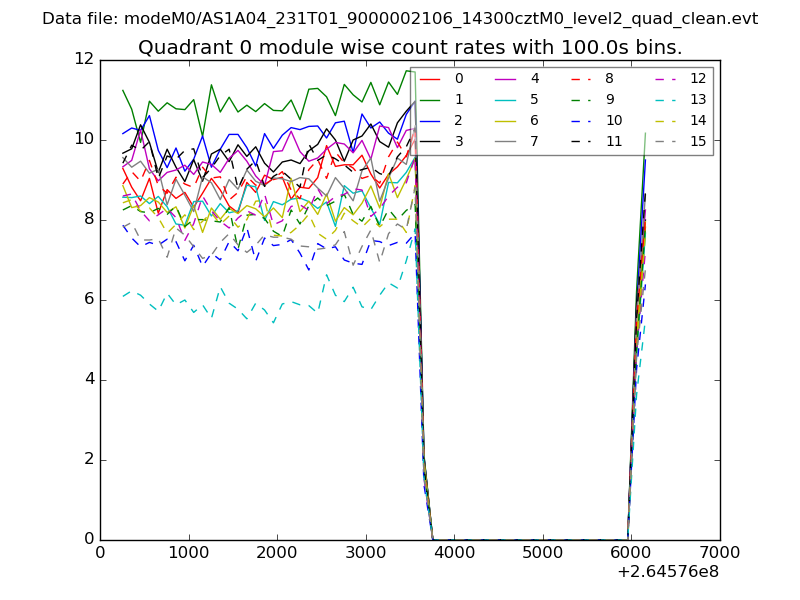

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

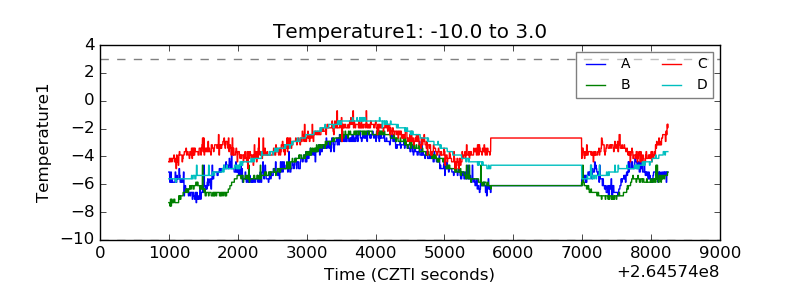

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

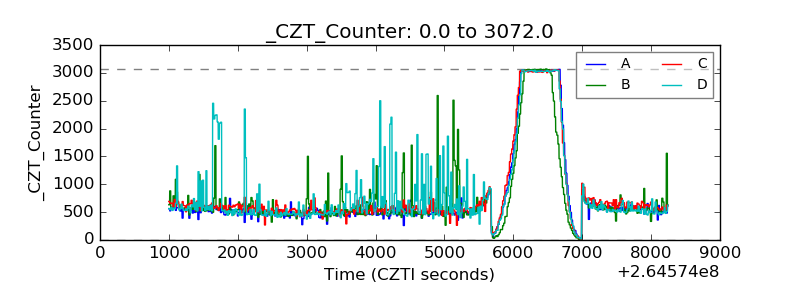

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

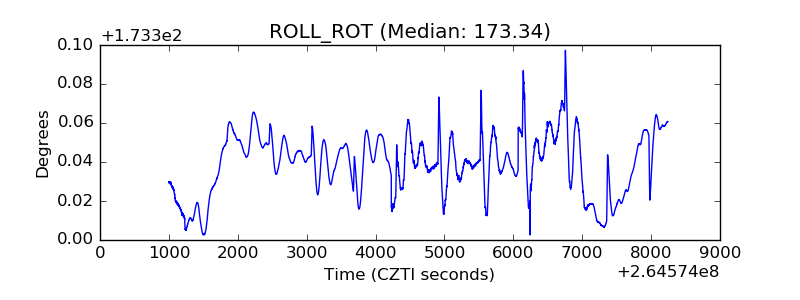

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
