| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002114_14354cztM0_level2.evt | modeM0/AS1A04_048T01_9000002114_14354cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,738,880 | 92,652,480 |
| Size | 483.3 MB | 88.4 MB |
| Events in quadrant A | 3,150,515 | 600,299 |
| Events in quadrant B | 3,581,859 | 604,338 |
| Events in quadrant C | 3,563,987 | 585,234 |
| Events in quadrant D | 4,607,536 | 560,736 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13603 | 3 |
| B | 0 | 14917 | 2 |
| C | 0 | 14505 | 2 |
| D | 0 | 17992 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6521 | 27 | 0.414047% |
| B | 6521 | 116 | 1.778868% |
| C | 6521 | 21 | 0.322036% |
| D | 6521 | 141 | 2.162245% |

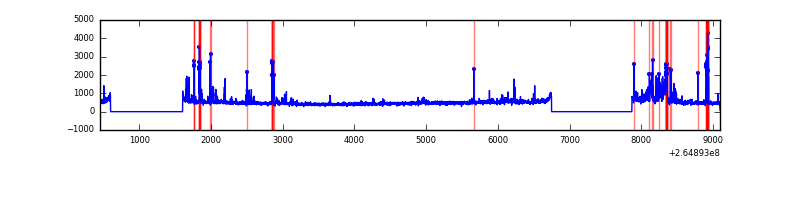

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8647 | 6524 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8647 | 6523 | 59 | 59 | 0.68% | 0.90% |  |
| C | 8647 | 6524 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8647 | 6524 | 137 | 137 | 1.58% | 2.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 105005 | 648.42 | 788 | 772 | 160.7 |
| A | 11 | 29 | 7518 | 41.97 | 788 | 772 | 160.7 |
| A | 0 | 226 | 6845 | 37.78 | 788 | 772 | 160.7 |
| B | 0 | 229 | 233792 | 1547.4 | 787 | 767 | 150.6 |
| B | 15 | 222 | 142640 | 942.11 | 787 | 767 | 150.6 |
| B | 10 | 16 | 26695 | 172.18 | 787 | 767 | 150.6 |
| C | 3 | 233 | 594668 | 3369.09 | 760 | 763 | 176.3 |
| C | 13 | 61 | 5511 | 26.93 | 760 | 763 | 176.3 |
| C | 3 | 232 | 3898 | 17.78 | 760 | 763 | 176.3 |
| D | 12 | 110 | 640977 | 3616.14 | 748 | 732 | 177.1 |
| D | 5 | 222 | 327955 | 1848.17 | 748 | 732 | 177.1 |
| D | 10 | 199 | 252551 | 1422.29 | 748 | 732 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

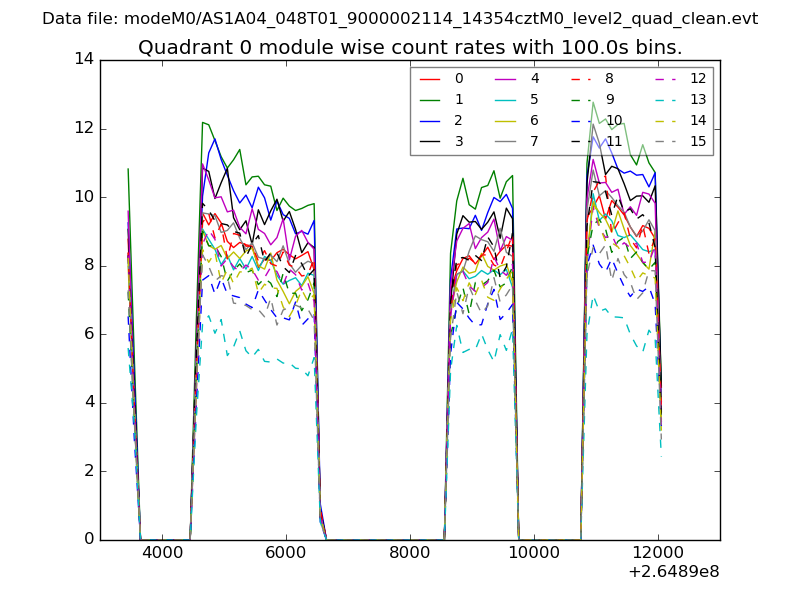

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

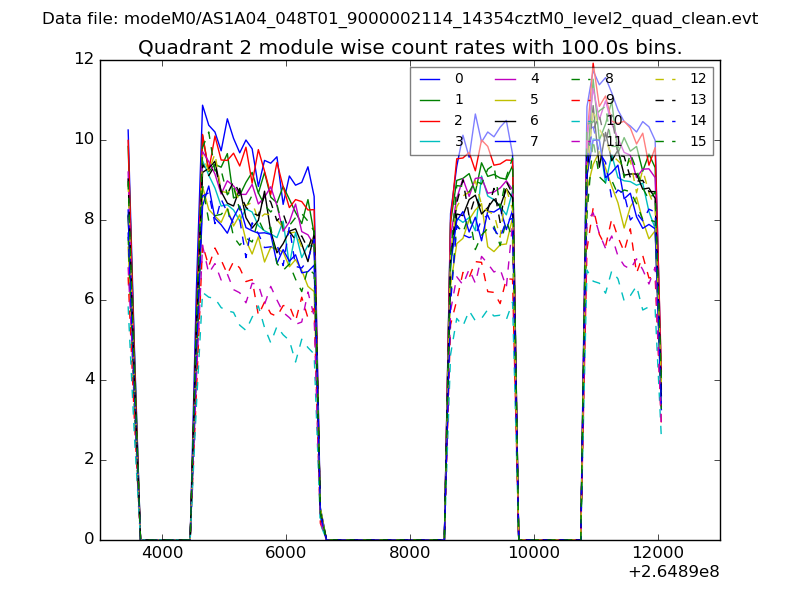

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

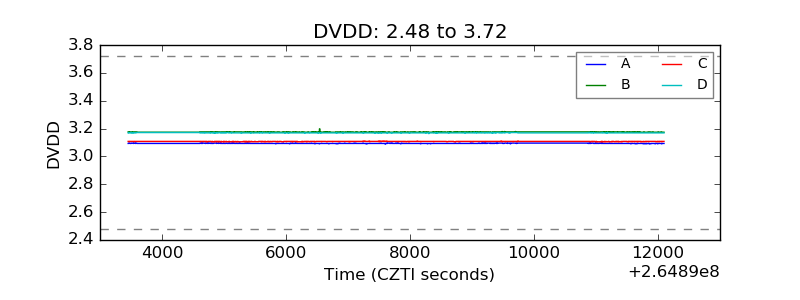

| D_VDD |  |

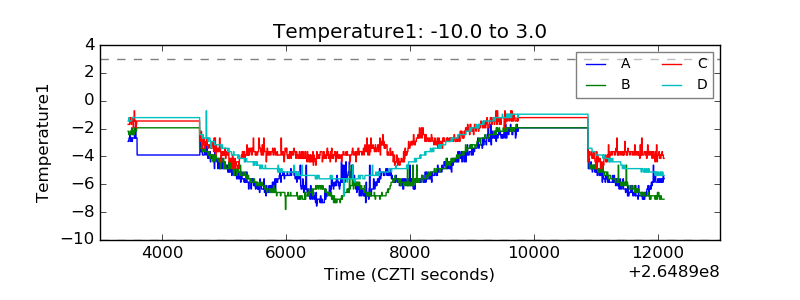

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

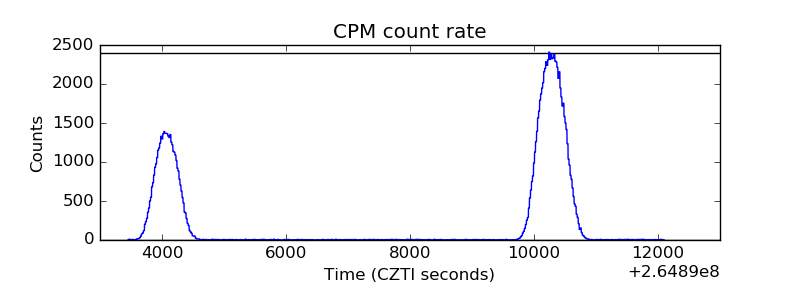

| _CPM_Rate |  |

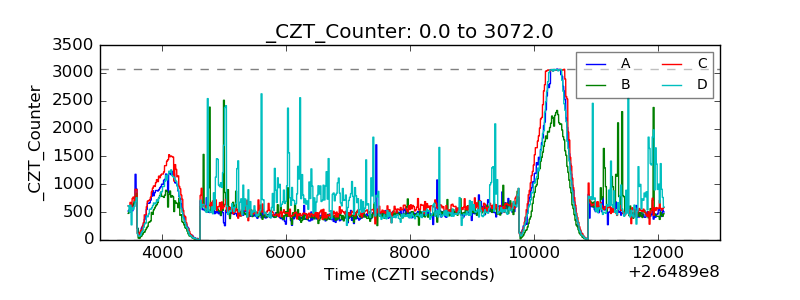

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

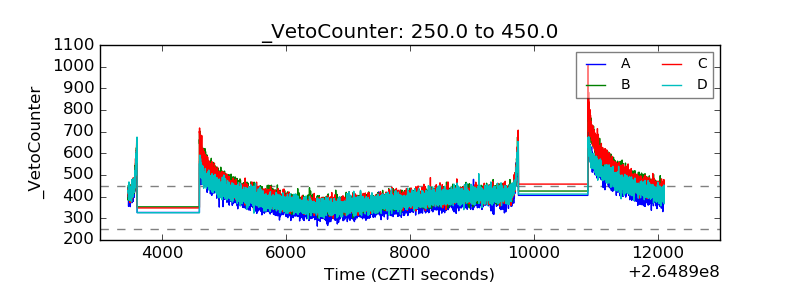

| Veto Counter |  |
