| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002114_14359cztM0_level2.evt | modeM0/AS1A04_048T01_9000002114_14359cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,812,160 | 68,477,760 |
| Size | 490.0 MB | 65.3 MB |
| Events in quadrant A | 3,233,666 | 412,600 |
| Events in quadrant B | 4,231,793 | 410,827 |
| Events in quadrant C | 3,895,952 | 410,272 |
| Events in quadrant D | 3,768,630 | 396,346 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13260 | 3 |
| B | 0 | 16513 | 2 |
| C | 0 | 16160 | 2 |
| D | 0 | 15057 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6354 | 73 | 1.148883% |
| B | 6354 | 327 | 5.146364% |
| C | 6354 | 89 | 1.400692% |
| D | 6354 | 120 | 1.888574% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

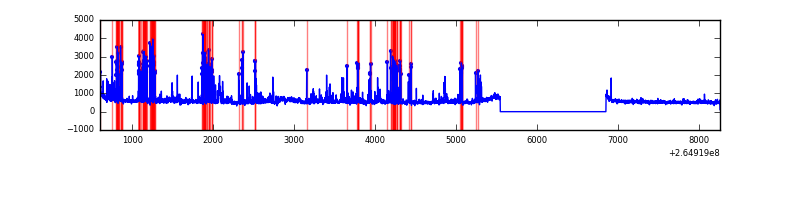

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6355 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7661 | 6355 | 170 | 170 | 2.22% | 2.68% |  |
| C | 7661 | 6355 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7661 | 6355 | 39 | 39 | 0.51% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 14282 | 81.13 | 834 | 819 | 165.9 |
| A | 8 | 15 | 7931 | 42.86 | 834 | 819 | 165.9 |
| A | 0 | 226 | 7329 | 39.23 | 834 | 819 | 165.9 |
| B | 10 | 16 | 559122 | 3628.08 | 826 | 807 | 153.9 |
| B | 0 | 229 | 218590 | 1415.21 | 826 | 807 | 153.9 |
| B | 10 | 245 | 146018 | 943.62 | 826 | 807 | 153.9 |
| C | 3 | 233 | 680887 | 3647.82 | 821 | 826 | 186.4 |
| C | 3 | 232 | 8500 | 41.16 | 821 | 826 | 186.4 |
| C | 3 | 234 | 7337 | 34.92 | 821 | 826 | 186.4 |
| D | 1 | 52 | 328732 | 1721.89 | 810 | 791 | 190.5 |
| D | 2 | 120 | 143763 | 750.69 | 810 | 791 | 190.5 |
| D | 5 | 222 | 115286 | 601.17 | 810 | 791 | 190.5 |

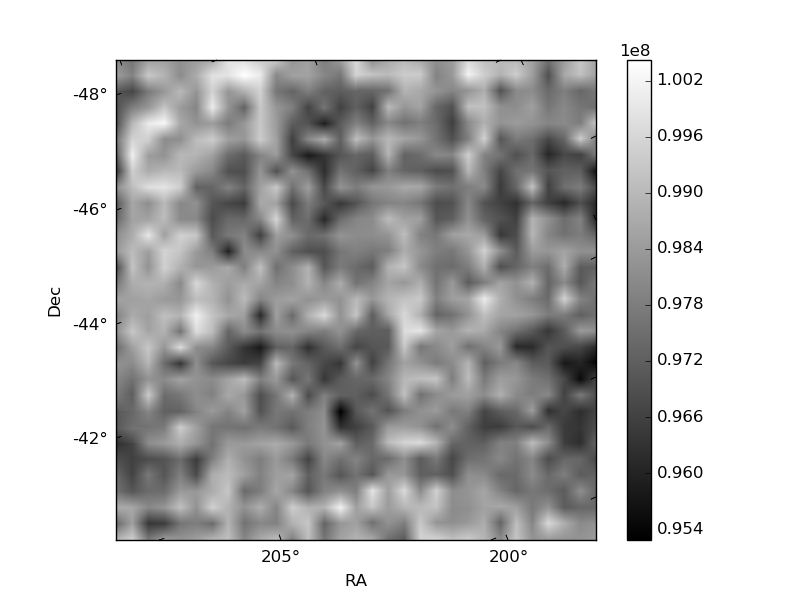

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

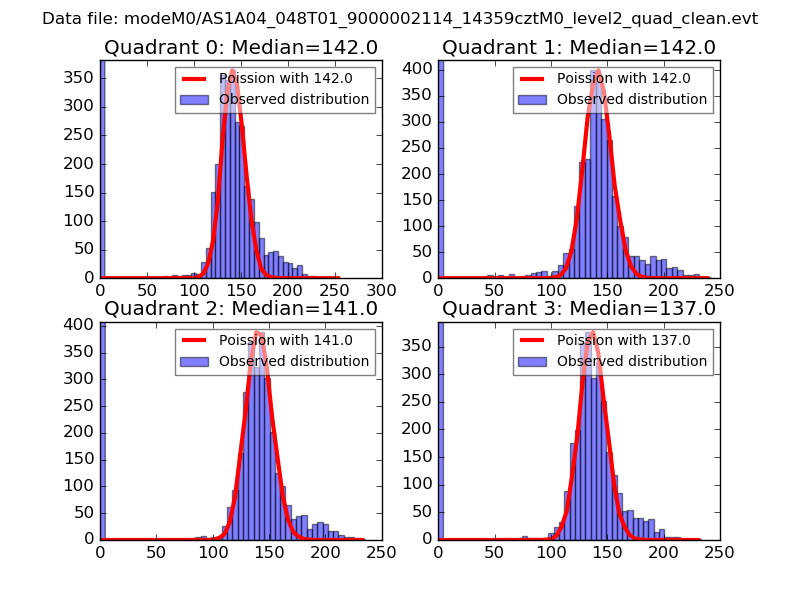

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

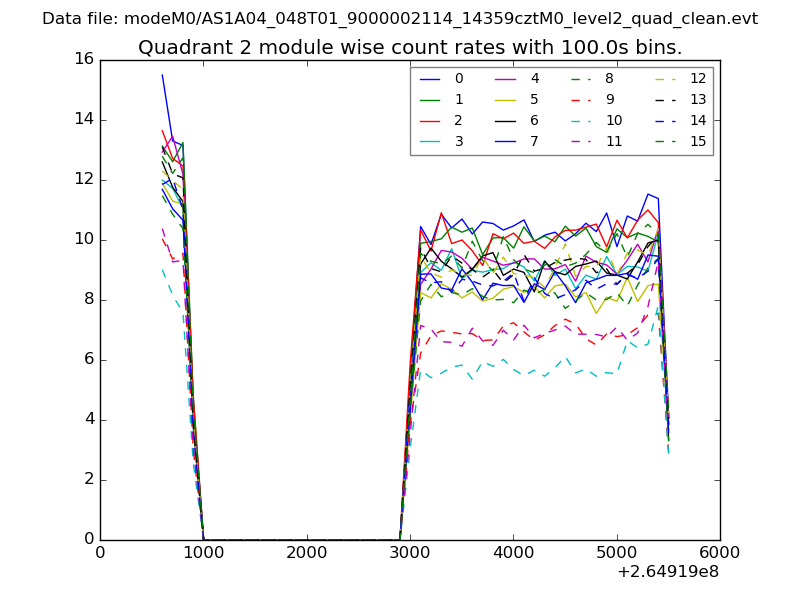

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

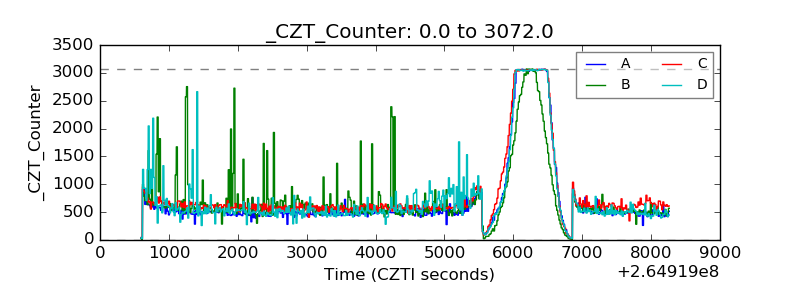

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

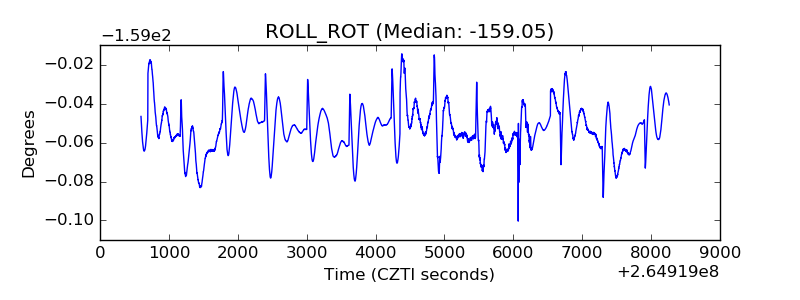

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

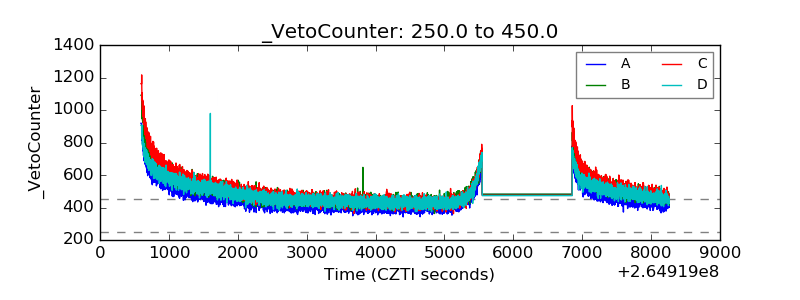

| Veto Counter |  |
