| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002114_14361cztM0_level2.evt | modeM0/AS1A04_048T01_9000002114_14361cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,192,640 | 81,293,760 |
| Size | 528.5 MB | 77.5 MB |
| Events in quadrant A | 3,455,597 | 502,979 |
| Events in quadrant B | 3,904,510 | 499,397 |
| Events in quadrant C | 4,257,510 | 491,605 |
| Events in quadrant D | 4,694,364 | 483,119 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14659 | 3 |
| B | 0 | 15938 | 2 |
| C | 0 | 17410 | 2 |
| D | 0 | 18606 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6960 | 195 | 2.801724% |
| B | 6960 | 316 | 4.540230% |
| C | 6960 | 204 | 2.931034% |
| D | 6960 | 395 | 5.675287% |

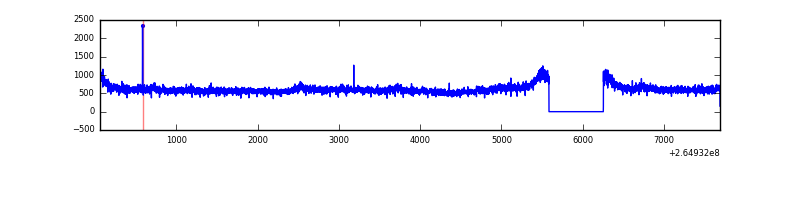

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

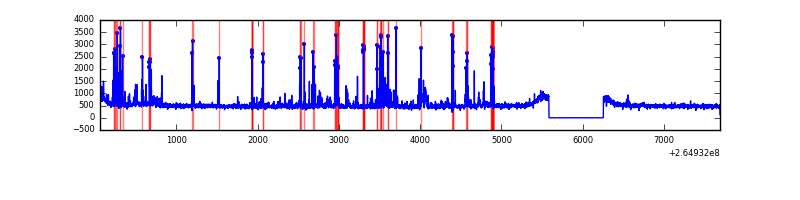

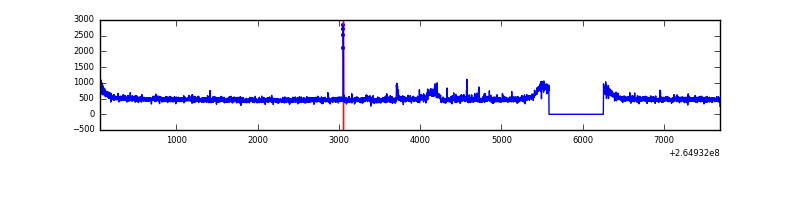

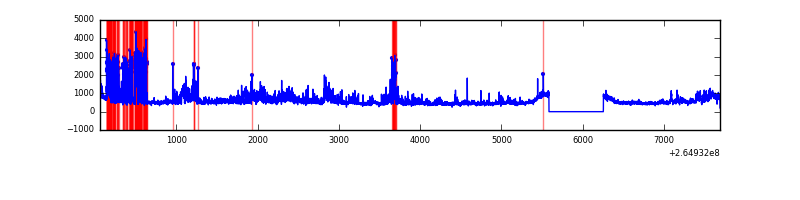

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6961 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7631 | 6961 | 80 | 80 | 1.05% | 1.15% |  |
| C | 7631 | 6961 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7631 | 6961 | 198 | 198 | 2.59% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 99218 | 561.16 | 867 | 849 | 175.3 |
| A | 4 | 2 | 11755 | 62.22 | 867 | 849 | 175.3 |
| A | 8 | 15 | 8171 | 41.77 | 867 | 849 | 175.3 |
| B | 10 | 16 | 285097 | 1723.09 | 858 | 836 | 165.0 |
| B | 0 | 229 | 190303 | 1148.48 | 858 | 836 | 165.0 |
| B | 0 | 189 | 34828 | 206.05 | 858 | 836 | 165.0 |
| C | 3 | 233 | 950115 | 4887.77 | 842 | 844 | 194.2 |
| C | 3 | 232 | 10080 | 47.55 | 842 | 844 | 194.2 |
| C | 3 | 234 | 9668 | 45.43 | 842 | 844 | 194.2 |
| D | 5 | 222 | 1199948 | 6086.21 | 829 | 810 | 197.0 |
| D | 1 | 52 | 251621 | 1272.99 | 829 | 810 | 197.0 |
| D | 2 | 120 | 58309 | 291.84 | 829 | 810 | 197.0 |

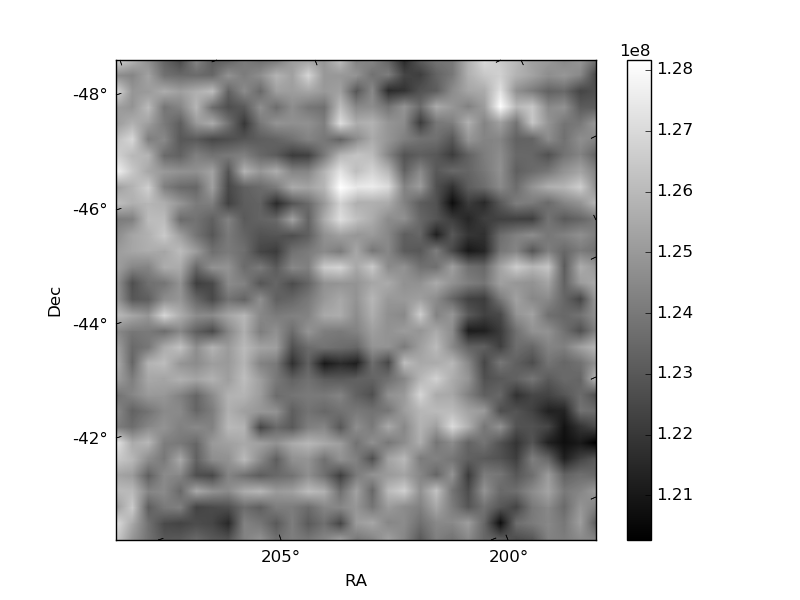

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

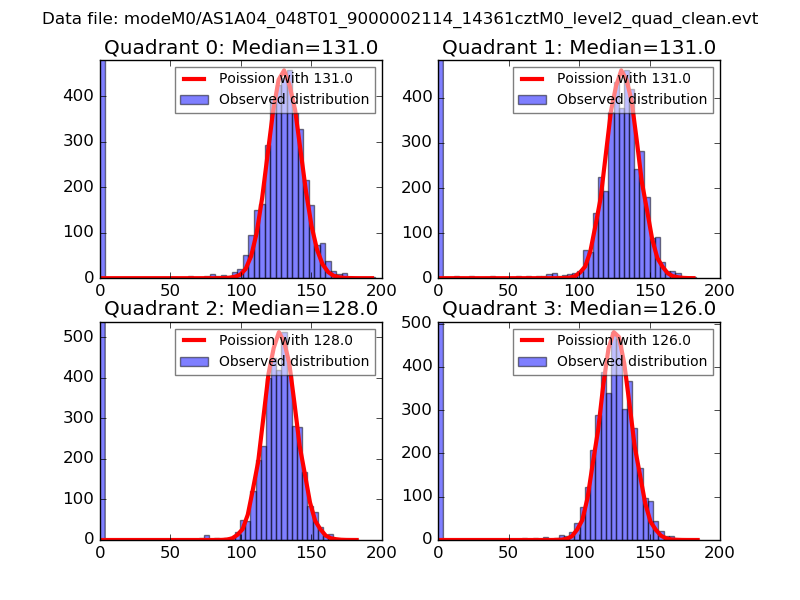

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

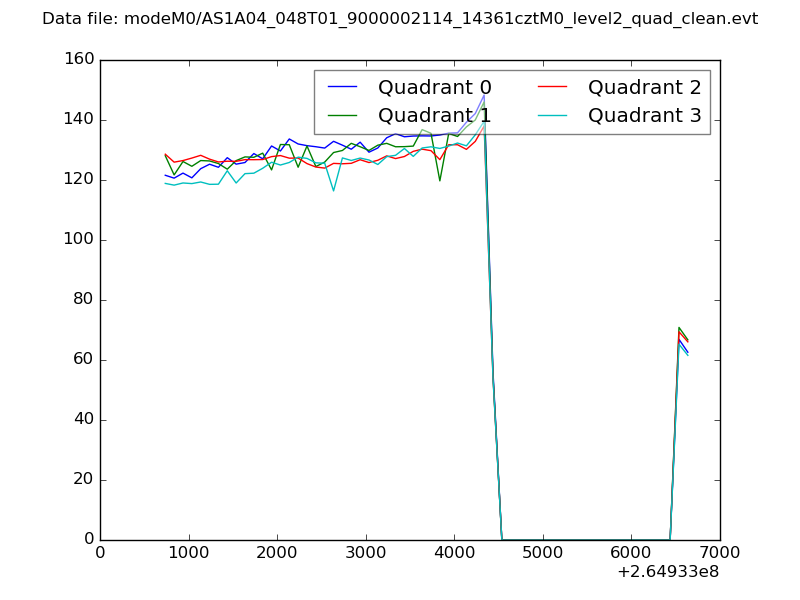

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

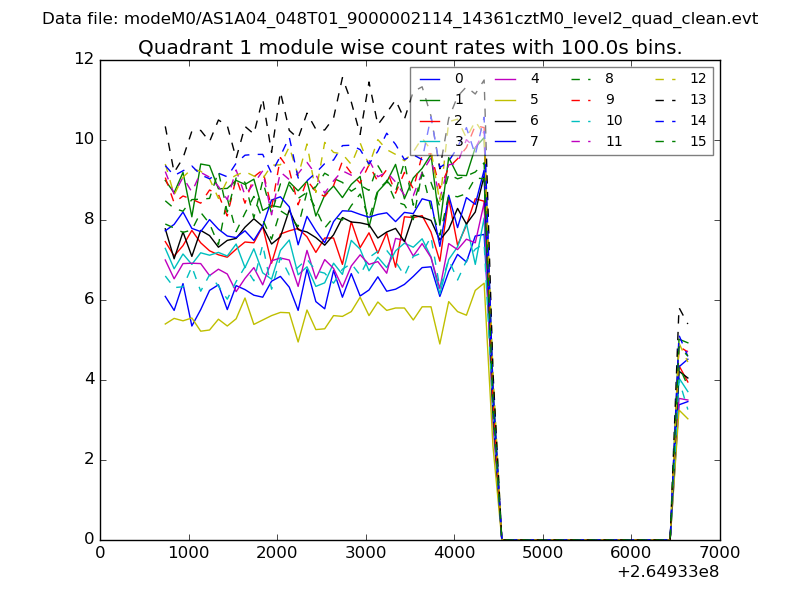

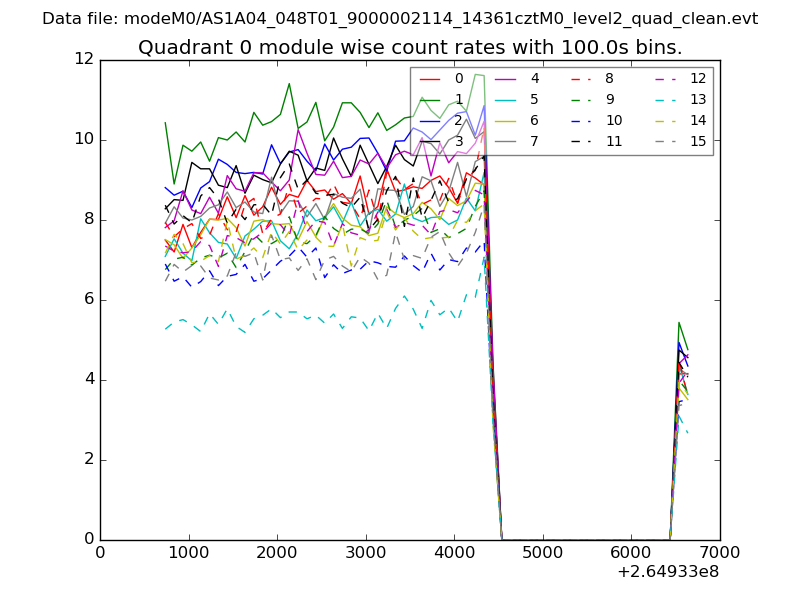

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

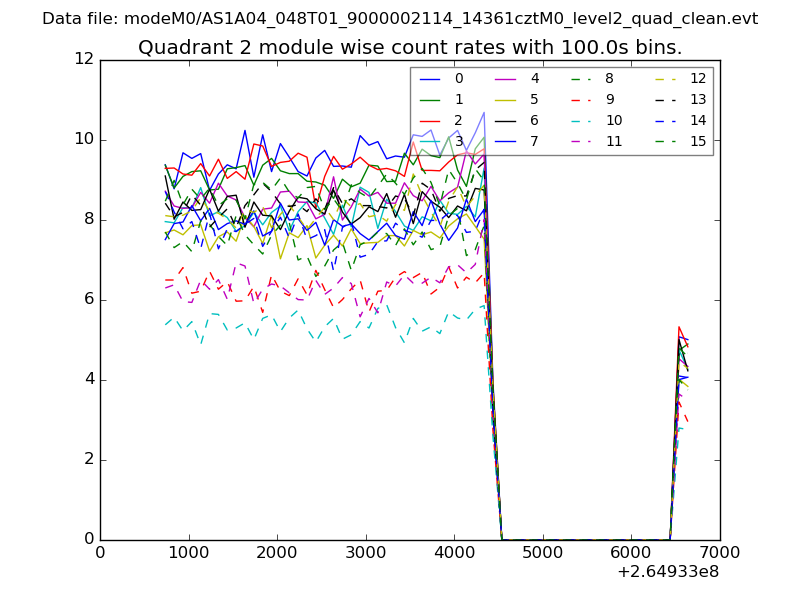

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

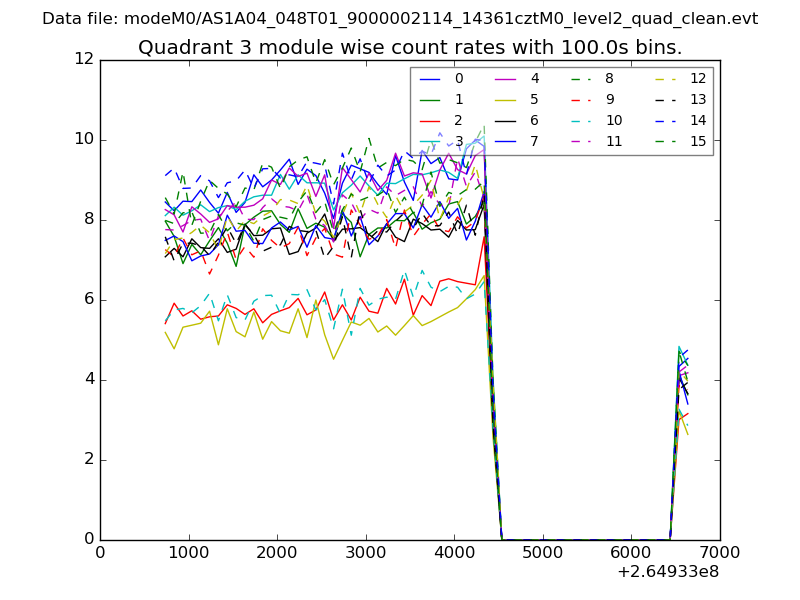

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

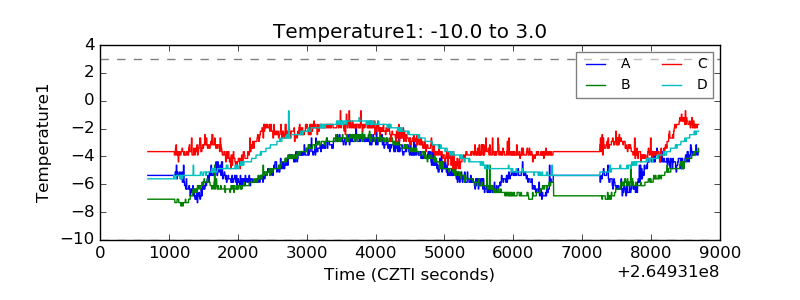

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

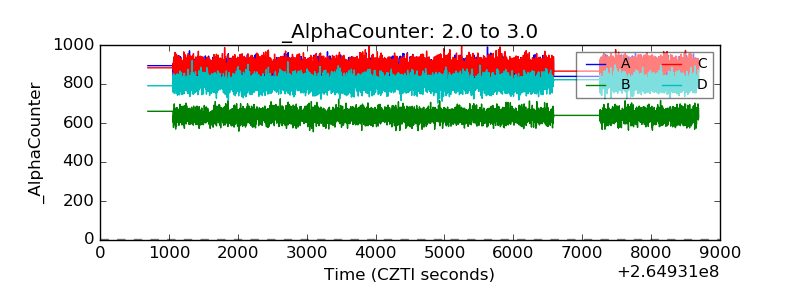

| Alpha Counter |  |

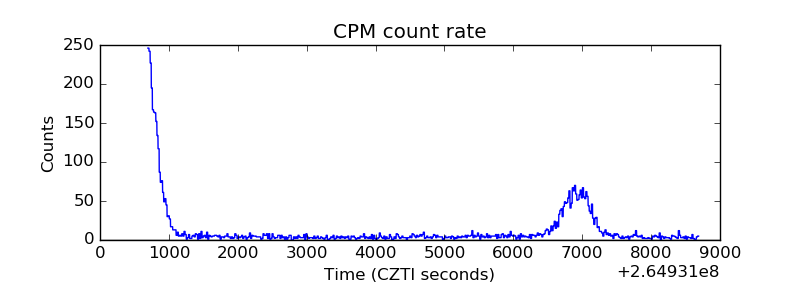

| _CPM_Rate |  |

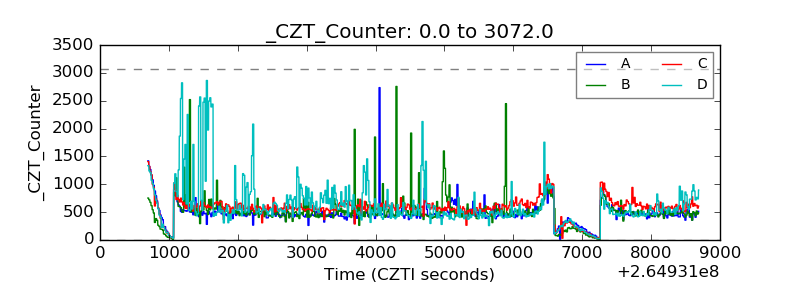

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

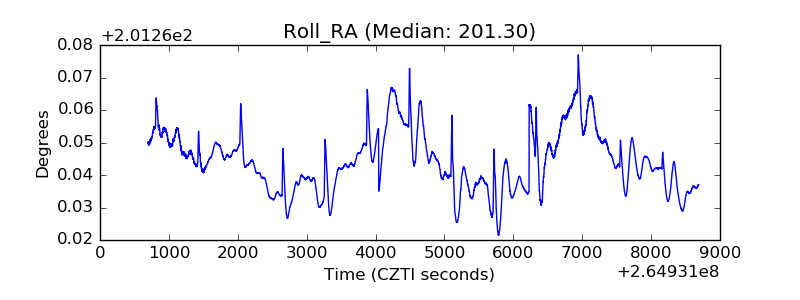

| _ROLL_ROT |  |

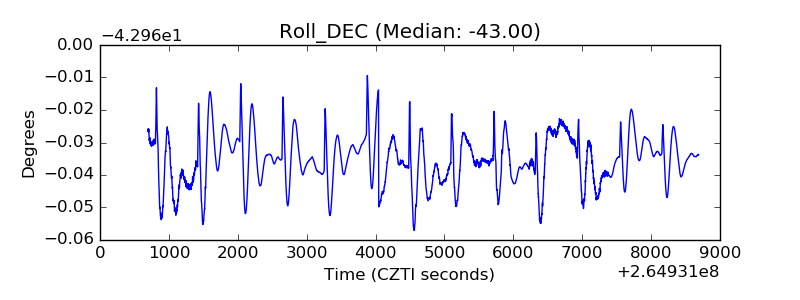

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
