| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002114_14363cztM0_level2.evt | modeM0/AS1A04_048T01_9000002114_14363cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,893,760 | 94,003,200 |
| Size | 604.5 MB | 89.6 MB |
| Events in quadrant A | 4,086,863 | 581,080 |
| Events in quadrant B | 4,302,689 | 582,205 |
| Events in quadrant C | 4,761,370 | 568,786 |
| Events in quadrant D | 5,487,725 | 541,711 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17457 | 3 |
| B | 0 | 17985 | 2 |
| C | 0 | 19188 | 2 |
| D | 0 | 21879 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8238 | 319 | 3.872299% |
| B | 8238 | 380 | 4.612770% |
| C | 8238 | 232 | 2.816218% |
| D | 8238 | 550 | 6.676378% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

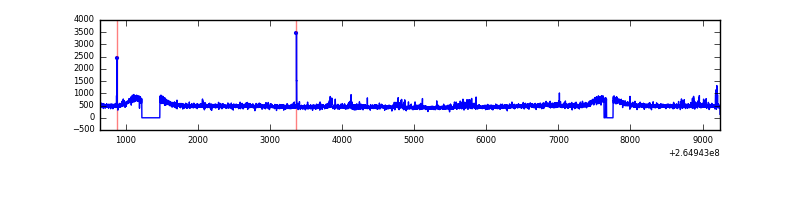

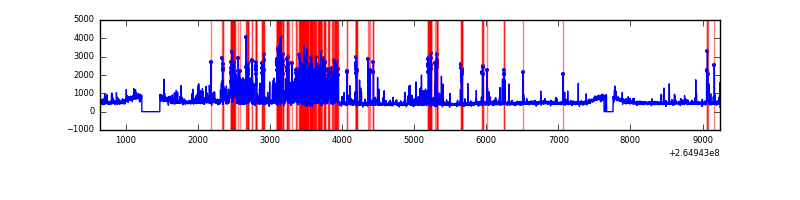

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8599 | 8241 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8599 | 8241 | 16 | 16 | 0.19% | 0.19% |  |
| C | 8599 | 8241 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8599 | 8241 | 311 | 311 | 3.62% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 119774 | 568.75 | 1023 | 998 | 208.8 |
| A | 9 | 143 | 10603 | 45.99 | 1023 | 998 | 208.8 |
| A | 0 | 226 | 9105 | 38.82 | 1023 | 998 | 208.8 |
| B | 0 | 229 | 160408 | 812.14 | 1017 | 986 | 196.3 |
| B | 0 | 189 | 52325 | 261.54 | 1017 | 986 | 196.3 |
| B | 0 | 219 | 30392 | 149.8 | 1017 | 986 | 196.3 |
| C | 3 | 233 | 864835 | 3744.74 | 995 | 998 | 230.7 |
| C | 13 | 61 | 7319 | 27.4 | 995 | 998 | 230.7 |
| C | 8 | 222 | 6865 | 25.43 | 995 | 998 | 230.7 |
| D | 5 | 222 | 1285216 | 5451.79 | 985 | 959 | 235.6 |
| D | 12 | 110 | 166693 | 703.56 | 985 | 959 | 235.6 |
| D | 2 | 120 | 150334 | 634.11 | 985 | 959 | 235.6 |

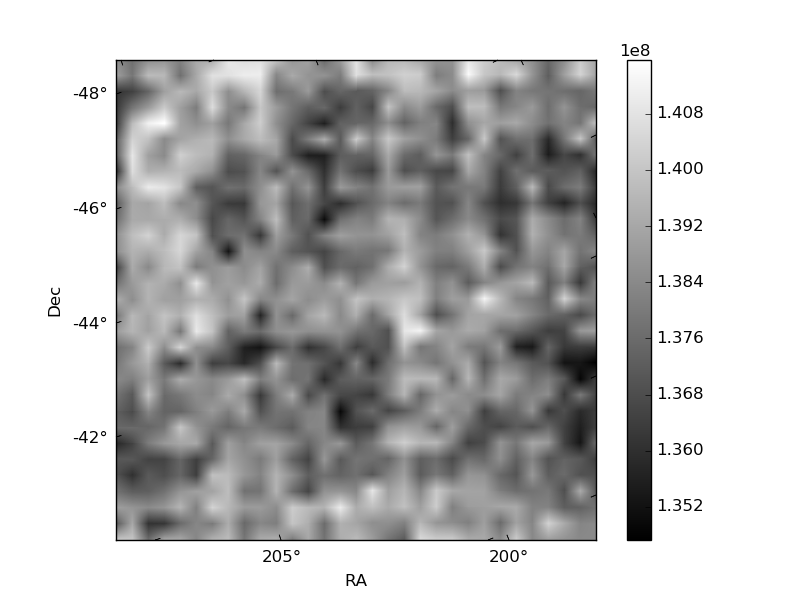

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

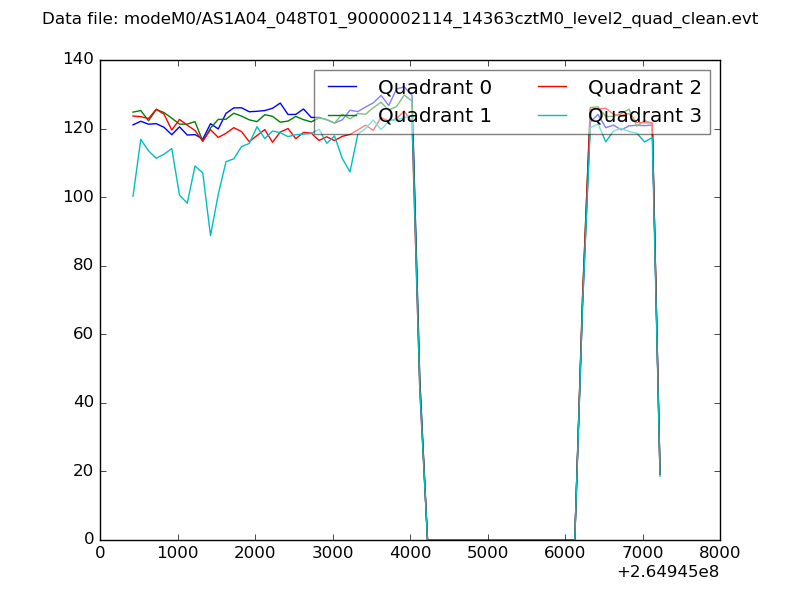

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

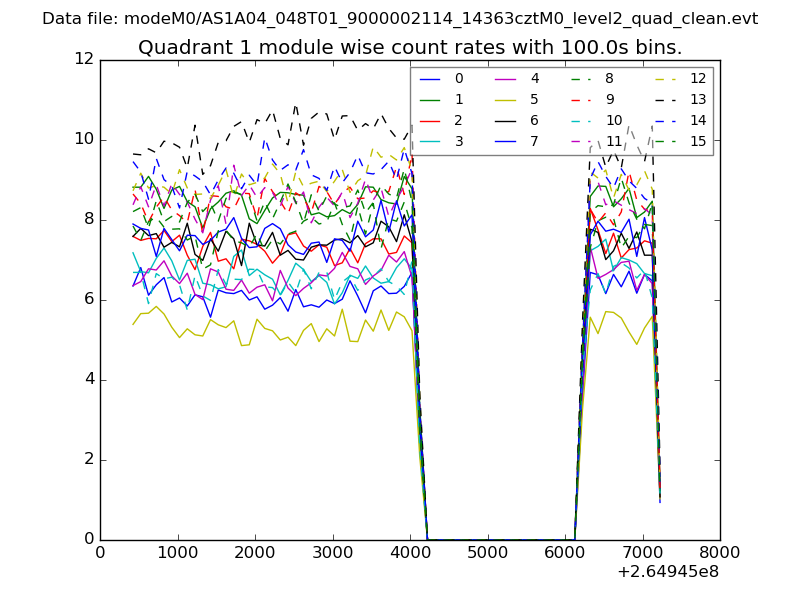

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

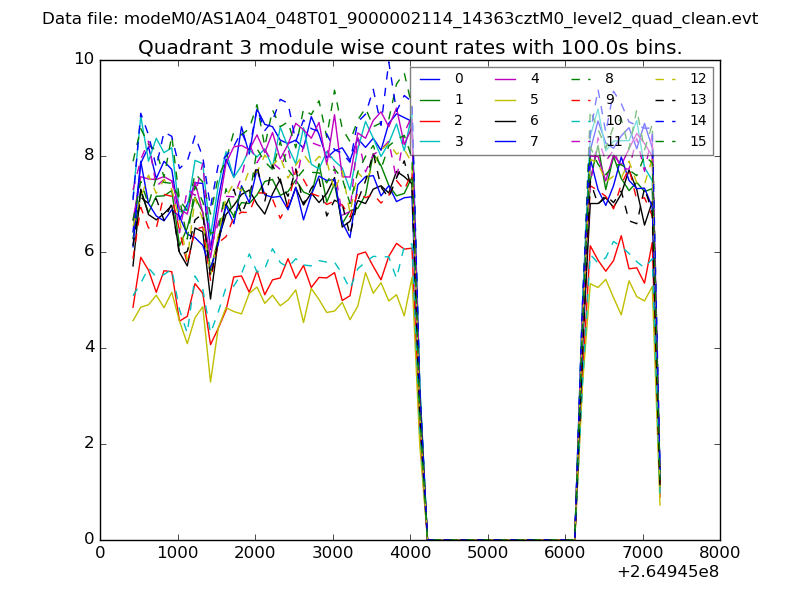

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

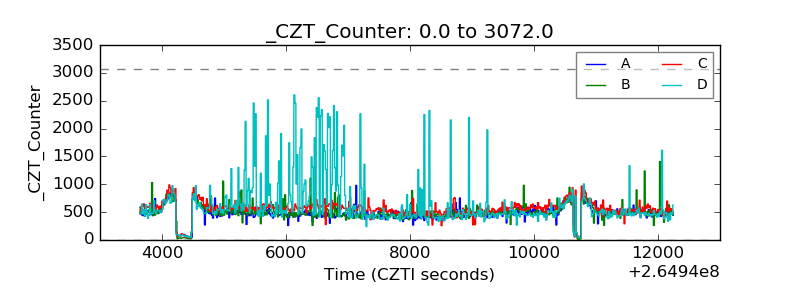

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

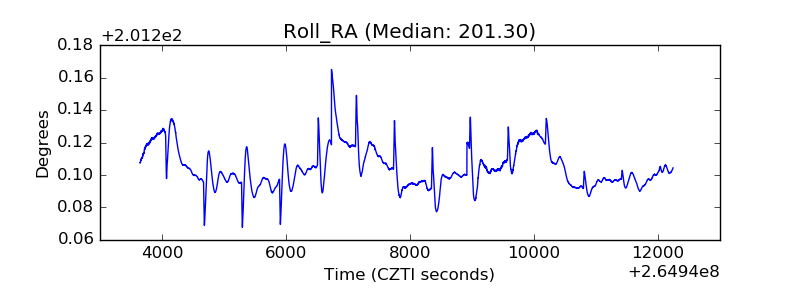

| _Roll_RA |  |
| Veto Counter |  |
