| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002114_14364cztM0_level2.evt | modeM0/AS1A04_048T01_9000002114_14364cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,494,400 | 102,300,480 |
| Size | 546.9 MB | 97.6 MB |
| Events in quadrant A | 4,316,464 | 650,817 |
| Events in quadrant B | 3,919,680 | 655,203 |
| Events in quadrant C | 4,234,800 | 637,458 |
| Events in quadrant D | 4,379,349 | 623,137 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17725 | 3 |
| B | 0 | 16490 | 2 |
| C | 0 | 17266 | 2 |
| D | 0 | 18365 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7636 | 152 | 1.990571% |
| B | 7636 | 176 | 2.304872% |
| C | 7636 | 94 | 1.231011% |
| D | 7636 | 157 | 2.056050% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

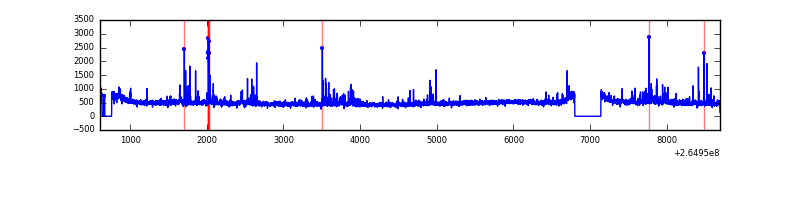

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8087 | 7640 | 15 | 15 | 0.19% | 0.20% |  |
| B | 8087 | 7639 | 10 | 10 | 0.12% | 0.13% |  |
| C | 8087 | 7639 | 8 | 8 | 0.10% | 0.10% |  |
| D | 8087 | 7640 | 36 | 36 | 0.45% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 721527 | 3826.68 | 927 | 905 | 188.3 |
| A | 9 | 143 | 11310 | 55.25 | 927 | 905 | 188.3 |
| A | 0 | 226 | 8298 | 39.26 | 927 | 905 | 188.3 |
| B | 0 | 229 | 129235 | 726.36 | 922 | 897 | 176.7 |
| B | 0 | 219 | 47658 | 264.66 | 922 | 897 | 176.7 |
| B | 0 | 189 | 45804 | 254.16 | 922 | 897 | 176.7 |
| C | 3 | 233 | 706845 | 3373.16 | 895 | 895 | 209.3 |
| C | 14 | 234 | 31332 | 145.43 | 895 | 895 | 209.3 |
| C | 13 | 61 | 6363 | 26.13 | 895 | 895 | 209.3 |
| D | 12 | 110 | 744486 | 3390.47 | 895 | 872 | 219.3 |
| D | 2 | 120 | 137844 | 624.52 | 895 | 872 | 219.3 |
| D | 2 | 234 | 30384 | 134.56 | 895 | 872 | 219.3 |

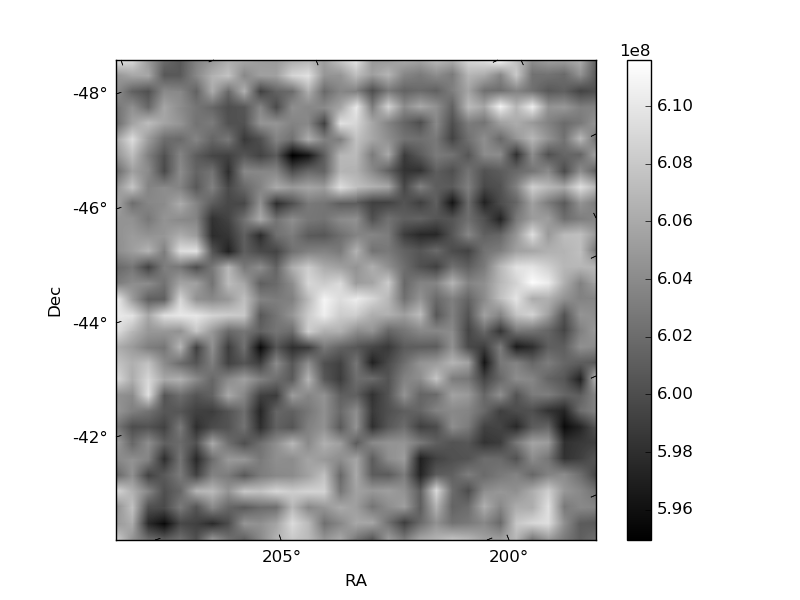

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

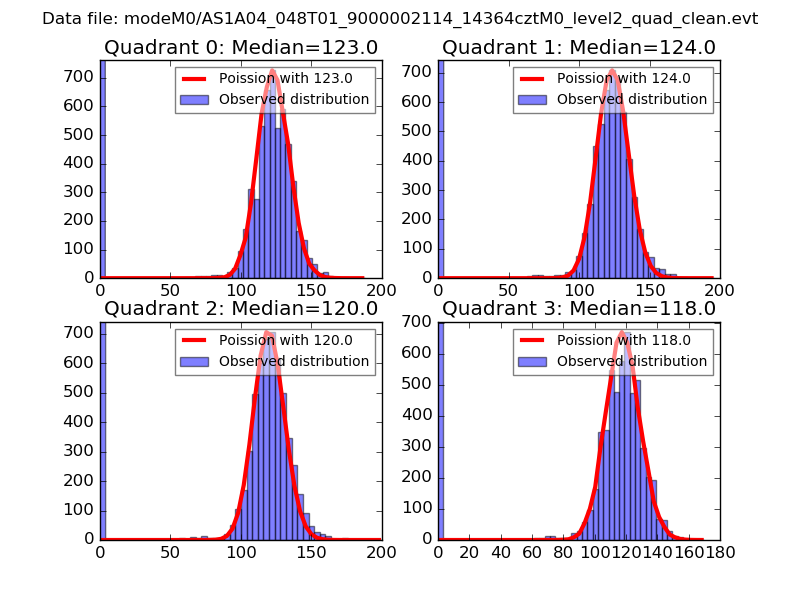

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

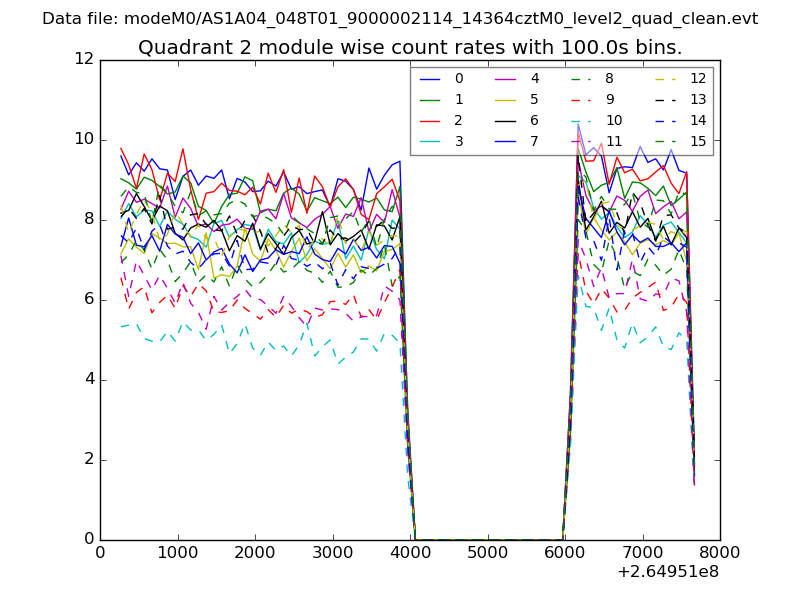

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

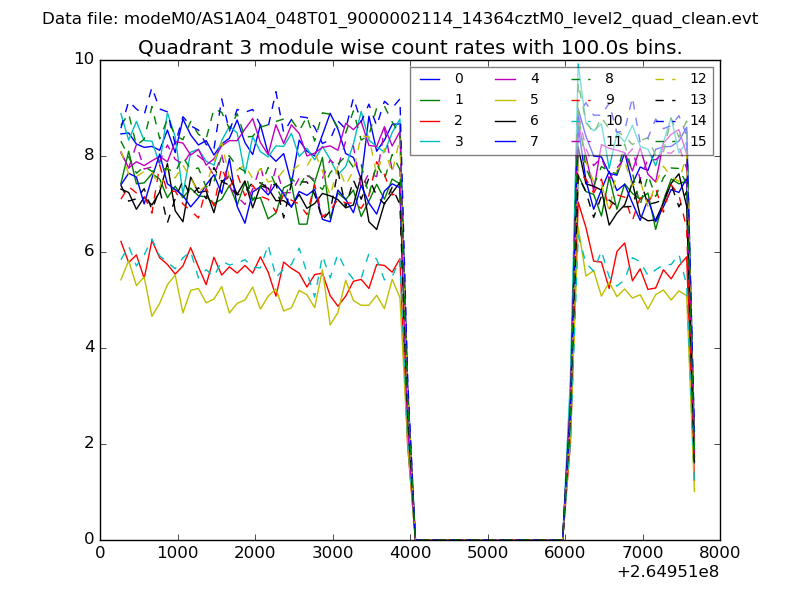

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

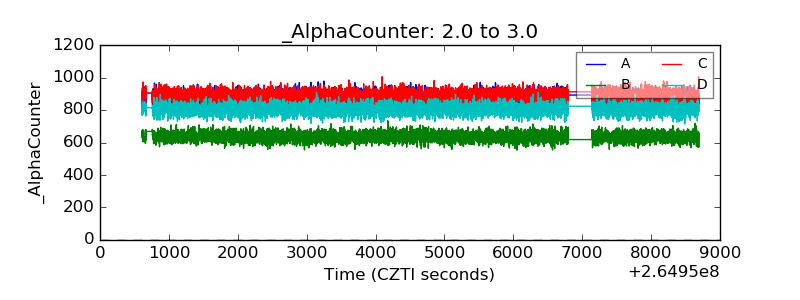

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

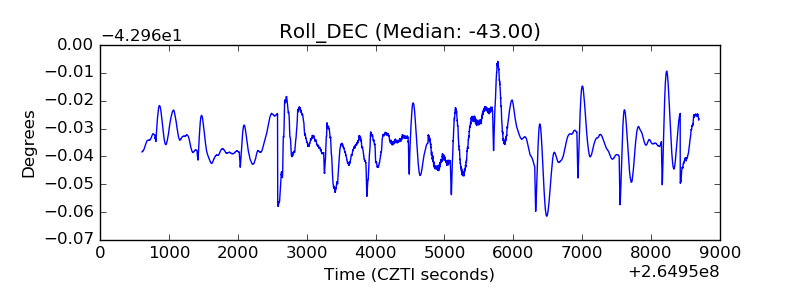

| _Roll_DEC |  |

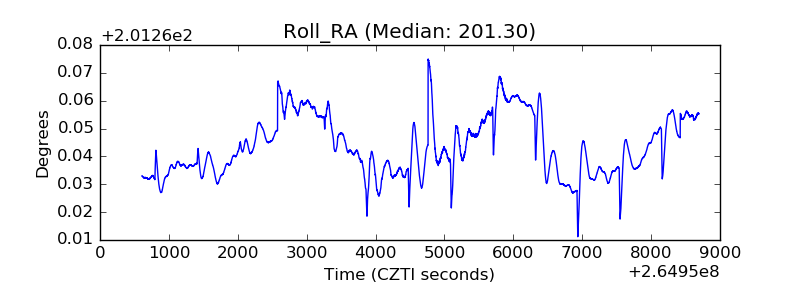

| _Roll_RA |  |
| Veto Counter |  |
