| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_028T01_9000002112_14349cztM0_level2.evt | modeM0/AS1G08_028T01_9000002112_14349cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,792,320 | 86,567,040 |
| Size | 656.9 MB | 82.6 MB |
| Events in quadrant A | 4,148,447 | 529,705 |
| Events in quadrant B | 4,318,018 | 530,392 |
| Events in quadrant C | 4,288,052 | 520,466 |
| Events in quadrant D | 7,556,224 | 476,911 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17510 | 2 |
| B | 0 | 18000 | 1 |
| C | 0 | 17330 | 1 |
| D | 0 | 27941 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8119 | 213 | 2.623476% |
| B | 8119 | 272 | 3.350166% |
| C | 8119 | 184 | 2.266289% |
| D | 8119 | 1268 | 15.617687% |

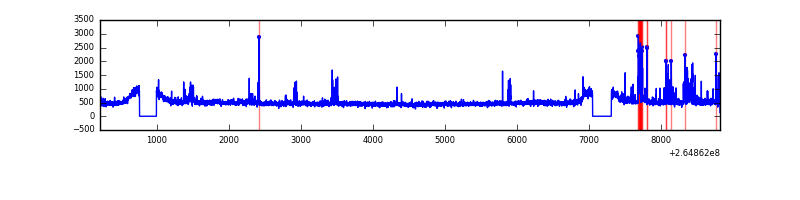

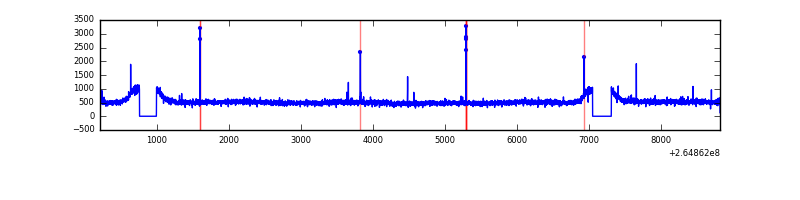

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8615 | 8120 | 30 | 30 | 0.35% | 0.37% |  |
| B | 8615 | 8120 | 28 | 28 | 0.33% | 0.34% |  |
| C | 8615 | 8121 | 8 | 8 | 0.09% | 0.10% |  |
| D | 8615 | 8120 | 969 | 969 | 11.25% | 11.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 177078 | 839.38 | 1018 | 995 | 209.8 |
| A | 12 | 189 | 36920 | 171.25 | 1018 | 995 | 209.8 |
| A | 8 | 15 | 11452 | 49.85 | 1018 | 995 | 209.8 |
| B | 0 | 229 | 152676 | 765.23 | 1009 | 982 | 198.2 |
| B | 10 | 16 | 79980 | 398.51 | 1009 | 982 | 198.2 |
| B | 0 | 189 | 40136 | 197.51 | 1009 | 982 | 198.2 |
| C | 3 | 233 | 427111 | 1851.5 | 980 | 983 | 230.2 |
| C | 6 | 96 | 25328 | 105.78 | 980 | 983 | 230.2 |
| C | 14 | 234 | 18082 | 74.29 | 980 | 983 | 230.2 |
| D | 13 | 122 | 1991744 | 8936.92 | 930 | 906 | 222.8 |
| D | 5 | 222 | 688785 | 3087.91 | 930 | 906 | 222.8 |
| D | 12 | 110 | 409057 | 1832.2 | 930 | 906 | 222.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

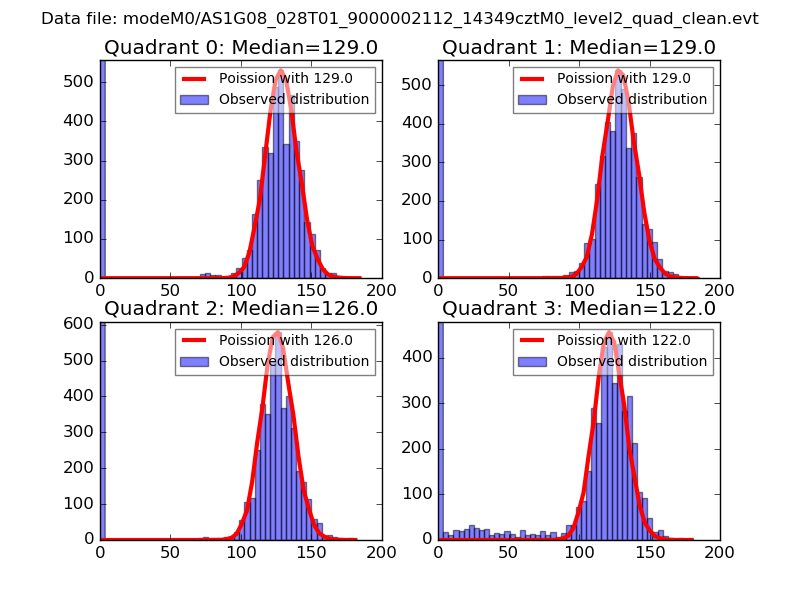

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

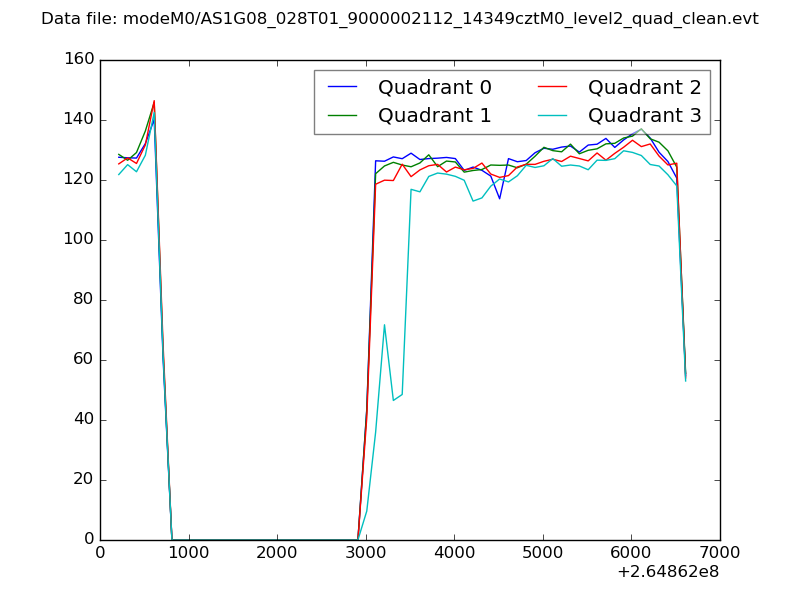

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

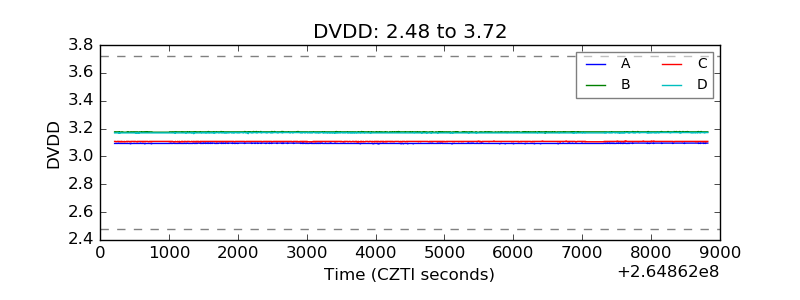

| D_VDD |  |

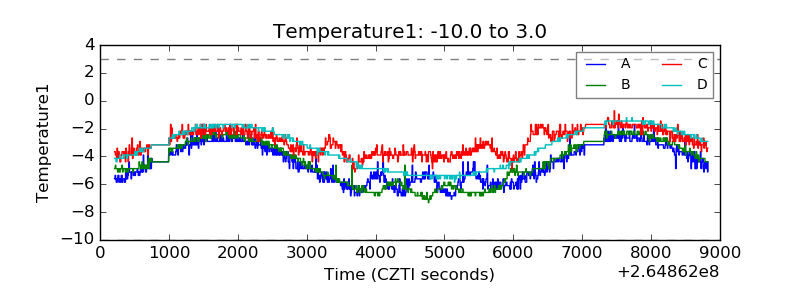

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

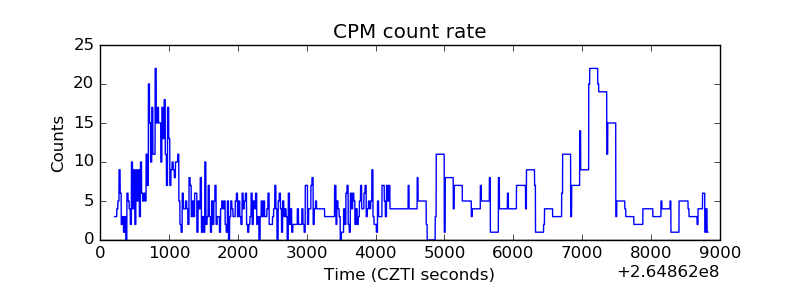

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

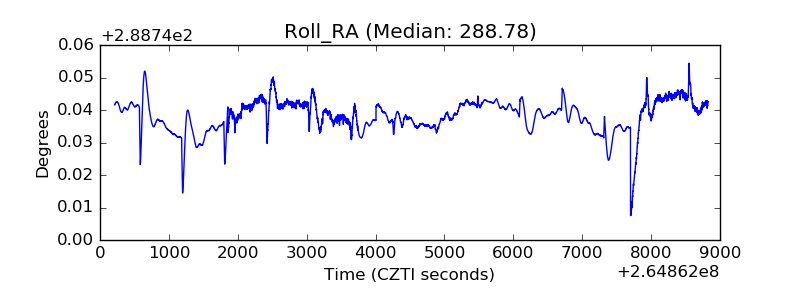

| _Roll_RA |  |
