| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002118_14369cztM0_level2.evt | modeM0/AS1A04_149T01_9000002118_14369cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,673,280 | 105,151,680 |
| Size | 439.3 MB | 100.3 MB |
| Events in quadrant A | 3,086,919 | 688,249 |
| Events in quadrant B | 3,561,687 | 696,873 |
| Events in quadrant C | 3,503,750 | 680,655 |
| Events in quadrant D | 3,350,604 | 658,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13506 | 3 |
| B | 0 | 14834 | 2 |
| C | 0 | 14301 | 2 |
| D | 0 | 14415 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6603 | 15 | 0.227169% |
| B | 6603 | 97 | 1.469029% |
| C | 6603 | 19 | 0.287748% |
| D | 6603 | 55 | 0.832955% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

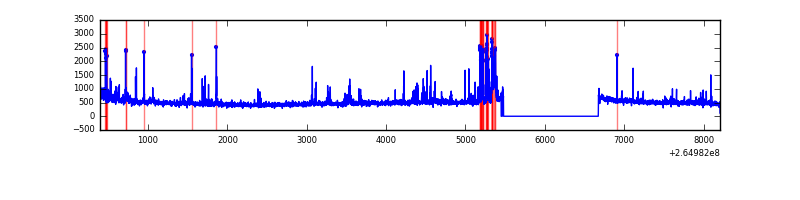

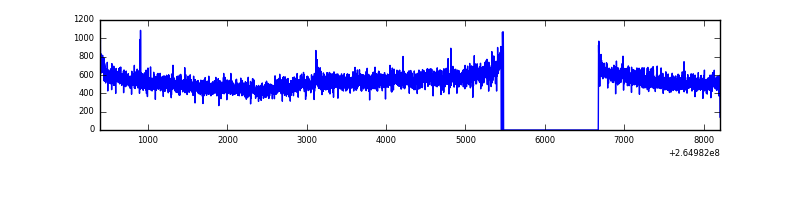

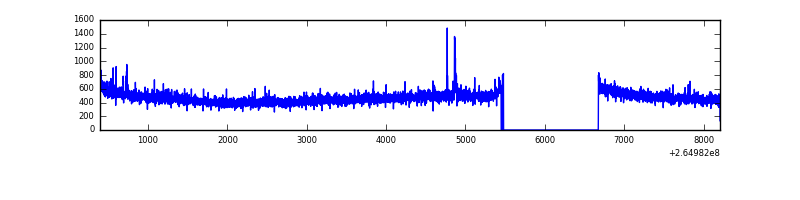

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7814 | 6606 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7814 | 6606 | 45 | 45 | 0.58% | 0.68% |  |
| C | 7814 | 6606 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7814 | 6606 | 37 | 37 | 0.47% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 26446 | 161.86 | 789 | 773 | 158.6 |
| A | 4 | 2 | 16456 | 98.87 | 789 | 773 | 158.6 |
| A | 0 | 226 | 6862 | 38.39 | 789 | 773 | 158.6 |
| B | 0 | 182 | 170587 | 1134.95 | 797 | 777 | 149.6 |
| B | 0 | 229 | 145711 | 968.69 | 797 | 777 | 149.6 |
| B | 0 | 189 | 46811 | 307.68 | 797 | 777 | 149.6 |
| C | 3 | 233 | 483537 | 2716.6 | 772 | 778 | 177.7 |
| C | 10 | 22 | 6111 | 30.01 | 772 | 778 | 177.7 |
| C | 13 | 61 | 5554 | 26.88 | 772 | 778 | 177.7 |
| D | 10 | 199 | 179324 | 997.85 | 762 | 746 | 179.0 |
| D | 2 | 120 | 153862 | 855.58 | 762 | 746 | 179.0 |
| D | 10 | 172 | 65623 | 362.52 | 762 | 746 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

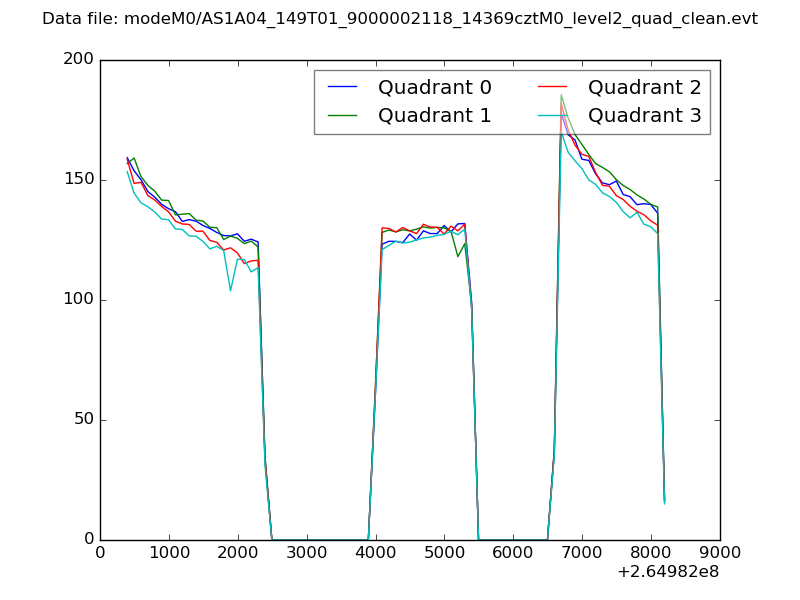

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

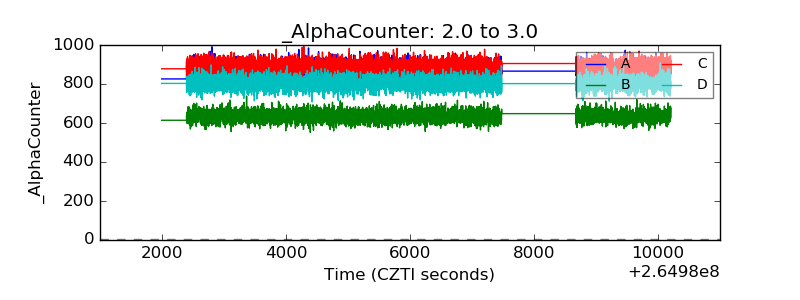

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

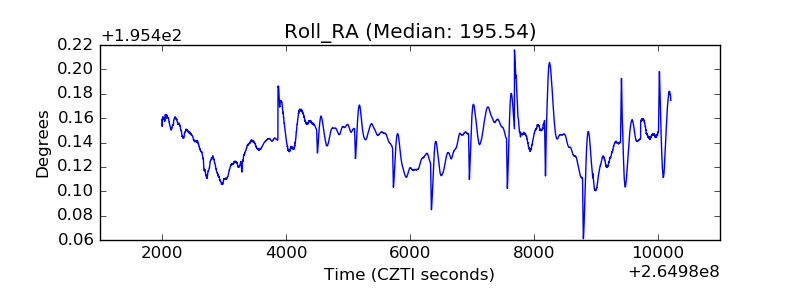

| _Roll_RA |  |

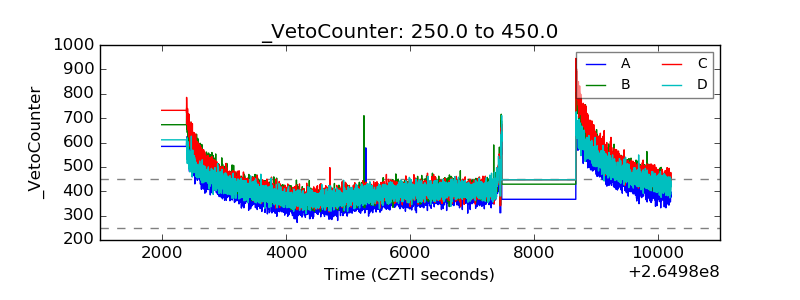

| Veto Counter |  |
