| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002118_14371cztM0_level2.evt | modeM0/AS1A04_149T01_9000002118_14371cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,911,680 | 104,186,880 |
| Size | 449.1 MB | 99.4 MB |
| Events in quadrant A | 3,113,630 | 678,872 |
| Events in quadrant B | 3,300,484 | 696,174 |
| Events in quadrant C | 3,603,490 | 680,104 |
| Events in quadrant D | 3,809,153 | 653,509 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13255 | 3 |
| B | 0 | 13735 | 2 |
| C | 0 | 14546 | 2 |
| D | 0 | 15578 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6397 | 31 | 0.484602% |
| B | 6397 | 49 | 0.765984% |
| C | 6397 | 38 | 0.594028% |
| D | 6397 | 86 | 1.344380% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7648 | 6399 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7648 | 6399 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7648 | 6399 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7648 | 6399 | 73 | 73 | 0.95% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 18974 | 113.86 | 801 | 787 | 159.7 |
| A | 0 | 226 | 7146 | 39.81 | 801 | 787 | 159.7 |
| A | 12 | 194 | 5964 | 32.41 | 801 | 787 | 159.7 |
| B | 0 | 229 | 40821 | 267.0 | 812 | 795 | 149.9 |
| B | 0 | 189 | 34131 | 222.37 | 812 | 795 | 149.9 |
| B | 0 | 219 | 22540 | 145.05 | 812 | 795 | 149.9 |
| C | 3 | 233 | 508573 | 2799.25 | 792 | 797 | 181.4 |
| C | 13 | 61 | 5708 | 27.07 | 792 | 797 | 181.4 |
| C | 14 | 234 | 2953 | 11.89 | 792 | 797 | 181.4 |
| D | 12 | 110 | 559732 | 3069.97 | 779 | 760 | 182.1 |
| D | 10 | 199 | 139701 | 763.09 | 779 | 760 | 182.1 |
| D | 2 | 120 | 122899 | 670.81 | 779 | 760 | 182.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

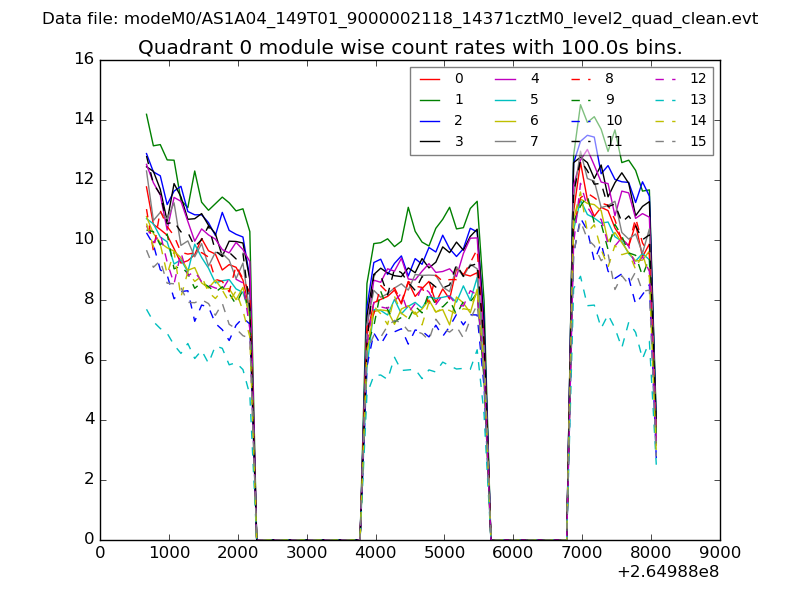

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

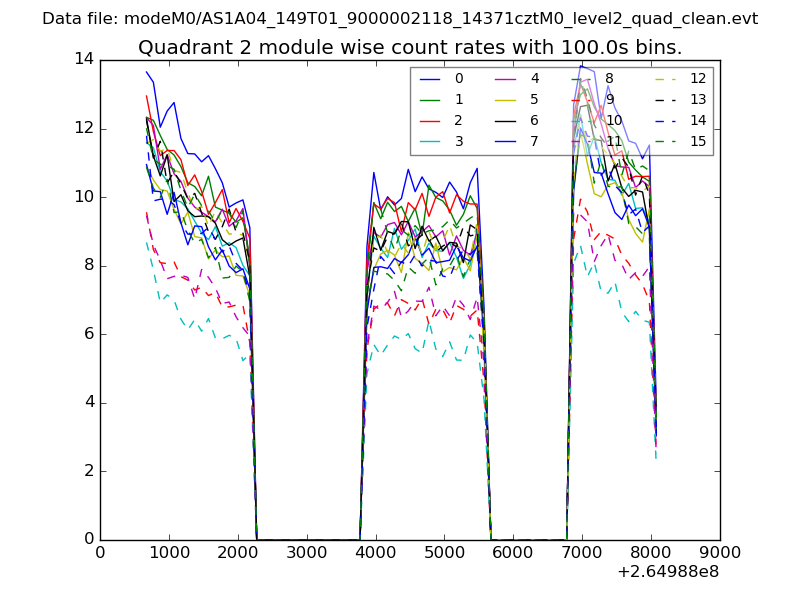

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

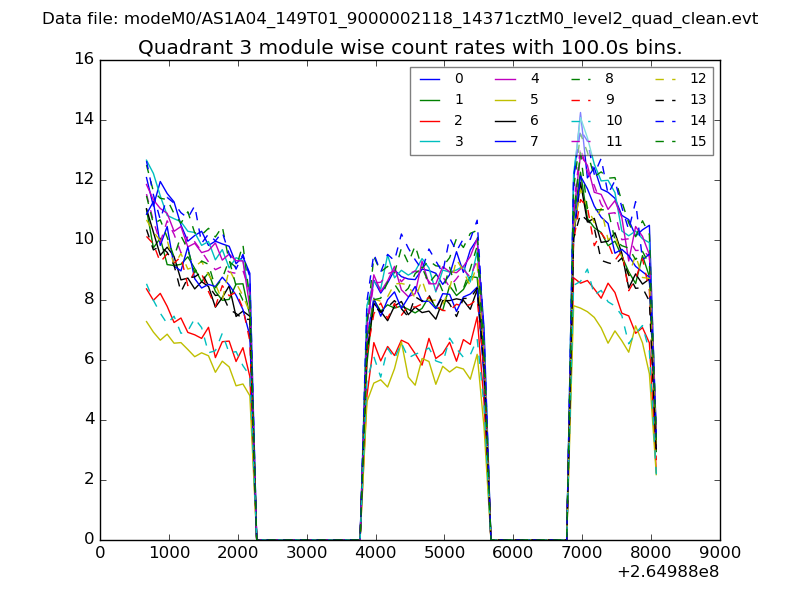

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

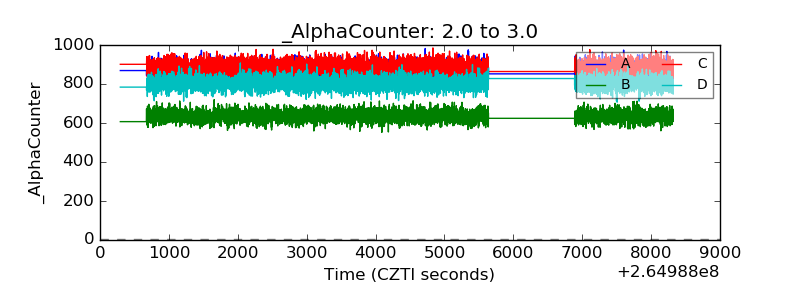

| Alpha Counter |  |

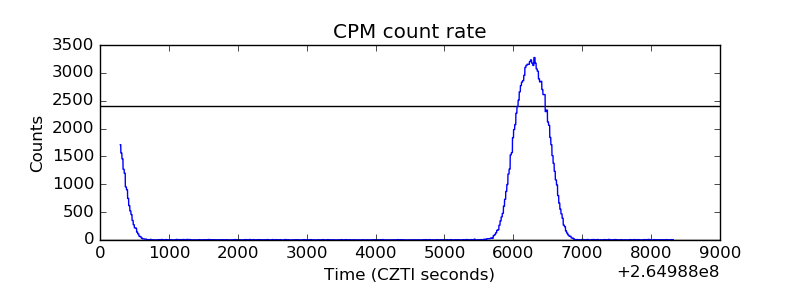

| _CPM_Rate |  |

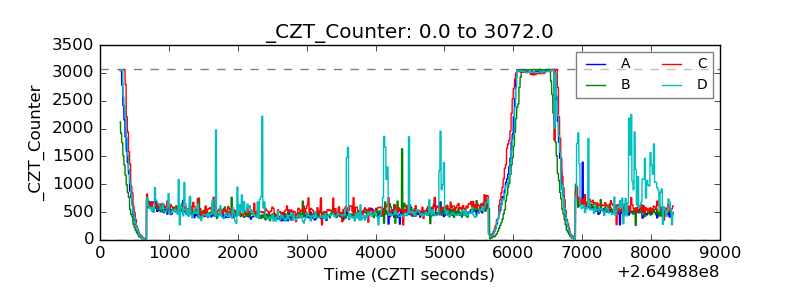

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

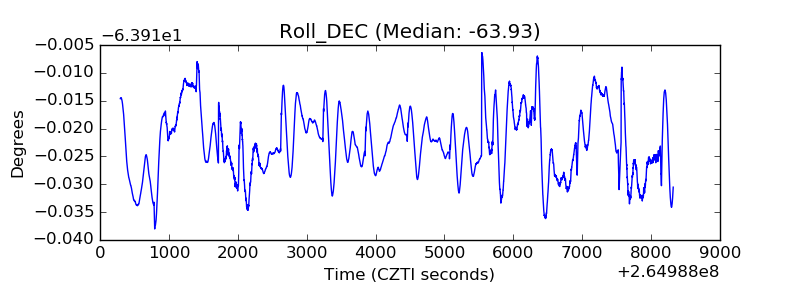

| _Roll_RA |  |
| Veto Counter |  |
