| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002118_14372cztM0_level2.evt | modeM0/AS1A04_149T01_9000002118_14372cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,904,960 | 98,645,760 |
| Size | 463.4 MB | 94.1 MB |
| Events in quadrant A | 3,211,644 | 635,967 |
| Events in quadrant B | 3,525,923 | 651,386 |
| Events in quadrant C | 3,723,526 | 642,152 |
| Events in quadrant D | 3,824,586 | 615,808 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13337 | 3 |
| B | 0 | 14335 | 2 |
| C | 0 | 15126 | 2 |
| D | 0 | 15340 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6332 | 28 | 0.442198% |
| B | 6332 | 81 | 1.279217% |
| C | 6332 | 27 | 0.426406% |
| D | 6332 | 63 | 0.994946% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7673 | 6333 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7673 | 6333 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7673 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7673 | 6333 | 60 | 60 | 0.78% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 22946 | 135.95 | 824 | 810 | 162.8 |
| A | 8 | 15 | 11639 | 66.51 | 824 | 810 | 162.8 |
| A | 9 | 143 | 7887 | 43.46 | 824 | 810 | 162.8 |
| B | 0 | 229 | 111749 | 730.53 | 831 | 812 | 151.9 |
| B | 0 | 189 | 93389 | 609.63 | 831 | 812 | 151.9 |
| B | 0 | 219 | 38614 | 248.93 | 831 | 812 | 151.9 |
| C | 3 | 233 | 531236 | 2848.96 | 818 | 824 | 186.2 |
| C | 13 | 61 | 5786 | 26.65 | 818 | 824 | 186.2 |
| C | 3 | 232 | 2843 | 10.84 | 818 | 824 | 186.2 |
| D | 12 | 110 | 539351 | 2882.4 | 805 | 788 | 186.8 |
| D | 2 | 120 | 114955 | 611.02 | 805 | 788 | 186.8 |
| D | 10 | 199 | 59562 | 314.56 | 805 | 788 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

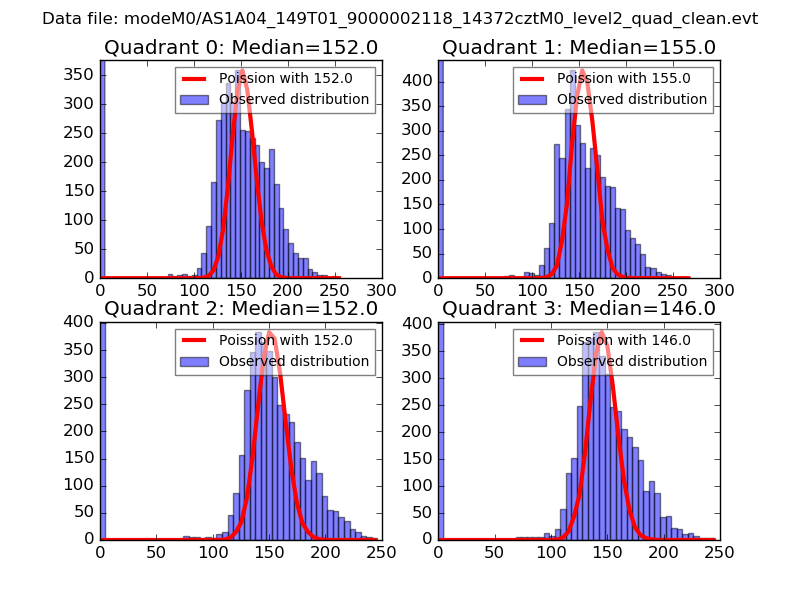

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

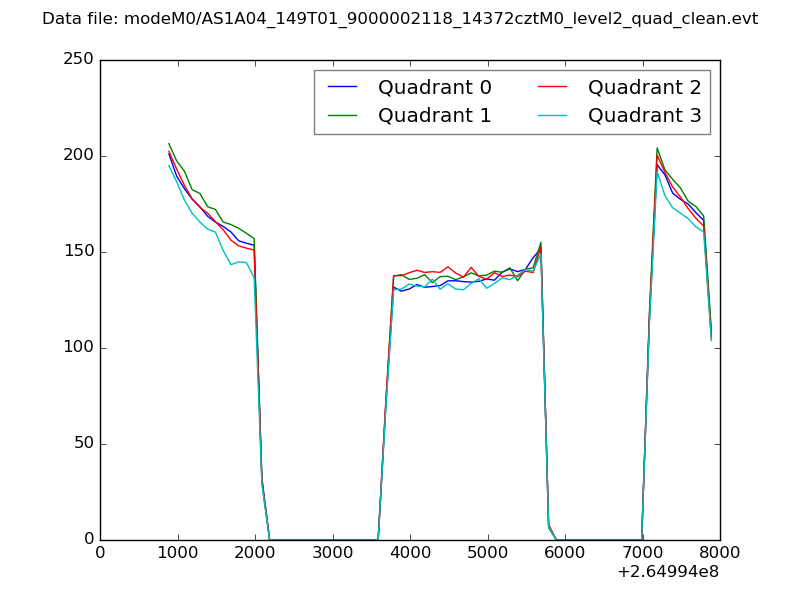

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

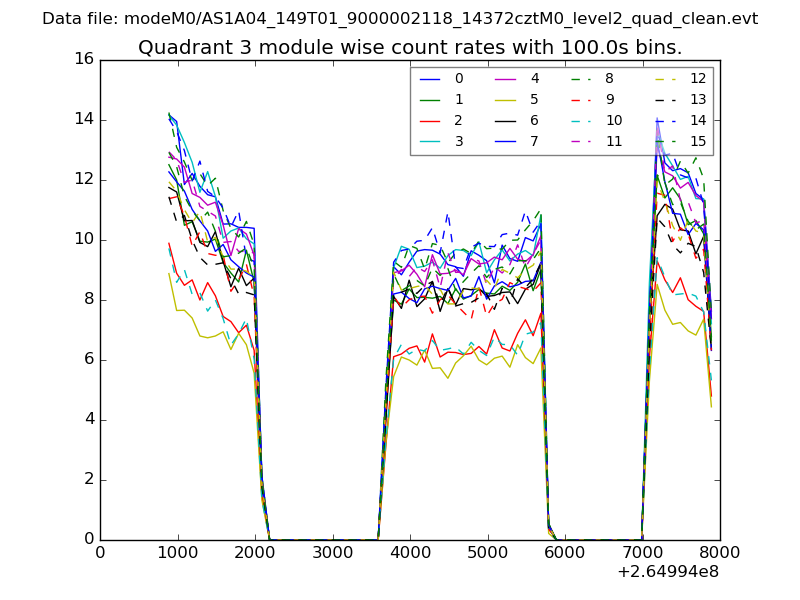

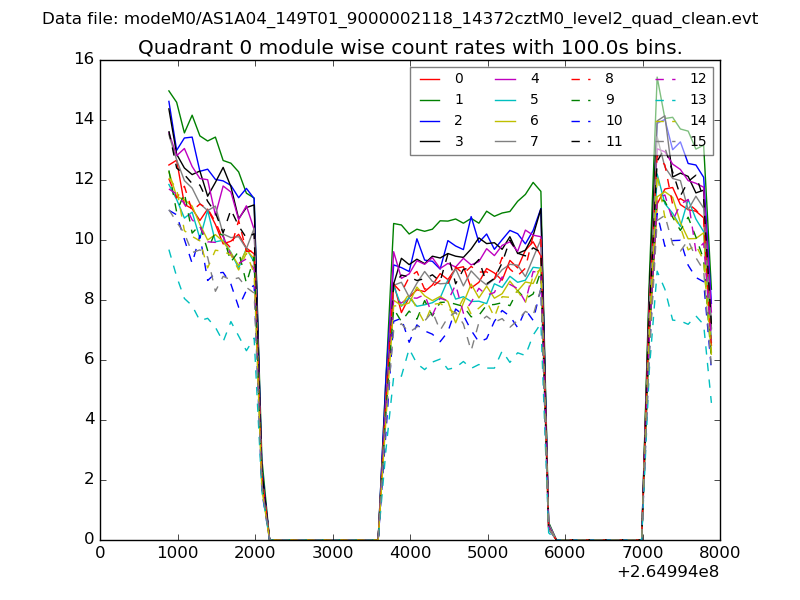

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

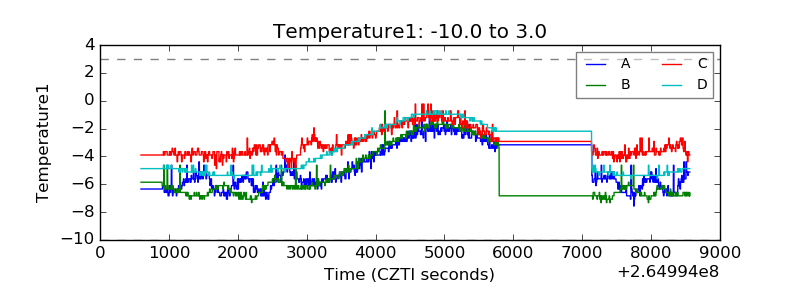

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

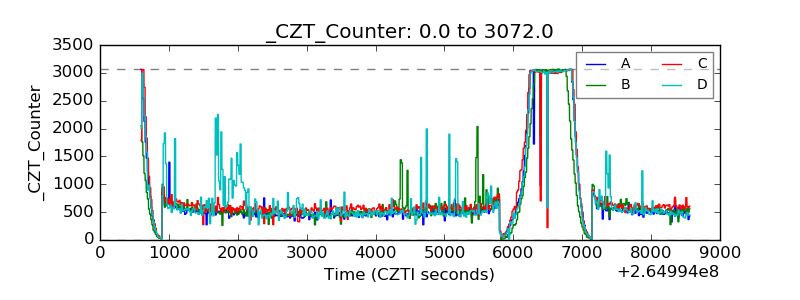

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

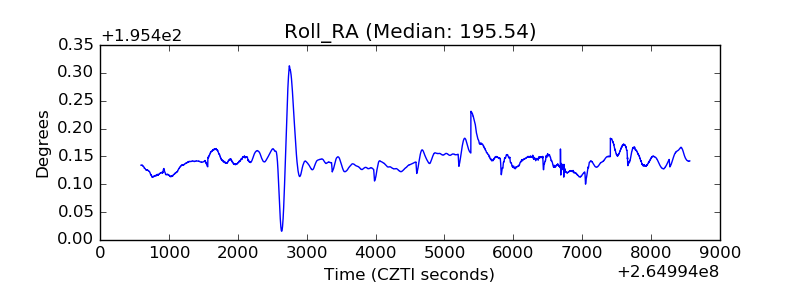

| _Roll_RA |  |
| Veto Counter |  |
