| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_149T01_9000002118_14381cztM0_level2.evt | modeM0/AS1A04_149T01_9000002118_14381cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,195,038,080 | 419,322,240 |
| Size | 2.0 GB | 399.9 MB |
| Events in quadrant A | 13,839,570 | 2,708,121 |
| Events in quadrant B | 15,788,509 | 2,691,921 |
| Events in quadrant C | 16,739,688 | 2,646,401 |
| Events in quadrant D | 18,085,023 | 2,593,152 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 608 | 0 |
| B | 0 | 608 | 0 |
| C | 0 | 608 | 0 |
| D | 0 | 608 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61508 | 6 |
| B | 0 | 66661 | 5 |
| C | 0 | 68754 | 5 |
| D | 0 | 74735 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 30002 | 438 | 1.459903% |
| B | 30002 | 883 | 2.943137% |
| C | 30002 | 277 | 0.923272% |
| D | 30002 | 761 | 2.536498% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32198 | 30006 | 20 | 20 | 0.06% | 0.07% |  |
| B | 32198 | 30006 | 358 | 358 | 1.11% | 1.19% |  |
| C | 32198 | 30007 | 6 | 6 | 0.02% | 0.02% |  |
| D | 32198 | 30007 | 346 | 346 | 1.07% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 196327 | 271.98 | 3510 | 3433 | 709.2 |
| A | 9 | 143 | 93869 | 127.51 | 3510 | 3433 | 709.2 |
| A | 0 | 226 | 31374 | 39.4 | 3510 | 3433 | 709.2 |
| B | 0 | 182 | 879915 | 1331.6 | 3486 | 3395 | 658.2 |
| B | 10 | 245 | 420772 | 634.08 | 3486 | 3395 | 658.2 |
| B | 0 | 229 | 347678 | 523.03 | 3486 | 3395 | 658.2 |
| C | 3 | 233 | 3396370 | 4368.98 | 3393 | 3408 | 776.6 |
| C | 3 | 232 | 36021 | 41.99 | 3393 | 3408 | 776.6 |
| C | 13 | 61 | 24687 | 27.4 | 3393 | 3408 | 776.6 |
| D | 12 | 110 | 3391700 | 4106.58 | 3370 | 3281 | 825.1 |
| D | 2 | 120 | 738989 | 891.64 | 3370 | 3281 | 825.1 |
| D | 15 | 0 | 319867 | 383.69 | 3370 | 3281 | 825.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

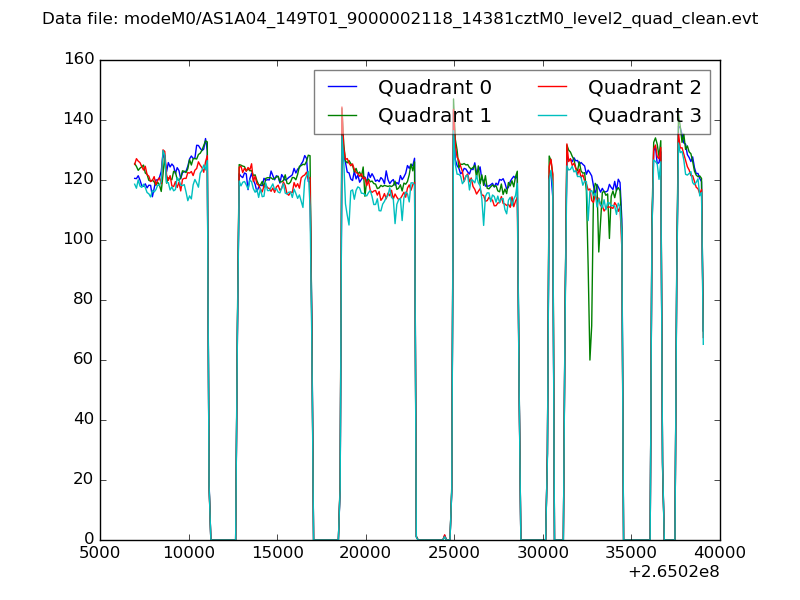

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

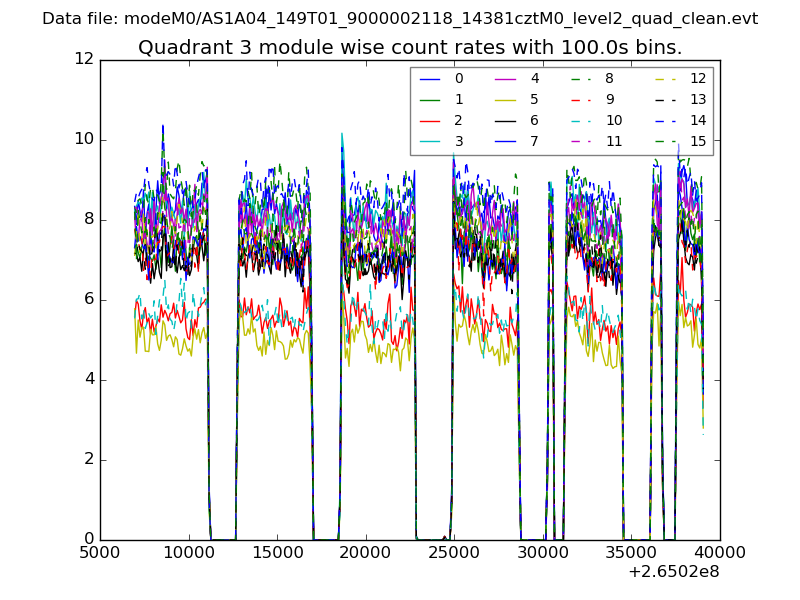

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

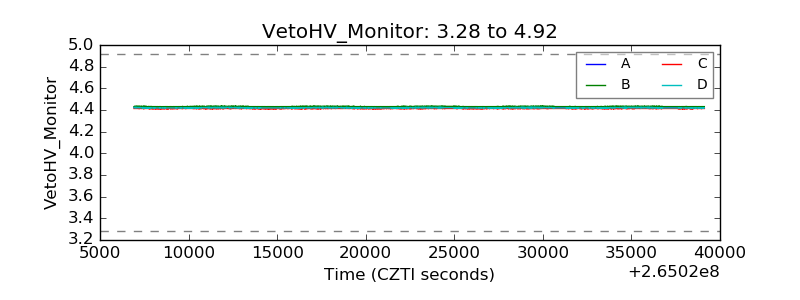

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

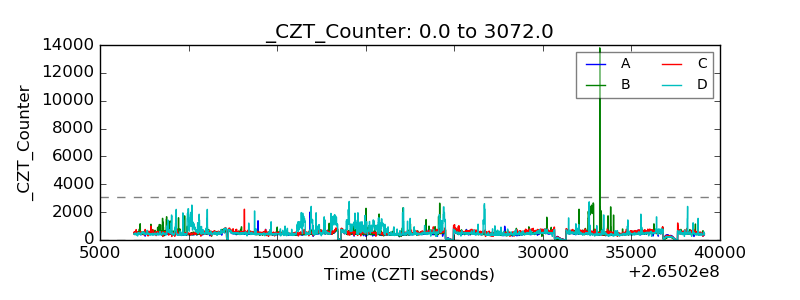

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

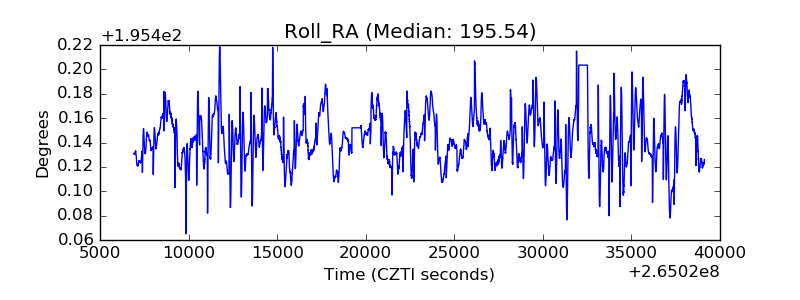

| _Roll_RA |  |
| Veto Counter |  |
