| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_046T01_9000002116_14366cztM0_level2.evt | modeM0/AS1T02_046T01_9000002116_14366cztM0_level2_quad_clean.evt |
| Size (bytes) | 673,053,120 | 119,067,840 |
| Size | 641.9 MB | 113.6 MB |
| Events in quadrant A | 4,397,546 | 756,168 |
| Events in quadrant B | 5,112,613 | 756,999 |
| Events in quadrant C | 5,278,008 | 728,719 |
| Events in quadrant D | 4,966,100 | 720,395 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 190 | 0 |
| B | 0 | 190 | 0 |
| C | 0 | 190 | 0 |
| D | 0 | 190 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19056 | 3 |
| B | 0 | 21069 | 2 |
| C | 0 | 21213 | 2 |
| D | 0 | 21077 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9281 | 119 | 1.282189% |
| B | 9281 | 325 | 3.501778% |
| C | 9281 | 112 | 1.206767% |
| D | 9281 | 261 | 2.812197% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10552 | 9282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10552 | 9282 | 147 | 147 | 1.39% | 1.58% |  |
| C | 10552 | 9282 | 3 | 3 | 0.03% | 0.03% |  |
| D | 10552 | 9282 | 145 | 145 | 1.37% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 37552 | 158.91 | 1128 | 1104 | 229.4 |
| A | 0 | 226 | 10058 | 39.04 | 1128 | 1104 | 229.4 |
| A | 8 | 15 | 8621 | 32.77 | 1128 | 1104 | 229.4 |
| B | 0 | 182 | 542296 | 2508.82 | 1114 | 1084 | 215.7 |
| B | 0 | 229 | 95987 | 439.93 | 1114 | 1084 | 215.7 |
| B | 0 | 219 | 35367 | 158.92 | 1114 | 1084 | 215.7 |
| C | 3 | 233 | 1011235 | 4004.13 | 1088 | 1094 | 252.3 |
| C | 10 | 22 | 8852 | 30.75 | 1088 | 1094 | 252.3 |
| C | 14 | 234 | 8218 | 28.24 | 1088 | 1094 | 252.3 |
| D | 1 | 52 | 330281 | 1204.69 | 1077 | 1048 | 273.3 |
| D | 2 | 120 | 191307 | 696.17 | 1077 | 1048 | 273.3 |
| D | 12 | 110 | 148088 | 538.03 | 1077 | 1048 | 273.3 |

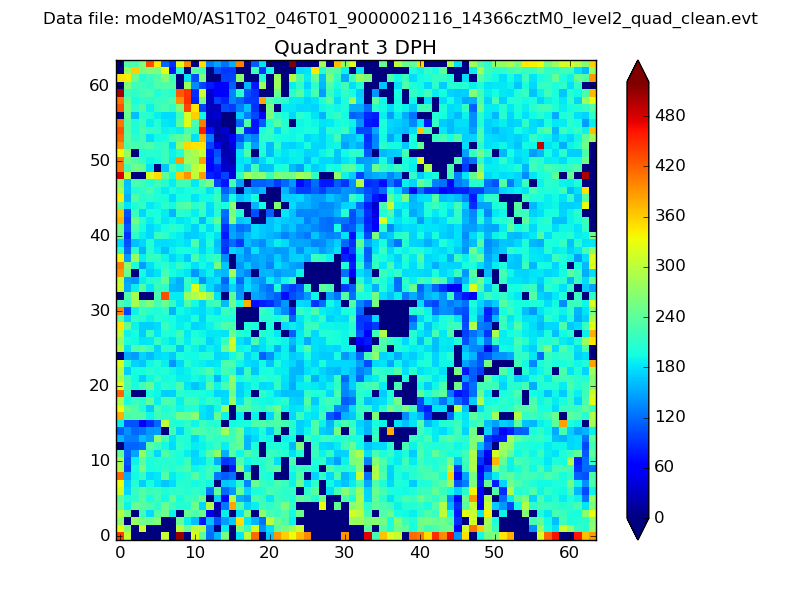

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

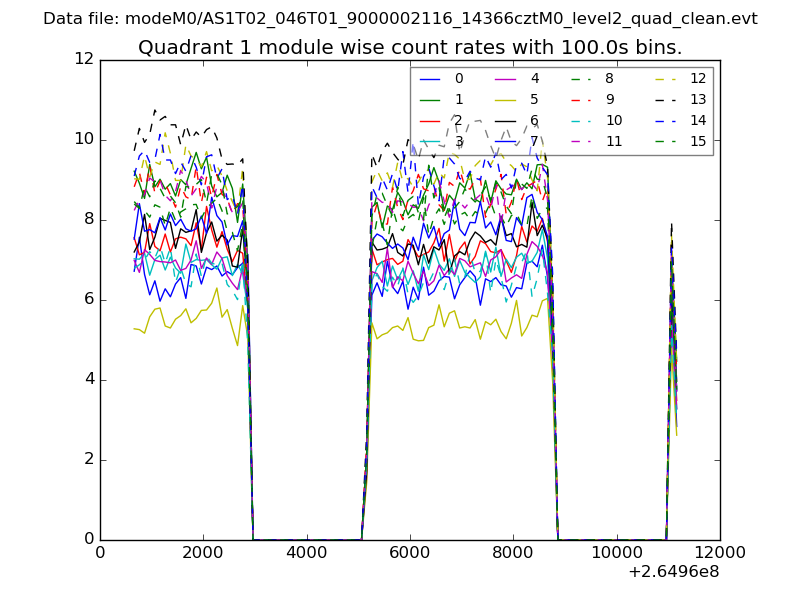

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

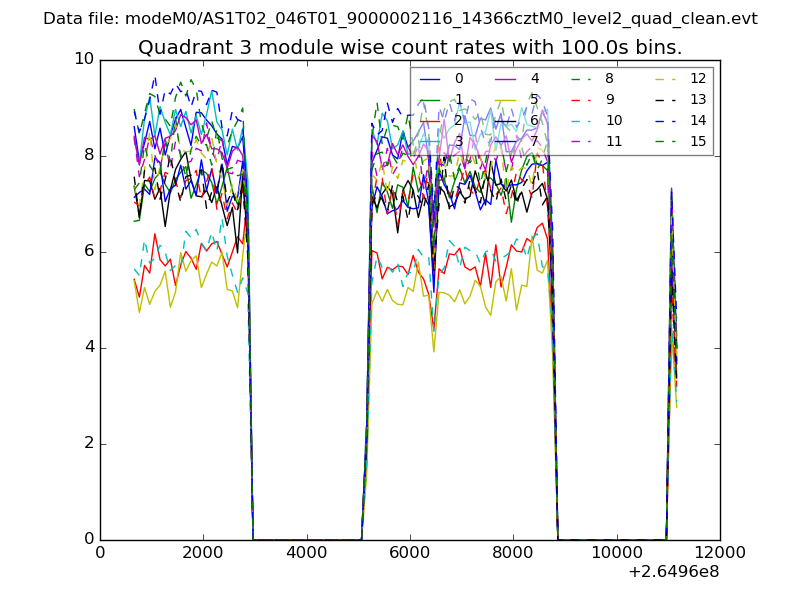

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

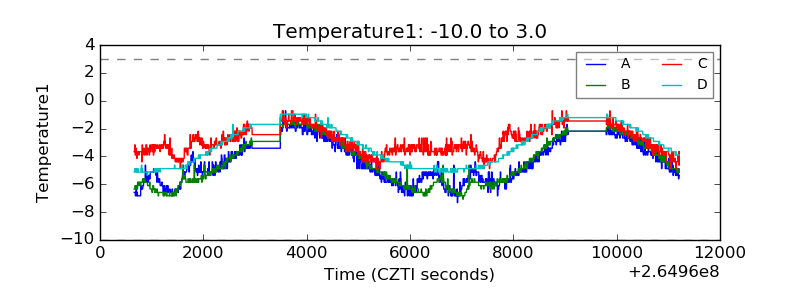

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

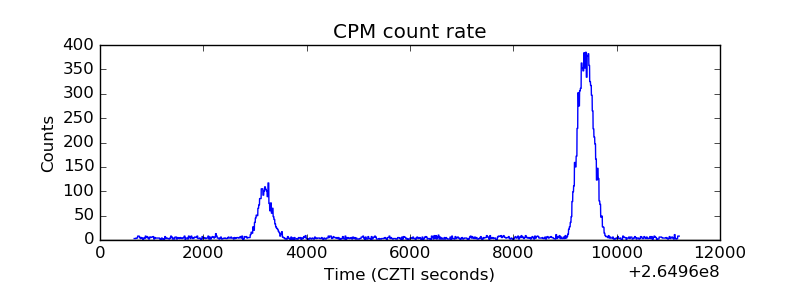

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

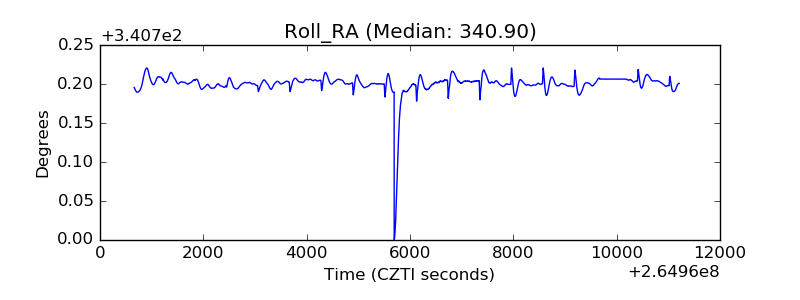

| _Roll_RA |  |
| Veto Counter |  |
