| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_075T01_9000002120_14388cztM0_level2.evt | modeM0/AS1G08_075T01_9000002120_14388cztM0_level2_quad_clean.evt |
| Size (bytes) | 658,990,080 | 121,605,120 |
| Size | 628.5 MB | 116.0 MB |
| Events in quadrant A | 4,422,885 | 783,281 |
| Events in quadrant B | 4,780,619 | 772,305 |
| Events in quadrant C | 5,448,739 | 750,700 |
| Events in quadrant D | 4,683,195 | 739,625 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 23 |
| B | 0 | 213 | 25 |
| C | 0 | 212 | 28 |
| D | 0 | 212 | 26 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21542 | 2689 |
| B | 0 | 22747 | 2880 |
| C | 0 | 25858 | 3493 |
| D | 0 | 23126 | 2886 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 6 |
| B | 0 | 27 | 8 |
| C | 0 | 27 | 9 |
| D | 0 | 28 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9189 | 31 | 0.337360% |
| B | 9179 | 135 | 1.470748% |
| C | 9152 | 40 | 0.437063% |
| D | 9188 | 111 | 1.208098% |

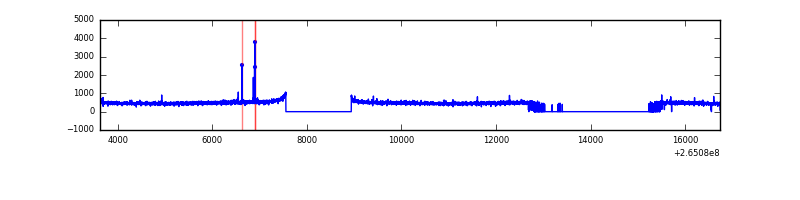

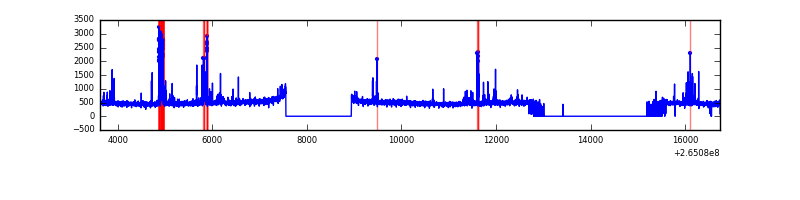

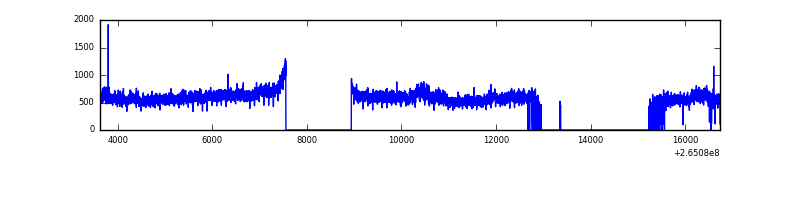

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13116 | 9311 | 3 | 3 | 0.02% | 0.03% |  |
| B | 13116 | 9287 | 69 | 69 | 0.53% | 0.74% |  |
| C | 13116 | 9248 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13116 | 9291 | 93 | 93 | 0.71% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 26552 | 111.84 | 1137 | 1119 | 227.4 |
| A | 8 | 15 | 17927 | 73.91 | 1137 | 1119 | 227.4 |
| A | 0 | 226 | 10164 | 39.78 | 1137 | 1119 | 227.4 |
| B | 0 | 229 | 257218 | 1222.38 | 1123 | 1098 | 209.5 |
| B | 4 | 173 | 104793 | 494.9 | 1123 | 1098 | 209.5 |
| B | 12 | 111 | 24238 | 110.44 | 1123 | 1098 | 209.5 |
| C | 3 | 233 | 1244612 | 5088.8 | 1074 | 1083 | 244.4 |
| C | 3 | 232 | 10746 | 39.54 | 1074 | 1083 | 244.4 |
| C | 13 | 61 | 7815 | 27.55 | 1074 | 1083 | 244.4 |
| D | 10 | 70 | 285248 | 1006.24 | 1074 | 1055 | 282.4 |
| D | 2 | 120 | 134239 | 471.56 | 1074 | 1055 | 282.4 |
| D | 12 | 110 | 90487 | 316.65 | 1074 | 1055 | 282.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

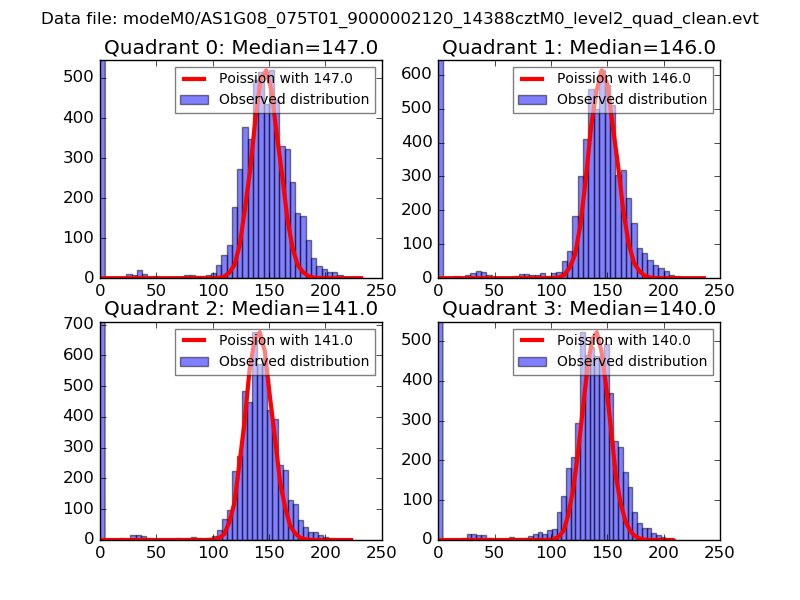

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

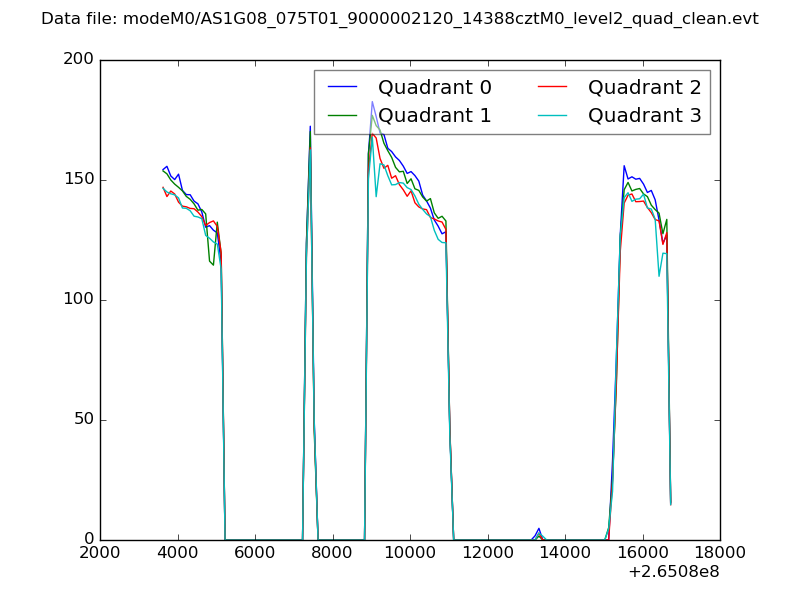

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

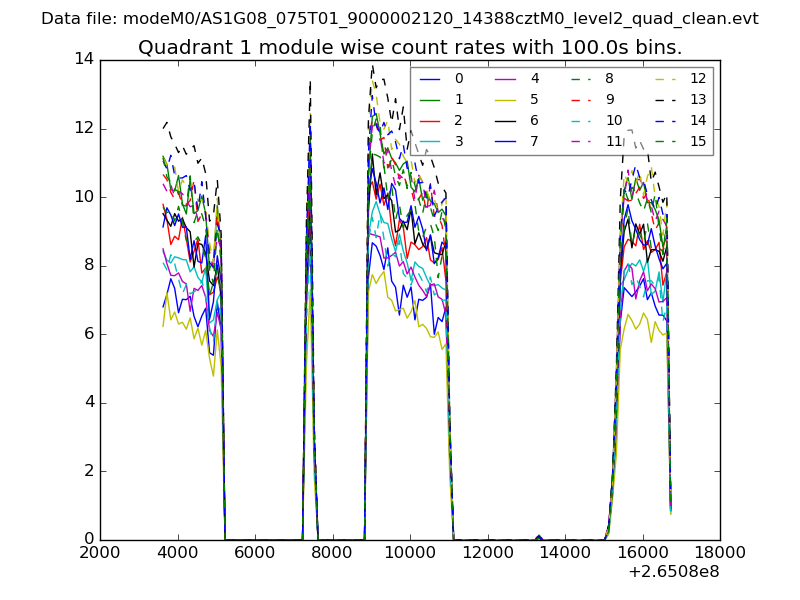

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

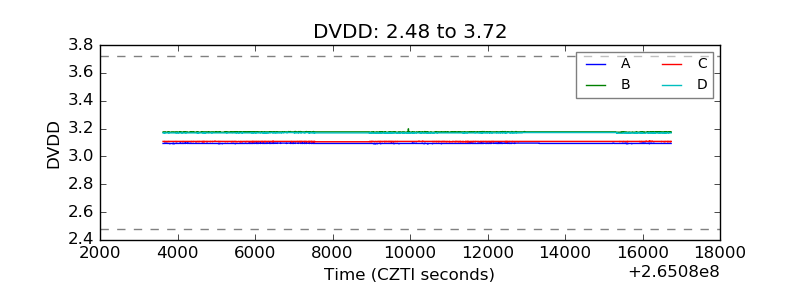

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

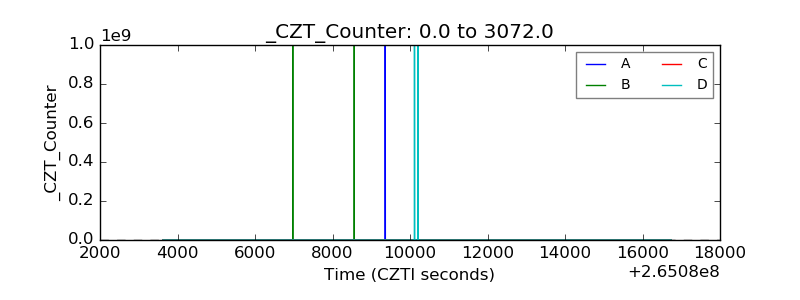

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
