| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T04_9000002122_14393cztM0_level2.evt | modeM0/AS1G08_066T04_9000002122_14393cztM0_level2_quad_clean.evt |
| Size (bytes) | 304,188,480 | 41,633,280 |
| Size | 290.1 MB | 39.7 MB |
| Events in quadrant A | 2,237,893 | 256,213 |
| Events in quadrant B | 1,901,203 | 258,684 |
| Events in quadrant C | 2,268,172 | 249,238 |
| Events in quadrant D | 2,556,073 | 237,817 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8984 | 2 |
| B | 0 | 7911 | 1 |
| C | 0 | 9247 | 1 |
| D | 0 | 9937 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3645 | 121 | 3.319616% |
| B | 3645 | 127 | 3.484225% |
| C | 3645 | 82 | 2.249657% |
| D | 3645 | 256 | 7.023320% |

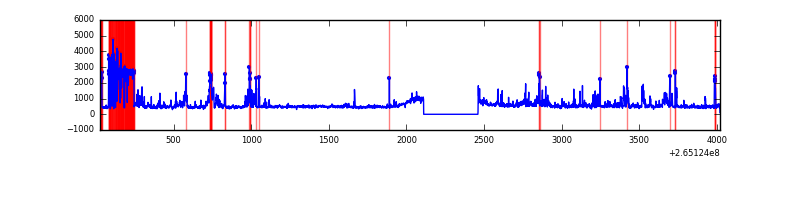

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3996 | 3646 | 2 | 2 | 0.05% | 0.05% |  |
| B | 3996 | 3646 | 4 | 4 | 0.10% | 0.11% |  |
| C | 3996 | 3646 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3996 | 3646 | 170 | 170 | 4.25% | 4.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 393339 | 4182.14 | 454 | 442 | 93.9 |
| A | 12 | 189 | 83942 | 888.8 | 454 | 442 | 93.9 |
| A | 11 | 29 | 6083 | 60.04 | 454 | 442 | 93.9 |
| B | 0 | 229 | 57924 | 649.9 | 449 | 438 | 88.5 |
| B | 0 | 182 | 22514 | 249.58 | 449 | 438 | 88.5 |
| B | 0 | 189 | 19674 | 217.47 | 449 | 438 | 88.5 |
| C | 3 | 233 | 540371 | 5164.94 | 441 | 444 | 104.5 |
| C | 0 | 207 | 4996 | 43.54 | 441 | 444 | 104.5 |
| C | 13 | 61 | 3142 | 25.81 | 441 | 444 | 104.5 |
| D | 1 | 52 | 530476 | 4794.87 | 434 | 422 | 110.5 |
| D | 10 | 199 | 173845 | 1568.79 | 434 | 422 | 110.5 |
| D | 2 | 120 | 73421 | 660.35 | 434 | 422 | 110.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

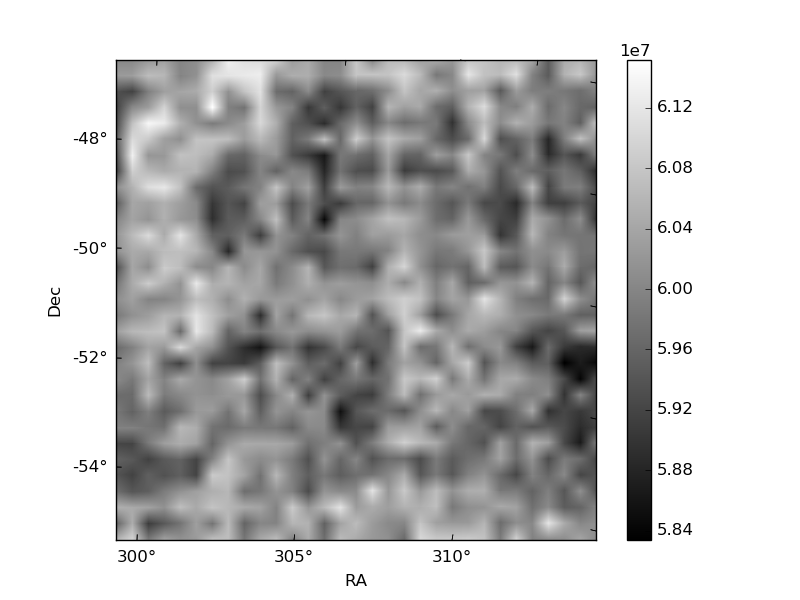

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

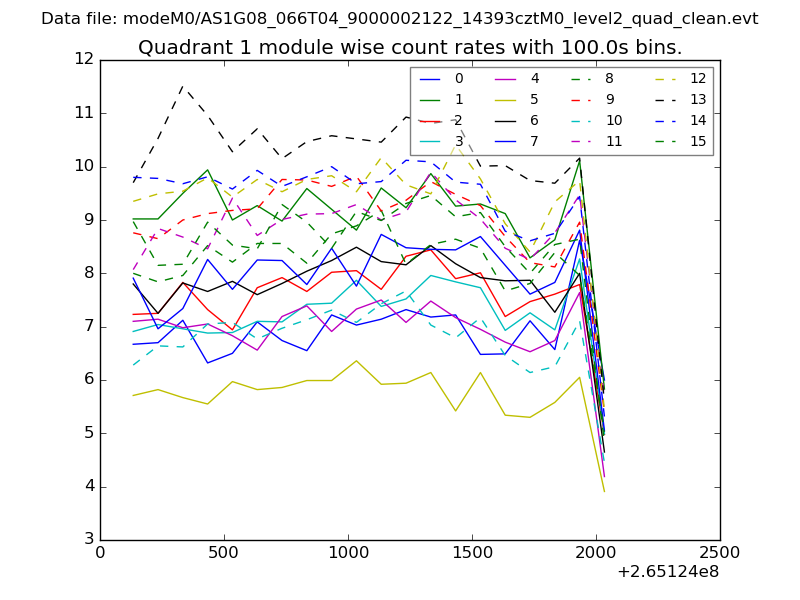

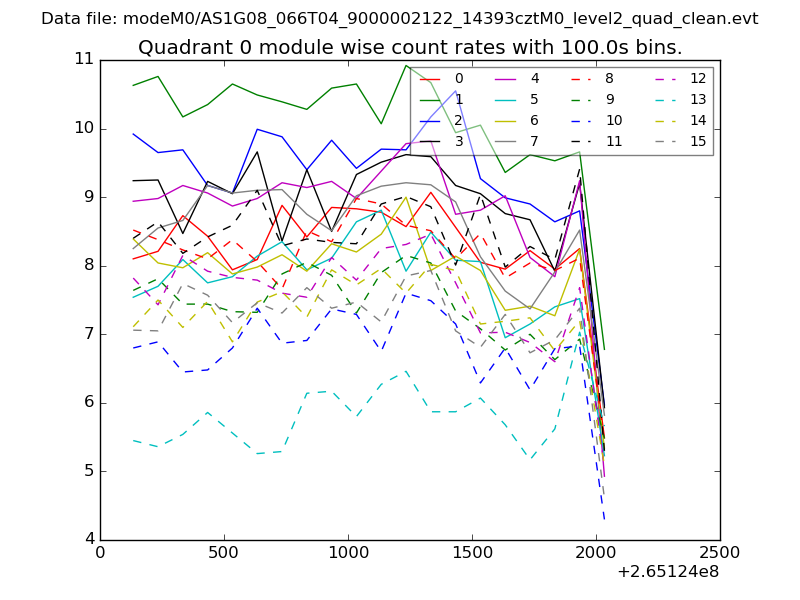

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

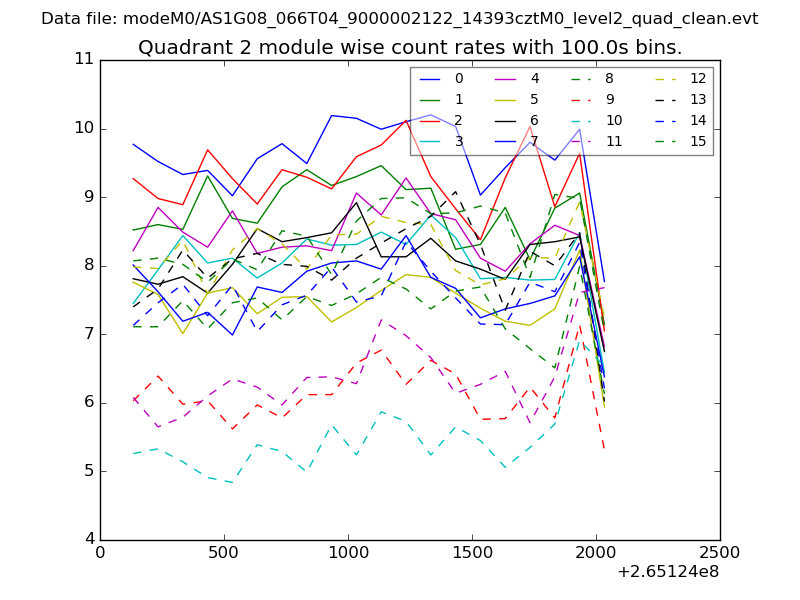

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

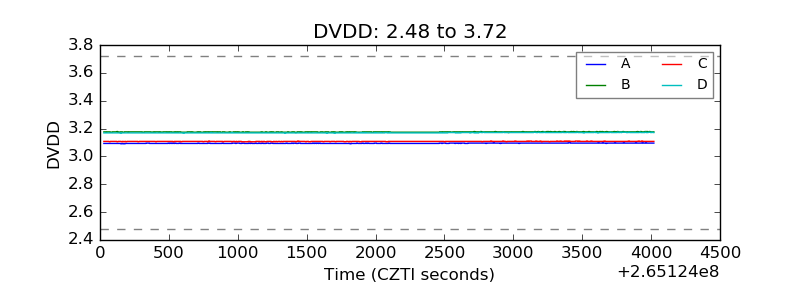

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

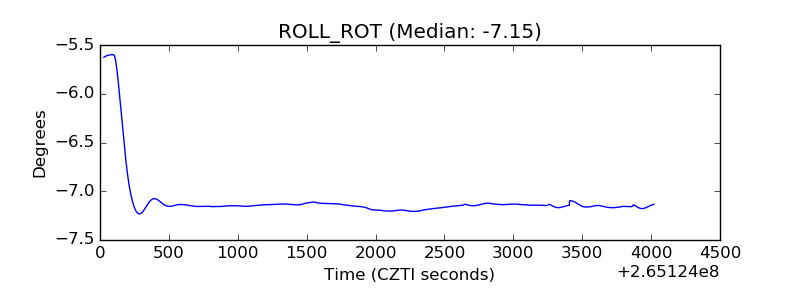

| _ROLL_ROT |  |

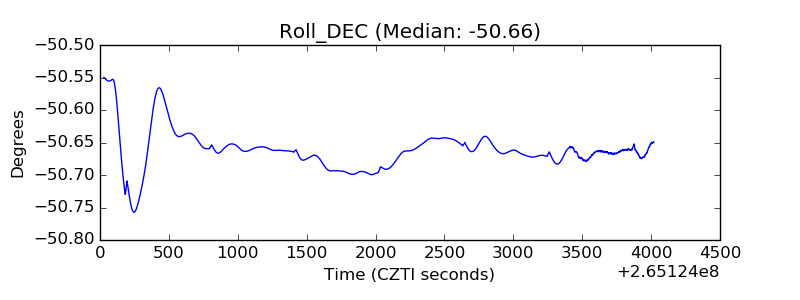

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
