| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T04_9000002122_14398cztM0_level2.evt | modeM0/AS1G08_066T04_9000002122_14398cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,200,320 | 104,356,800 |
| Size | 431.3 MB | 99.5 MB |
| Events in quadrant A | 3,026,385 | 688,781 |
| Events in quadrant B | 3,216,214 | 703,195 |
| Events in quadrant C | 3,694,020 | 671,886 |
| Events in quadrant D | 3,329,251 | 656,011 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13065 | 3 |
| B | 0 | 13678 | 2 |
| C | 0 | 15030 | 2 |
| D | 0 | 14201 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6316 | 25 | 0.395820% |
| B | 6316 | 56 | 0.886637% |
| C | 6316 | 35 | 0.554148% |
| D | 6316 | 90 | 1.424953% |

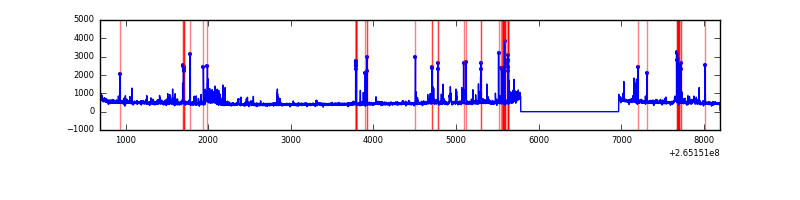

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7502 | 6317 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7502 | 6317 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7502 | 6318 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7502 | 6318 | 71 | 71 | 0.95% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 21043 | 129.49 | 774 | 757 | 156.7 |
| A | 4 | 2 | 12824 | 77.02 | 774 | 757 | 156.7 |
| A | 12 | 189 | 7678 | 44.18 | 774 | 757 | 156.7 |
| B | 0 | 189 | 57976 | 390.35 | 783 | 766 | 146.6 |
| B | 4 | 142 | 28693 | 190.55 | 783 | 766 | 146.6 |
| B | 0 | 229 | 20819 | 136.82 | 783 | 766 | 146.6 |
| C | 3 | 233 | 716648 | 4111.36 | 761 | 766 | 174.1 |
| C | 14 | 234 | 5987 | 29.98 | 761 | 766 | 174.1 |
| C | 13 | 61 | 5327 | 26.19 | 761 | 766 | 174.1 |
| D | 10 | 199 | 145233 | 820.55 | 749 | 732 | 176.1 |
| D | 2 | 120 | 126749 | 715.59 | 749 | 732 | 176.1 |
| D | 15 | 0 | 125710 | 709.69 | 749 | 732 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

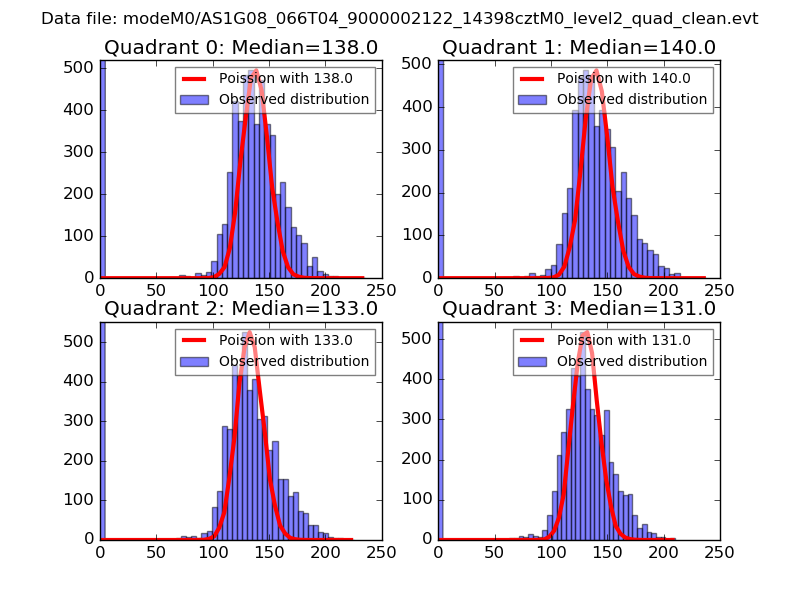

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

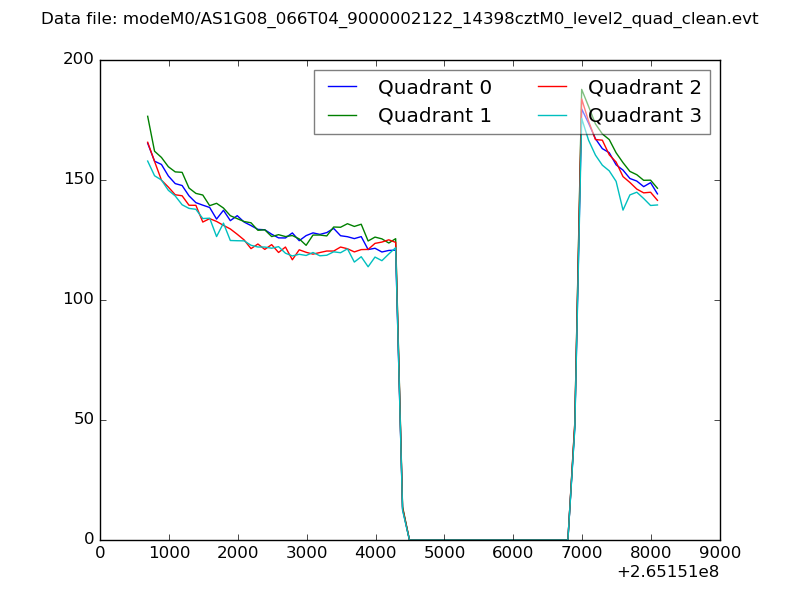

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

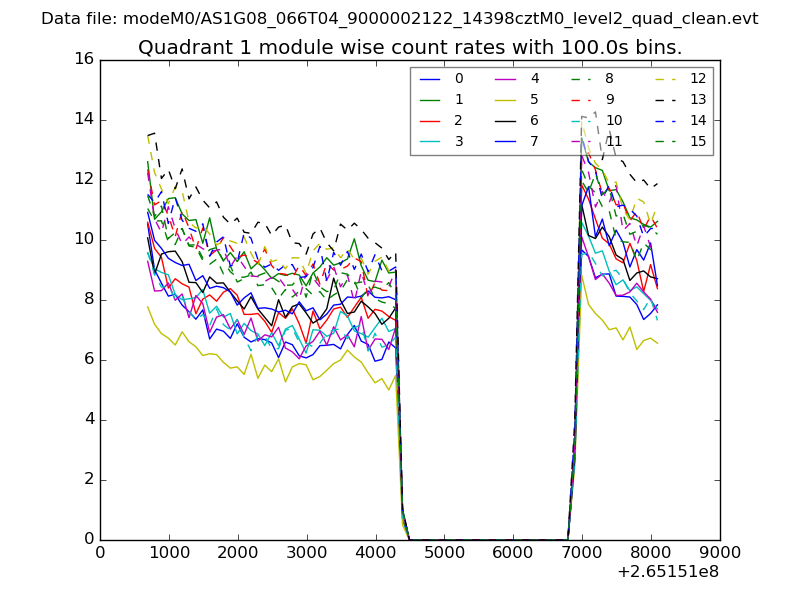

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

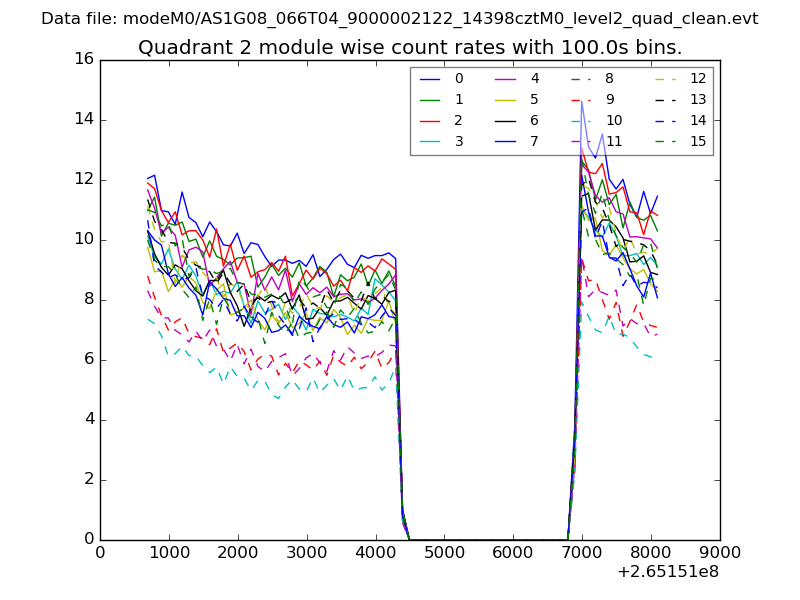

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

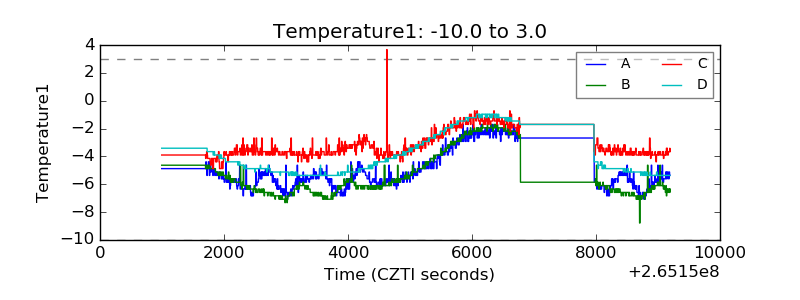

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

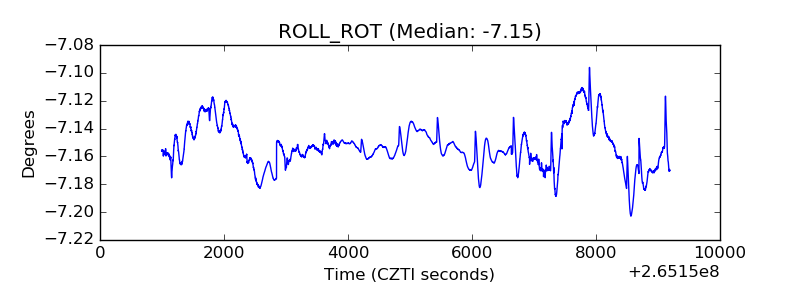

| _ROLL_ROT |  |

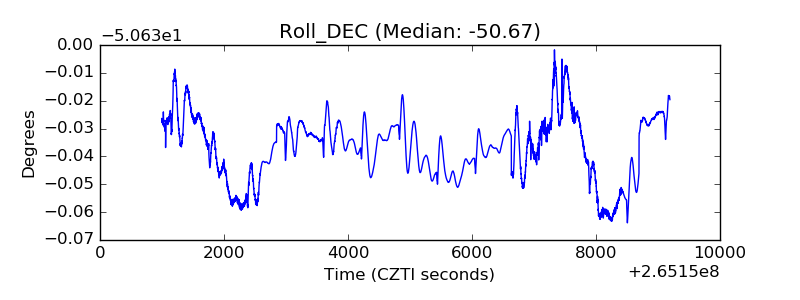

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
