| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_023T02_9000002124_14405cztM0_level2.evt | modeM0/AS1A04_023T02_9000002124_14405cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,081,280 | 83,577,600 |
| Size | 514.1 MB | 79.7 MB |
| Events in quadrant A | 3,717,346 | 511,424 |
| Events in quadrant B | 3,952,041 | 509,792 |
| Events in quadrant C | 4,170,084 | 504,889 |
| Events in quadrant D | 3,983,544 | 488,876 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15682 | 3 |
| B | 0 | 16344 | 2 |
| C | 0 | 16531 | 2 |
| D | 0 | 16734 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7419 | 245 | 3.302332% |
| B | 7419 | 336 | 4.528912% |
| C | 7419 | 187 | 2.520555% |
| D | 7419 | 237 | 3.194501% |

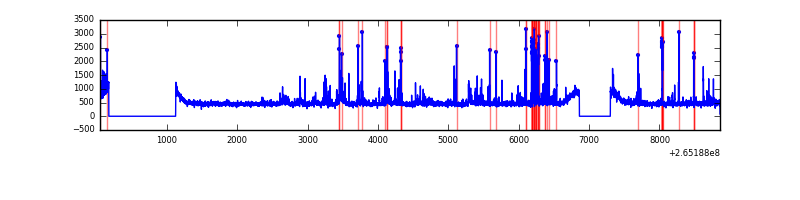

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8810 | 7420 | 9 | 9 | 0.10% | 0.12% |  |
| B | 8810 | 7420 | 57 | 57 | 0.65% | 0.77% |  |
| C | 8810 | 7421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8810 | 7421 | 58 | 58 | 0.66% | 0.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 40851 | 207.97 | 935 | 912 | 192.0 |
| A | 8 | 15 | 29921 | 151.05 | 935 | 912 | 192.0 |
| A | 15 | 69 | 24960 | 125.22 | 935 | 912 | 192.0 |
| B | 4 | 142 | 129465 | 709.89 | 927 | 902 | 181.1 |
| B | 0 | 229 | 57391 | 311.92 | 927 | 902 | 181.1 |
| B | 0 | 189 | 38042 | 205.08 | 927 | 902 | 181.1 |
| C | 3 | 233 | 634660 | 3000.85 | 906 | 910 | 211.2 |
| C | 13 | 61 | 6400 | 26.0 | 906 | 910 | 211.2 |
| C | 14 | 234 | 2305 | 6.61 | 906 | 910 | 211.2 |
| D | 2 | 120 | 247495 | 1131.06 | 903 | 882 | 218.0 |
| D | 10 | 199 | 129461 | 589.71 | 903 | 882 | 218.0 |
| D | 2 | 136 | 55698 | 251.41 | 903 | 882 | 218.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

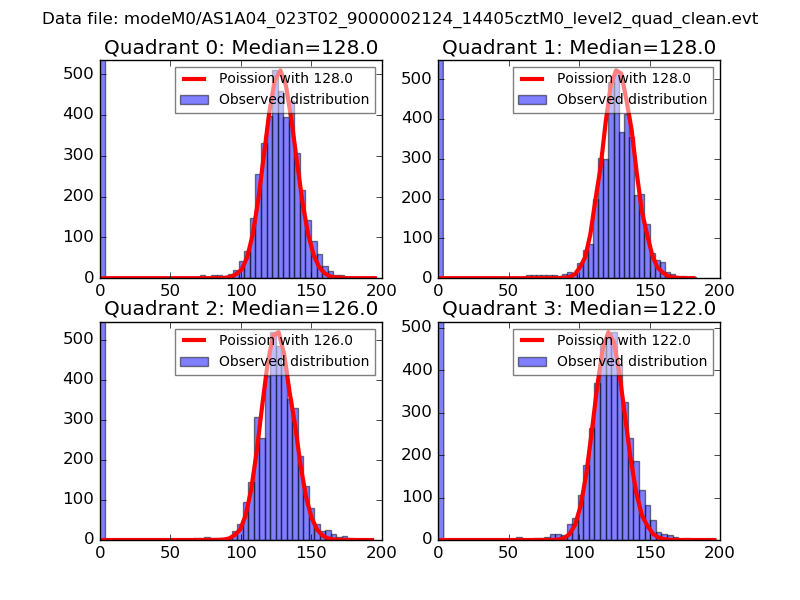

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

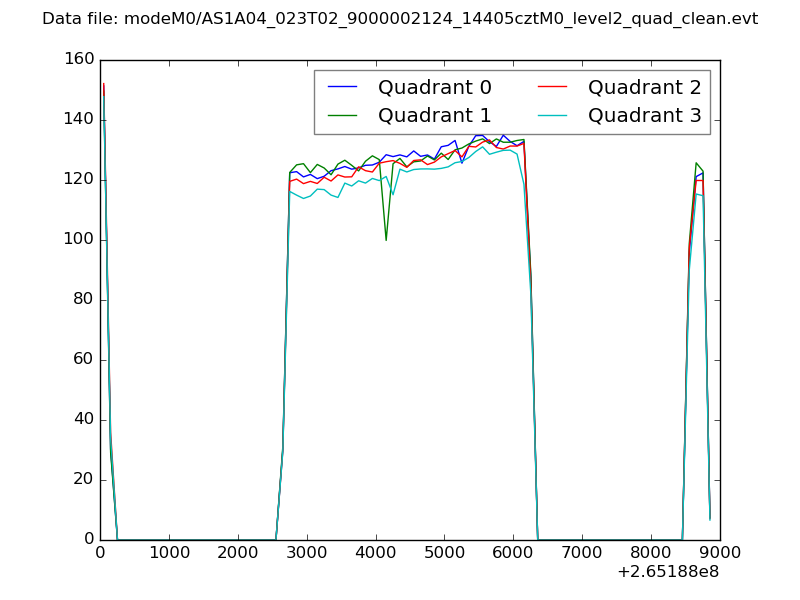

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

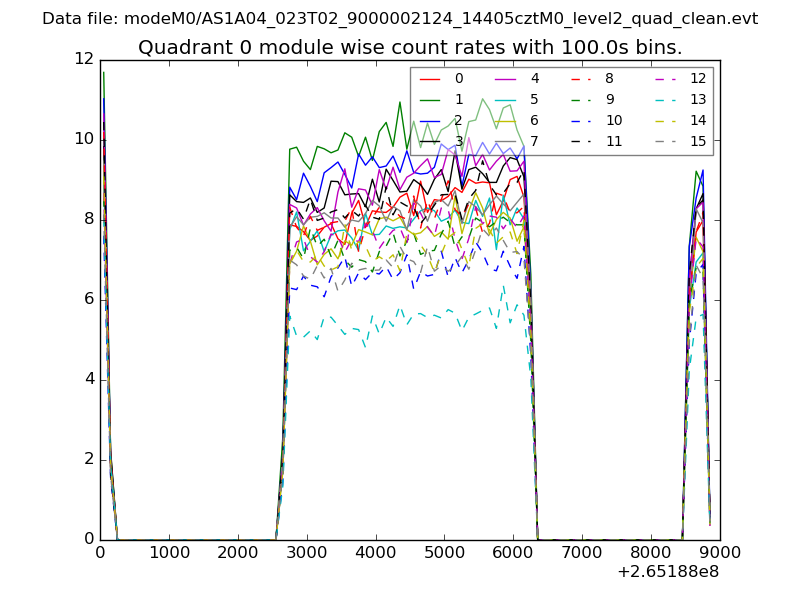

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

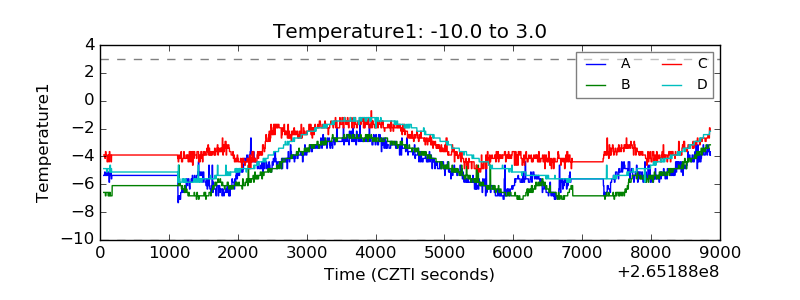

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

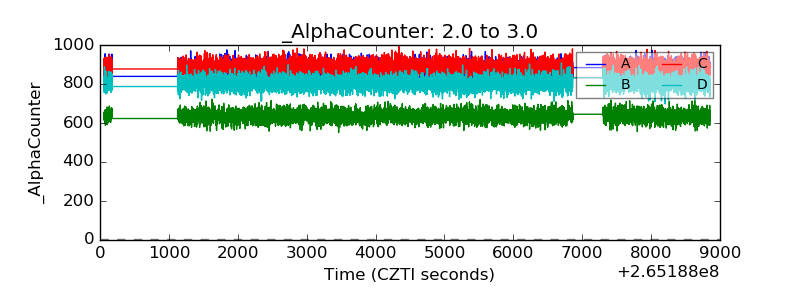

| Alpha Counter |  |
| _CPM_Rate |  |

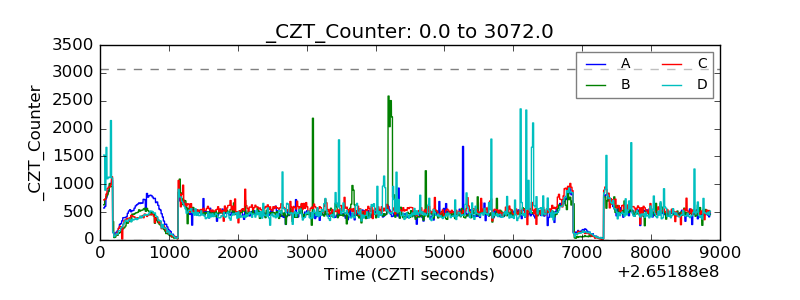

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

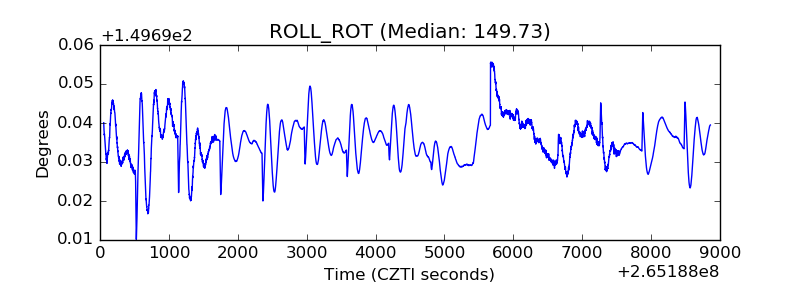

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
