| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_186T01_9000002126_14411cztM0_level2.evt | modeM0/AS1A04_186T01_9000002126_14411cztM0_level2_quad_clean.evt |
| Size (bytes) | 650,632,320 | 88,675,200 |
| Size | 620.5 MB | 84.6 MB |
| Events in quadrant A | 3,257,971 | 587,300 |
| Events in quadrant B | 3,553,361 | 567,086 |
| Events in quadrant C | 4,430,065 | 560,605 |
| Events in quadrant D | 8,027,025 | 520,124 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13813 | 2 |
| B | 0 | 14833 | 1 |
| C | 0 | 17916 | 1 |
| D | 0 | 28398 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 28 | 0.433437% |
| B | 6460 | 119 | 1.842105% |
| C | 6460 | 52 | 0.804954% |
| D | 6460 | 1429 | 22.120743% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7466 | 6462 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7465 | 6460 | 35 | 35 | 0.47% | 0.54% |  |
| C | 7466 | 6462 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7465 | 6460 | 1079 | 1079 | 14.45% | 16.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 135888 | 848.51 | 786 | 770 | 159.2 |
| A | 12 | 189 | 64358 | 399.32 | 786 | 770 | 159.2 |
| A | 4 | 2 | 30607 | 187.37 | 786 | 770 | 159.2 |
| B | 0 | 189 | 263826 | 1755.4 | 776 | 757 | 149.9 |
| B | 0 | 229 | 96429 | 638.4 | 776 | 757 | 149.9 |
| B | 4 | 173 | 72350 | 477.73 | 776 | 757 | 149.9 |
| C | 3 | 233 | 1465459 | 8286.09 | 756 | 757 | 176.8 |
| C | 0 | 207 | 11852 | 62.77 | 756 | 757 | 176.8 |
| C | 13 | 61 | 5504 | 26.85 | 756 | 757 | 176.8 |
| D | 13 | 122 | 4468999 | 23743.77 | 705 | 690 | 188.2 |
| D | 1 | 52 | 167276 | 885.21 | 705 | 690 | 188.2 |
| D | 10 | 199 | 165101 | 873.65 | 705 | 690 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

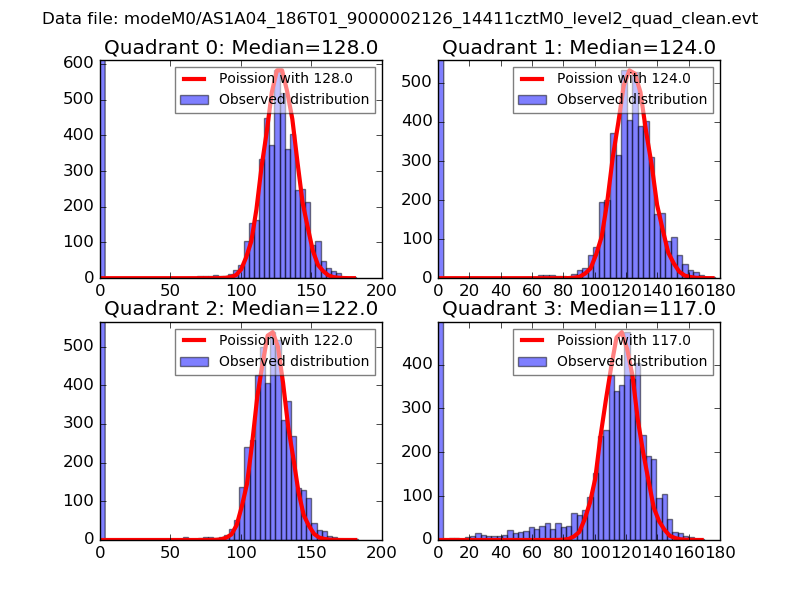

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

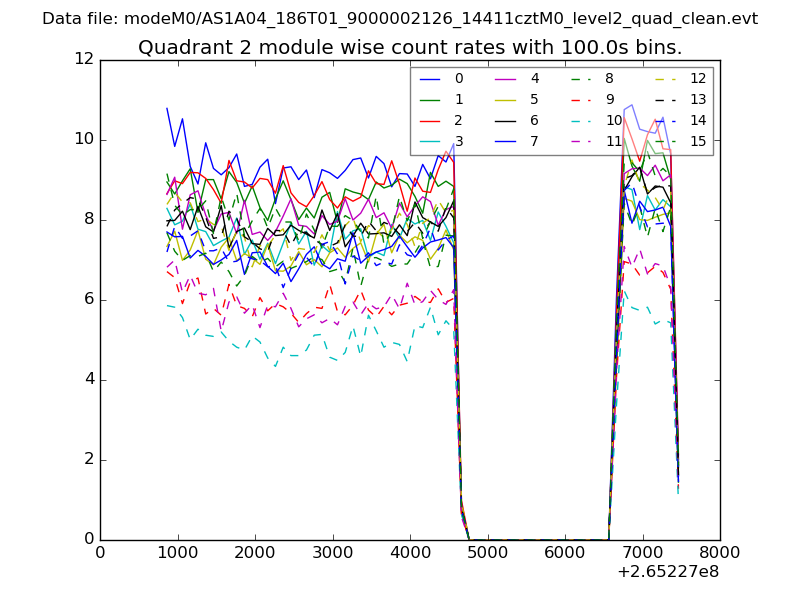

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

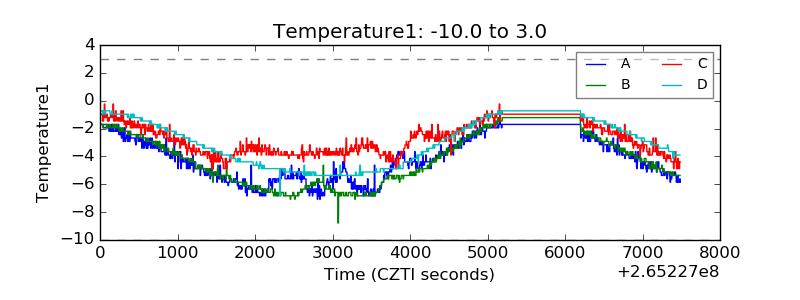

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

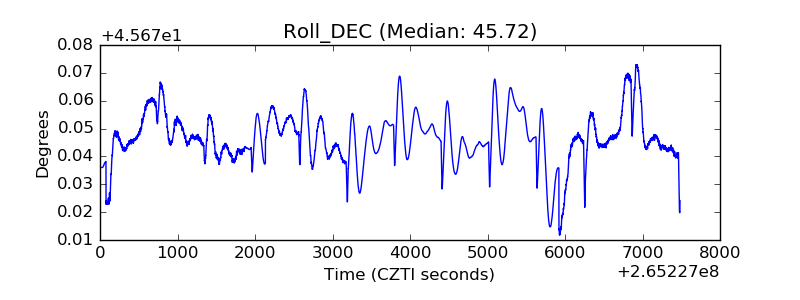

| _Roll_DEC |  |

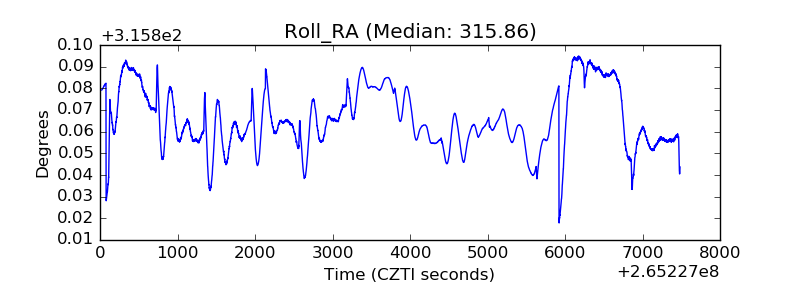

| _Roll_RA |  |
| Veto Counter |  |
