| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_025T01_9000002130_14441cztM0_level2.evt | modeM0/AS1G08_025T01_9000002130_14441cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,518,080 | 78,474,240 |
| Size | 477.3 MB | 74.8 MB |
| Events in quadrant A | 3,251,986 | 494,503 |
| Events in quadrant B | 3,416,320 | 488,537 |
| Events in quadrant C | 3,914,656 | 481,252 |
| Events in quadrant D | 4,145,815 | 470,126 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13873 | 3 |
| B | 0 | 14599 | 2 |
| C | 0 | 15890 | 2 |
| D | 0 | 16608 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 62 | 0.978844% |
| B | 6334 | 69 | 1.089359% |
| C | 6334 | 69 | 1.089359% |
| D | 6334 | 131 | 2.068203% |

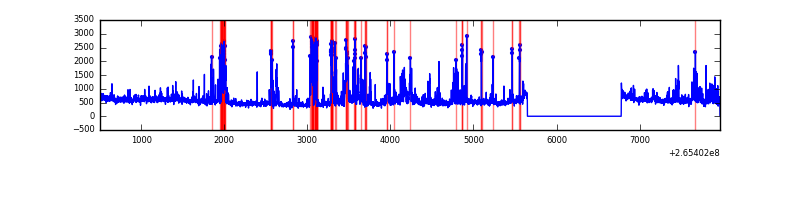

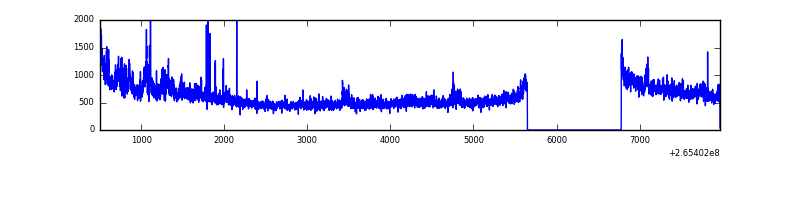

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

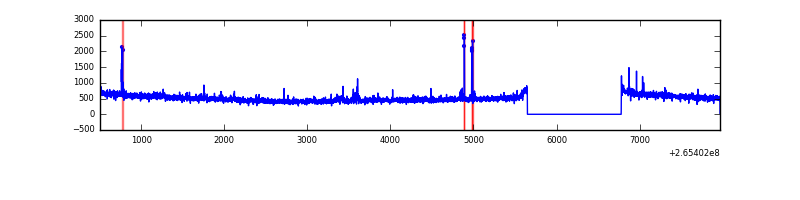

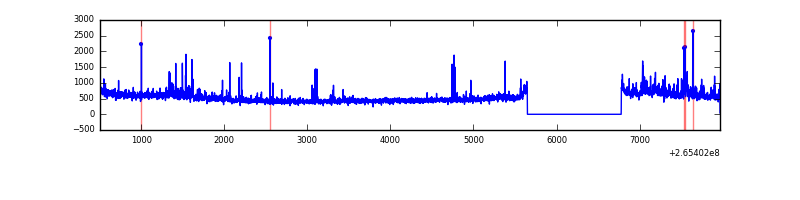

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7465 | 6335 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7465 | 6335 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7465 | 6335 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7465 | 6335 | 116 | 116 | 1.55% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 133075 | 810.98 | 799 | 783 | 163.1 |
| A | 12 | 189 | 22063 | 130.45 | 799 | 783 | 163.1 |
| A | 4 | 2 | 11372 | 64.91 | 799 | 783 | 163.1 |
| B | 0 | 219 | 107776 | 714.95 | 793 | 773 | 149.7 |
| B | 0 | 189 | 51491 | 338.88 | 793 | 773 | 149.7 |
| B | 3 | 209 | 37154 | 243.08 | 793 | 773 | 149.7 |
| C | 3 | 233 | 867555 | 4821.61 | 774 | 779 | 179.8 |
| C | 14 | 234 | 17108 | 90.83 | 774 | 779 | 179.8 |
| C | 0 | 207 | 8091 | 40.67 | 774 | 779 | 179.8 |
| D | 12 | 110 | 398022 | 1938.29 | 773 | 758 | 205.0 |
| D | 2 | 120 | 333125 | 1621.65 | 773 | 758 | 205.0 |
| D | 13 | 122 | 322045 | 1567.59 | 773 | 758 | 205.0 |

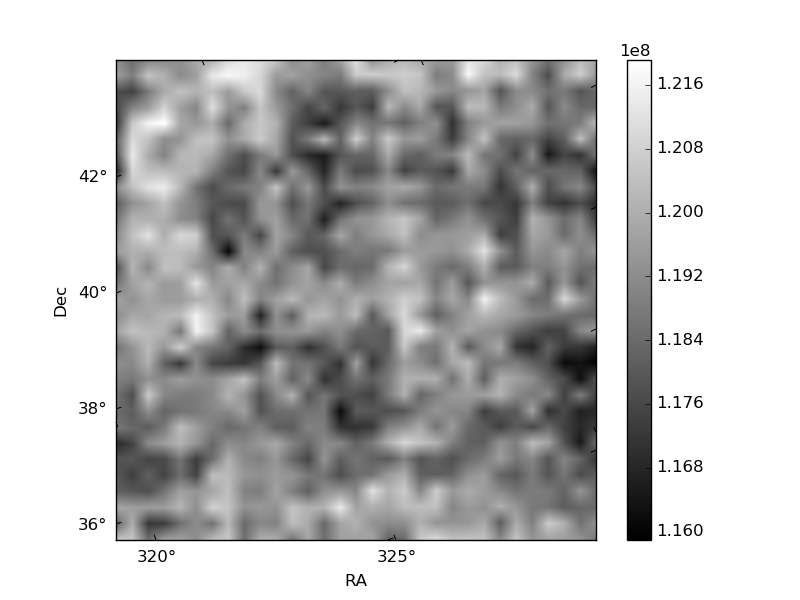

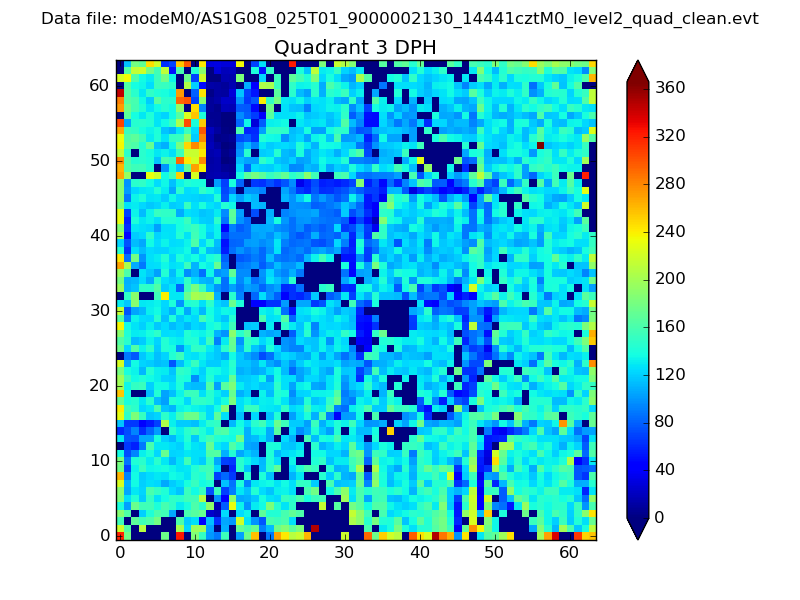

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

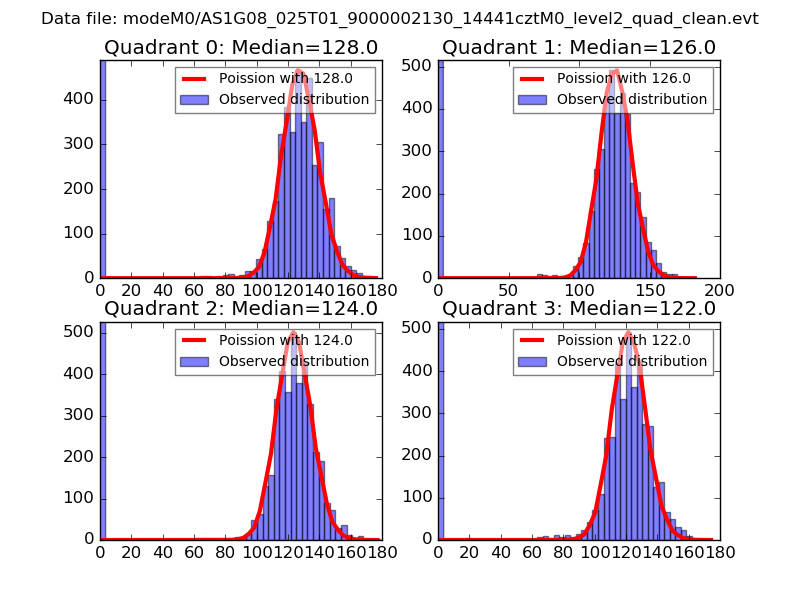

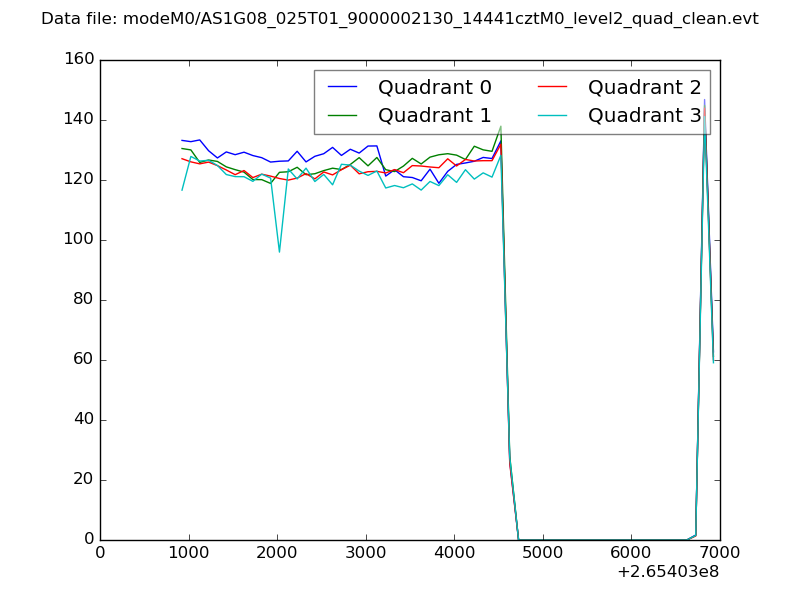

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

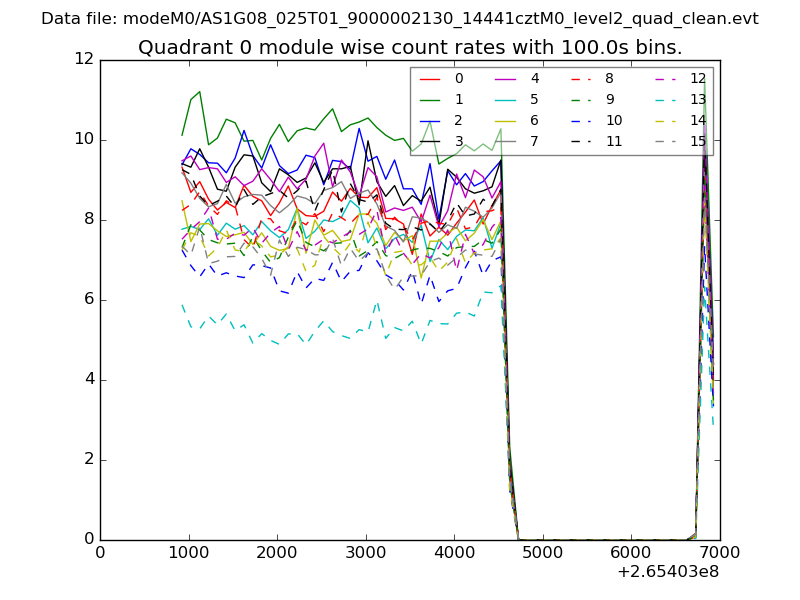

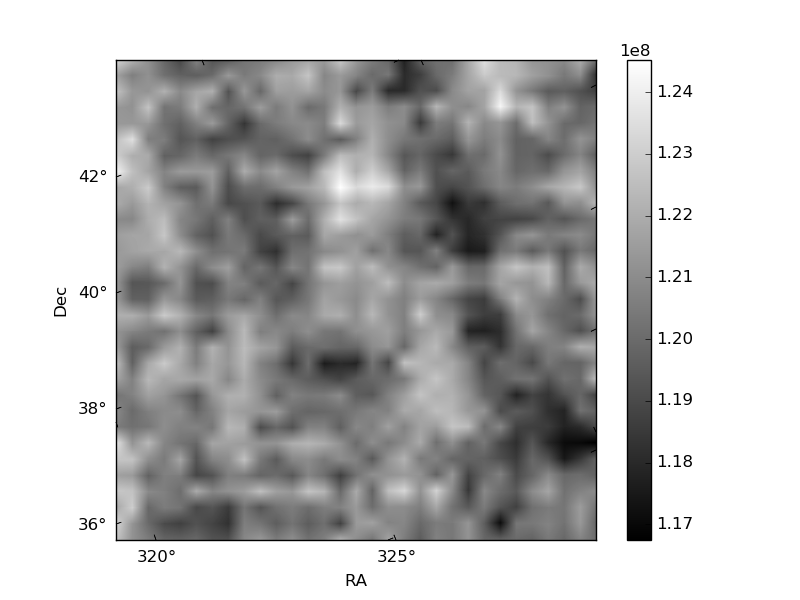

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

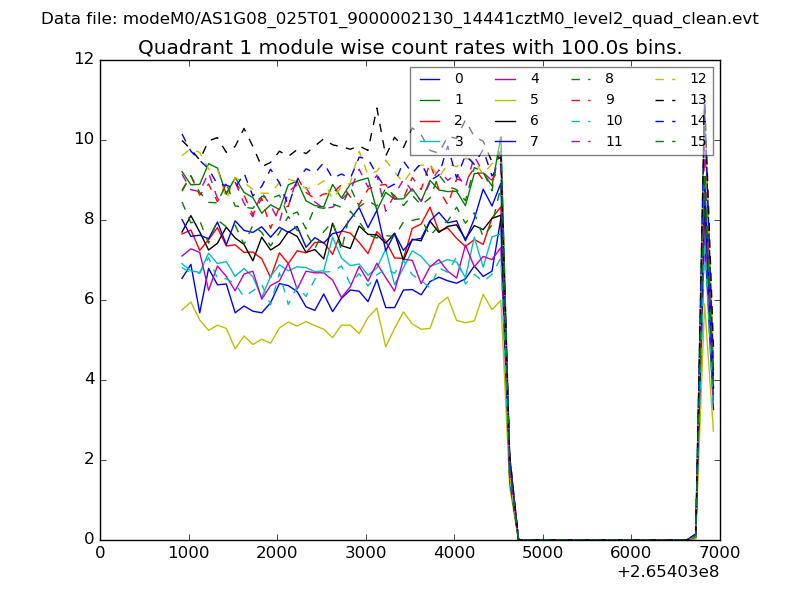

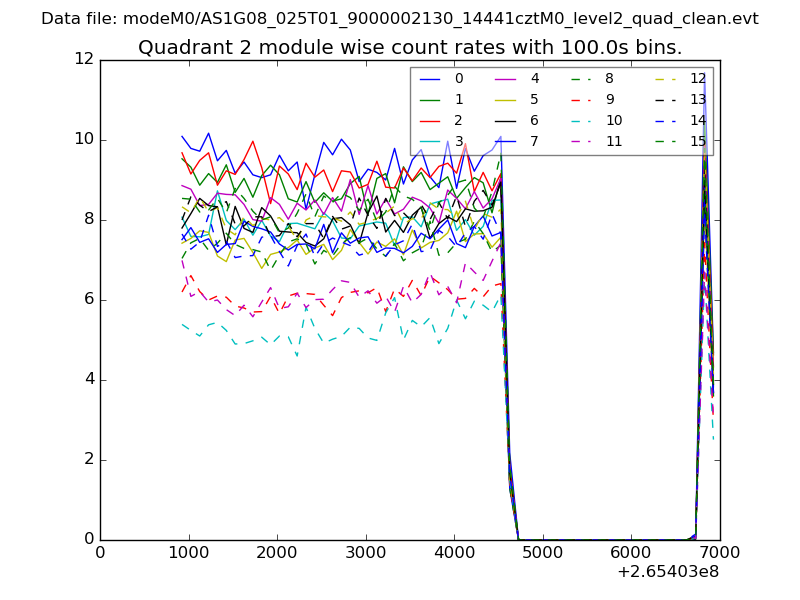

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

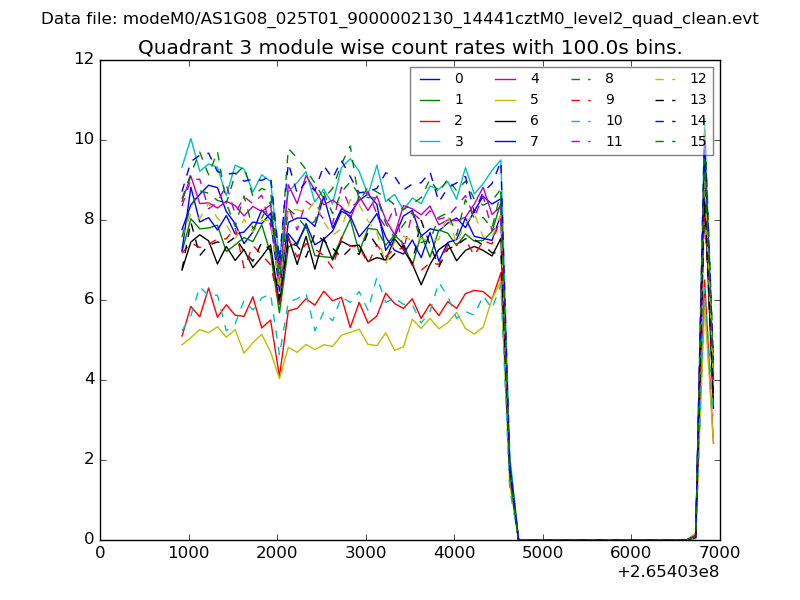

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

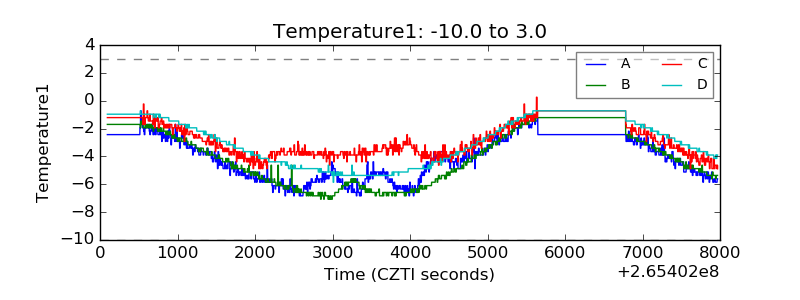

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

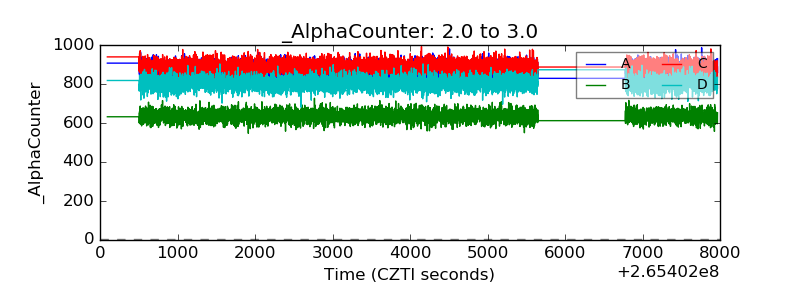

| Alpha Counter |  |

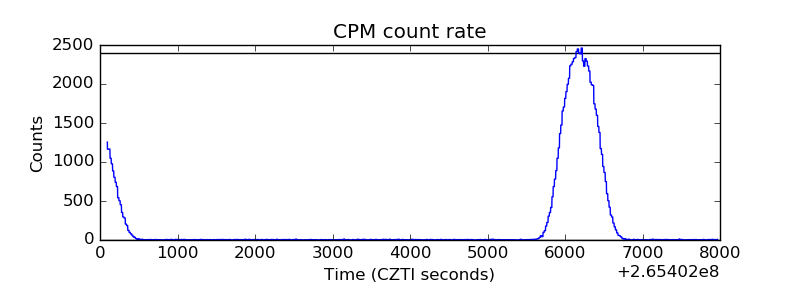

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

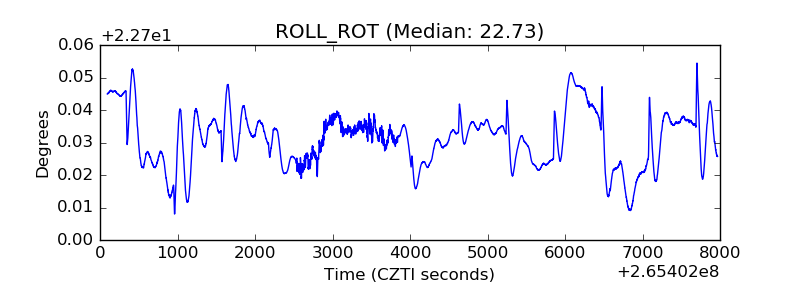

| _ROLL_ROT |  |

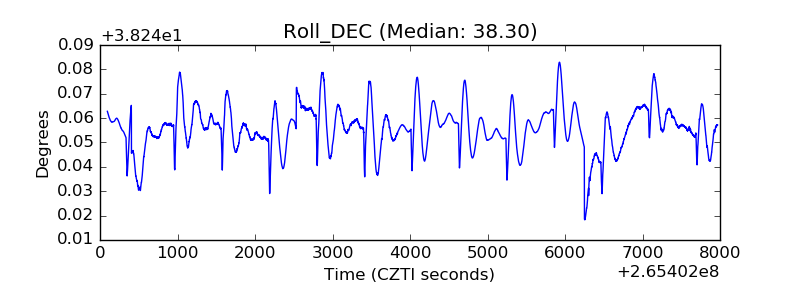

| _Roll_DEC |  |
| _Roll_RA |  |

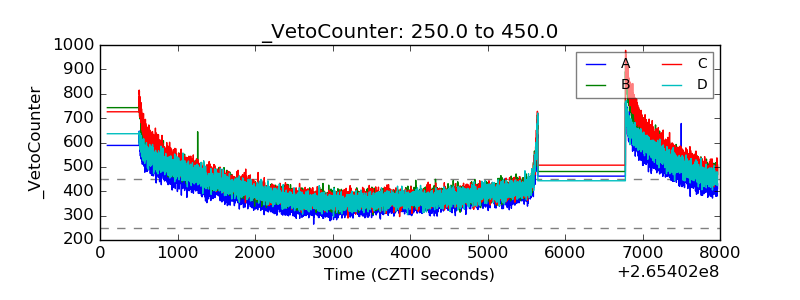

| Veto Counter |  |
