| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_025T01_9000002130_14446cztM0_level2.evt | modeM0/AS1G08_025T01_9000002130_14446cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,474,240 | 107,550,720 |
| Size | 478.2 MB | 102.6 MB |
| Events in quadrant A | 3,150,014 | 722,446 |
| Events in quadrant B | 4,094,498 | 715,258 |
| Events in quadrant C | 3,305,130 | 704,188 |
| Events in quadrant D | 4,216,679 | 682,698 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13277 | 3 |
| B | 0 | 16097 | 2 |
| C | 0 | 13811 | 2 |
| D | 0 | 16689 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 35 | 0.564516% |
| B | 6200 | 462 | 7.451613% |
| C | 6200 | 29 | 0.467742% |
| D | 6200 | 354 | 5.709677% |

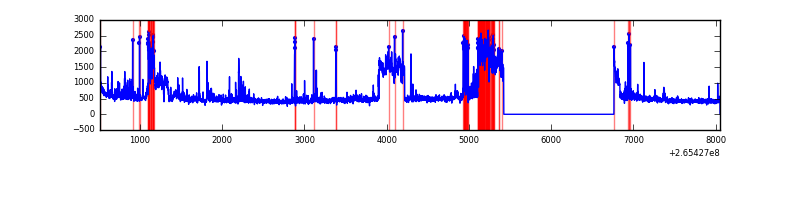

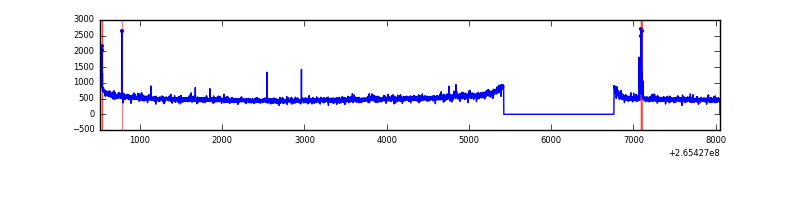

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6201 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7541 | 6202 | 303 | 303 | 4.02% | 4.89% |  |
| C | 7541 | 6201 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7541 | 6202 | 160 | 160 | 2.12% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 50468 | 313.8 | 786 | 771 | 158.4 |
| A | 4 | 2 | 43314 | 268.63 | 786 | 771 | 158.4 |
| A | 8 | 15 | 33192 | 204.71 | 786 | 771 | 158.4 |
| B | 10 | 16 | 987306 | 7031.3 | 750 | 734 | 140.3 |
| B | 15 | 222 | 101448 | 717.79 | 750 | 734 | 140.3 |
| B | 3 | 209 | 25897 | 179.34 | 750 | 734 | 140.3 |
| C | 3 | 233 | 343162 | 1955.69 | 759 | 762 | 175.1 |
| C | 13 | 61 | 5558 | 27.39 | 759 | 762 | 175.1 |
| C | 0 | 207 | 2874 | 12.06 | 759 | 762 | 175.1 |
| D | 13 | 122 | 776473 | 4365.83 | 738 | 721 | 177.7 |
| D | 2 | 120 | 397753 | 2234.44 | 738 | 721 | 177.7 |
| D | 2 | 152 | 72717 | 405.18 | 738 | 721 | 177.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

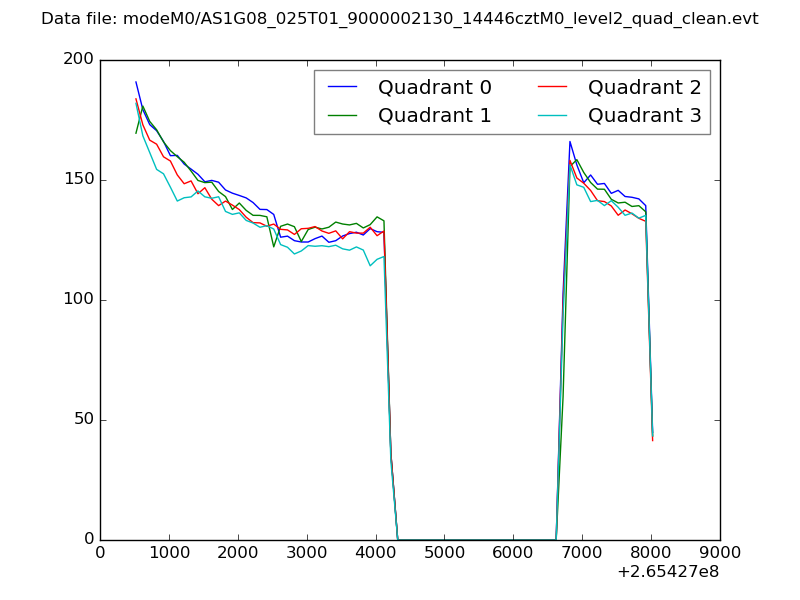

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

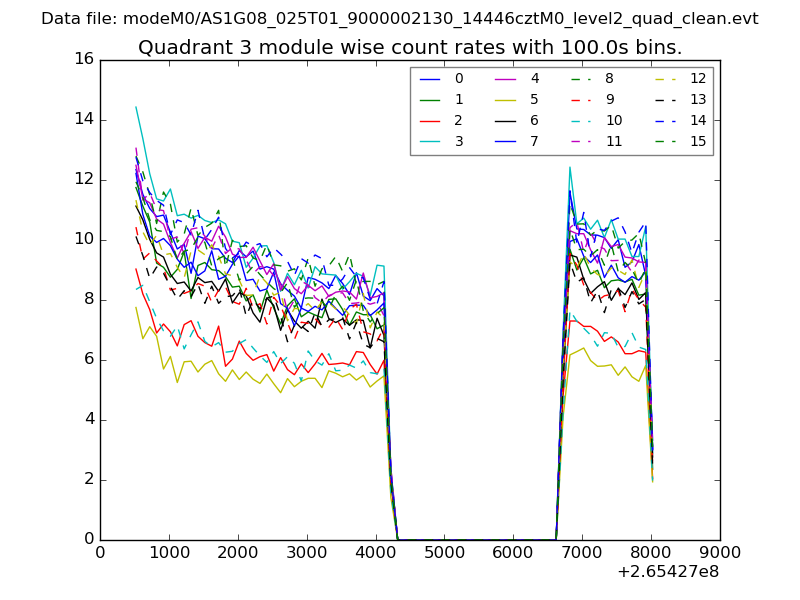

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

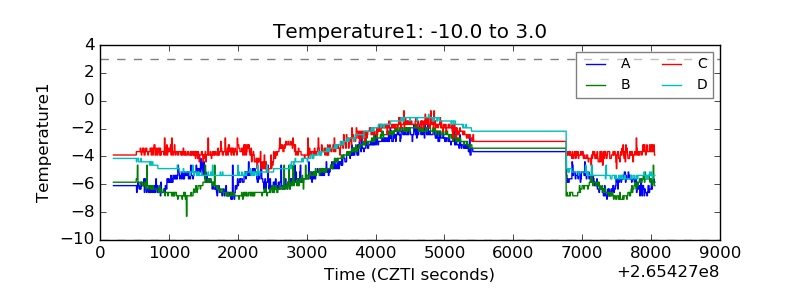

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

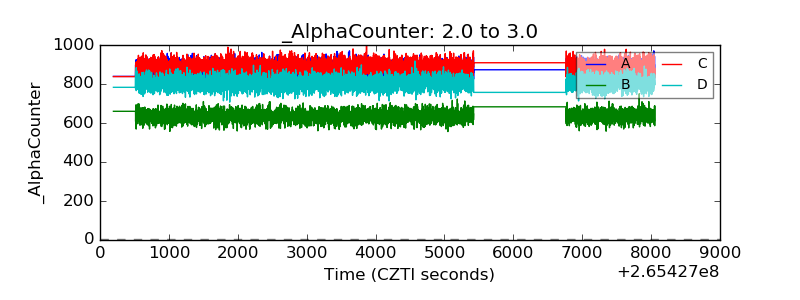

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

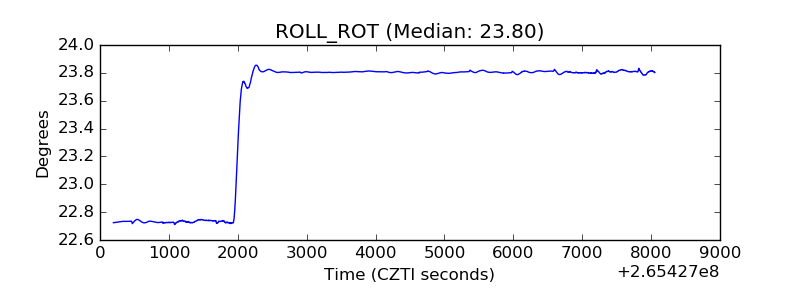

| _ROLL_ROT |  |

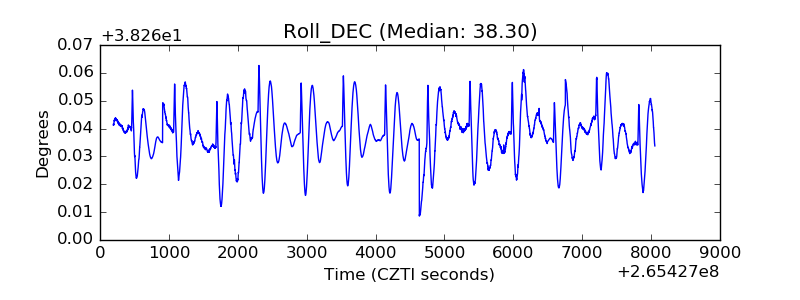

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
