| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_025T01_9000002130_14458cztM0_level2.evt | modeM0/AS1G08_025T01_9000002130_14458cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,271,692,800 | 250,801,920 |
| Size | 1.2 GB | 239.2 MB |
| Events in quadrant A | 7,866,642 | 1,683,160 |
| Events in quadrant B | 8,484,966 | 1,655,298 |
| Events in quadrant C | 8,415,733 | 1,646,744 |
| Events in quadrant D | 12,692,505 | 1,534,267 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33651 | 4 |
| B | 0 | 35946 | 3 |
| C | 0 | 34839 | 3 |
| D | 0 | 48270 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15604 | 112 | 0.717765% |
| B | 15604 | 242 | 1.550884% |
| C | 15604 | 134 | 0.858754% |
| D | 15604 | 1396 | 8.946424% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19129 | 15605 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19129 | 15605 | 59 | 59 | 0.31% | 0.38% |  |
| C | 19129 | 15605 | 4 | 4 | 0.02% | 0.03% |  |
| D | 19129 | 15605 | 1293 | 1293 | 6.76% | 8.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 199495 | 512.74 | 1932 | 1896 | 385.4 |
| A | 14 | 14 | 89422 | 227.12 | 1932 | 1896 | 385.4 |
| A | 8 | 15 | 74303 | 187.89 | 1932 | 1896 | 385.4 |
| B | 0 | 189 | 218968 | 605.41 | 1923 | 1878 | 358.6 |
| B | 15 | 222 | 190242 | 525.3 | 1923 | 1878 | 358.6 |
| B | 0 | 219 | 168754 | 465.38 | 1923 | 1878 | 358.6 |
| C | 3 | 233 | 1021251 | 2370.28 | 1883 | 1894 | 430.1 |
| C | 14 | 234 | 34510 | 75.84 | 1883 | 1894 | 430.1 |
| C | 7 | 247 | 19124 | 40.06 | 1883 | 1894 | 430.1 |
| D | 13 | 122 | 2941396 | 6148.24 | 1803 | 1770 | 478.1 |
| D | 10 | 199 | 1683157 | 3516.63 | 1803 | 1770 | 478.1 |
| D | 12 | 110 | 590760 | 1231.88 | 1803 | 1770 | 478.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

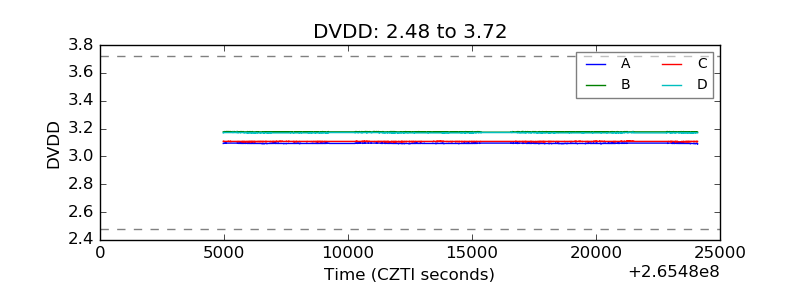

| D_VDD |  |

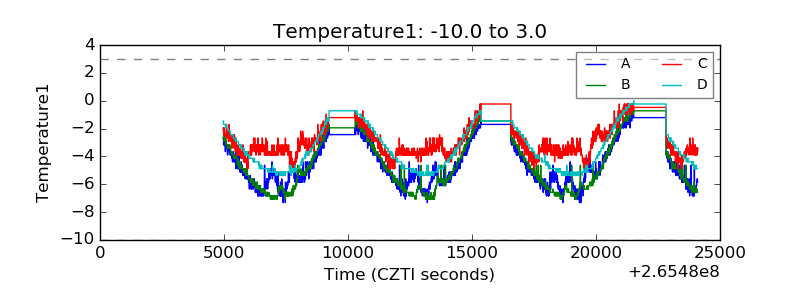

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

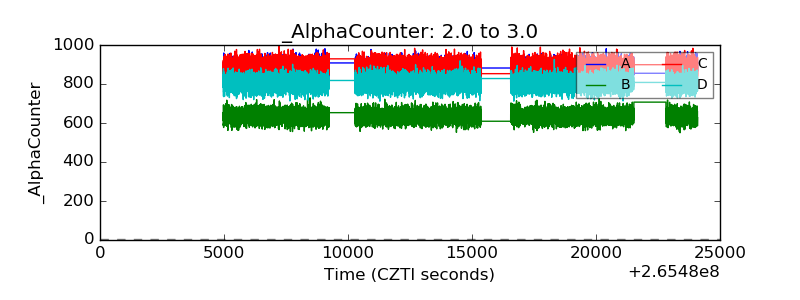

| Alpha Counter |  |
| _CPM_Rate |  |

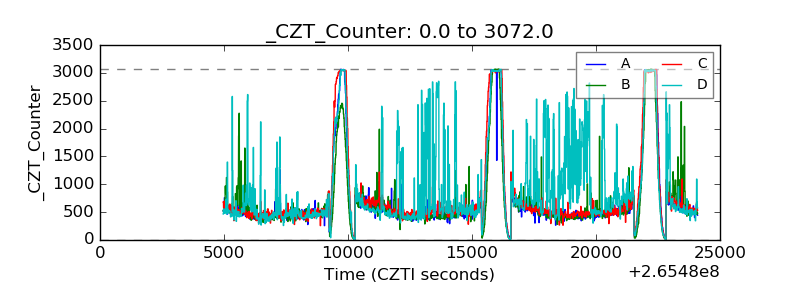

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

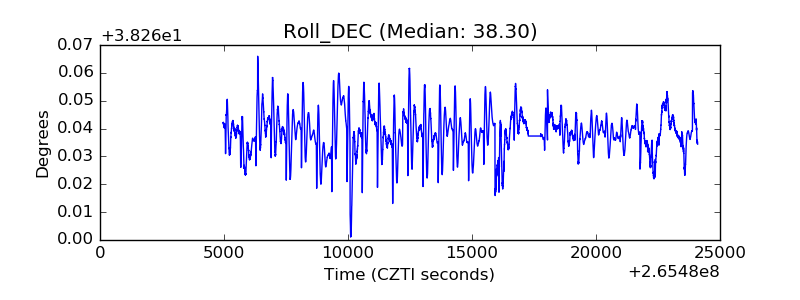

| _Roll_DEC |  |

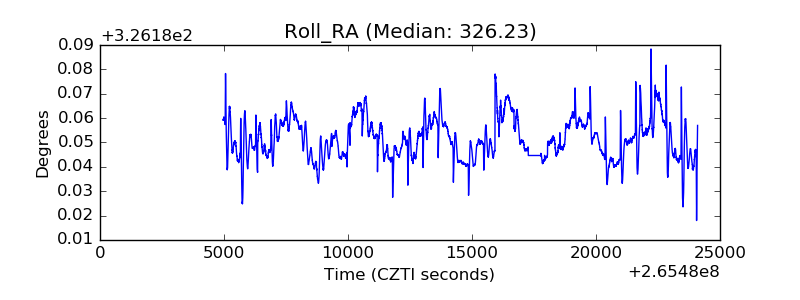

| _Roll_RA |  |
| Veto Counter |  |
