| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_025T01_9000002130_14461cztM0_level2.evt | modeM0/AS1G08_025T01_9000002130_14461cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,743,680 | 89,593,920 |
| Size | 437.5 MB | 85.4 MB |
| Events in quadrant A | 3,117,908 | 584,503 |
| Events in quadrant B | 3,172,853 | 584,530 |
| Events in quadrant C | 3,201,386 | 569,615 |
| Events in quadrant D | 3,975,194 | 537,167 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13295 | 3 |
| B | 0 | 13499 | 2 |
| C | 0 | 13359 | 2 |
| D | 0 | 16060 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6271 | 34 | 0.542178% |
| B | 6271 | 60 | 0.956785% |
| C | 6271 | 22 | 0.350821% |
| D | 6271 | 228 | 3.635784% |

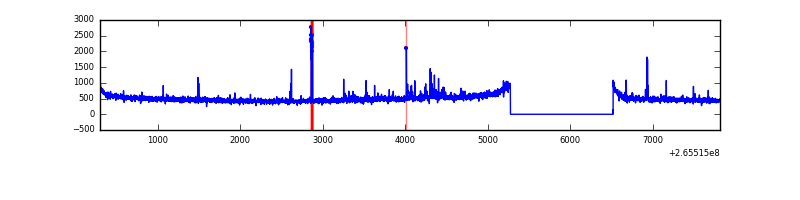

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7517 | 6273 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7517 | 6273 | 14 | 14 | 0.19% | 0.22% |  |
| C | 7517 | 6273 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7517 | 6273 | 214 | 214 | 2.85% | 3.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 83494 | 520.42 | 783 | 768 | 159.0 |
| A | 8 | 15 | 12466 | 73.59 | 783 | 768 | 159.0 |
| A | 12 | 96 | 7499 | 42.34 | 783 | 768 | 159.0 |
| B | 0 | 189 | 34439 | 229.17 | 781 | 762 | 147.0 |
| B | 15 | 222 | 32291 | 214.55 | 781 | 762 | 147.0 |
| B | 12 | 111 | 16497 | 107.07 | 781 | 762 | 147.0 |
| C | 3 | 233 | 243137 | 1394.58 | 755 | 760 | 173.8 |
| C | 14 | 234 | 6259 | 31.64 | 755 | 760 | 173.8 |
| C | 0 | 207 | 5881 | 29.47 | 755 | 760 | 173.8 |
| D | 13 | 122 | 676234 | 3466.08 | 729 | 714 | 194.9 |
| D | 10 | 199 | 456208 | 2337.13 | 729 | 714 | 194.9 |
| D | 2 | 152 | 33709 | 169.3 | 729 | 714 | 194.9 |

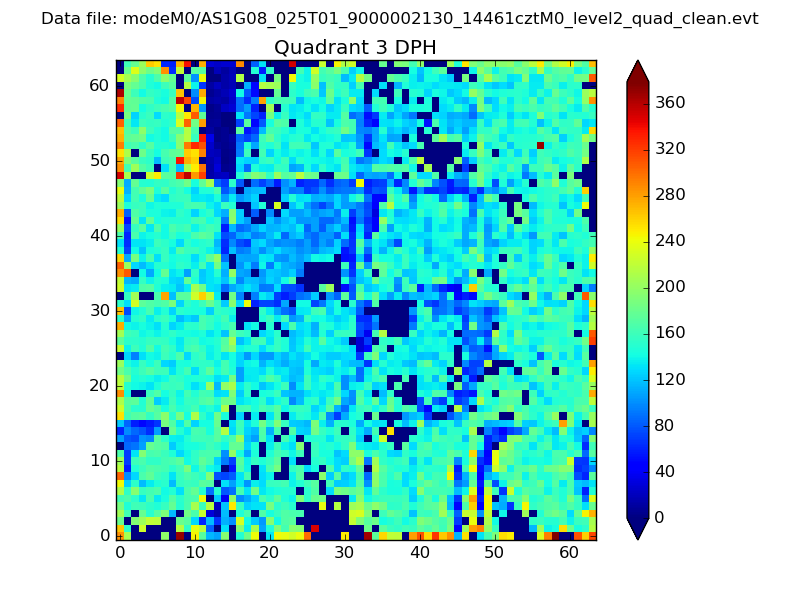

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

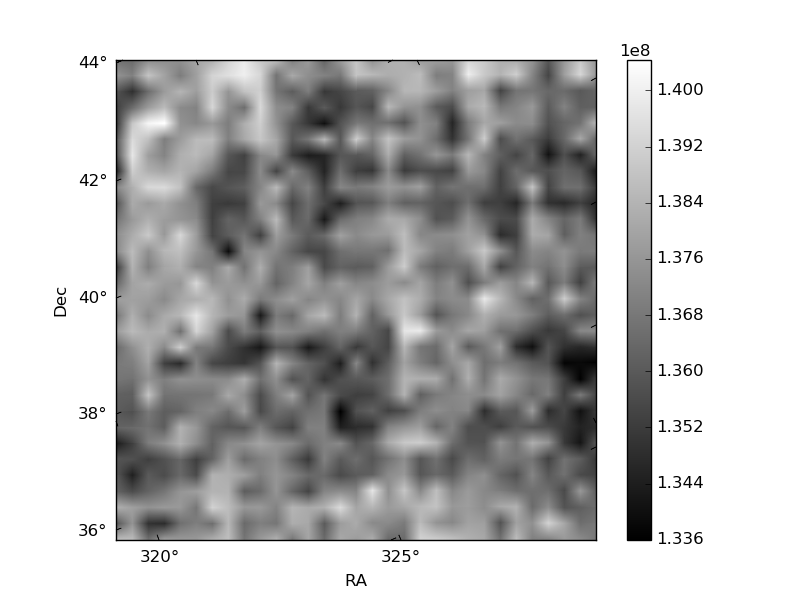

| Plot type | Count rate plots | Images |
|---|---|---|

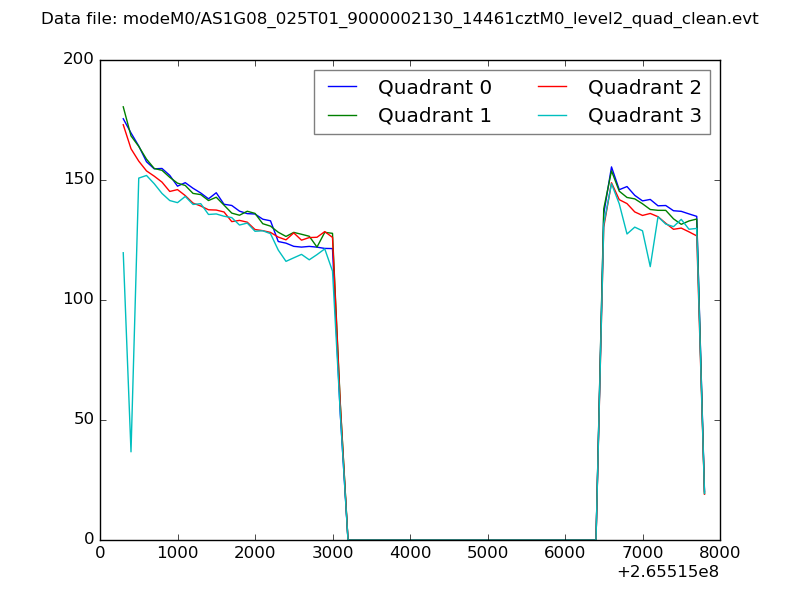

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

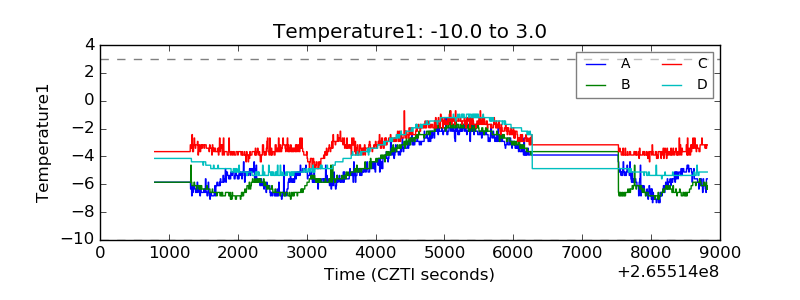

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

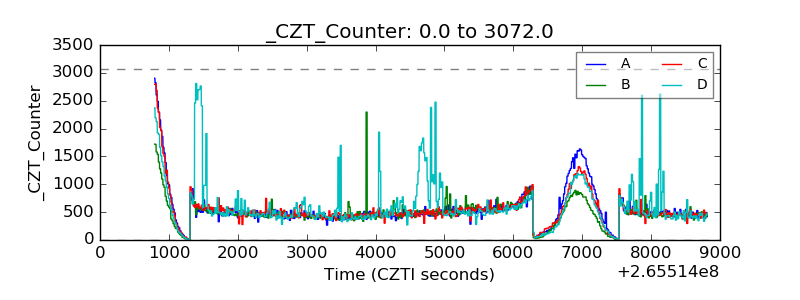

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

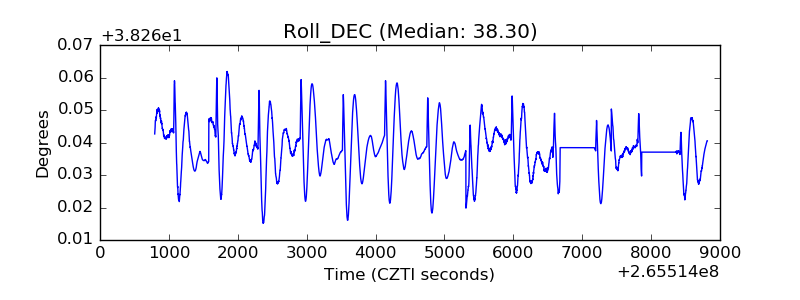

| _Roll_DEC |  |

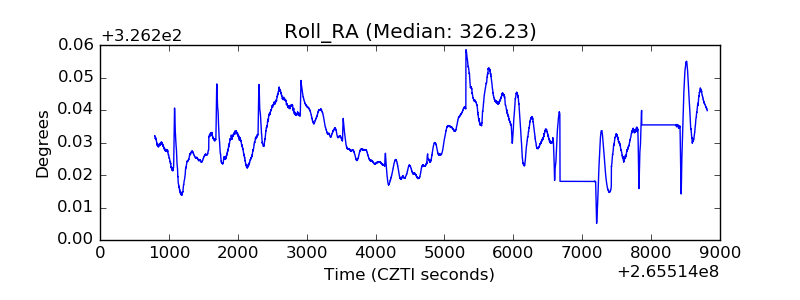

| _Roll_RA |  |
| Veto Counter |  |
