| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T01_9000002134_14479cztM0_level2.evt | modeM0/AS1G08_083T01_9000002134_14479cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,523,200 | 98,726,400 |
| Size | 564.1 MB | 94.2 MB |
| Events in quadrant A | 4,414,171 | 607,338 |
| Events in quadrant B | 4,297,861 | 610,885 |
| Events in quadrant C | 3,981,629 | 610,678 |
| Events in quadrant D | 4,666,481 | 593,749 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18621 | 4 |
| B | 0 | 18111 | 3 |
| C | 0 | 17073 | 3 |
| D | 0 | 19682 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8152 | 678 | 8.316977% |
| B | 8152 | 473 | 5.802257% |
| C | 8152 | 333 | 4.084887% |
| D | 8152 | 476 | 5.839058% |

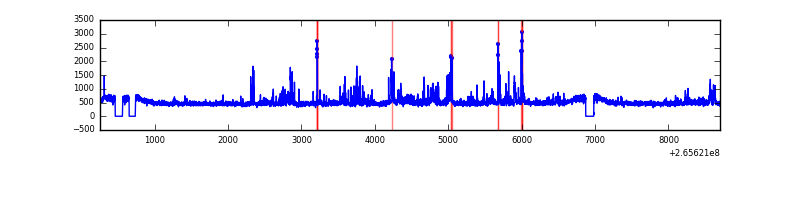

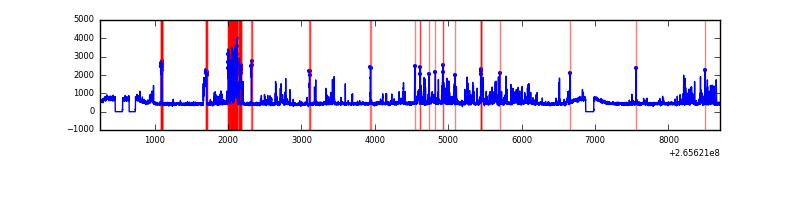

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8448 | 8156 | 193 | 193 | 2.28% | 2.37% |  |
| B | 8448 | 8156 | 14 | 14 | 0.17% | 0.17% |  |
| C | 8448 | 8156 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8448 | 8156 | 124 | 124 | 1.47% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 602663 | 3086.4 | 954 | 929 | 195.0 |
| A | 12 | 189 | 107283 | 545.51 | 954 | 929 | 195.0 |
| A | 15 | 69 | 15918 | 76.88 | 954 | 929 | 195.0 |
| B | 3 | 209 | 146678 | 778.69 | 973 | 945 | 187.2 |
| B | 0 | 189 | 111290 | 589.6 | 973 | 945 | 187.2 |
| B | 15 | 222 | 73355 | 386.9 | 973 | 945 | 187.2 |
| C | 3 | 233 | 207845 | 937.24 | 952 | 950 | 220.7 |
| C | 0 | 207 | 40664 | 179.91 | 952 | 950 | 220.7 |
| C | 7 | 247 | 21630 | 93.68 | 952 | 950 | 220.7 |
| D | 2 | 120 | 388657 | 1727.49 | 940 | 913 | 224.5 |
| D | 10 | 199 | 322938 | 1434.7 | 940 | 913 | 224.5 |
| D | 12 | 110 | 167198 | 740.84 | 940 | 913 | 224.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

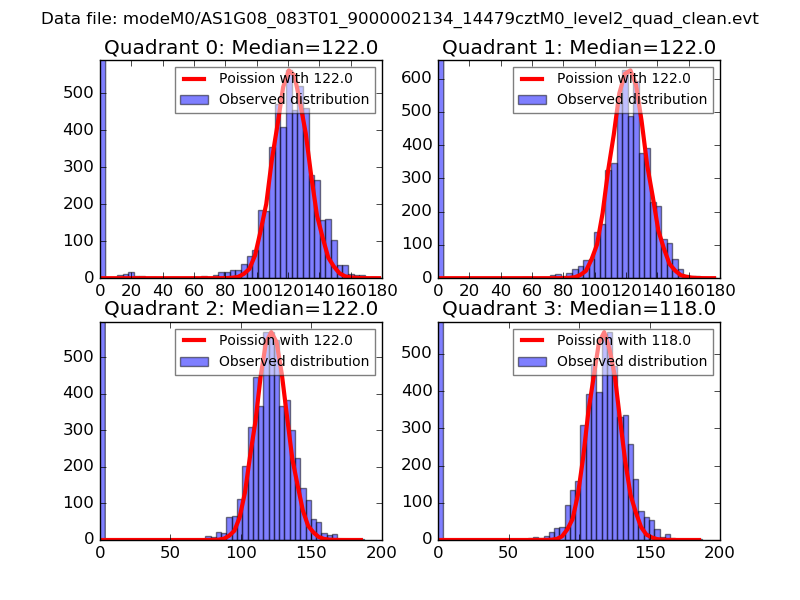

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

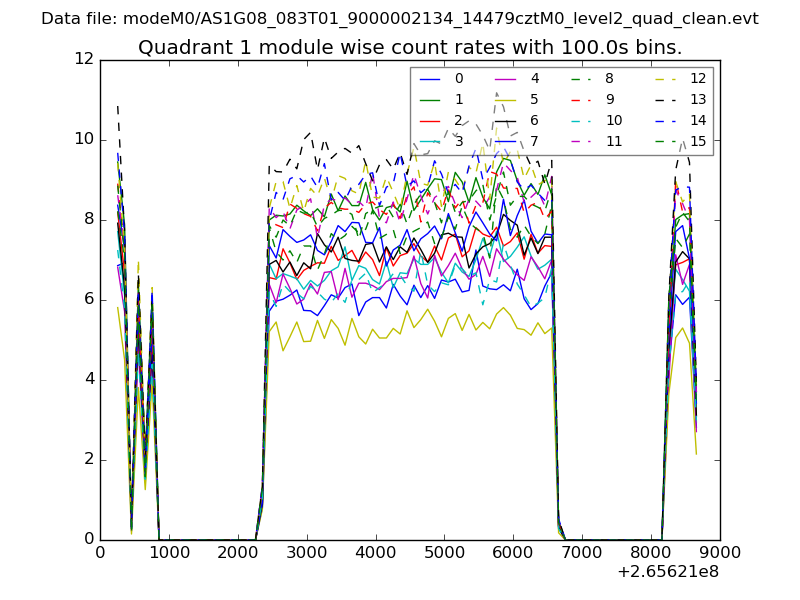

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

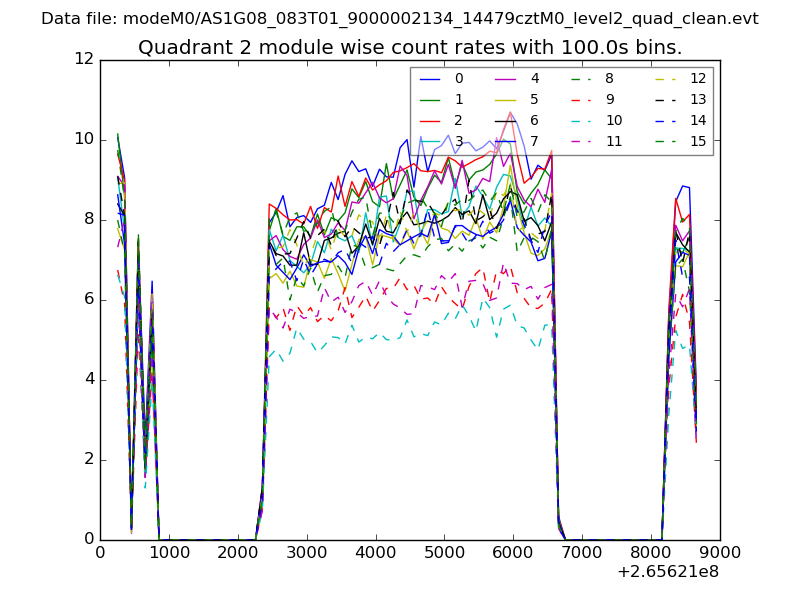

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

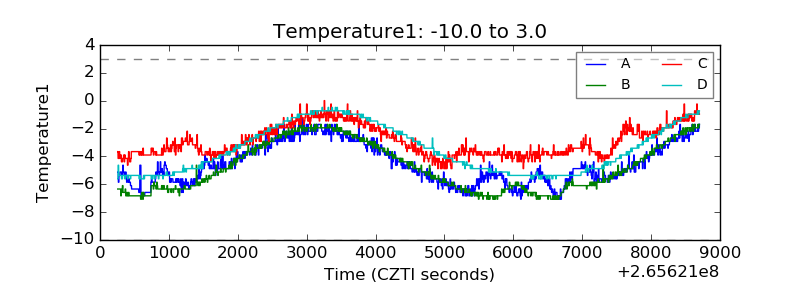

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

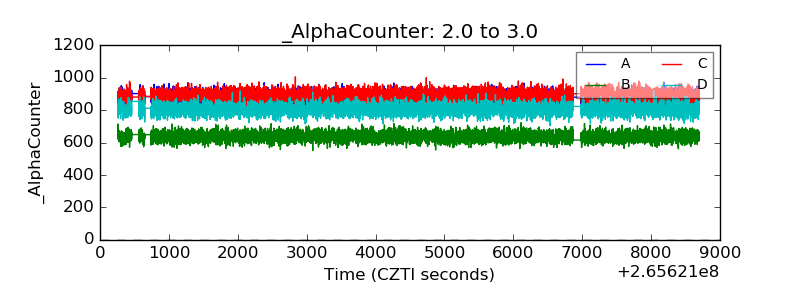

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

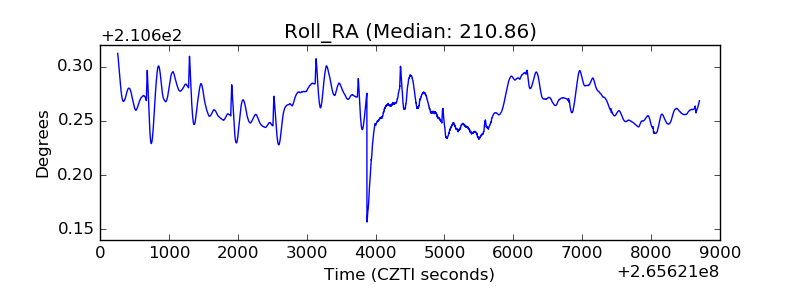

| _Roll_RA |  |
| Veto Counter |  |
