| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T01_9000002134_14480cztM0_level2.evt | modeM0/AS1G08_083T01_9000002134_14480cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,170,560 | 97,686,720 |
| Size | 488.4 MB | 93.2 MB |
| Events in quadrant A | 3,355,126 | 628,365 |
| Events in quadrant B | 3,566,974 | 625,566 |
| Events in quadrant C | 3,524,074 | 617,335 |
| Events in quadrant D | 4,578,870 | 588,924 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14659 | 2 |
| B | 0 | 15171 | 1 |
| C | 0 | 14803 | 1 |
| D | 0 | 18534 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7149 | 136 | 1.902364% |
| B | 7149 | 128 | 1.790460% |
| C | 7149 | 118 | 1.650581% |
| D | 7149 | 406 | 5.679116% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7415 | 7151 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7415 | 7151 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7415 | 7151 | 9 | 9 | 0.12% | 0.13% |  |
| D | 7415 | 7151 | 204 | 204 | 2.75% | 2.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 96300 | 558.09 | 842 | 822 | 171.1 |
| A | 0 | 226 | 7525 | 39.18 | 842 | 822 | 171.1 |
| A | 12 | 194 | 6383 | 32.51 | 842 | 822 | 171.1 |
| B | 0 | 189 | 123977 | 765.77 | 838 | 817 | 160.8 |
| B | 3 | 209 | 64977 | 398.93 | 838 | 817 | 160.8 |
| B | 15 | 222 | 19165 | 114.08 | 838 | 817 | 160.8 |
| C | 3 | 233 | 250265 | 1325.03 | 816 | 820 | 188.3 |
| C | 0 | 207 | 80051 | 420.87 | 816 | 820 | 188.3 |
| C | 14 | 234 | 10083 | 49.2 | 816 | 820 | 188.3 |
| D | 2 | 120 | 951548 | 4930.38 | 798 | 777 | 192.8 |
| D | 10 | 199 | 281516 | 1455.82 | 798 | 777 | 192.8 |
| D | 12 | 110 | 221634 | 1145.29 | 798 | 777 | 192.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

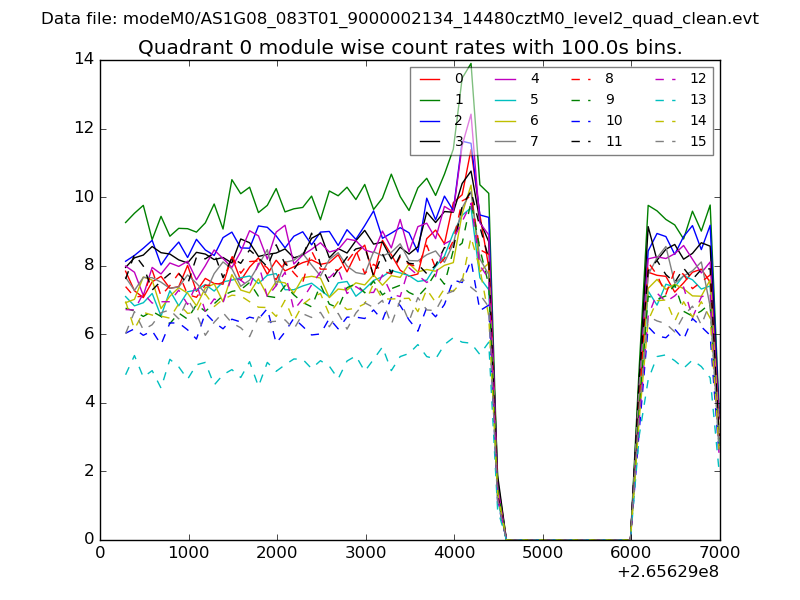

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

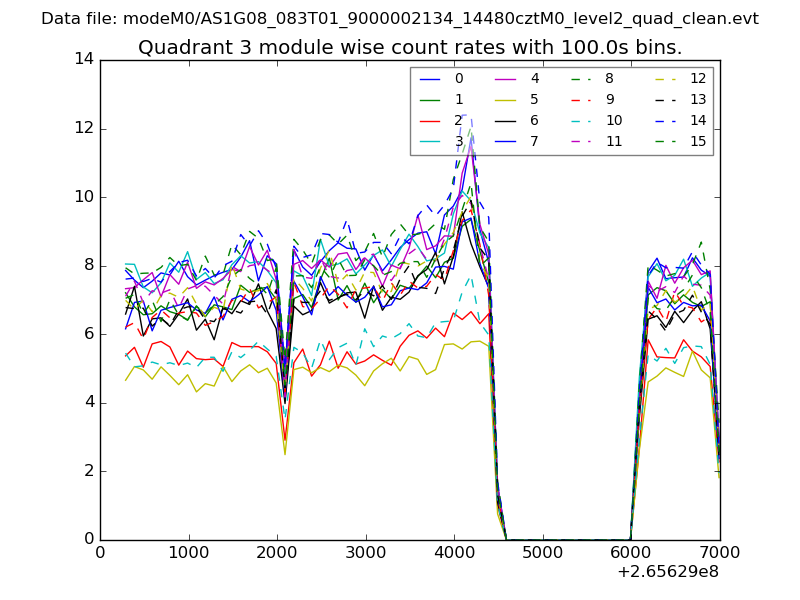

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

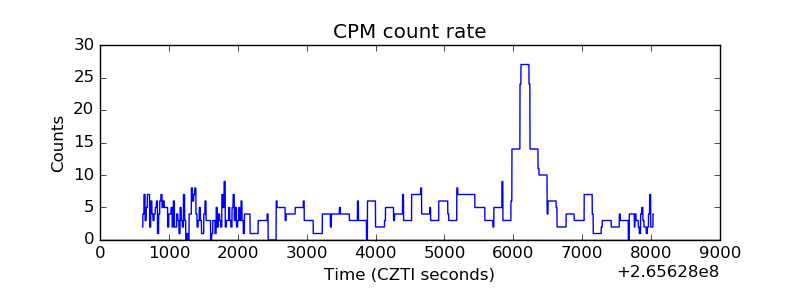

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

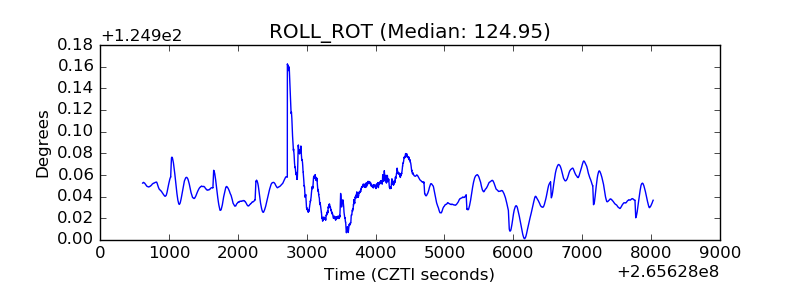

| _ROLL_ROT |  |

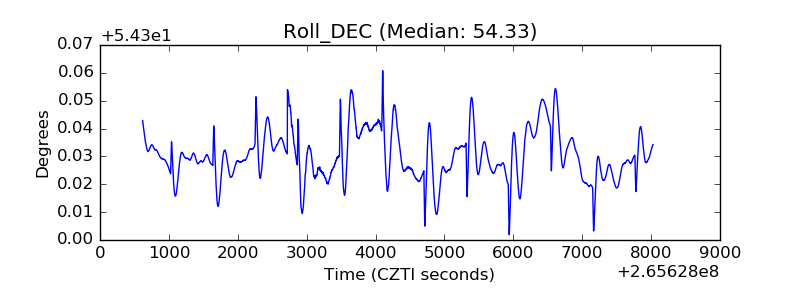

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
