| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_034T02_9000002136_14482cztM0_level2.evt | modeM0/AS1G08_034T02_9000002136_14482cztM0_level2_quad_clean.evt |
| Size (bytes) | 229,832,640 | 26,052,480 |
| Size | 219.2 MB | 24.8 MB |
| Events in quadrant A | 1,329,543 | 155,524 |
| Events in quadrant B | 1,425,380 | 155,573 |
| Events in quadrant C | 1,362,706 | 150,938 |
| Events in quadrant D | 2,661,675 | 136,934 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5486 | 2 |
| B | 0 | 5841 | 1 |
| C | 0 | 5526 | 1 |
| D | 0 | 9648 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2635 | 43 | 1.631879% |
| B | 2635 | 45 | 1.707780% |
| C | 2635 | 36 | 1.366224% |
| D | 2635 | 438 | 16.622391% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3366 | 2636 | 2 | 2 | 0.06% | 0.08% |  |
| B | 3366 | 2636 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3366 | 2636 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3366 | 2636 | 246 | 246 | 7.31% | 9.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 19774 | 279.62 | 335 | 326 | 69.6 |
| A | 9 | 143 | 13655 | 191.65 | 335 | 326 | 69.6 |
| A | 8 | 15 | 3329 | 43.18 | 335 | 326 | 69.6 |
| B | 0 | 189 | 49697 | 740.37 | 332 | 324 | 66.7 |
| B | 3 | 209 | 31808 | 472.12 | 332 | 324 | 66.7 |
| B | 10 | 252 | 14000 | 205.08 | 332 | 324 | 66.7 |
| C | 3 | 233 | 93173 | 1215.81 | 320 | 321 | 76.4 |
| C | 0 | 207 | 18003 | 231.53 | 320 | 321 | 76.4 |
| C | 12 | 4 | 2723 | 31.45 | 320 | 321 | 76.4 |
| D | 2 | 120 | 1393617 | 17704.41 | 307 | 297 | 78.7 |
| D | 10 | 199 | 41260 | 520.5 | 307 | 297 | 78.7 |
| D | 10 | 70 | 23908 | 300.02 | 307 | 297 | 78.7 |

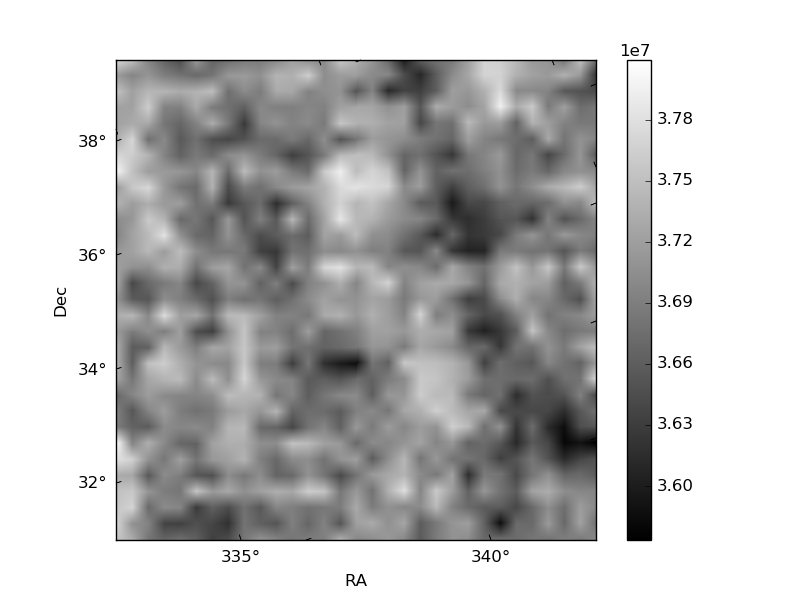

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

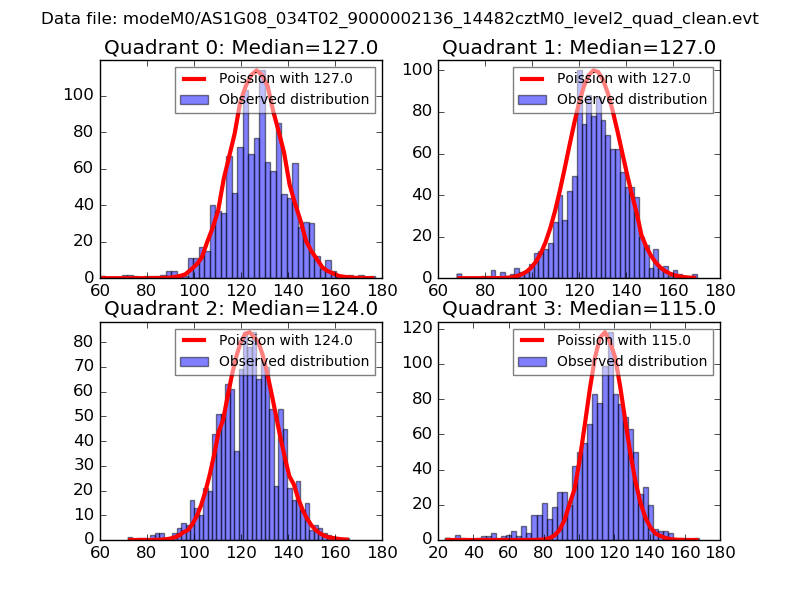

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

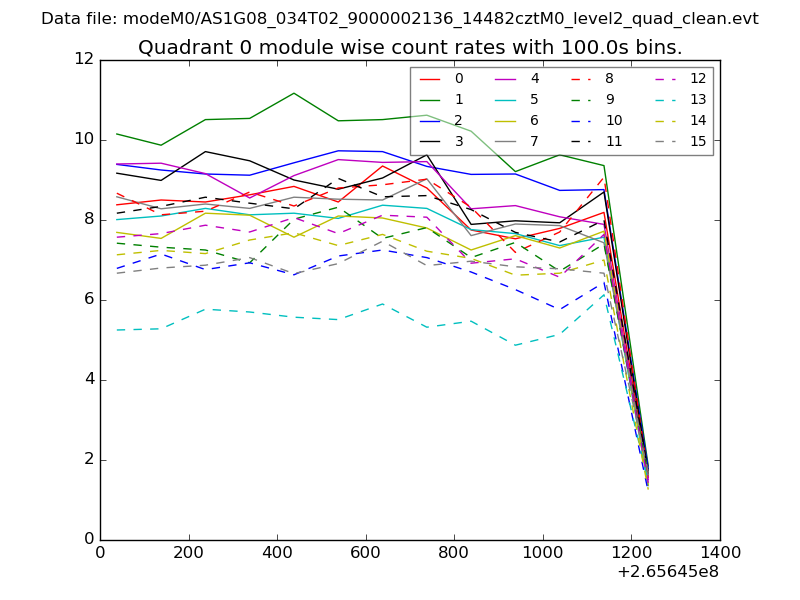

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

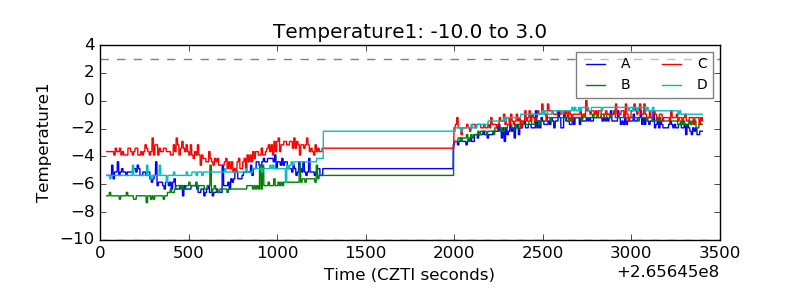

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

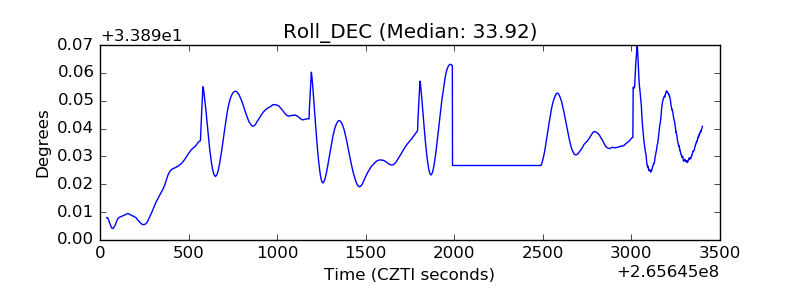

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
