| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_034T02_9000002136_14493cztM0_level2.evt | modeM0/AS1G08_034T02_9000002136_14493cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,467,106,560 | 239,279,040 |
| Size | 1.4 GB | 228.2 MB |
| Events in quadrant A | 13,238,614 | 1,393,631 |
| Events in quadrant B | 10,118,609 | 1,550,645 |
| Events in quadrant C | 9,413,222 | 1,540,749 |
| Events in quadrant D | 10,386,164 | 1,461,101 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51869 | 168 |
| B | 0 | 42682 | 51 |
| C | 0 | 40158 | 62 |
| D | 0 | 44326 | 68 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 381 | 0 |
| D | 0 | 382 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 1 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18856 | 2132 | 11.306746% |
| B | 18876 | 595 | 3.152151% |
| C | 18869 | 245 | 1.298426% |
| D | 18878 | 935 | 4.952855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20252 | 18900 | 1682 | 1682 | 8.31% | 8.90% |  |
| B | 20252 | 18907 | 71 | 71 | 0.35% | 0.38% |  |
| C | 20252 | 18908 | 1 | 1 | 0.00% | 0.01% |  |
| D | 20252 | 18904 | 417 | 417 | 2.06% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 4397874 | 10313.82 | 2089 | 2043 | 426.2 |
| A | 0 | 226 | 265457 | 618.04 | 2089 | 2043 | 426.2 |
| A | 12 | 189 | 162641 | 376.81 | 2089 | 2043 | 426.2 |
| B | 15 | 222 | 284455 | 651.52 | 2274 | 2218 | 433.2 |
| B | 0 | 189 | 188748 | 430.59 | 2274 | 2218 | 433.2 |
| B | 10 | 245 | 162130 | 369.14 | 2274 | 2218 | 433.2 |
| C | 3 | 233 | 496109 | 974.43 | 2206 | 2219 | 506.9 |
| C | 0 | 207 | 299041 | 585.62 | 2206 | 2219 | 506.9 |
| C | 13 | 61 | 16258 | 27.7 | 2206 | 2219 | 506.9 |
| D | 10 | 199 | 1827438 | 3431.55 | 2169 | 2112 | 531.9 |
| D | 12 | 110 | 124421 | 229.94 | 2169 | 2112 | 531.9 |
| D | 15 | 0 | 115751 | 213.64 | 2169 | 2112 | 531.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

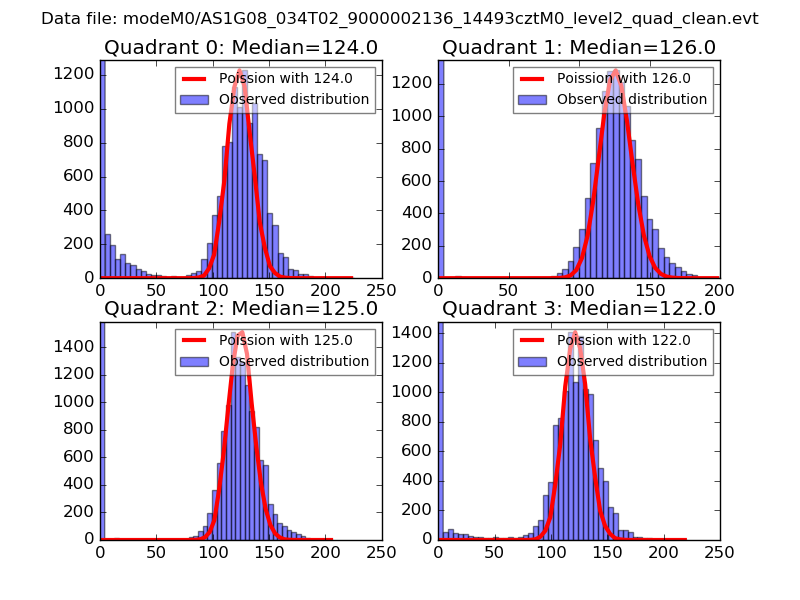

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

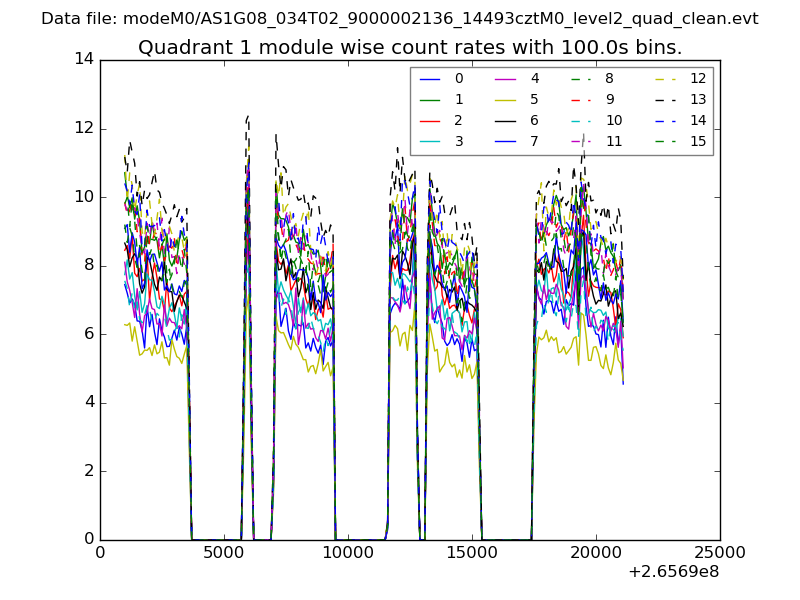

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
