| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000002138_14504cztM0_level2.evt | modeM0/AS1G08_066T01_9000002138_14504cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,461,760 | 106,824,960 |
| Size | 441.0 MB | 101.9 MB |
| Events in quadrant A | 3,141,923 | 699,707 |
| Events in quadrant B | 3,315,504 | 715,211 |
| Events in quadrant C | 3,324,687 | 711,983 |
| Events in quadrant D | 3,798,375 | 671,417 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13235 | 3 |
| B | 0 | 13744 | 2 |
| C | 0 | 13561 | 2 |
| D | 0 | 15255 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6256 | 34 | 0.543478% |
| B | 6256 | 62 | 0.991049% |
| C | 6256 | 41 | 0.655371% |
| D | 6256 | 221 | 3.532609% |

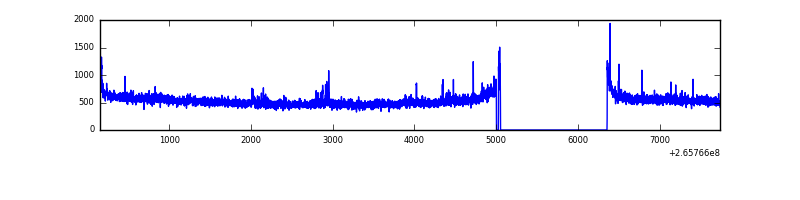

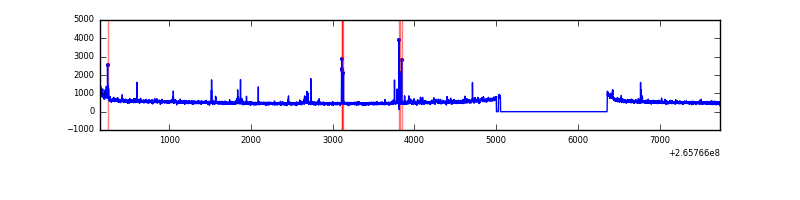

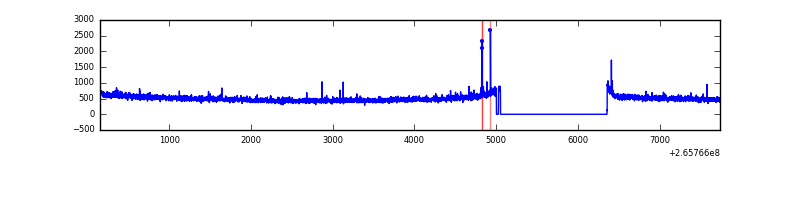

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6259 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7587 | 6259 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7587 | 6259 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7587 | 6259 | 155 | 155 | 2.04% | 2.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 21175 | 125.96 | 802 | 787 | 161.9 |
| A | 12 | 189 | 11116 | 63.81 | 802 | 787 | 161.9 |
| A | 0 | 23 | 10787 | 61.78 | 802 | 787 | 161.9 |
| B | 10 | 247 | 26569 | 171.72 | 806 | 788 | 150.1 |
| B | 0 | 189 | 23432 | 150.82 | 806 | 788 | 150.1 |
| B | 0 | 229 | 20608 | 132.01 | 806 | 788 | 150.1 |
| C | 3 | 233 | 162112 | 879.94 | 798 | 805 | 183.3 |
| C | 0 | 207 | 25870 | 136.73 | 798 | 805 | 183.3 |
| C | 5 | 37 | 18675 | 97.48 | 798 | 805 | 183.3 |
| D | 10 | 199 | 689368 | 3596.41 | 779 | 763 | 191.5 |
| D | 12 | 110 | 125873 | 653.42 | 779 | 763 | 191.5 |
| D | 2 | 234 | 20159 | 101.3 | 779 | 763 | 191.5 |

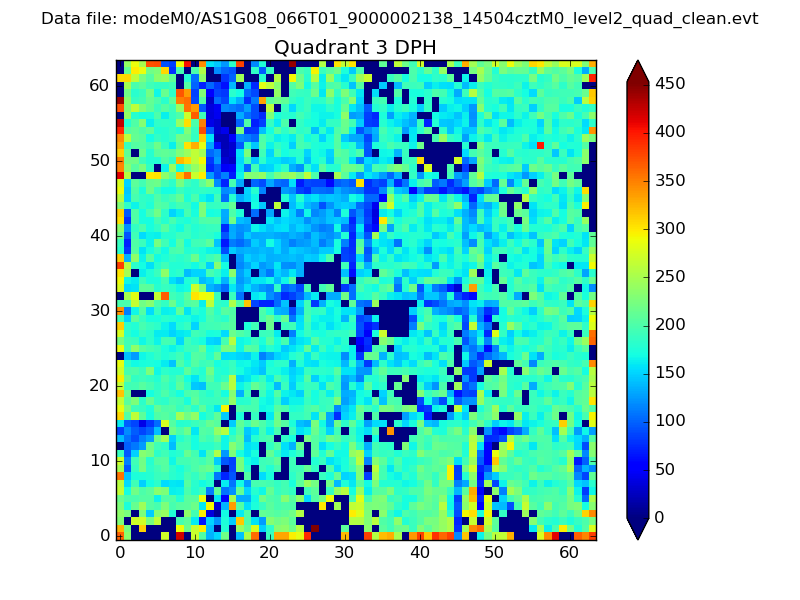

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

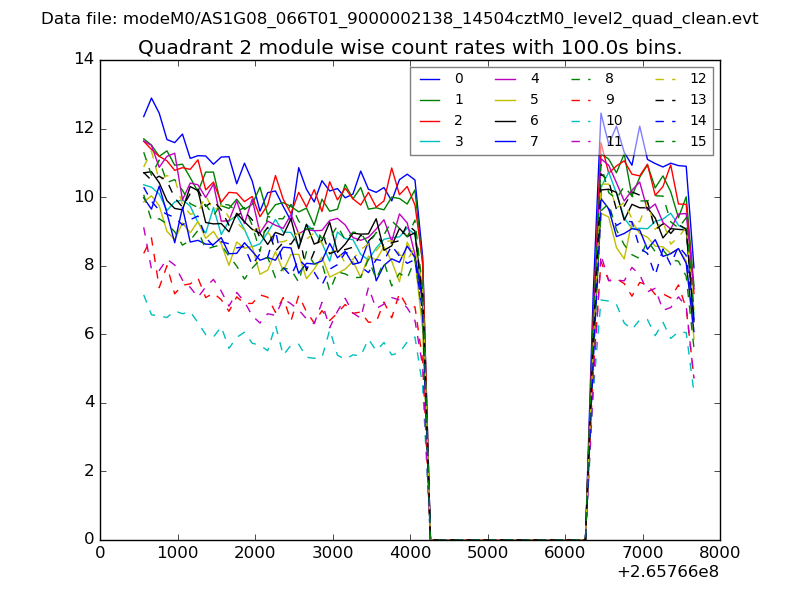

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

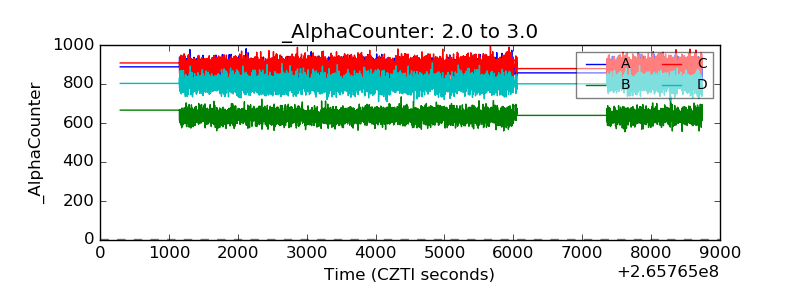

| Alpha Counter |  |

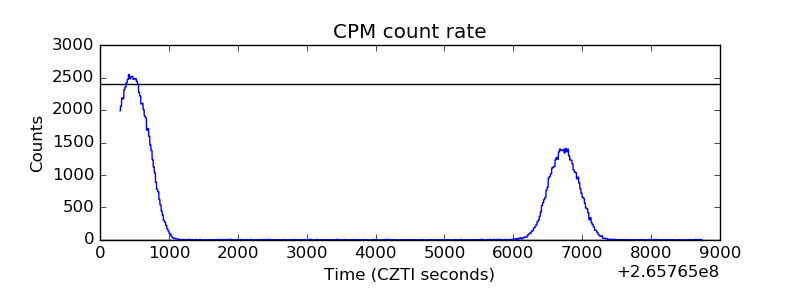

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

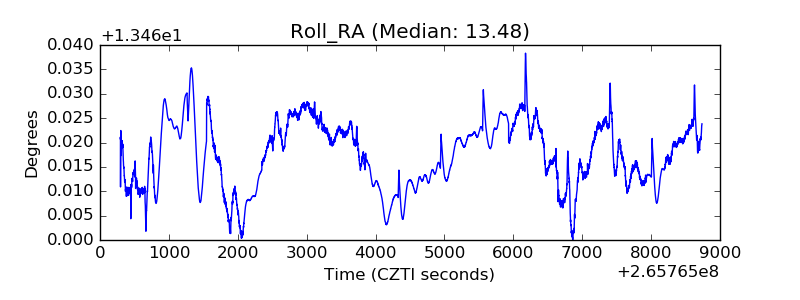

| _Roll_RA |  |
| Veto Counter |  |
