| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000002138_14507cztM0_level2.evt | modeM0/AS1G08_066T01_9000002138_14507cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,176,960 | 96,819,840 |
| Size | 539.0 MB | 92.3 MB |
| Events in quadrant A | 3,434,432 | 619,385 |
| Events in quadrant B | 3,580,021 | 631,490 |
| Events in quadrant C | 3,737,916 | 625,165 |
| Events in quadrant D | 5,875,281 | 553,938 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15032 | 3 |
| B | 0 | 15346 | 2 |
| C | 0 | 15438 | 2 |
| D | 0 | 22372 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7210 | 222 | 3.079057% |
| B | 7210 | 231 | 3.203883% |
| C | 7210 | 211 | 2.926491% |
| D | 7210 | 791 | 10.970874% |

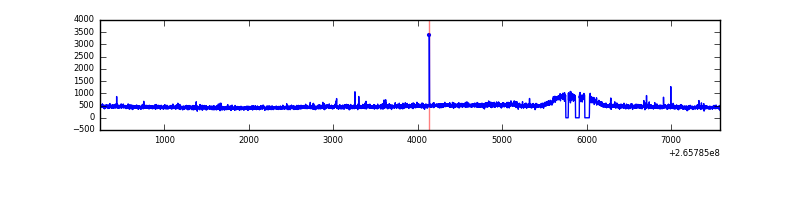

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7341 | 7214 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7341 | 7214 | 12 | 12 | 0.16% | 0.17% |  |
| C | 7341 | 7214 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7341 | 7214 | 454 | 454 | 6.18% | 6.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 37157 | 202.81 | 874 | 852 | 179.0 |
| A | 4 | 2 | 11637 | 60.25 | 874 | 852 | 179.0 |
| A | 0 | 23 | 11371 | 58.76 | 874 | 852 | 179.0 |
| B | 10 | 252 | 54964 | 320.05 | 871 | 847 | 169.1 |
| B | 0 | 189 | 36607 | 211.48 | 871 | 847 | 169.1 |
| B | 15 | 222 | 29362 | 168.64 | 871 | 847 | 169.1 |
| C | 3 | 233 | 303630 | 1504.19 | 858 | 859 | 201.3 |
| C | 0 | 207 | 86251 | 424.23 | 858 | 859 | 201.3 |
| C | 13 | 61 | 5980 | 25.44 | 858 | 859 | 201.3 |
| D | 10 | 199 | 1466962 | 6738.52 | 819 | 800 | 217.6 |
| D | 12 | 110 | 1266023 | 5815.0 | 819 | 800 | 217.6 |
| D | 10 | 70 | 27227 | 121.46 | 819 | 800 | 217.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

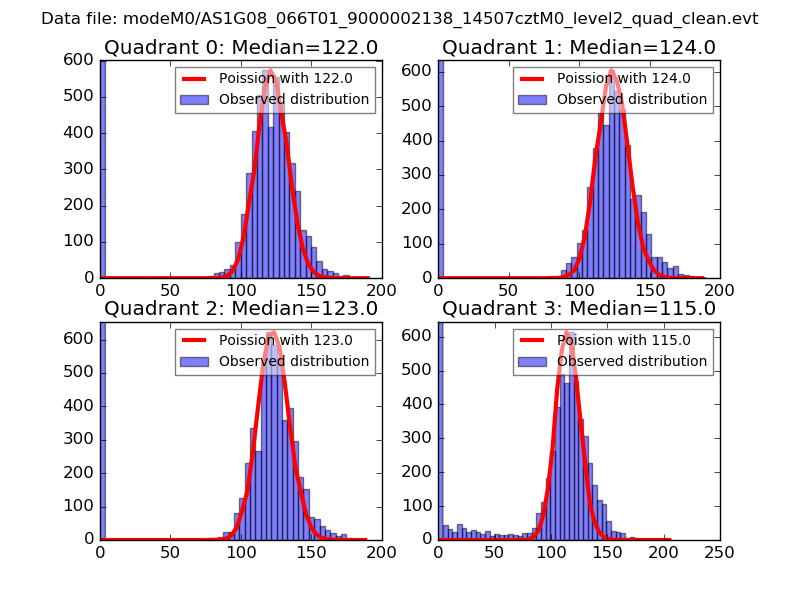

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

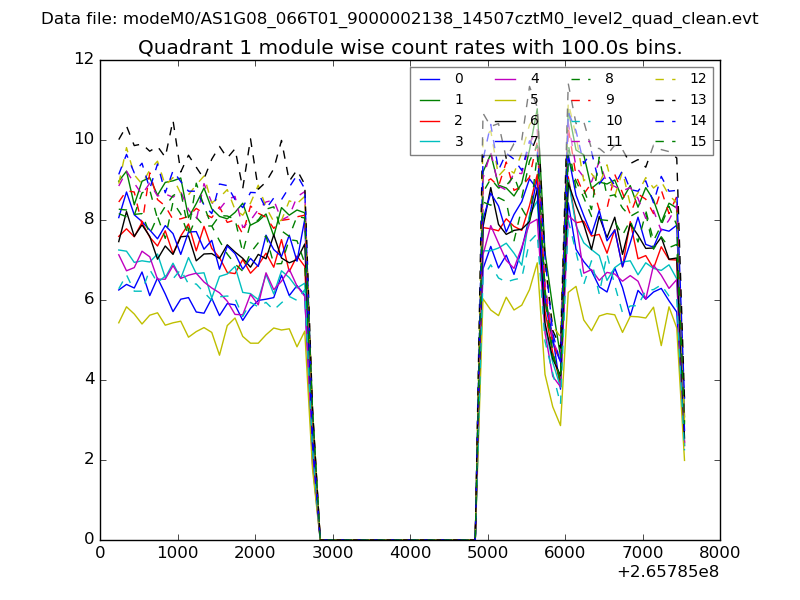

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

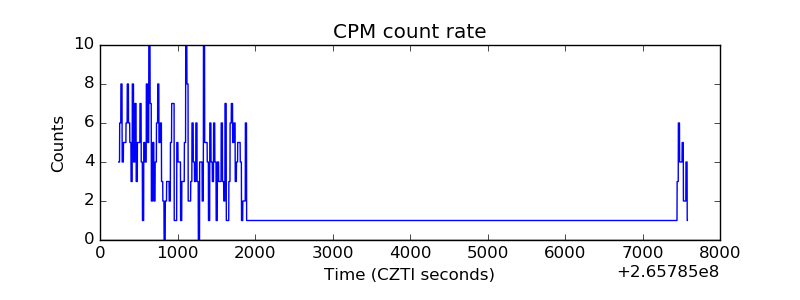

| _CPM_Rate |  |

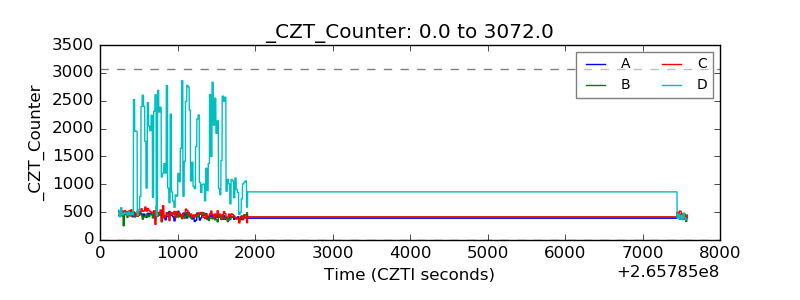

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

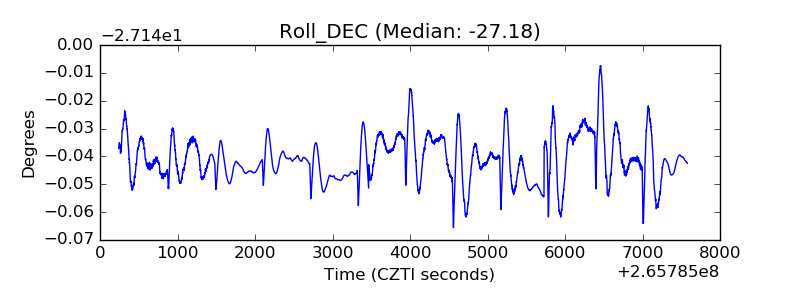

| _Roll_DEC |  |

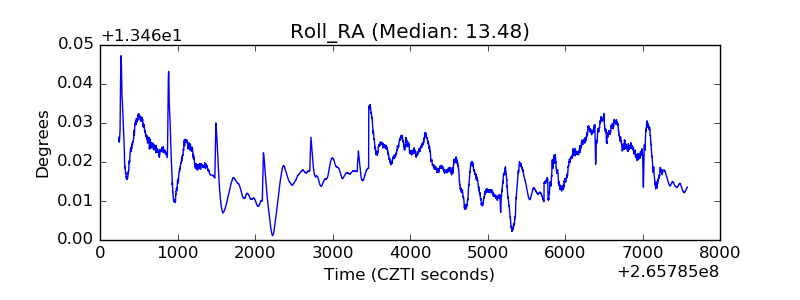

| _Roll_RA |  |

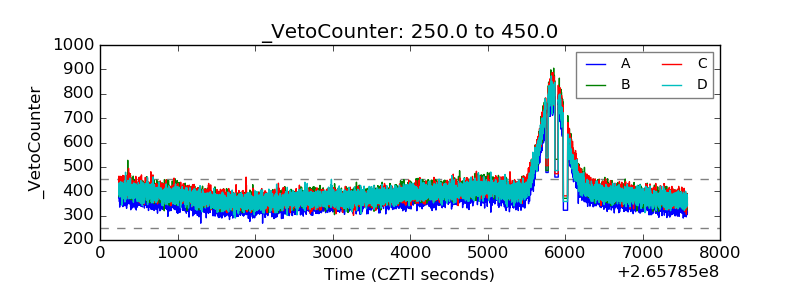

| Veto Counter |  |
