| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000002138_14518cztM0_level2.evt | modeM0/AS1G08_066T01_9000002138_14518cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,367,040 | 100,319,040 |
| Size | 470.5 MB | 95.7 MB |
| Events in quadrant A | 3,402,608 | 657,604 |
| Events in quadrant B | 3,556,865 | 672,490 |
| Events in quadrant C | 3,546,642 | 662,393 |
| Events in quadrant D | 4,008,118 | 606,155 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14031 | 3 |
| B | 0 | 14530 | 2 |
| C | 0 | 14292 | 2 |
| D | 0 | 15815 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6295 | 116 | 1.842732% |
| B | 6295 | 148 | 2.351072% |
| C | 6295 | 75 | 1.191422% |
| D | 6295 | 452 | 7.180302% |

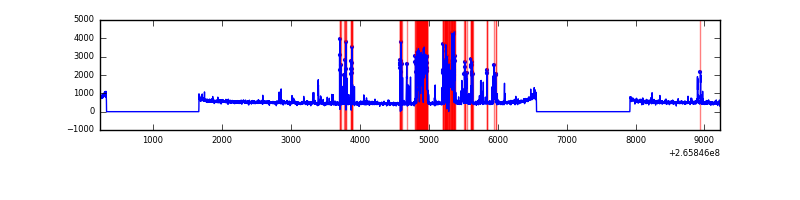

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8991 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8991 | 6298 | 5 | 5 | 0.06% | 0.08% |  |
| C | 8991 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8991 | 6298 | 209 | 209 | 2.32% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 155391 | 922.15 | 835 | 819 | 167.6 |
| A | 12 | 189 | 28937 | 167.75 | 835 | 819 | 167.6 |
| A | 0 | 226 | 7472 | 39.69 | 835 | 819 | 167.6 |
| B | 0 | 189 | 139984 | 894.51 | 838 | 819 | 155.6 |
| B | 4 | 142 | 31741 | 198.76 | 838 | 819 | 155.6 |
| B | 4 | 48 | 27989 | 174.64 | 838 | 819 | 155.6 |
| C | 3 | 233 | 295463 | 1568.66 | 828 | 834 | 187.8 |
| C | 8 | 128 | 10794 | 53.03 | 828 | 834 | 187.8 |
| C | 13 | 61 | 5895 | 26.95 | 828 | 834 | 187.8 |
| D | 10 | 199 | 906551 | 4800.84 | 792 | 773 | 188.7 |
| D | 12 | 110 | 54674 | 285.69 | 792 | 773 | 188.7 |
| D | 10 | 70 | 31840 | 164.66 | 792 | 773 | 188.7 |

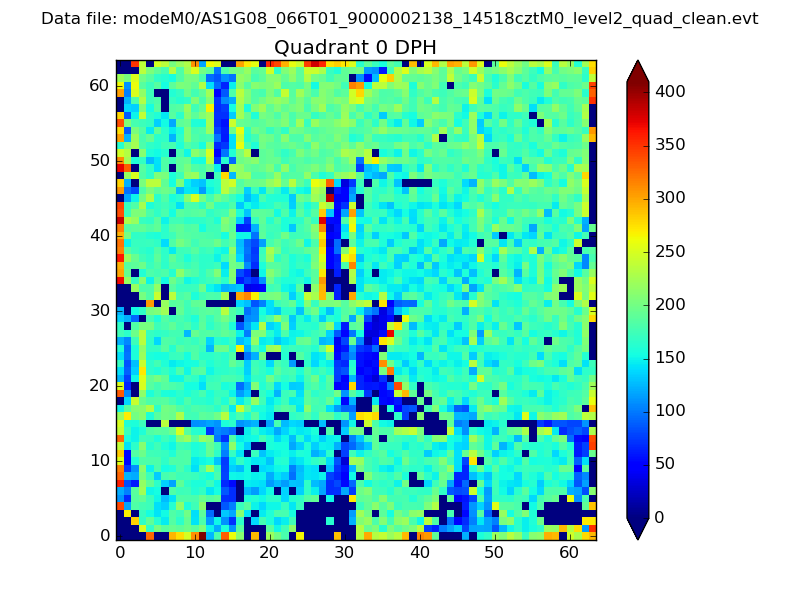

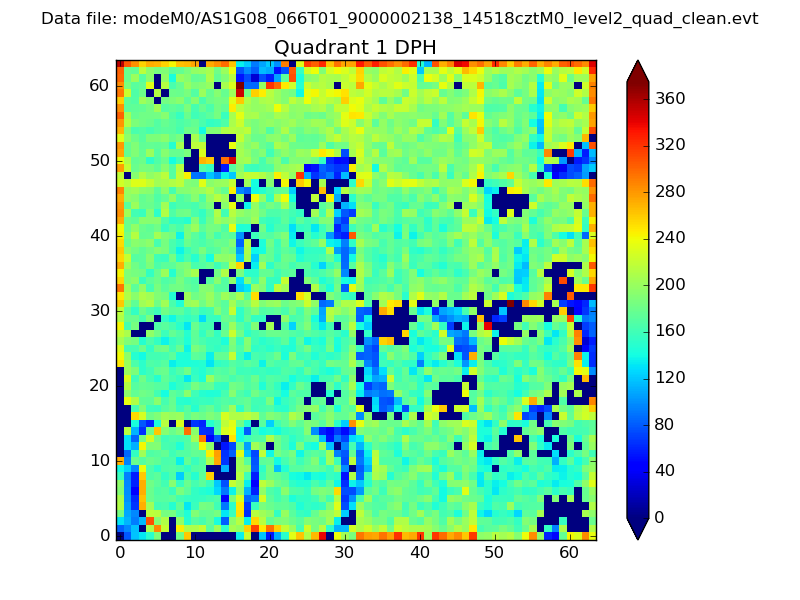

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

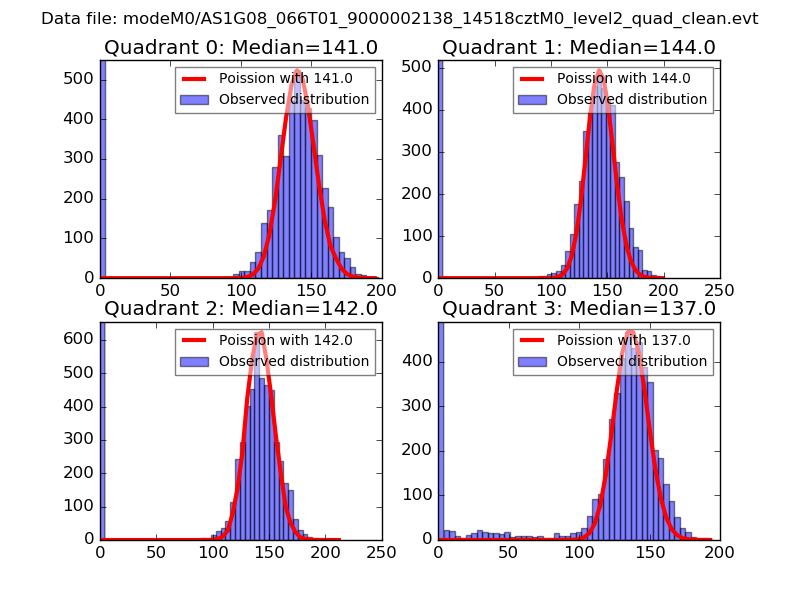

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

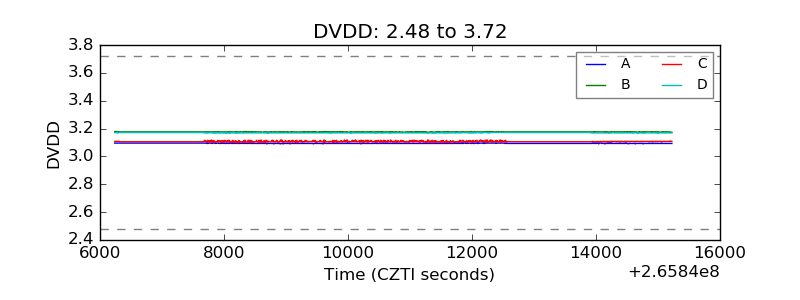

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

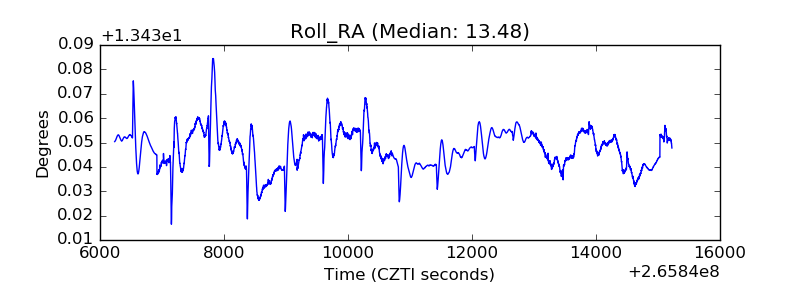

| _Roll_RA |  |
| Veto Counter |  |
