| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000002138_14519cztM0_level2.evt | modeM0/AS1G08_066T01_9000002138_14519cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,640,960 | 103,717,440 |
| Size | 448.8 MB | 98.9 MB |
| Events in quadrant A | 3,209,263 | 683,004 |
| Events in quadrant B | 3,322,902 | 697,305 |
| Events in quadrant C | 3,285,079 | 690,819 |
| Events in quadrant D | 4,008,536 | 630,611 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13432 | 3 |
| B | 0 | 13847 | 2 |
| C | 0 | 13458 | 2 |
| D | 0 | 15927 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 34 | 0.540197% |
| B | 6294 | 60 | 0.953289% |
| C | 6294 | 28 | 0.444868% |
| D | 6294 | 458 | 7.276772% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

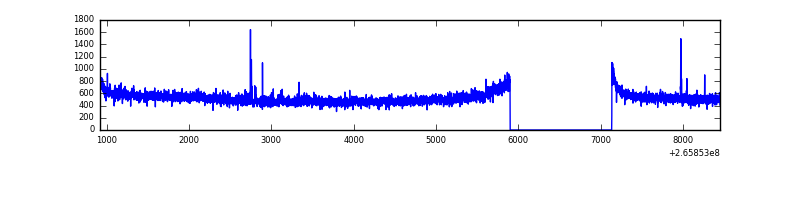

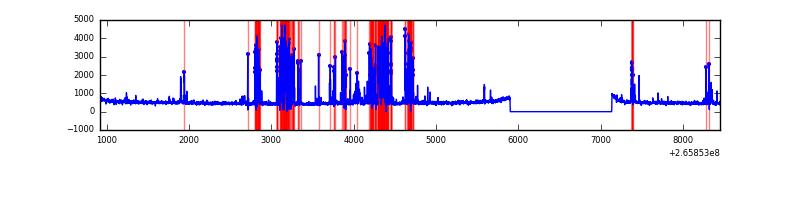

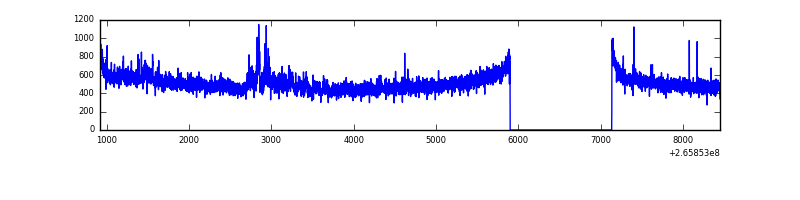

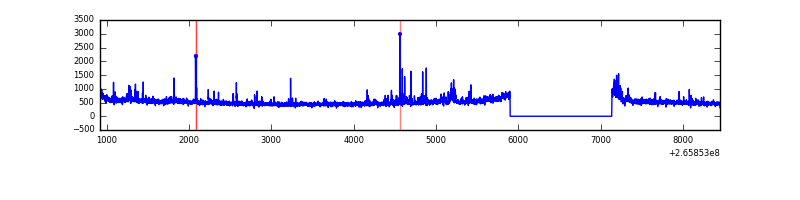

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6296 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7530 | 6296 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7530 | 6296 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7530 | 6296 | 240 | 240 | 3.19% | 3.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 125363 | 770.96 | 794 | 776 | 161.6 |
| A | 12 | 189 | 12246 | 70.98 | 794 | 776 | 161.6 |
| A | 0 | 23 | 10372 | 59.38 | 794 | 776 | 161.6 |
| B | 0 | 189 | 76055 | 501.28 | 798 | 777 | 150.2 |
| B | 0 | 219 | 66481 | 437.53 | 798 | 777 | 150.2 |
| B | 0 | 229 | 18655 | 119.05 | 798 | 777 | 150.2 |
| C | 3 | 233 | 198457 | 1092.59 | 790 | 796 | 180.9 |
| C | 0 | 207 | 6403 | 30.99 | 790 | 796 | 180.9 |
| C | 13 | 61 | 5567 | 26.37 | 790 | 796 | 180.9 |
| D | 10 | 199 | 1005067 | 5620.29 | 752 | 735 | 178.7 |
| D | 10 | 70 | 69532 | 384.99 | 752 | 735 | 178.7 |
| D | 2 | 120 | 60310 | 333.38 | 752 | 735 | 178.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

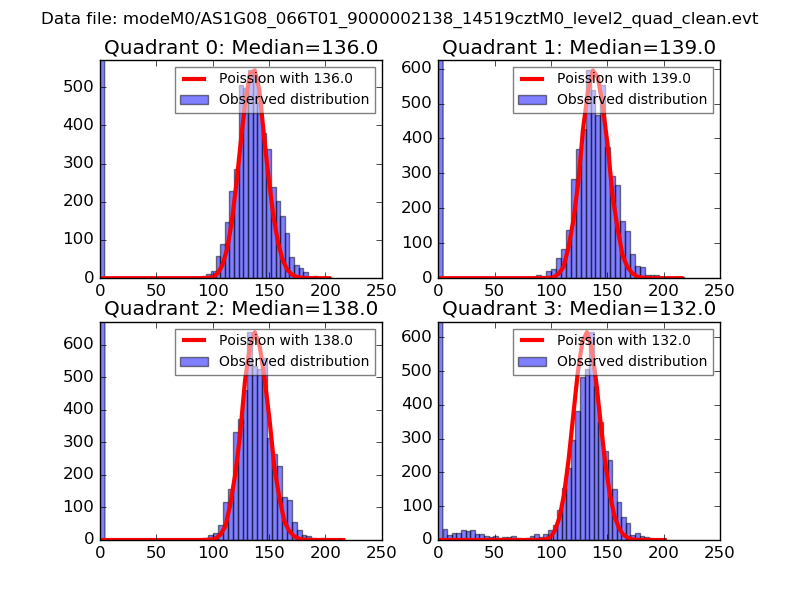

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

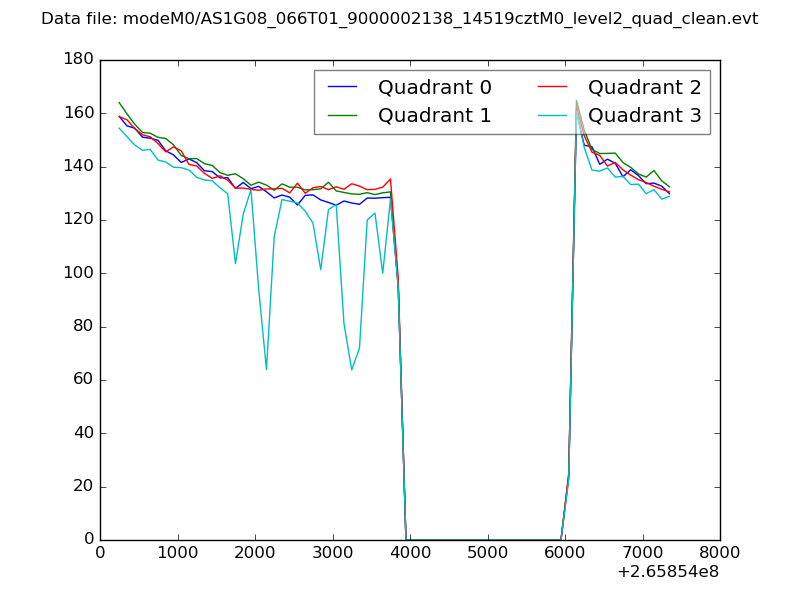

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

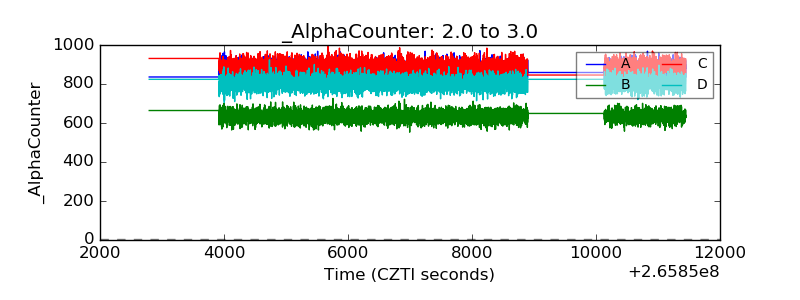

| Alpha Counter |  |

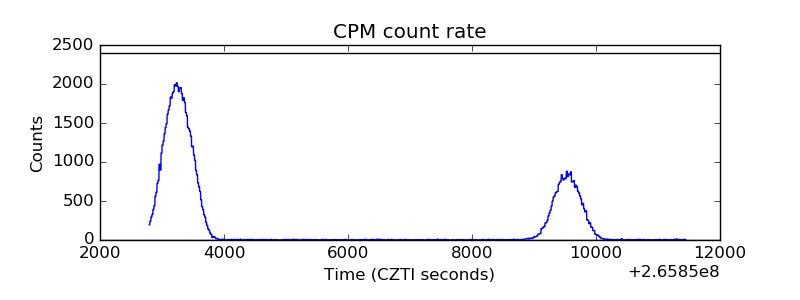

| _CPM_Rate |  |
