| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000002138_14520cztM0_level2.evt | modeM0/AS1G08_066T01_9000002138_14520cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,631,680 | 102,199,680 |
| Size | 466.9 MB | 97.5 MB |
| Events in quadrant A | 3,337,946 | 655,704 |
| Events in quadrant B | 3,618,457 | 668,458 |
| Events in quadrant C | 3,567,591 | 661,420 |
| Events in quadrant D | 3,836,249 | 629,127 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14471 | 3 |
| B | 0 | 15240 | 2 |
| C | 0 | 14710 | 2 |
| D | 0 | 16021 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6895 | 49 | 0.710660% |
| B | 6895 | 83 | 1.203771% |
| C | 6895 | 47 | 0.681653% |
| D | 6895 | 226 | 3.277737% |

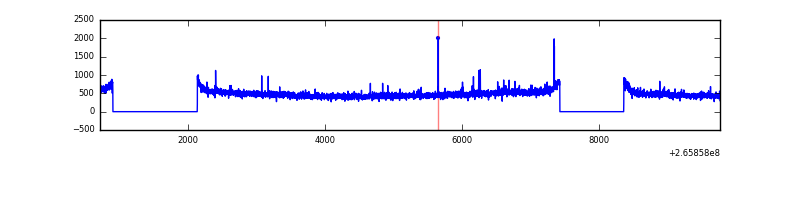

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9066 | 6898 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9066 | 6898 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9066 | 6898 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9066 | 6896 | 130 | 130 | 1.43% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 21831 | 121.36 | 852 | 832 | 173.0 |
| A | 12 | 189 | 12273 | 66.12 | 852 | 832 | 173.0 |
| A | 0 | 23 | 9735 | 51.45 | 852 | 832 | 173.0 |
| B | 0 | 189 | 123706 | 753.85 | 855 | 833 | 163.0 |
| B | 0 | 219 | 53274 | 321.74 | 855 | 833 | 163.0 |
| B | 3 | 209 | 47819 | 288.27 | 855 | 833 | 163.0 |
| C | 3 | 233 | 267375 | 1357.59 | 845 | 851 | 196.3 |
| C | 0 | 207 | 6488 | 28.71 | 845 | 851 | 196.3 |
| C | 13 | 61 | 6116 | 26.82 | 845 | 851 | 196.3 |
| D | 10 | 199 | 553549 | 2681.5 | 829 | 809 | 206.1 |
| D | 2 | 120 | 76876 | 369.02 | 829 | 809 | 206.1 |
| D | 13 | 172 | 33725 | 159.68 | 829 | 809 | 206.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

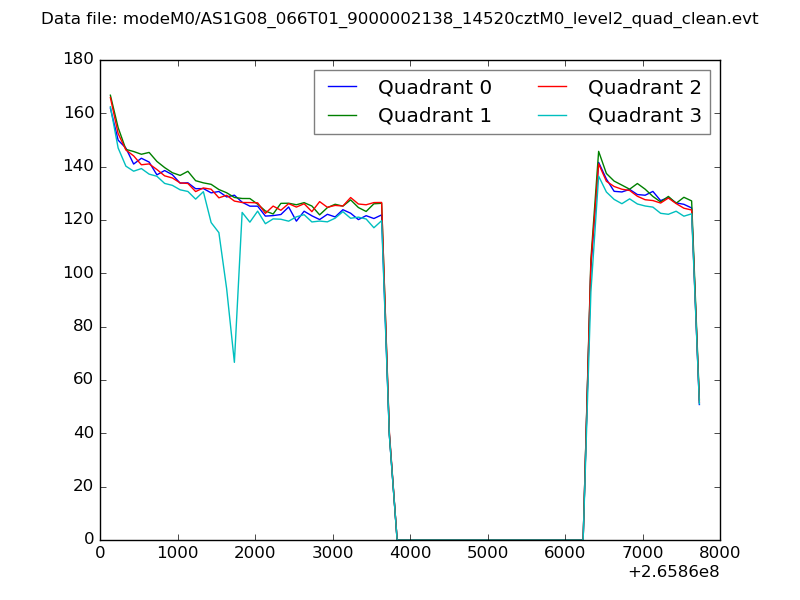

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

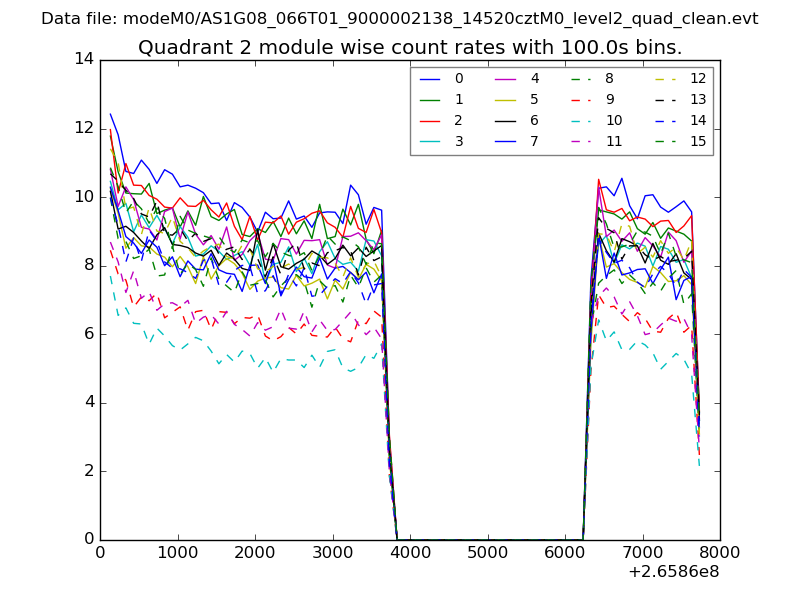

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

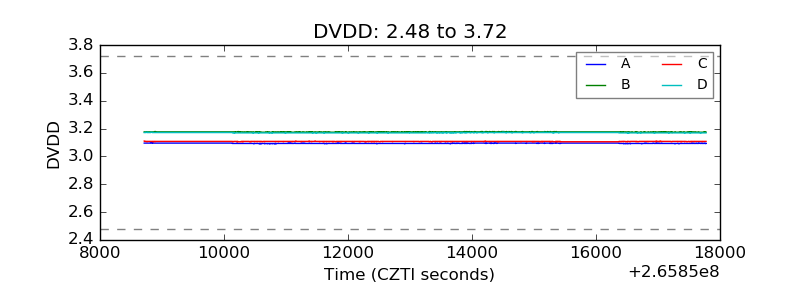

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

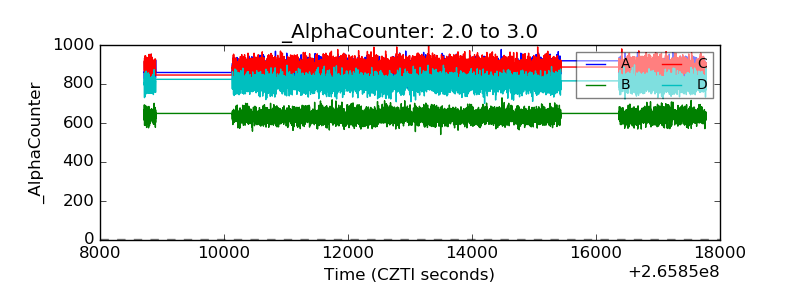

| Alpha Counter |  |
| _CPM_Rate |  |

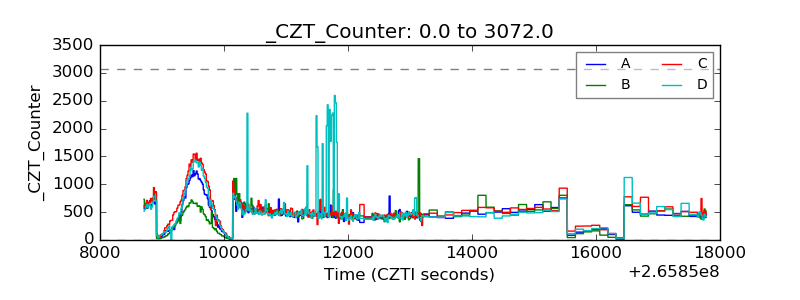

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

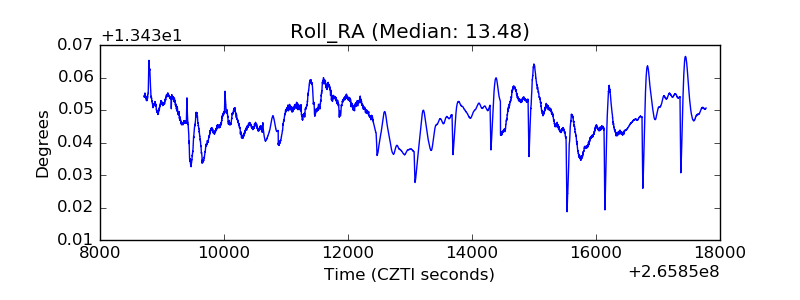

| _Roll_RA |  |
| Veto Counter |  |
