| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_049T01_9000002142_14530cztM0_level2.evt | modeM0/AS1T02_049T01_9000002142_14530cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,962,560 | 115,672,320 |
| Size | 540.7 MB | 110.3 MB |
| Events in quadrant A | 5,076,717 | 756,472 |
| Events in quadrant B | 3,286,491 | 783,005 |
| Events in quadrant C | 3,548,425 | 791,119 |
| Events in quadrant D | 4,838,277 | 738,869 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19454 | 3 |
| B | 0 | 13912 | 2 |
| C | 0 | 14655 | 2 |
| D | 0 | 18731 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6209 | 298 | 4.799485% |
| B | 6209 | 49 | 0.789177% |
| C | 6209 | 46 | 0.740860% |
| D | 6209 | 364 | 5.862458% |

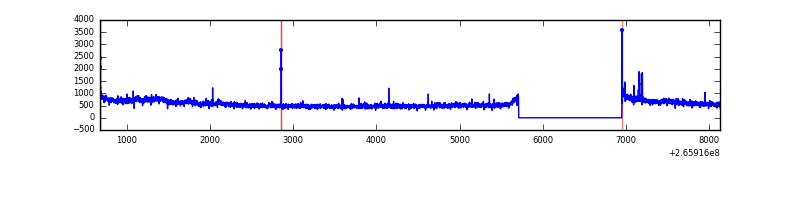

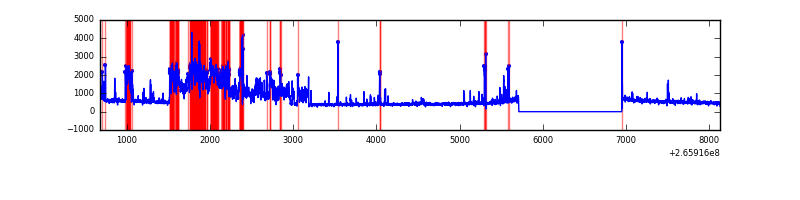

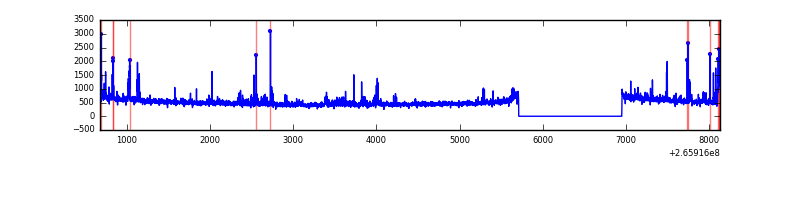

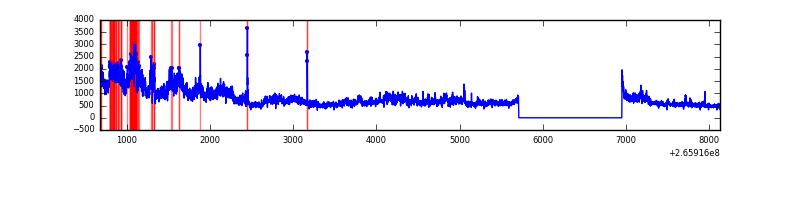

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7450 | 6211 | 113 | 113 | 1.52% | 1.82% |  |
| B | 7450 | 6211 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7450 | 6211 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7450 | 6211 | 351 | 351 | 4.71% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 2092616 | 13769.01 | 751 | 734 | 151.9 |
| A | 15 | 69 | 28549 | 183.08 | 751 | 734 | 151.9 |
| A | 0 | 23 | 27054 | 173.24 | 751 | 734 | 151.9 |
| B | 0 | 182 | 53480 | 378.69 | 767 | 751 | 139.2 |
| B | 0 | 189 | 51125 | 361.77 | 767 | 751 | 139.2 |
| B | 10 | 16 | 46913 | 331.52 | 767 | 751 | 139.2 |
| C | 3 | 233 | 556706 | 3214.29 | 759 | 765 | 173.0 |
| C | 0 | 207 | 28724 | 161.65 | 759 | 765 | 173.0 |
| C | 14 | 234 | 6422 | 32.71 | 759 | 765 | 173.0 |
| D | 12 | 110 | 1788166 | 9364.23 | 738 | 720 | 190.9 |
| D | 10 | 199 | 57251 | 296.16 | 738 | 720 | 190.9 |
| D | 2 | 120 | 54611 | 282.33 | 738 | 720 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

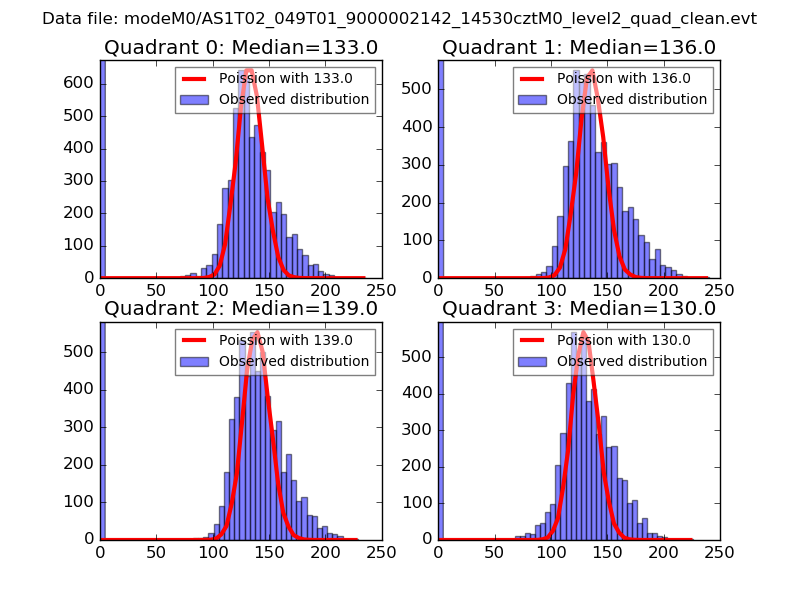

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

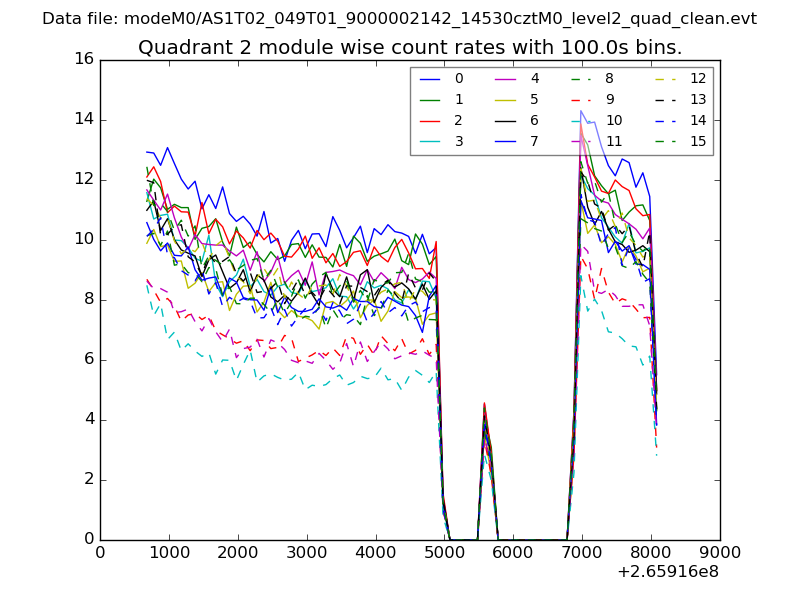

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

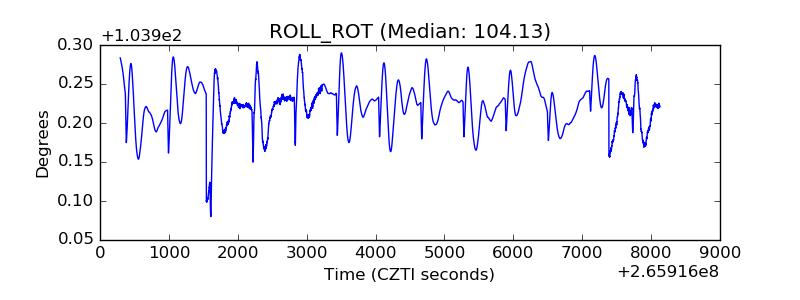

| _ROLL_ROT |  |

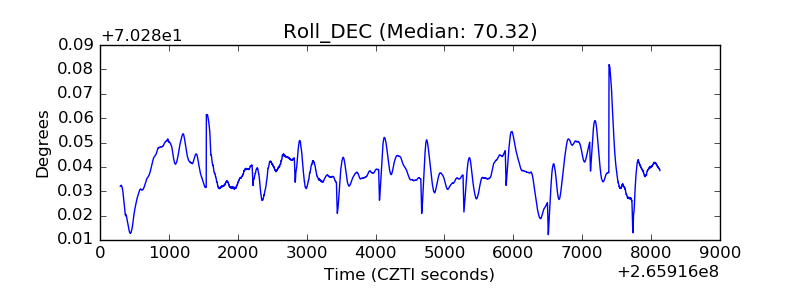

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
