| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_049T01_9000002142_14540cztM0_level2.evt | modeM0/AS1T02_049T01_9000002142_14540cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,111,337,280 | 253,742,400 |
| Size | 1.0 GB | 242.0 MB |
| Events in quadrant A | 7,918,459 | 1,672,359 |
| Events in quadrant B | 8,325,535 | 1,667,610 |
| Events in quadrant C | 8,147,077 | 1,650,613 |
| Events in quadrant D | 8,187,335 | 1,594,901 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33592 | 2 |
| B | 0 | 34730 | 2 |
| C | 0 | 33704 | 2 |
| D | 0 | 35701 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 322 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15953 | 166 | 1.040557% |
| B | 15953 | 183 | 1.147120% |
| C | 15953 | 107 | 0.670720% |
| D | 15953 | 364 | 2.281703% |

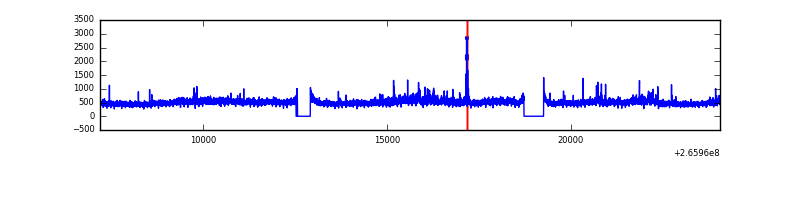

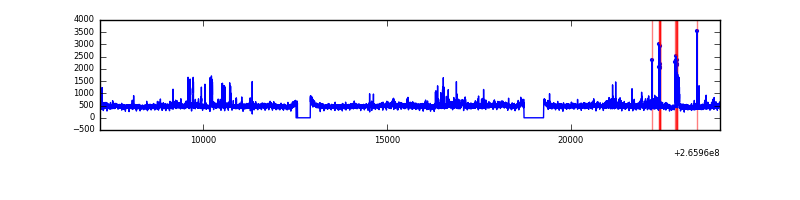

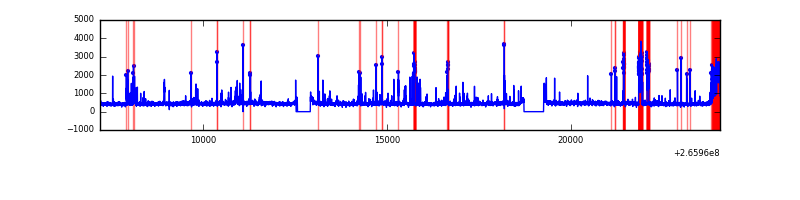

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16864 | 15957 | 14 | 14 | 0.08% | 0.09% |  |
| B | 16864 | 15956 | 15 | 15 | 0.09% | 0.09% |  |
| C | 16864 | 15957 | 6 | 6 | 0.04% | 0.04% |  |
| D | 16864 | 15957 | 301 | 301 | 1.78% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 584457 | 1575.04 | 1824 | 1781 | 369.9 |
| A | 12 | 189 | 163296 | 436.59 | 1824 | 1781 | 369.9 |
| A | 0 | 23 | 120524 | 320.98 | 1824 | 1781 | 369.9 |
| B | 3 | 209 | 407752 | 1184.16 | 1825 | 1778 | 342.8 |
| B | 0 | 219 | 183268 | 529.38 | 1825 | 1778 | 342.8 |
| B | 0 | 189 | 182052 | 525.83 | 1825 | 1778 | 342.8 |
| C | 3 | 233 | 1201121 | 2935.88 | 1774 | 1782 | 408.5 |
| C | 10 | 22 | 25768 | 58.72 | 1774 | 1782 | 408.5 |
| C | 13 | 61 | 12751 | 26.85 | 1774 | 1782 | 408.5 |
| D | 12 | 110 | 967335 | 2245.09 | 1769 | 1712 | 430.1 |
| D | 13 | 122 | 132338 | 303.71 | 1769 | 1712 | 430.1 |
| D | 2 | 152 | 123633 | 283.47 | 1769 | 1712 | 430.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

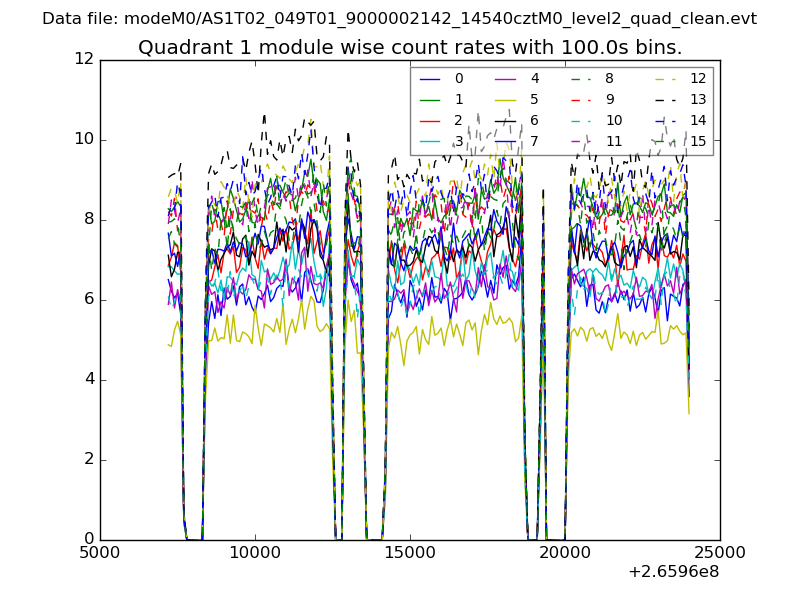

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

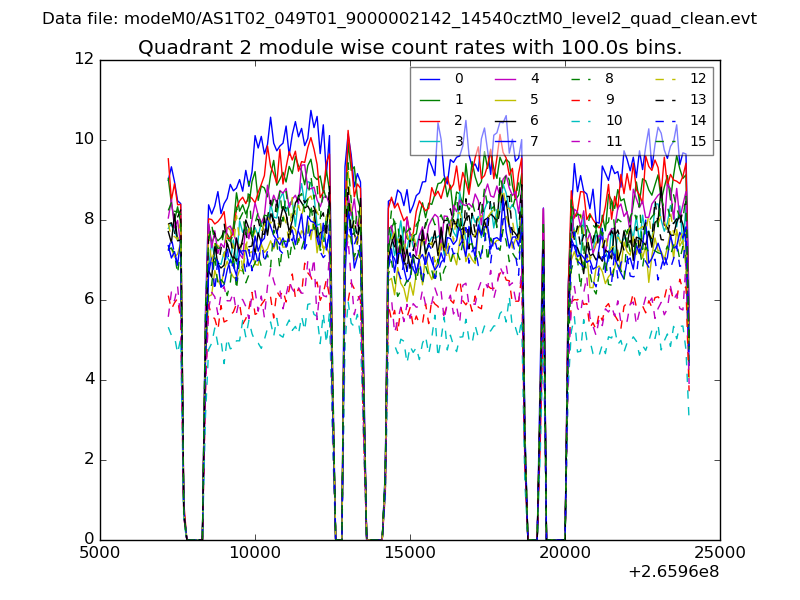

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

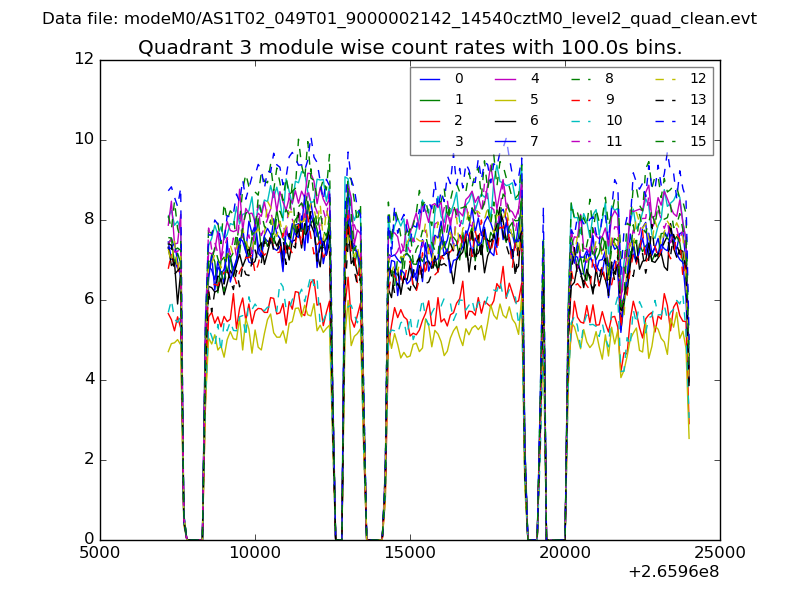

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

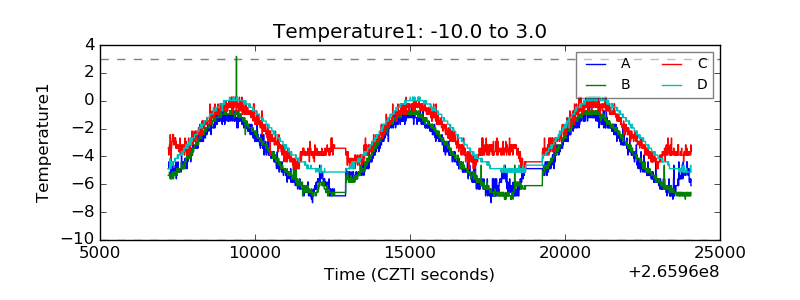

| Temperature 1 |  |
| Veto HV Monitor |  |

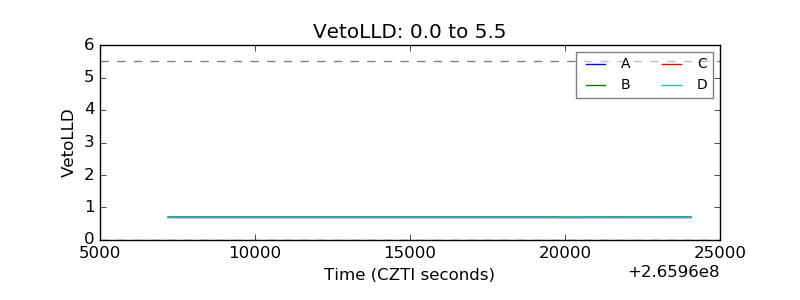

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
