| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002144_14542cztM0_level2.evt | modeM0/AS1G08_081T01_9000002144_14542cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,141,120 | 80,262,720 |
| Size | 463.6 MB | 76.5 MB |
| Events in quadrant A | 3,668,611 | 508,601 |
| Events in quadrant B | 3,451,307 | 492,409 |
| Events in quadrant C | 3,563,170 | 485,330 |
| Events in quadrant D | 3,593,674 | 485,826 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15174 | 3 |
| B | 0 | 14574 | 2 |
| C | 0 | 14760 | 2 |
| D | 0 | 14950 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6563 | 65 | 0.990401% |
| B | 6563 | 84 | 1.279902% |
| C | 6563 | 46 | 0.700899% |
| D | 6563 | 131 | 1.996038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7624 | 6564 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7624 | 6564 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7624 | 6565 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7624 | 6564 | 70 | 70 | 0.92% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 398802 | 2375.99 | 830 | 814 | 167.5 |
| A | 12 | 189 | 47136 | 276.54 | 830 | 814 | 167.5 |
| A | 0 | 23 | 21641 | 124.34 | 830 | 814 | 167.5 |
| B | 0 | 229 | 68680 | 431.21 | 824 | 805 | 157.4 |
| B | 3 | 209 | 53282 | 333.39 | 824 | 805 | 157.4 |
| B | 4 | 142 | 51950 | 324.93 | 824 | 805 | 157.4 |
| C | 3 | 233 | 420939 | 2267.03 | 801 | 805 | 185.3 |
| C | 8 | 128 | 10798 | 53.92 | 801 | 805 | 185.3 |
| C | 8 | 112 | 5770 | 26.79 | 801 | 805 | 185.3 |
| D | 12 | 110 | 223967 | 1146.43 | 809 | 787 | 194.7 |
| D | 10 | 199 | 139209 | 711.05 | 809 | 787 | 194.7 |
| D | 2 | 152 | 72870 | 370.28 | 809 | 787 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

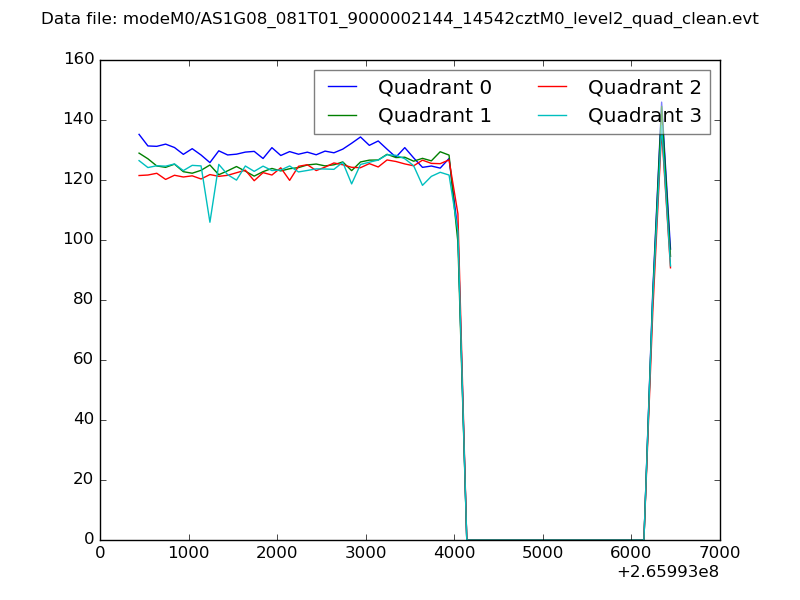

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

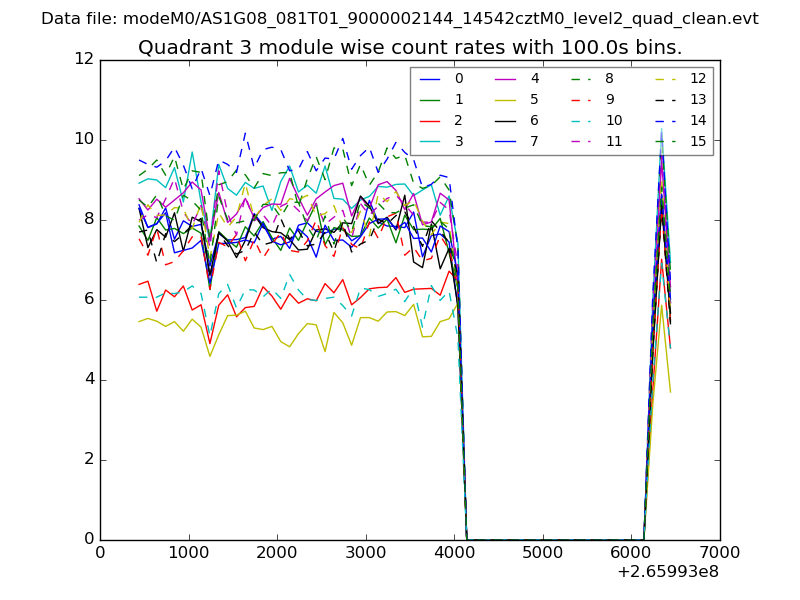

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
