| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002144_14547cztM0_level2.evt | modeM0/AS1G08_081T01_9000002144_14547cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,971,520 | 106,067,520 |
| Size | 432.9 MB | 101.2 MB |
| Events in quadrant A | 3,441,304 | 702,375 |
| Events in quadrant B | 3,346,359 | 704,582 |
| Events in quadrant C | 3,326,197 | 698,026 |
| Events in quadrant D | 3,218,964 | 679,786 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14193 | 3 |
| B | 0 | 13933 | 2 |
| C | 0 | 13665 | 2 |
| D | 0 | 13537 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 59 | 0.964210% |
| B | 6119 | 106 | 1.732309% |
| C | 6119 | 44 | 0.719072% |
| D | 6119 | 50 | 0.817127% |

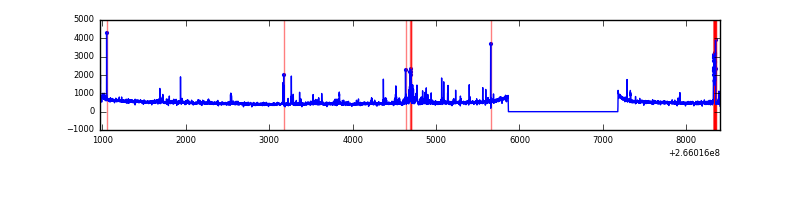

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7435 | 6121 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7435 | 6121 | 24 | 24 | 0.32% | 0.39% |  |
| C | 7435 | 6121 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7435 | 6121 | 29 | 29 | 0.39% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 260175 | 1648.24 | 782 | 767 | 157.4 |
| A | 12 | 189 | 70903 | 445.63 | 782 | 767 | 157.4 |
| A | 4 | 2 | 56614 | 354.84 | 782 | 767 | 157.4 |
| B | 10 | 247 | 93061 | 622.98 | 788 | 768 | 148.1 |
| B | 0 | 189 | 61836 | 412.21 | 788 | 768 | 148.1 |
| B | 0 | 219 | 25556 | 167.32 | 788 | 768 | 148.1 |
| C | 3 | 233 | 293799 | 1649.61 | 772 | 778 | 177.6 |
| C | 8 | 128 | 11700 | 61.49 | 772 | 778 | 177.6 |
| C | 8 | 112 | 5756 | 28.02 | 772 | 778 | 177.6 |
| D | 10 | 199 | 114594 | 612.16 | 769 | 747 | 186.0 |
| D | 2 | 120 | 108890 | 581.49 | 769 | 747 | 186.0 |
| D | 2 | 152 | 40931 | 216.07 | 769 | 747 | 186.0 |

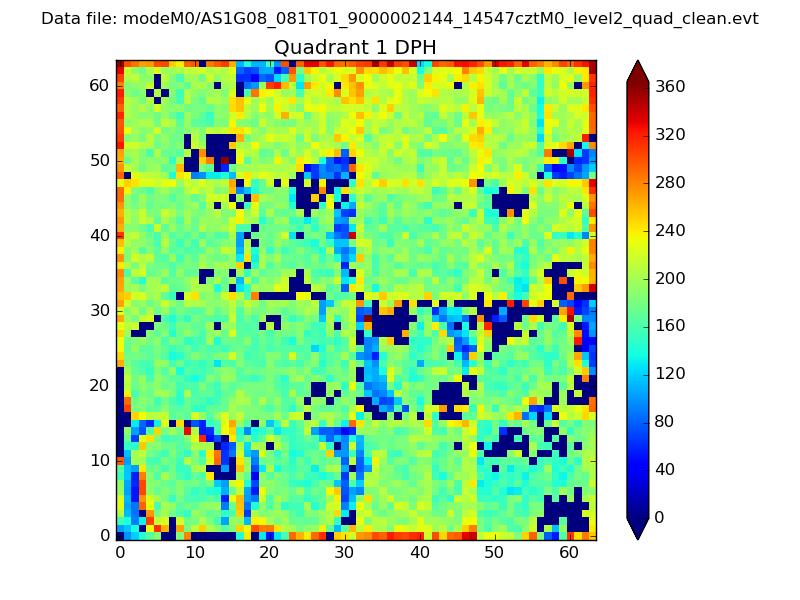

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

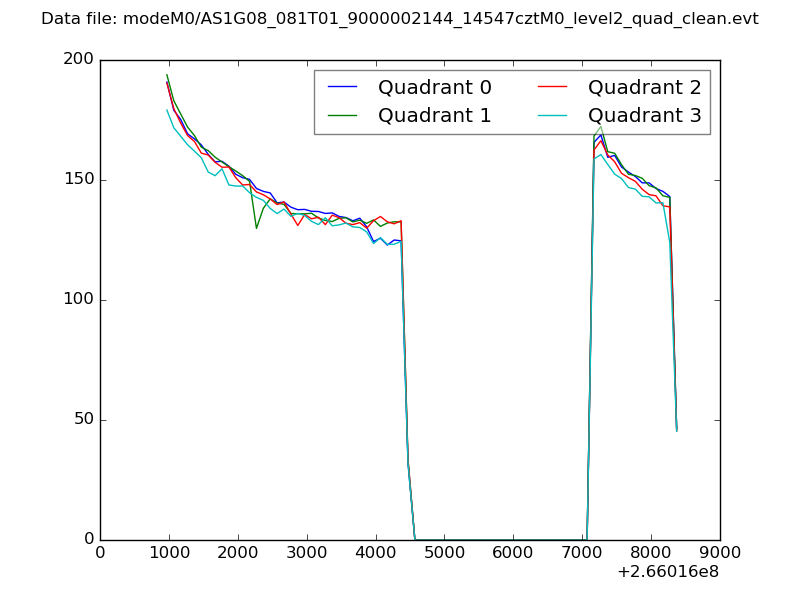

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

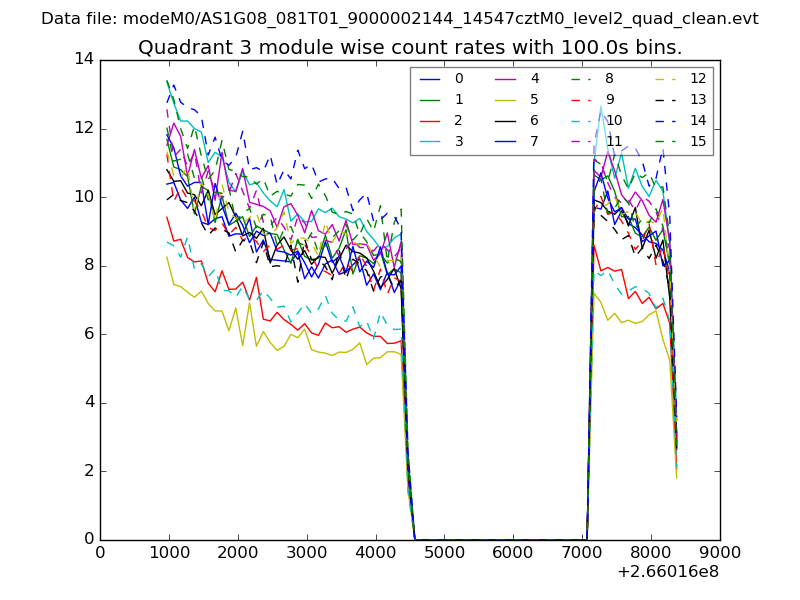

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

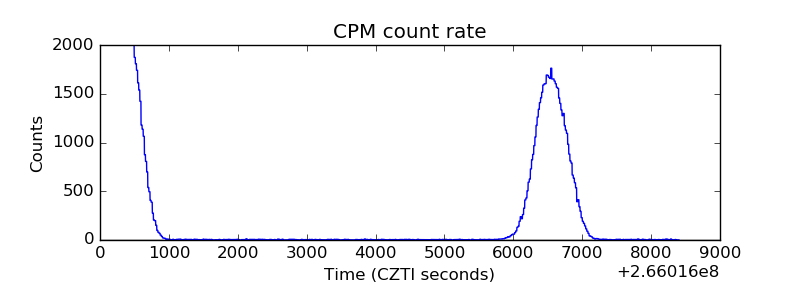

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

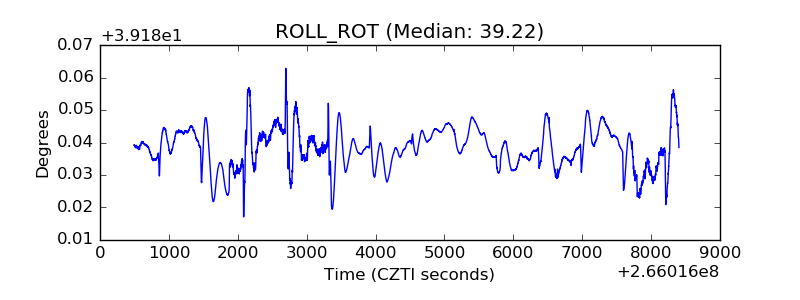

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
