| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002144_14548cztM0_level2.evt | modeM0/AS1G08_081T01_9000002144_14548cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,030,080 | 95,725,440 |
| Size | 504.5 MB | 91.3 MB |
| Events in quadrant A | 3,614,216 | 618,433 |
| Events in quadrant B | 3,460,127 | 618,818 |
| Events in quadrant C | 3,532,049 | 608,439 |
| Events in quadrant D | 4,967,246 | 592,243 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14960 | 3 |
| B | 0 | 14670 | 2 |
| C | 0 | 14582 | 2 |
| D | 0 | 19304 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 82 | 1.239982% |
| B | 6613 | 114 | 1.723877% |
| C | 6613 | 59 | 0.892182% |
| D | 6613 | 137 | 2.071677% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9134 | 6616 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9134 | 6616 | 1 | 1 | 0.01% | 0.02% |  |
| C | 9134 | 6616 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9134 | 6616 | 58 | 58 | 0.63% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 267375 | 1594.83 | 833 | 814 | 167.1 |
| A | 0 | 23 | 79248 | 469.27 | 833 | 814 | 167.1 |
| A | 12 | 189 | 52457 | 308.98 | 833 | 814 | 167.1 |
| B | 0 | 189 | 39769 | 245.55 | 838 | 818 | 158.6 |
| B | 3 | 209 | 35826 | 220.69 | 838 | 818 | 158.6 |
| B | 0 | 219 | 29463 | 180.58 | 838 | 818 | 158.6 |
| C | 3 | 233 | 347145 | 1842.4 | 817 | 822 | 188.0 |
| C | 13 | 61 | 6063 | 27.88 | 817 | 822 | 188.0 |
| C | 3 | 202 | 1903 | 5.75 | 817 | 822 | 188.0 |
| D | 12 | 110 | 1536382 | 7920.03 | 809 | 787 | 193.9 |
| D | 10 | 199 | 240885 | 1238.33 | 809 | 787 | 193.9 |
| D | 2 | 152 | 46179 | 234.11 | 809 | 787 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

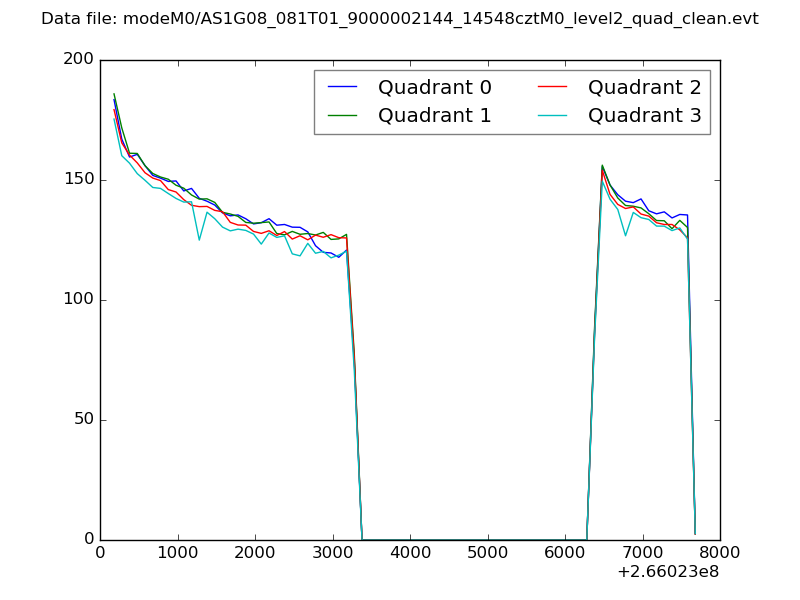

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

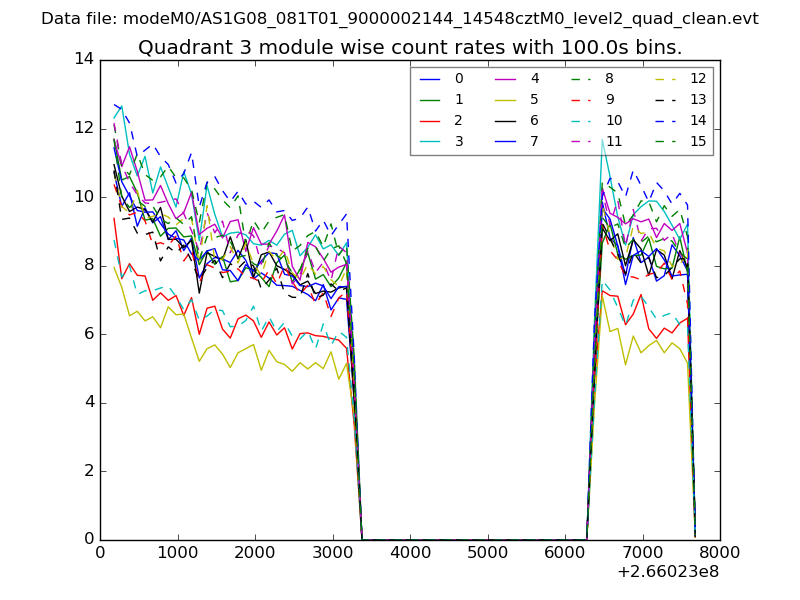

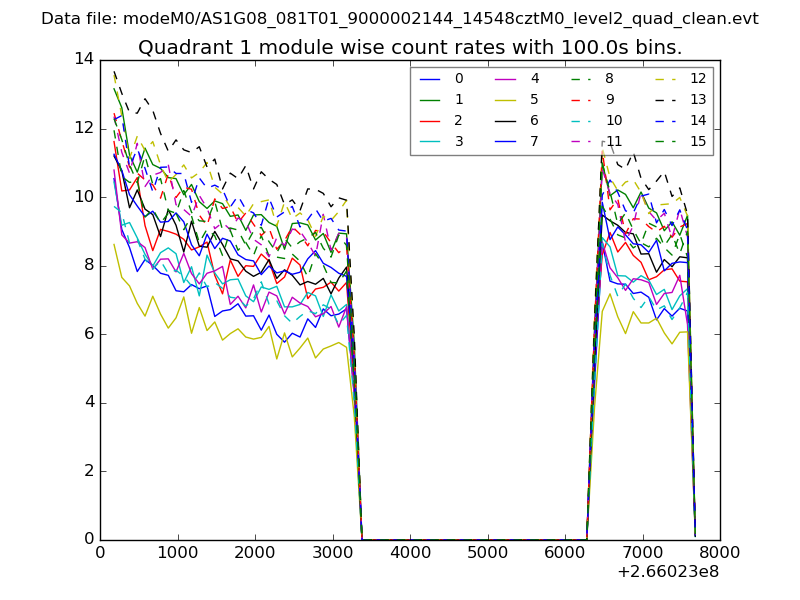

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

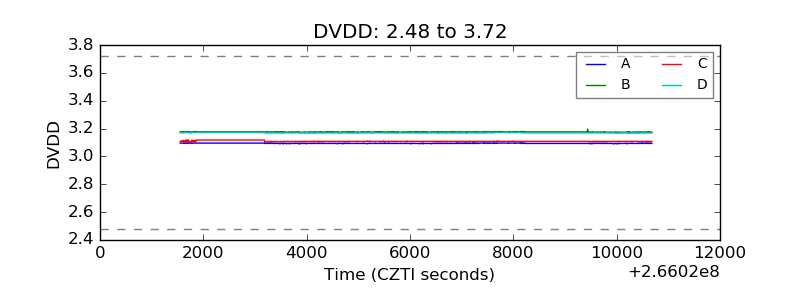

| D_VDD |  |

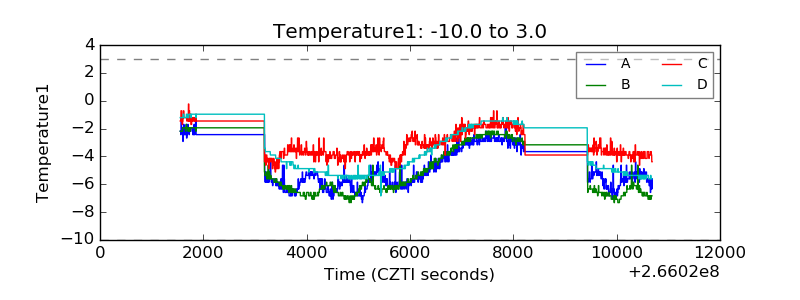

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

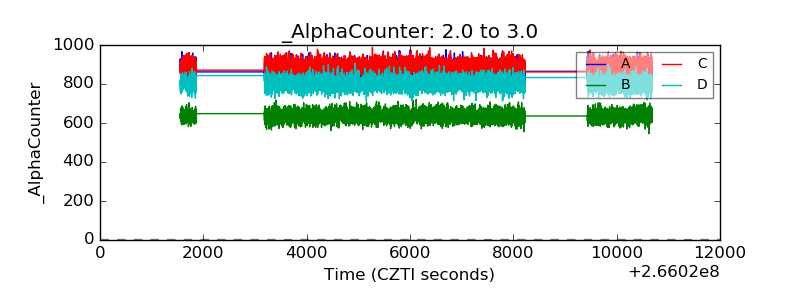

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
