| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002144_14555cztM0_level2.evt | modeM0/AS1G08_081T01_9000002144_14555cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,291,106,880 | 213,318,720 |
| Size | 1.2 GB | 203.4 MB |
| Events in quadrant A | 9,359,701 | 1,331,732 |
| Events in quadrant B | 9,354,135 | 1,301,197 |
| Events in quadrant C | 9,858,064 | 1,278,339 |
| Events in quadrant D | 9,288,816 | 1,284,246 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39189 | 4 |
| B | 0 | 39476 | 3 |
| C | 0 | 39791 | 3 |
| D | 0 | 40214 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18361 | 241 | 1.312565% |
| B | 18361 | 244 | 1.328904% |
| C | 18361 | 167 | 0.909537% |
| D | 18361 | 310 | 1.688361% |

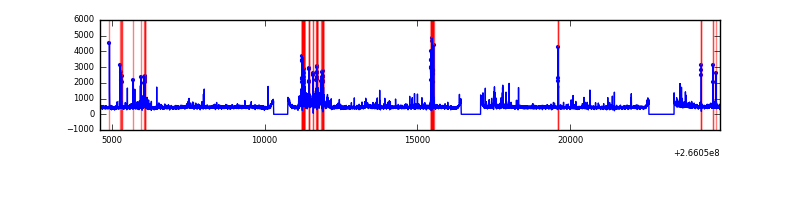

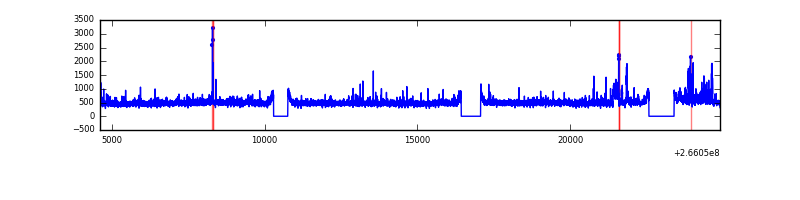

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20287 | 18365 | 7 | 7 | 0.03% | 0.04% |  |
| B | 20287 | 18365 | 8 | 8 | 0.04% | 0.04% |  |
| C | 20287 | 18365 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20287 | 18365 | 94 | 94 | 0.46% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 388993 | 870.82 | 2208 | 2157 | 444.2 |
| A | 8 | 15 | 259800 | 579.99 | 2208 | 2157 | 444.2 |
| A | 12 | 189 | 137688 | 305.1 | 2208 | 2157 | 444.2 |
| B | 0 | 189 | 463198 | 1101.62 | 2188 | 2131 | 418.5 |
| B | 4 | 173 | 82610 | 192.29 | 2188 | 2131 | 418.5 |
| B | 0 | 219 | 61093 | 140.88 | 2188 | 2131 | 418.5 |
| C | 3 | 233 | 1555343 | 3145.12 | 2125 | 2130 | 493.8 |
| C | 13 | 61 | 15353 | 26.78 | 2125 | 2130 | 493.8 |
| C | 3 | 232 | 9370 | 14.66 | 2125 | 2130 | 493.8 |
| D | 10 | 199 | 508152 | 901.44 | 2118 | 2071 | 561.4 |
| D | 12 | 110 | 352509 | 624.2 | 2118 | 2071 | 561.4 |
| D | 2 | 152 | 226087 | 399.02 | 2118 | 2071 | 561.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

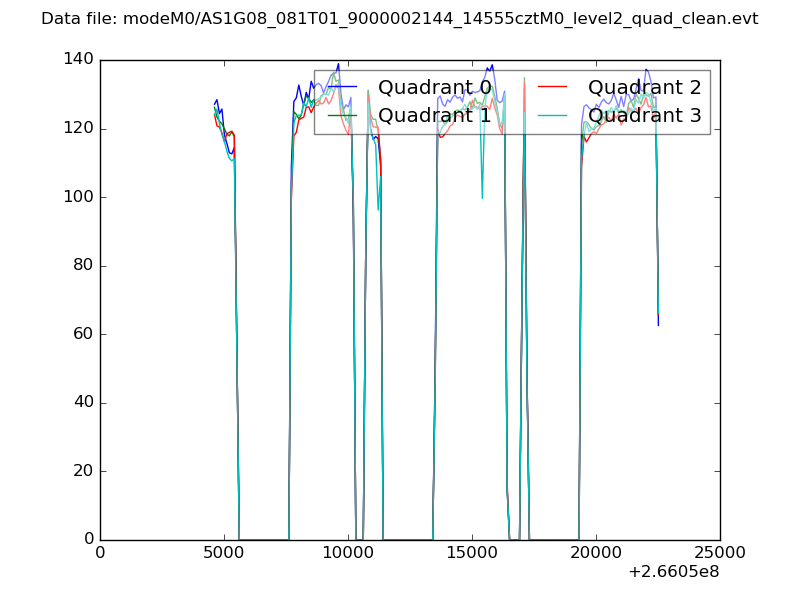

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

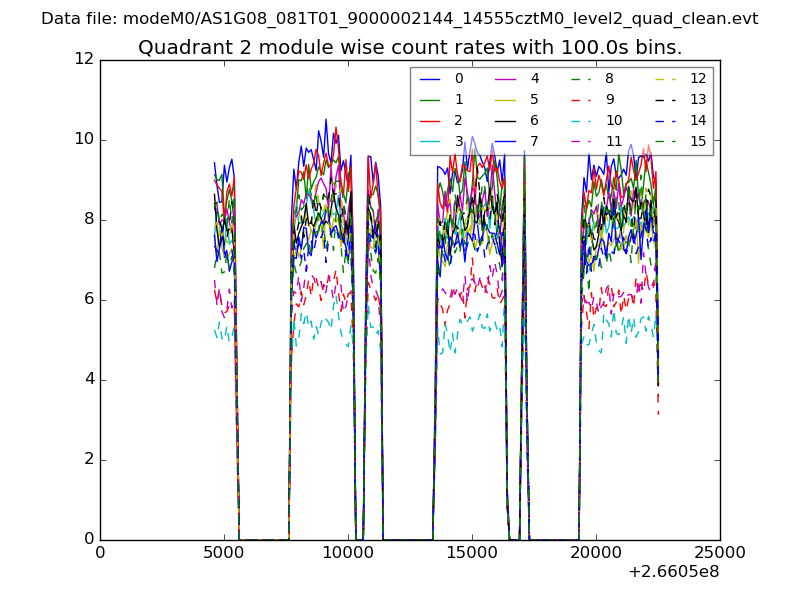

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

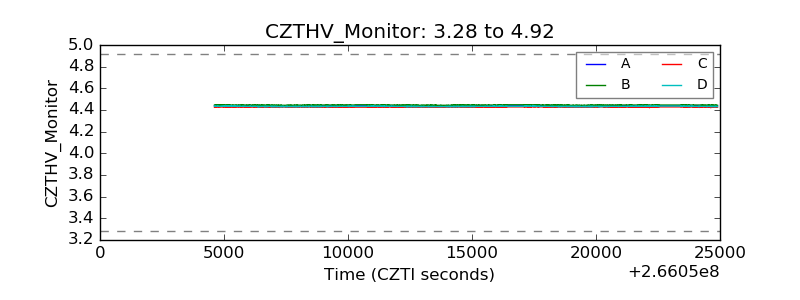

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

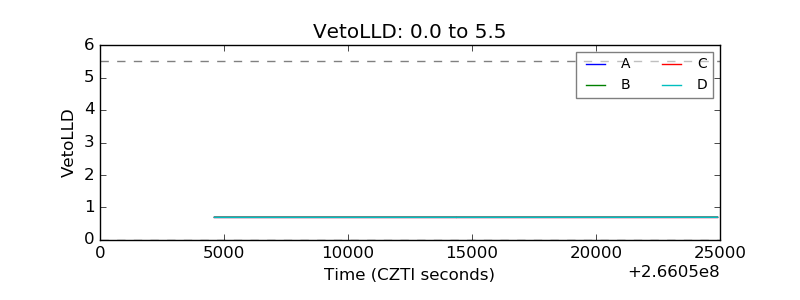

| Veto LLD |  |
| Alpha Counter |  |

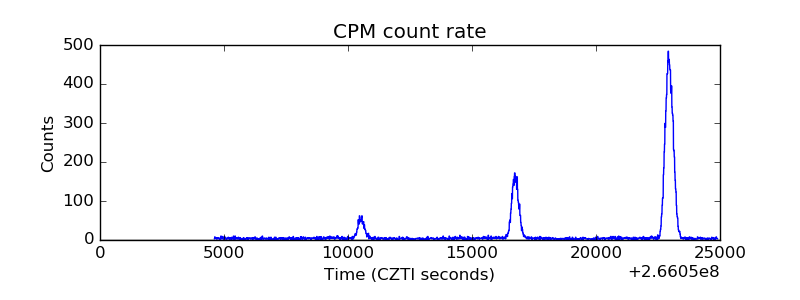

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

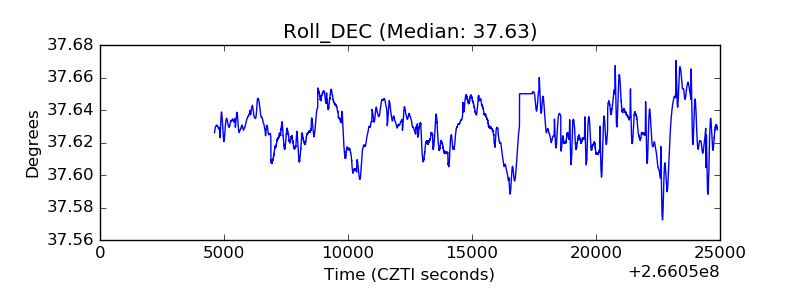

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
