| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14557cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14557cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,672,960 | 70,073,280 |
| Size | 478.4 MB | 66.8 MB |
| Events in quadrant A | 3,565,107 | 427,020 |
| Events in quadrant B | 3,341,762 | 428,112 |
| Events in quadrant C | 3,832,596 | 411,565 |
| Events in quadrant D | 4,017,426 | 406,585 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14670 | 3 |
| B | 0 | 13983 | 2 |
| C | 0 | 15768 | 2 |
| D | 0 | 16156 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6431 | 76 | 1.181776% |
| B | 6431 | 76 | 1.181776% |
| C | 6431 | 50 | 0.777484% |
| D | 6431 | 344 | 5.349090% |

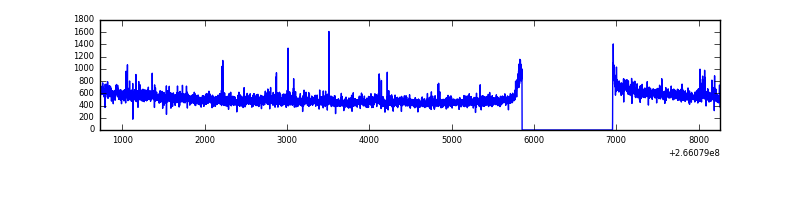

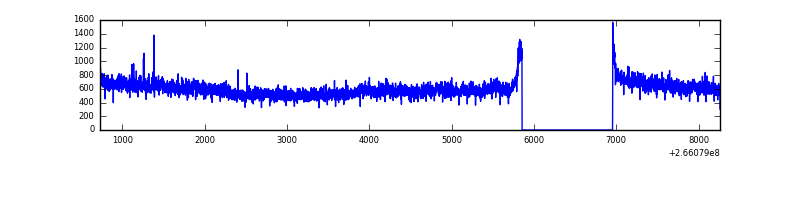

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7532 | 6433 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7532 | 6433 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7532 | 6433 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7532 | 6433 | 258 | 258 | 3.43% | 4.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 264863 | 1575.13 | 829 | 812 | 167.6 |
| A | 12 | 189 | 88288 | 521.82 | 829 | 812 | 167.6 |
| A | 0 | 226 | 7813 | 41.76 | 829 | 812 | 167.6 |
| B | 0 | 219 | 36880 | 229.41 | 827 | 807 | 157.2 |
| B | 0 | 205 | 17967 | 109.13 | 827 | 807 | 157.2 |
| B | 12 | 111 | 17487 | 106.08 | 827 | 807 | 157.2 |
| C | 3 | 233 | 706489 | 3827.99 | 799 | 805 | 184.3 |
| C | 6 | 96 | 6886 | 32.98 | 799 | 805 | 184.3 |
| C | 13 | 61 | 5775 | 26.96 | 799 | 805 | 184.3 |
| D | 12 | 110 | 413031 | 2158.51 | 790 | 772 | 191.0 |
| D | 10 | 199 | 255198 | 1332.13 | 790 | 772 | 191.0 |
| D | 5 | 223 | 98265 | 510.45 | 790 | 772 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

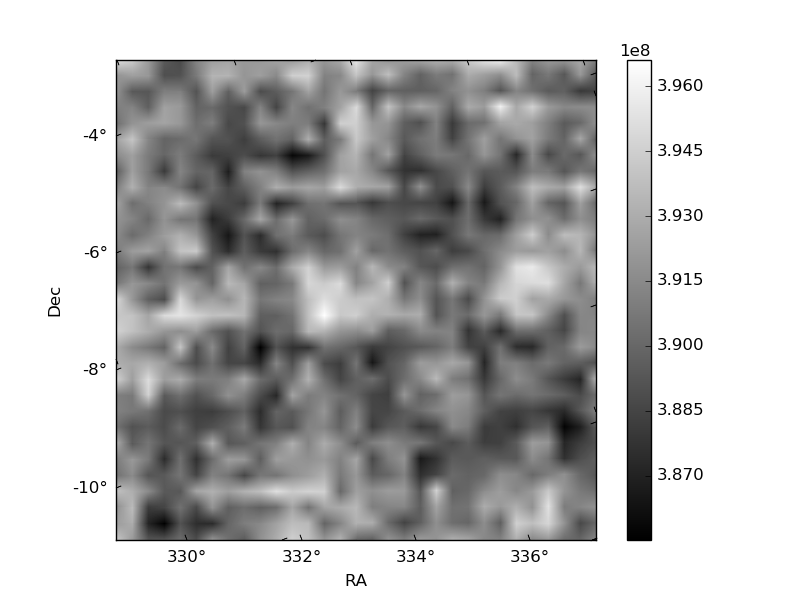

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

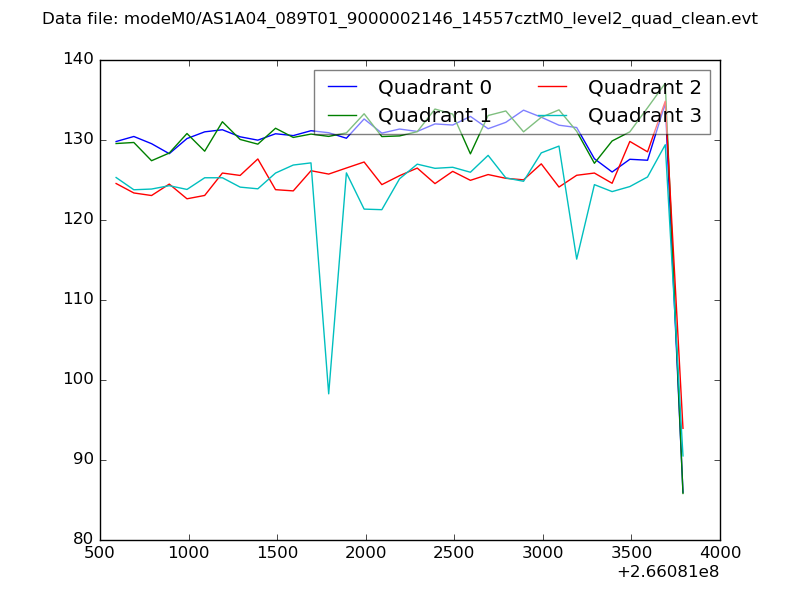

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

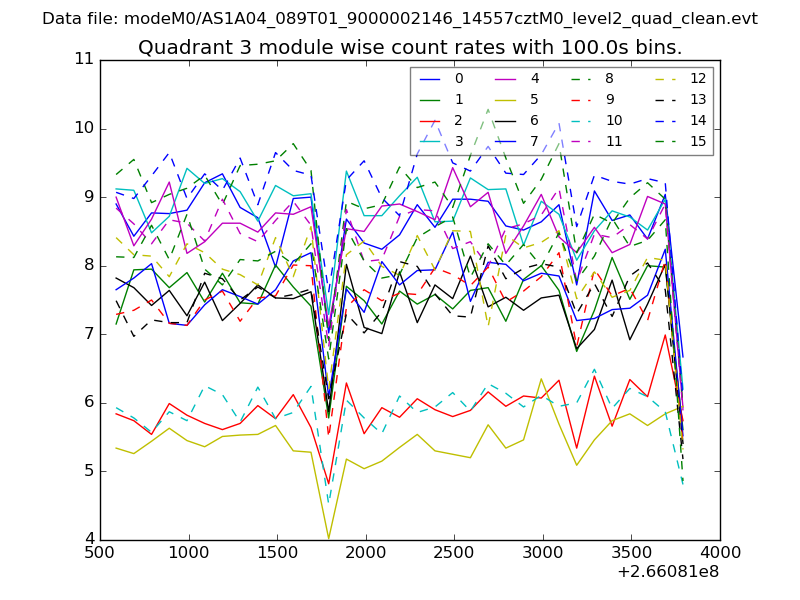

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

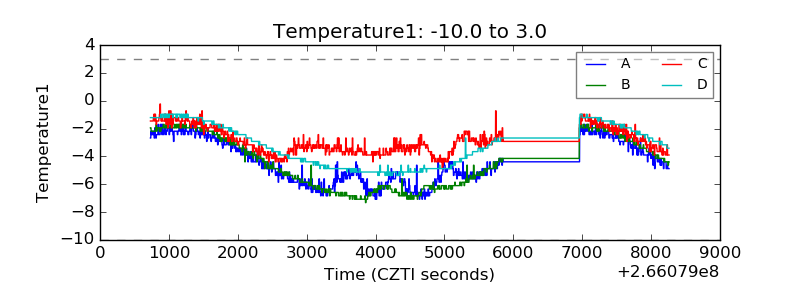

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

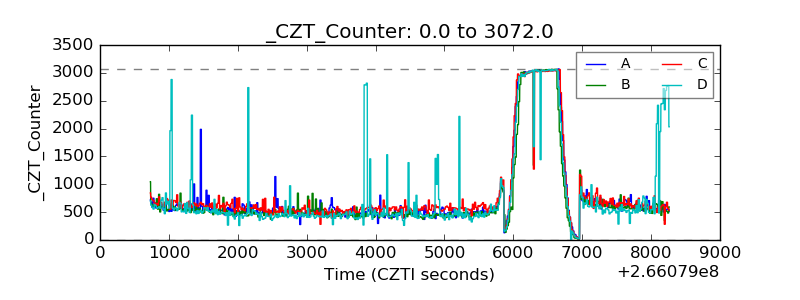

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

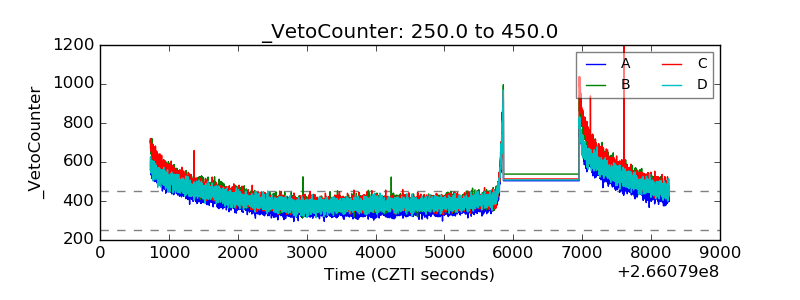

| Veto Counter |  |
