| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14559cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14559cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,061,440 | 78,664,320 |
| Size | 500.7 MB | 75.0 MB |
| Events in quadrant A | 4,067,383 | 495,982 |
| Events in quadrant B | 3,381,497 | 502,145 |
| Events in quadrant C | 3,648,900 | 482,700 |
| Events in quadrant D | 4,383,405 | 468,220 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16118 | 3 |
| B | 0 | 14088 | 2 |
| C | 0 | 14812 | 2 |
| D | 0 | 17129 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6202 | 131 | 2.112222% |
| B | 6202 | 93 | 1.499516% |
| C | 6202 | 59 | 0.951306% |
| D | 6202 | 456 | 7.352467% |

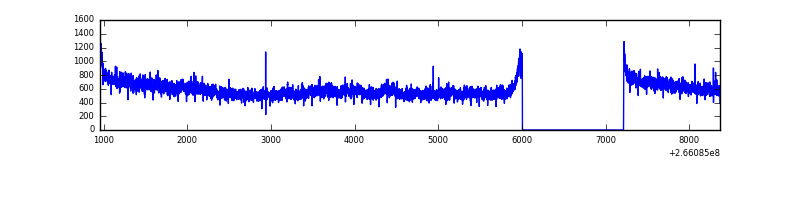

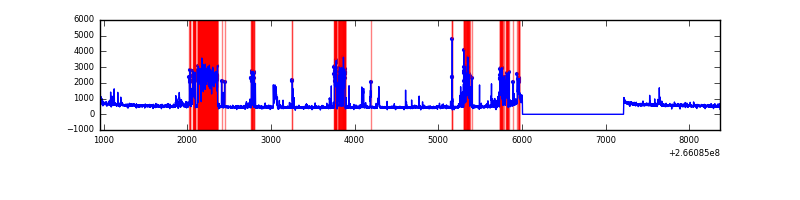

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7413 | 6204 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7413 | 6204 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7413 | 6204 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7413 | 6204 | 376 | 376 | 5.07% | 6.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 534179 | 3223.6 | 825 | 810 | 165.5 |
| A | 8 | 15 | 224382 | 1351.24 | 825 | 810 | 165.5 |
| A | 12 | 189 | 53366 | 317.64 | 825 | 810 | 165.5 |
| B | 0 | 189 | 26536 | 165.42 | 827 | 809 | 155.5 |
| B | 0 | 219 | 26012 | 162.05 | 827 | 809 | 155.5 |
| B | 0 | 205 | 25008 | 155.6 | 827 | 809 | 155.5 |
| C | 3 | 233 | 499548 | 2692.95 | 805 | 809 | 185.2 |
| C | 8 | 128 | 6656 | 31.57 | 805 | 809 | 185.2 |
| C | 13 | 61 | 5778 | 26.83 | 805 | 809 | 185.2 |
| D | 12 | 110 | 754739 | 3688.97 | 788 | 772 | 204.4 |
| D | 10 | 199 | 541707 | 2646.66 | 788 | 772 | 204.4 |
| D | 12 | 235 | 34967 | 167.31 | 788 | 772 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

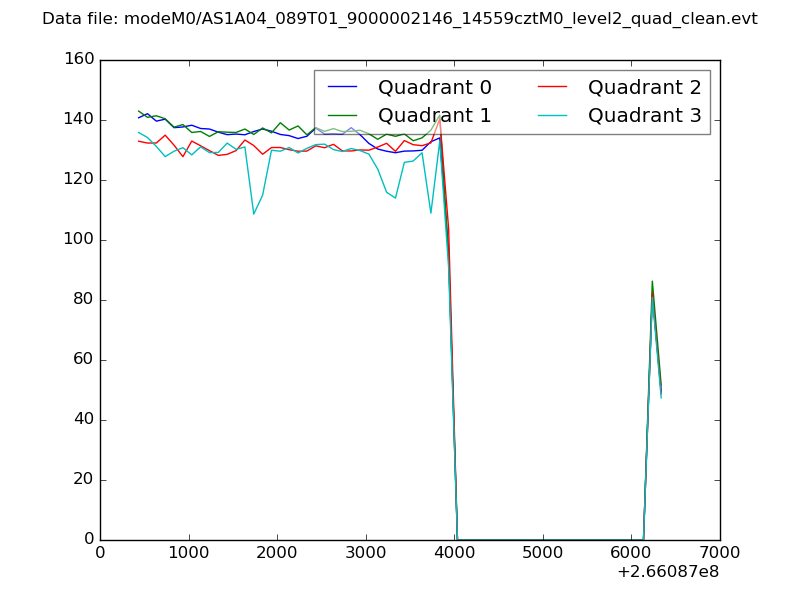

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

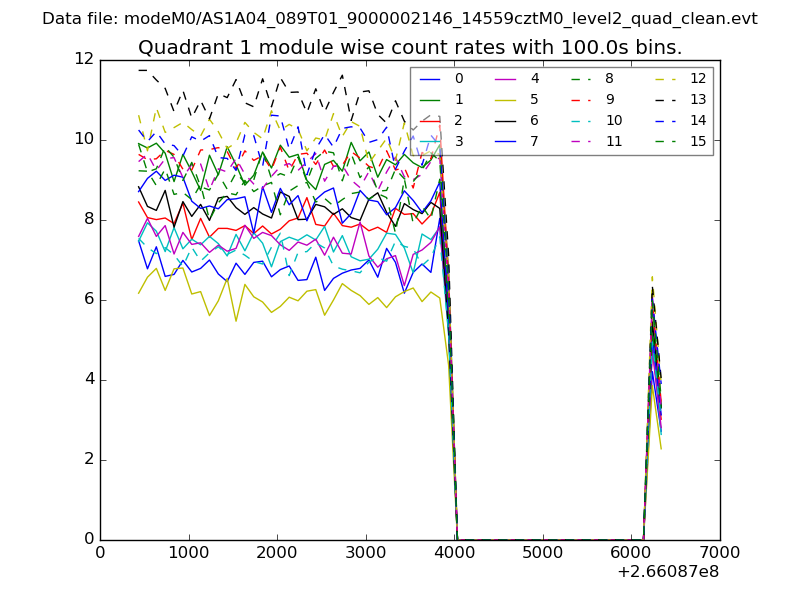

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

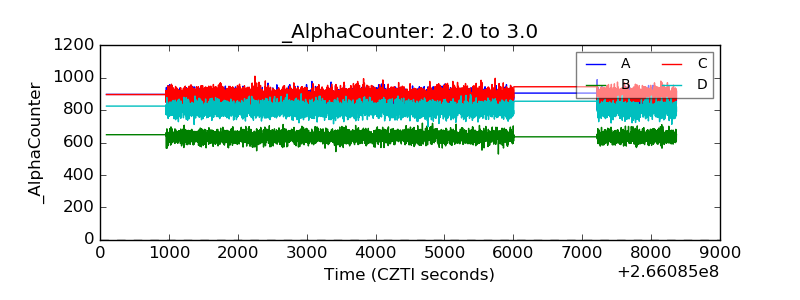

| Alpha Counter |  |
| _CPM_Rate |  |

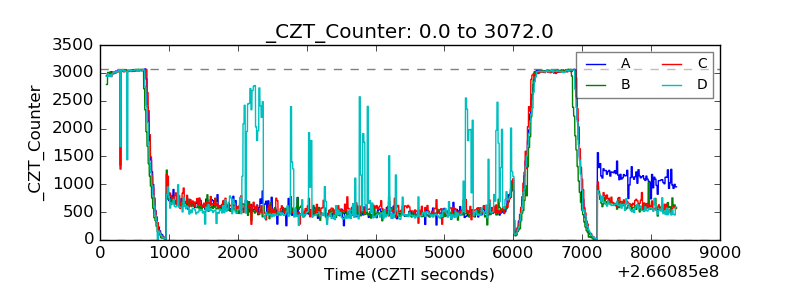

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

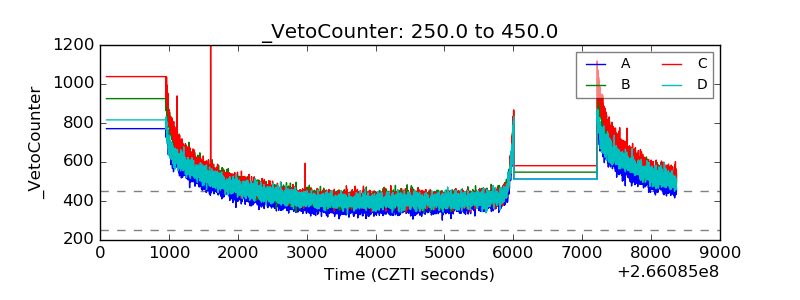

| Veto Counter |  |
