| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14561cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14561cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,675,840 | 102,078,720 |
| Size | 452.7 MB | 97.3 MB |
| Events in quadrant A | 3,274,322 | 669,647 |
| Events in quadrant B | 3,434,674 | 682,402 |
| Events in quadrant C | 3,806,037 | 660,151 |
| Events in quadrant D | 3,442,863 | 649,415 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13547 | 3 |
| B | 0 | 14130 | 2 |
| C | 0 | 15563 | 2 |
| D | 0 | 14054 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6154 | 57 | 0.926227% |
| B | 6154 | 78 | 1.267468% |
| C | 6154 | 31 | 0.503737% |
| D | 6154 | 118 | 1.917452% |

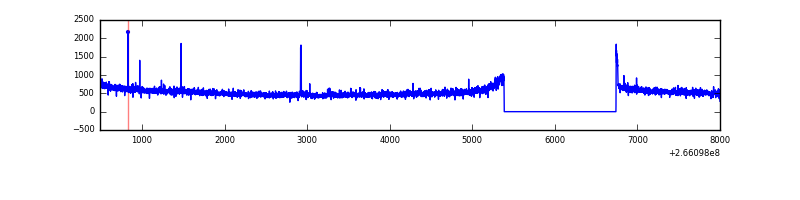

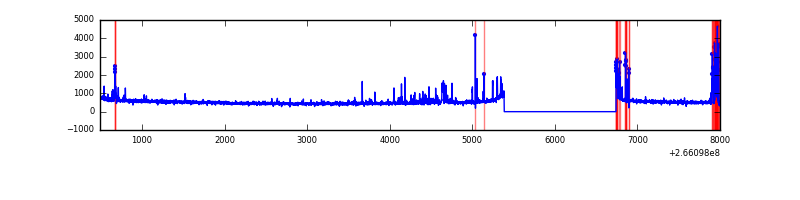

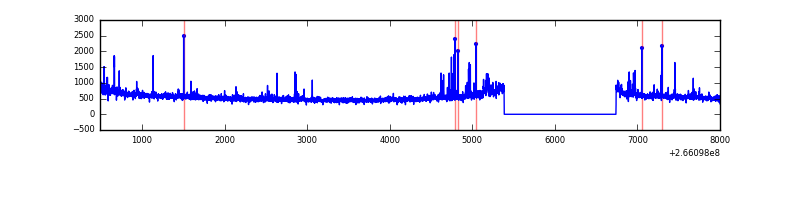

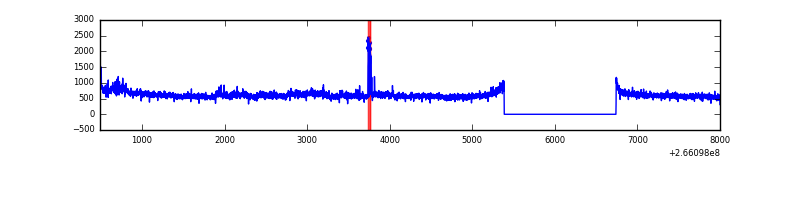

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6156 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7510 | 6156 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7510 | 6156 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7510 | 6156 | 52 | 52 | 0.69% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 54350 | 326.54 | 818 | 803 | 164.0 |
| A | 12 | 189 | 42332 | 253.25 | 818 | 803 | 164.0 |
| A | 0 | 23 | 28631 | 169.7 | 818 | 803 | 164.0 |
| B | 0 | 189 | 66859 | 426.3 | 825 | 808 | 154.9 |
| B | 0 | 219 | 47505 | 301.39 | 825 | 808 | 154.9 |
| B | 0 | 214 | 26636 | 166.7 | 825 | 808 | 154.9 |
| C | 3 | 233 | 626603 | 3375.28 | 806 | 814 | 185.4 |
| C | 14 | 238 | 33380 | 175.65 | 806 | 814 | 185.4 |
| C | 13 | 61 | 5717 | 26.45 | 806 | 814 | 185.4 |
| D | 10 | 199 | 162692 | 781.34 | 797 | 783 | 207.2 |
| D | 13 | 122 | 92203 | 441.18 | 797 | 783 | 207.2 |
| D | 12 | 110 | 80810 | 386.2 | 797 | 783 | 207.2 |

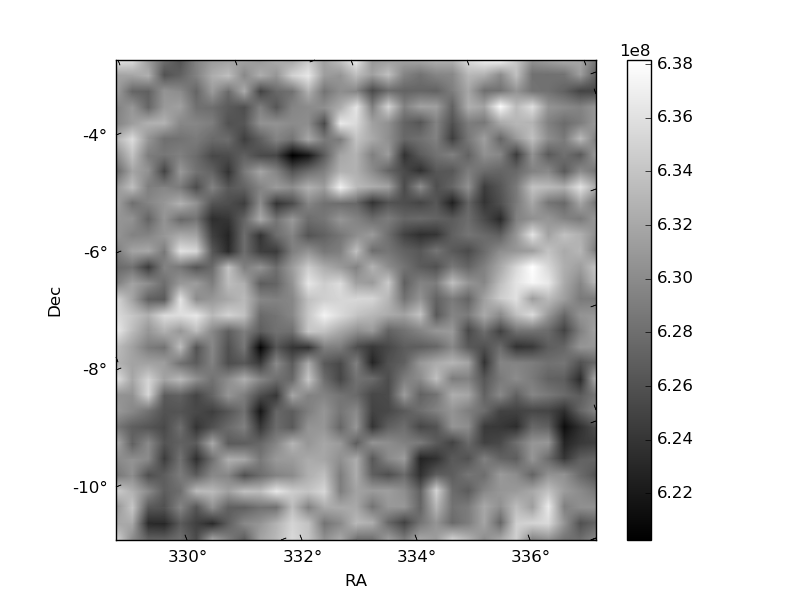

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

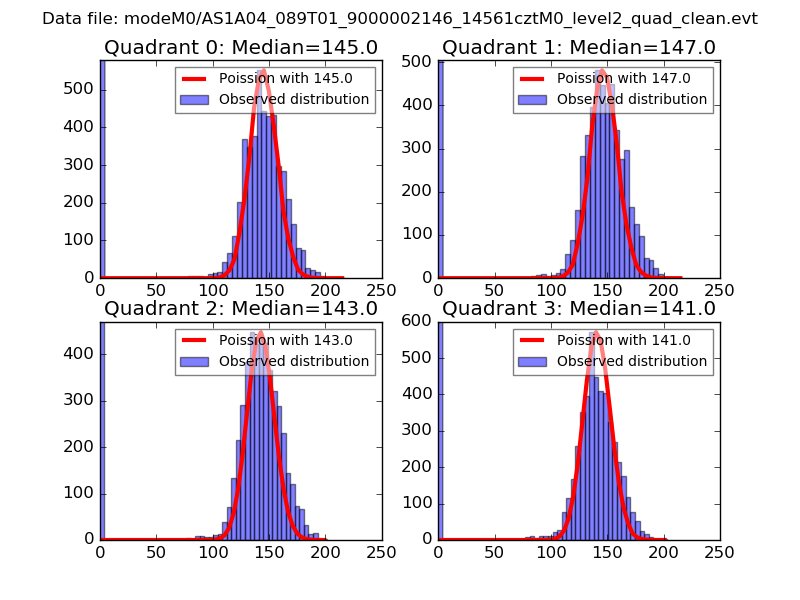

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

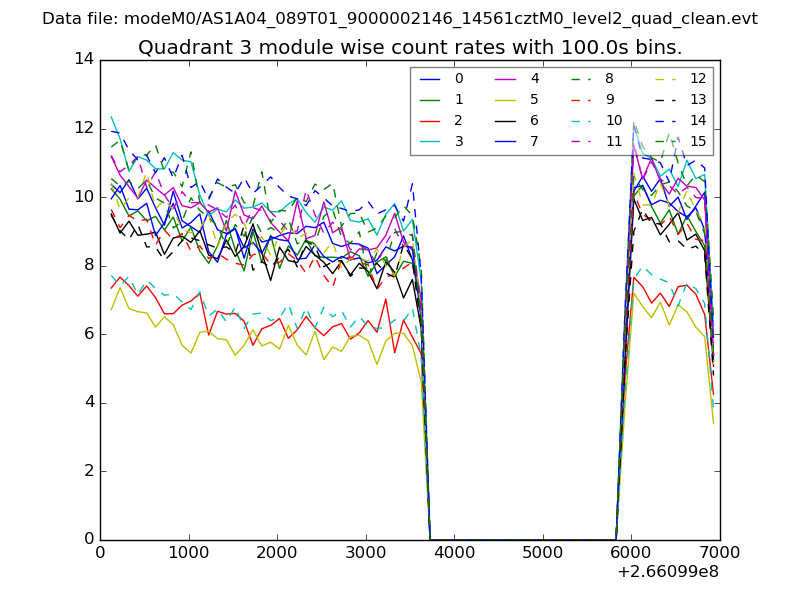

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

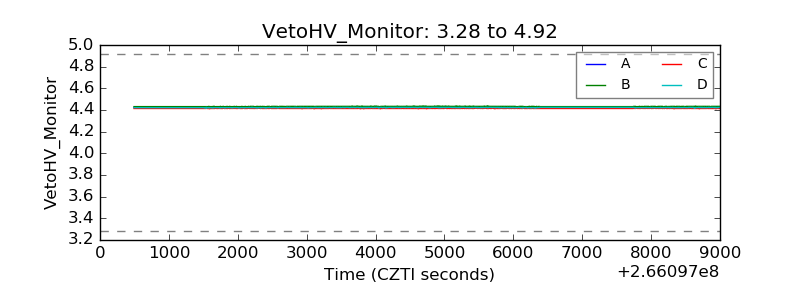

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
