| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14564cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14564cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,935,680 | 96,730,560 |
| Size | 520.6 MB | 92.2 MB |
| Events in quadrant A | 3,744,745 | 614,188 |
| Events in quadrant B | 3,846,294 | 621,843 |
| Events in quadrant C | 4,235,754 | 601,172 |
| Events in quadrant D | 4,207,655 | 579,955 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16039 | 3 |
| B | 0 | 16109 | 2 |
| C | 0 | 17312 | 2 |
| D | 0 | 17463 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7355 | 110 | 1.495581% |
| B | 7355 | 142 | 1.930659% |
| C | 7355 | 109 | 1.481985% |
| D | 7355 | 284 | 3.861319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9062 | 7359 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9062 | 7359 | 5 | 5 | 0.06% | 0.07% |  |
| C | 9062 | 7359 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9061 | 7358 | 156 | 156 | 1.72% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 97923 | 518.47 | 924 | 902 | 187.1 |
| A | 8 | 15 | 86487 | 457.35 | 924 | 902 | 187.1 |
| A | 0 | 226 | 8249 | 39.26 | 924 | 902 | 187.1 |
| B | 4 | 173 | 63346 | 348.21 | 927 | 903 | 179.3 |
| B | 0 | 189 | 53058 | 290.84 | 927 | 903 | 179.3 |
| B | 4 | 48 | 35264 | 191.61 | 927 | 903 | 179.3 |
| C | 3 | 233 | 689328 | 3255.35 | 902 | 909 | 211.5 |
| C | 8 | 128 | 13377 | 58.96 | 902 | 909 | 211.5 |
| C | 13 | 61 | 6389 | 25.91 | 902 | 909 | 211.5 |
| D | 10 | 199 | 575240 | 2421.01 | 889 | 873 | 237.2 |
| D | 12 | 110 | 138339 | 579.43 | 889 | 873 | 237.2 |
| D | 13 | 122 | 45750 | 189.16 | 889 | 873 | 237.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

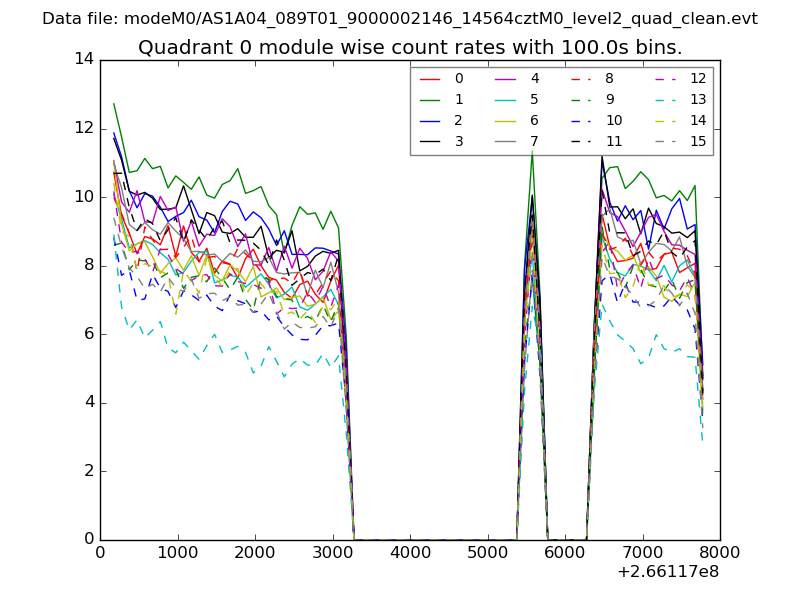

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

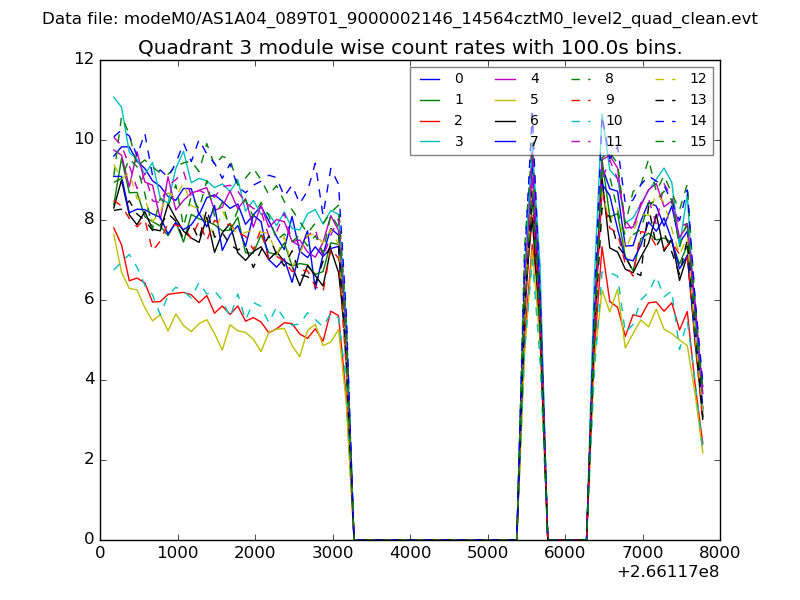

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

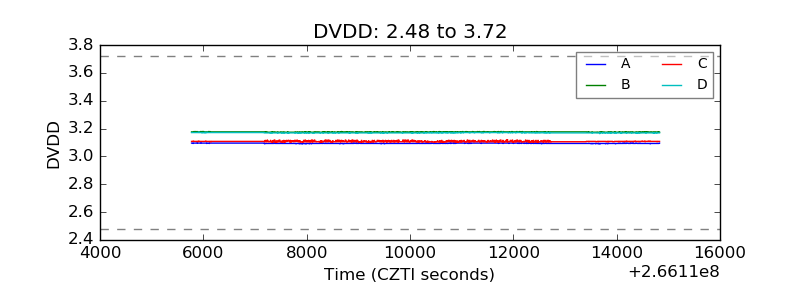

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

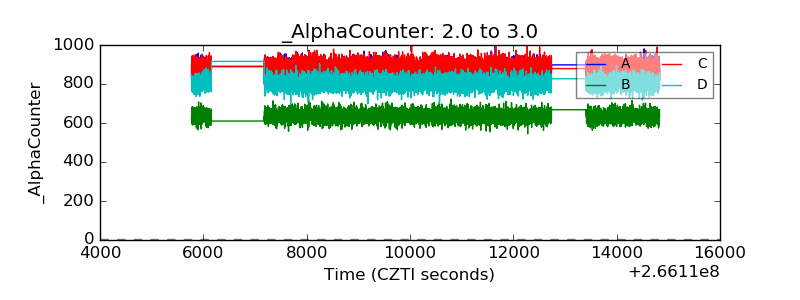

| Alpha Counter |  |

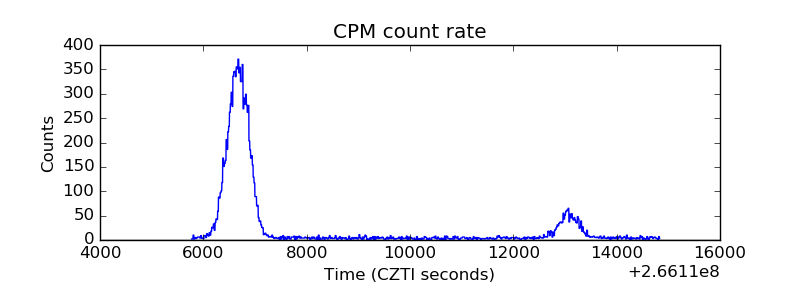

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

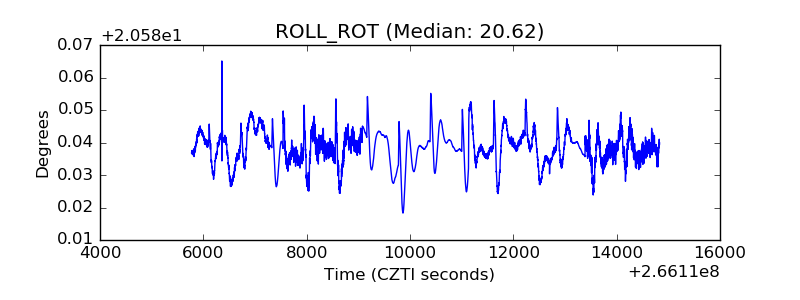

| _ROLL_ROT |  |
| _Roll_DEC |  |

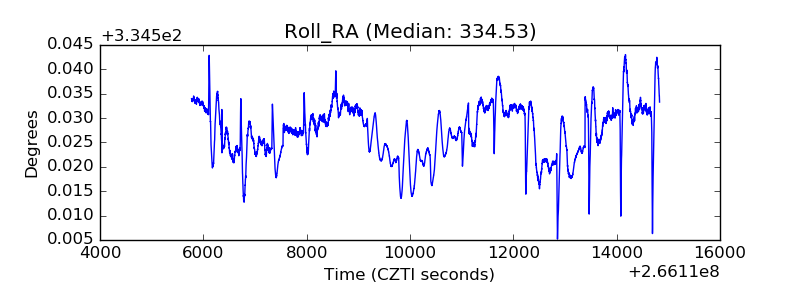

| _Roll_RA |  |

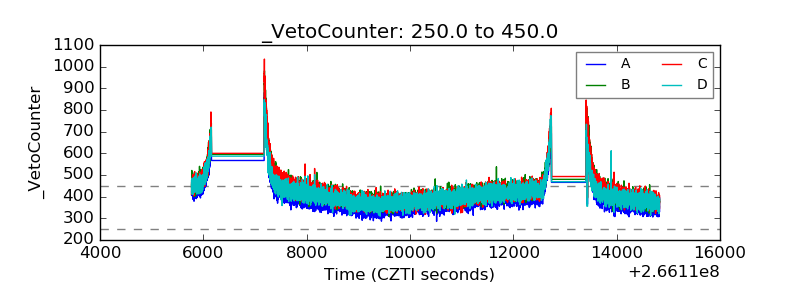

| Veto Counter |  |
