| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14569cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14569cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,285,153,920 | 206,982,720 |
| Size | 1.2 GB | 197.4 MB |
| Events in quadrant A | 9,239,901 | 1,270,049 |
| Events in quadrant B | 9,189,201 | 1,292,147 |
| Events in quadrant C | 9,722,987 | 1,249,732 |
| Events in quadrant D | 9,559,418 | 1,222,933 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38225 | 4 |
| B | 0 | 38161 | 3 |
| C | 0 | 39127 | 3 |
| D | 0 | 40518 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17905 | 261 | 1.457693% |
| B | 17905 | 258 | 1.440938% |
| C | 17905 | 194 | 1.083496% |
| D | 17905 | 493 | 2.753421% |

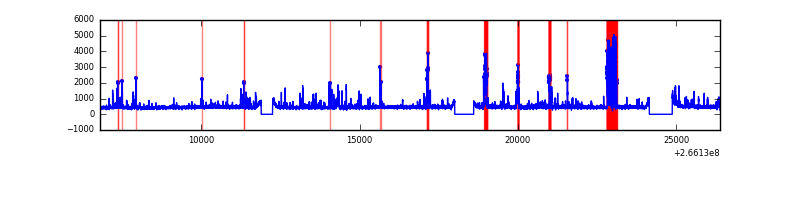

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19591 | 17908 | 4 | 4 | 0.02% | 0.02% |  |
| B | 19591 | 17908 | 6 | 6 | 0.03% | 0.03% |  |
| C | 19591 | 17909 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19591 | 17908 | 271 | 271 | 1.38% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 524588 | 1196.49 | 2157 | 2105 | 436.7 |
| A | 12 | 189 | 252700 | 573.86 | 2157 | 2105 | 436.7 |
| A | 0 | 23 | 135371 | 305.18 | 2157 | 2105 | 436.7 |
| B | 0 | 189 | 253175 | 604.4 | 2152 | 2096 | 415.4 |
| B | 4 | 97 | 84101 | 197.4 | 2152 | 2096 | 415.4 |
| B | 3 | 209 | 80187 | 187.98 | 2152 | 2096 | 415.4 |
| C | 3 | 233 | 1565901 | 3237.25 | 2086 | 2093 | 483.1 |
| C | 13 | 61 | 15113 | 26.95 | 2086 | 2093 | 483.1 |
| C | 8 | 128 | 13897 | 24.44 | 2086 | 2093 | 483.1 |
| D | 10 | 199 | 936551 | 1728.78 | 2082 | 2034 | 540.6 |
| D | 12 | 110 | 496493 | 914.71 | 2082 | 2034 | 540.6 |
| D | 1 | 52 | 104441 | 189.44 | 2082 | 2034 | 540.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

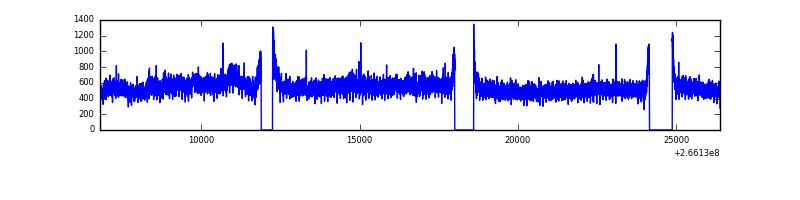

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

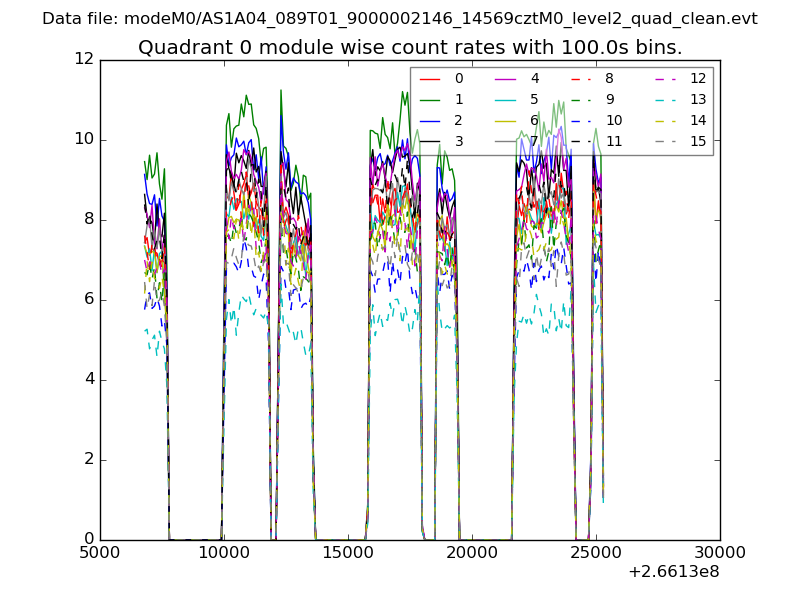

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

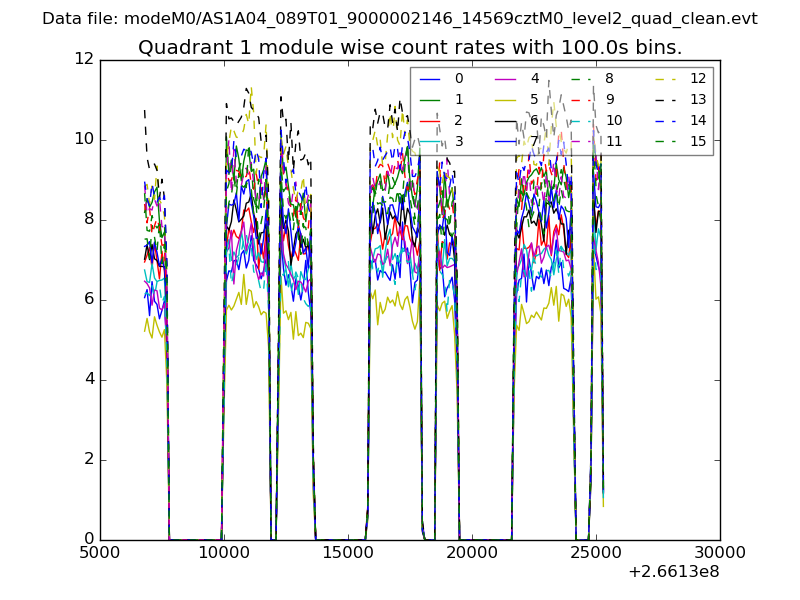

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

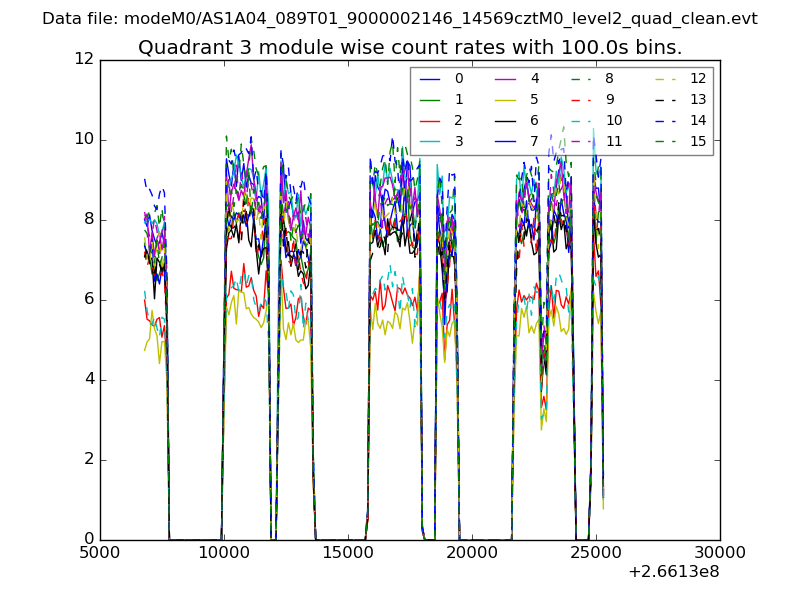

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

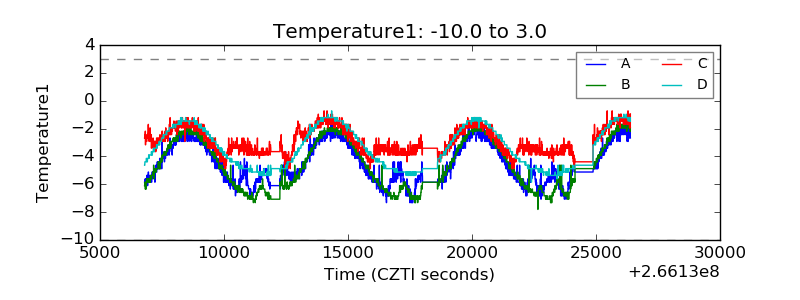

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

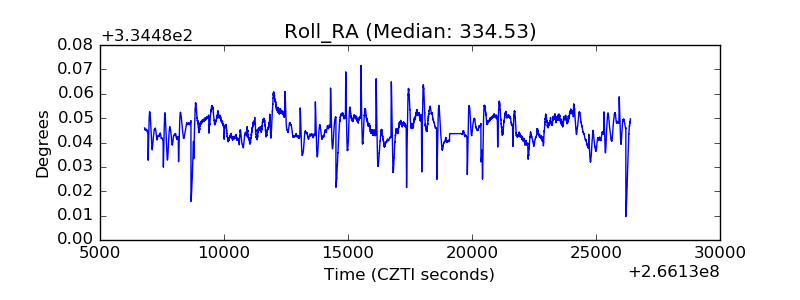

| _Roll_RA |  |
| Veto Counter |  |
