| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14575cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14575cztM0_level2_quad_clean.evt |
| Size (bytes) | 657,201,600 | 93,752,640 |
| Size | 626.8 MB | 89.4 MB |
| Events in quadrant A | 7,782,899 | 590,978 |
| Events in quadrant B | 3,594,808 | 623,715 |
| Events in quadrant C | 4,372,464 | 605,370 |
| Events in quadrant D | 3,738,827 | 590,043 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27499 | 3 |
| B | 0 | 14759 | 2 |
| C | 0 | 17983 | 2 |
| D | 0 | 15005 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6143 | 556 | 9.050952% |
| B | 6143 | 158 | 2.572033% |
| C | 6143 | 63 | 1.025558% |
| D | 6143 | 104 | 1.692984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

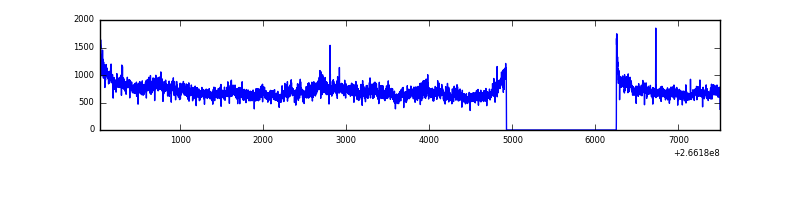

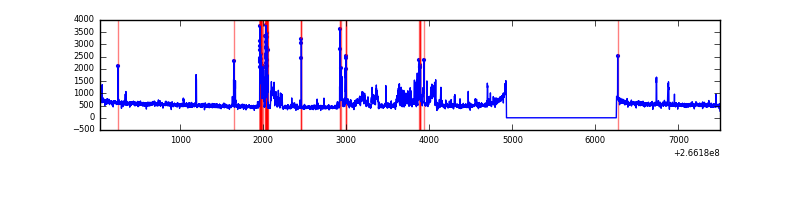

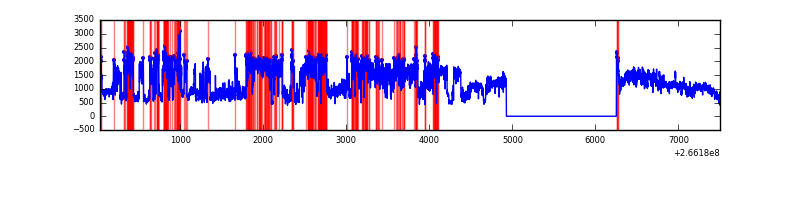

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 6145 | 353 | 353 | 4.73% | 5.74% |  |
| B | 7469 | 6145 | 57 | 57 | 0.76% | 0.93% |  |
| C | 7469 | 6145 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7469 | 6145 | 53 | 53 | 0.71% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 4312688 | 26357.63 | 815 | 800 | 163.6 |
| A | 0 | 226 | 268687 | 1637.53 | 815 | 800 | 163.6 |
| A | 12 | 189 | 40000 | 239.62 | 815 | 800 | 163.6 |
| B | 10 | 16 | 188455 | 1204.14 | 833 | 816 | 155.8 |
| B | 0 | 219 | 56756 | 358.99 | 833 | 816 | 155.8 |
| B | 0 | 229 | 24272 | 150.52 | 833 | 816 | 155.8 |
| C | 3 | 233 | 1184802 | 6372.56 | 814 | 821 | 185.8 |
| C | 3 | 232 | 6942 | 32.95 | 814 | 821 | 185.8 |
| C | 13 | 61 | 5727 | 26.41 | 814 | 821 | 185.8 |
| D | 2 | 120 | 319534 | 1625.81 | 814 | 794 | 196.0 |
| D | 10 | 199 | 159560 | 809.82 | 814 | 794 | 196.0 |
| D | 12 | 110 | 135555 | 687.38 | 814 | 794 | 196.0 |

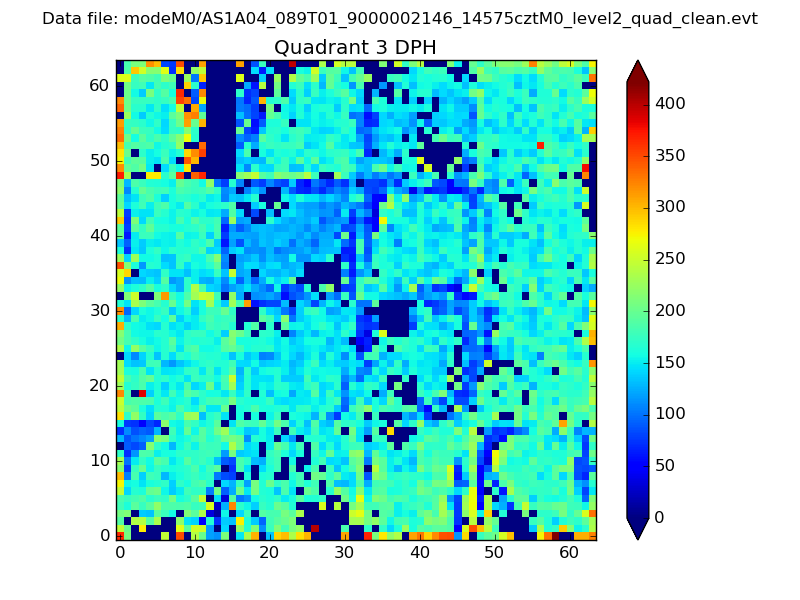

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

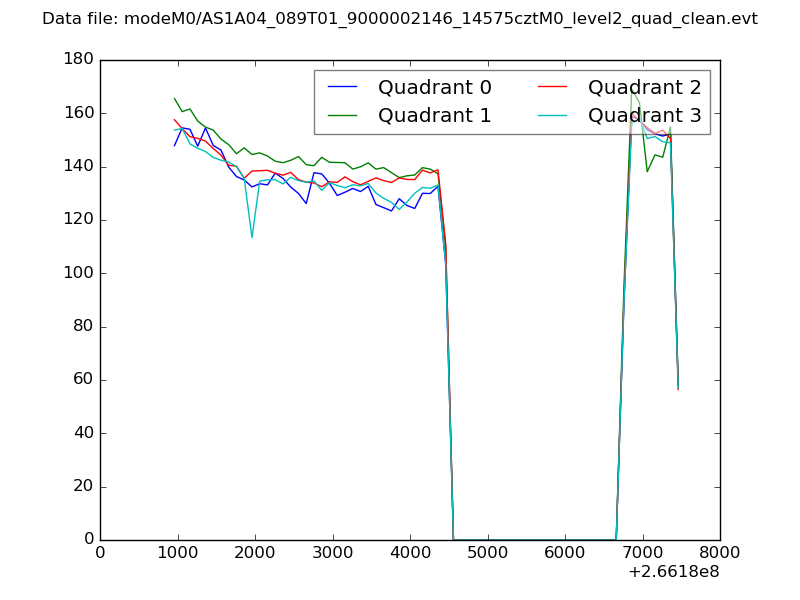

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

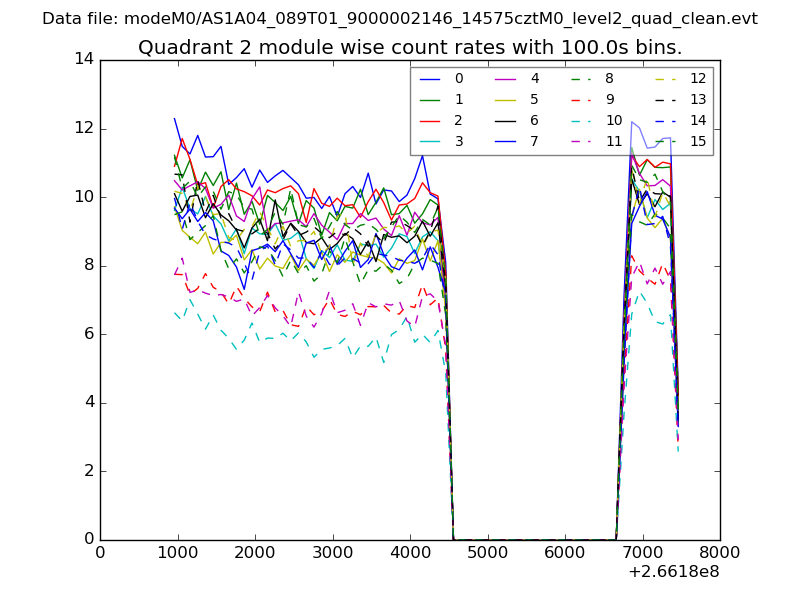

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

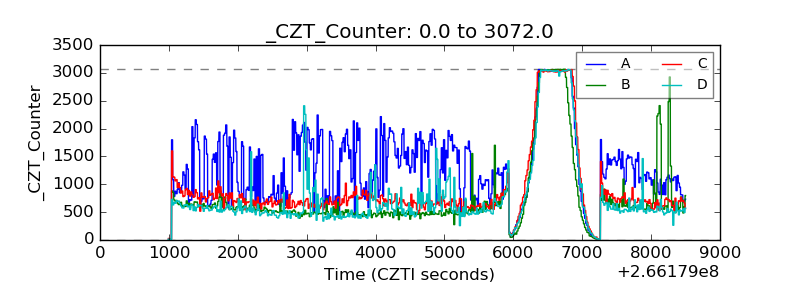

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

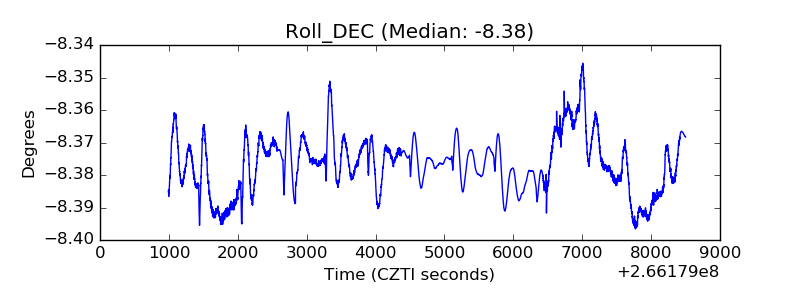

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
