| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_089T01_9000002146_14581cztM0_level2.evt | modeM0/AS1A04_089T01_9000002146_14581cztM0_level2_quad_clean.evt |
| Size (bytes) | 663,966,720 | 89,760,960 |
| Size | 633.2 MB | 85.6 MB |
| Events in quadrant A | 7,360,990 | 545,799 |
| Events in quadrant B | 4,943,784 | 566,342 |
| Events in quadrant C | 3,837,143 | 567,764 |
| Events in quadrant D | 3,499,257 | 556,698 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26681 | 2 |
| B | 0 | 19243 | 1 |
| C | 0 | 15413 | 1 |
| D | 0 | 15101 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6909 | 614 | 8.886959% |
| B | 6909 | 787 | 11.390939% |
| C | 6909 | 70 | 1.013171% |
| D | 6909 | 128 | 1.852656% |

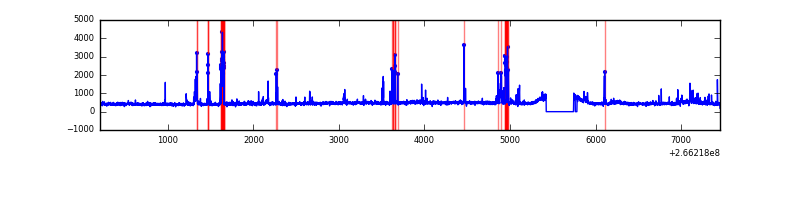

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7250 | 6912 | 286 | 286 | 3.94% | 4.14% |  |
| B | 7250 | 6912 | 541 | 541 | 7.46% | 7.83% |  |
| C | 7250 | 6912 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7250 | 6912 | 63 | 63 | 0.87% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 3876439 | 23661.08 | 804 | 786 | 163.8 |
| A | 0 | 226 | 240146 | 1461.31 | 804 | 786 | 163.8 |
| A | 8 | 15 | 125980 | 764.32 | 804 | 786 | 163.8 |
| B | 10 | 16 | 1742630 | 11562.59 | 785 | 766 | 150.6 |
| B | 0 | 205 | 29808 | 192.78 | 785 | 766 | 150.6 |
| B | 0 | 189 | 20000 | 127.68 | 785 | 766 | 150.6 |
| C | 3 | 233 | 720698 | 3886.45 | 796 | 800 | 185.2 |
| C | 13 | 61 | 5541 | 25.59 | 796 | 800 | 185.2 |
| C | 8 | 128 | 4370 | 19.27 | 796 | 800 | 185.2 |
| D | 10 | 199 | 219891 | 1019.97 | 795 | 777 | 214.8 |
| D | 12 | 110 | 84699 | 390.65 | 795 | 777 | 214.8 |
| D | 1 | 52 | 83628 | 385.67 | 795 | 777 | 214.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

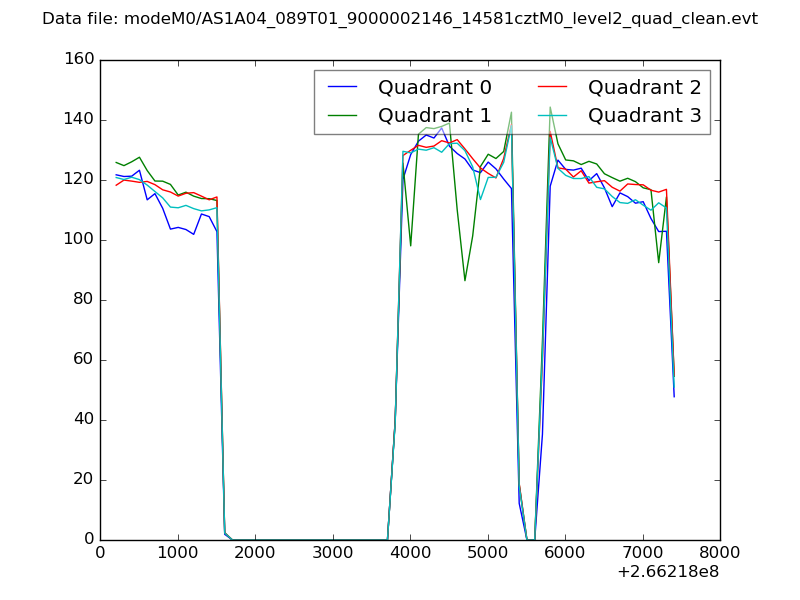

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

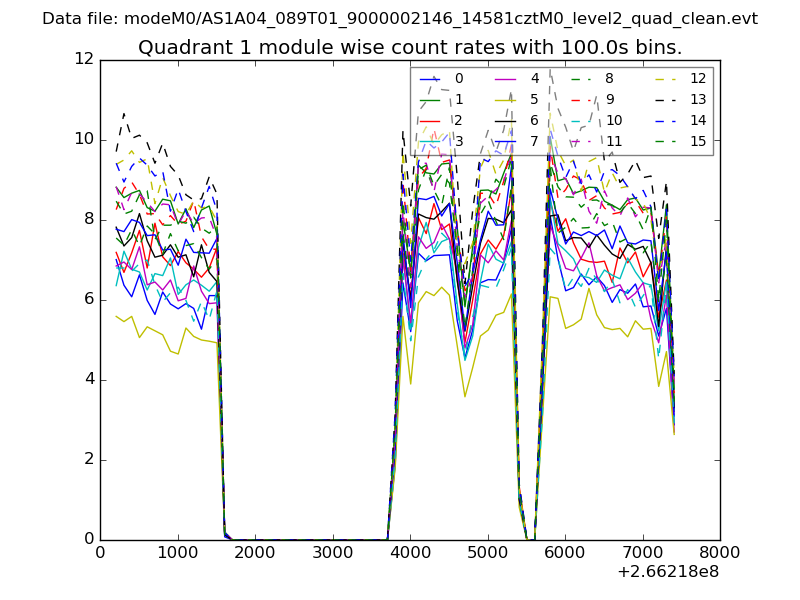

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

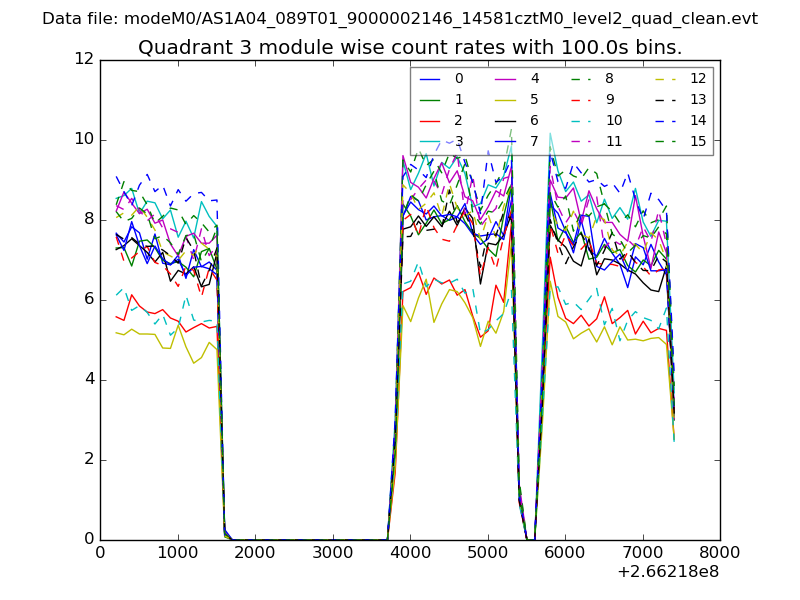

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

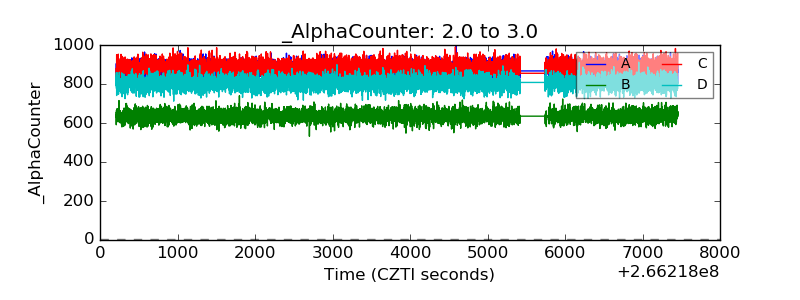

| Alpha Counter |  |
| _CPM_Rate |  |

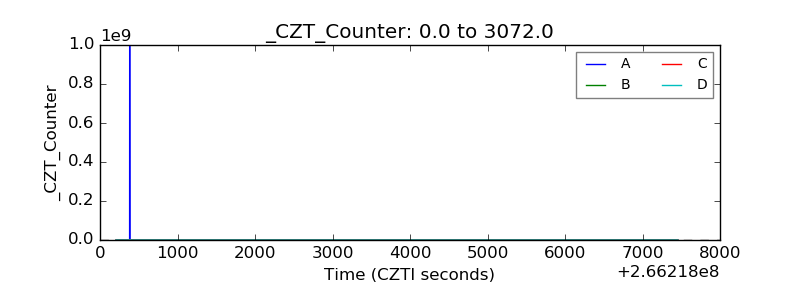

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

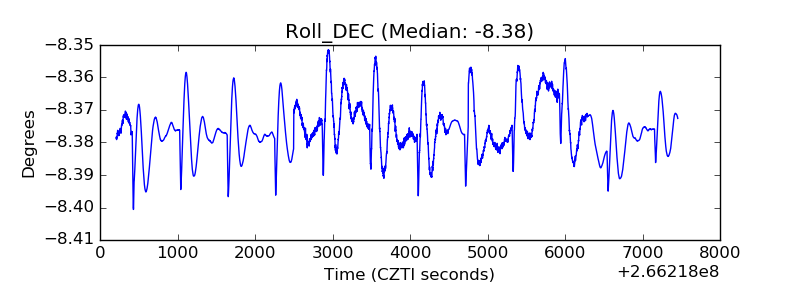

| _ROLL_ROT |  |
| _Roll_DEC |  |

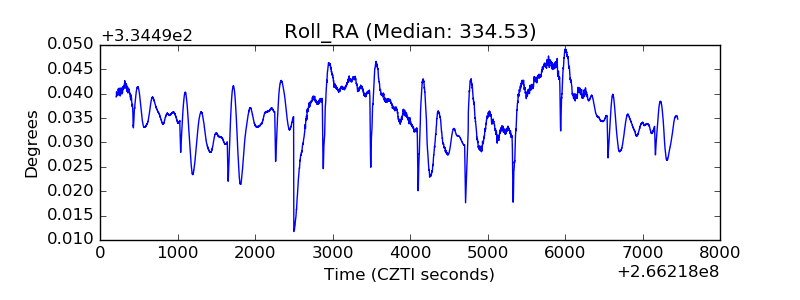

| _Roll_RA |  |
| Veto Counter |  |
