| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T02_9000002148_14584cztM0_level2.evt | modeM0/AS1G08_055T02_9000002148_14584cztM0_level2_quad_clean.evt |
| Size (bytes) | 240,235,200 | 25,732,800 |
| Size | 229.1 MB | 24.5 MB |
| Events in quadrant A | 2,128,137 | 145,820 |
| Events in quadrant B | 1,409,325 | 149,242 |
| Events in quadrant C | 1,711,795 | 144,510 |
| Events in quadrant D | 1,841,320 | 145,512 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8244 | 2 |
| B | 0 | 5774 | 1 |
| C | 0 | 7138 | 1 |
| D | 0 | 7332 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2711 | 88 | 3.246035% |
| B | 2711 | 57 | 2.102545% |
| C | 2711 | 56 | 2.065658% |
| D | 2711 | 59 | 2.176319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3552 | 2712 | 2 | 2 | 0.06% | 0.07% |  |
| B | 3552 | 2712 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3552 | 2712 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3552 | 2712 | 6 | 6 | 0.17% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 703983 | 9701.06 | 348 | 339 | 72.5 |
| A | 0 | 226 | 44763 | 612.47 | 348 | 339 | 72.5 |
| A | 12 | 189 | 23792 | 323.34 | 348 | 339 | 72.5 |
| B | 0 | 229 | 14999 | 212.52 | 348 | 338 | 69.0 |
| B | 0 | 189 | 9615 | 134.48 | 348 | 338 | 69.0 |
| B | 12 | 111 | 8317 | 115.66 | 348 | 338 | 69.0 |
| C | 3 | 233 | 403437 | 5099.33 | 335 | 337 | 79.0 |
| C | 13 | 61 | 2385 | 25.91 | 335 | 337 | 79.0 |
| C | 3 | 232 | 1817 | 18.72 | 335 | 337 | 79.0 |
| D | 12 | 110 | 538489 | 6515.61 | 336 | 325 | 82.6 |
| D | 2 | 152 | 9668 | 113.12 | 336 | 325 | 82.6 |
| D | 2 | 234 | 9432 | 110.26 | 336 | 325 | 82.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

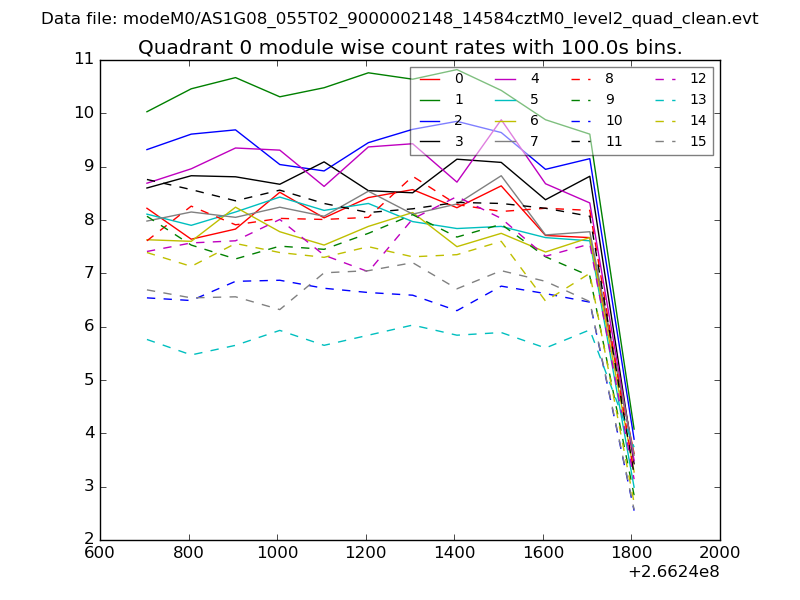

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

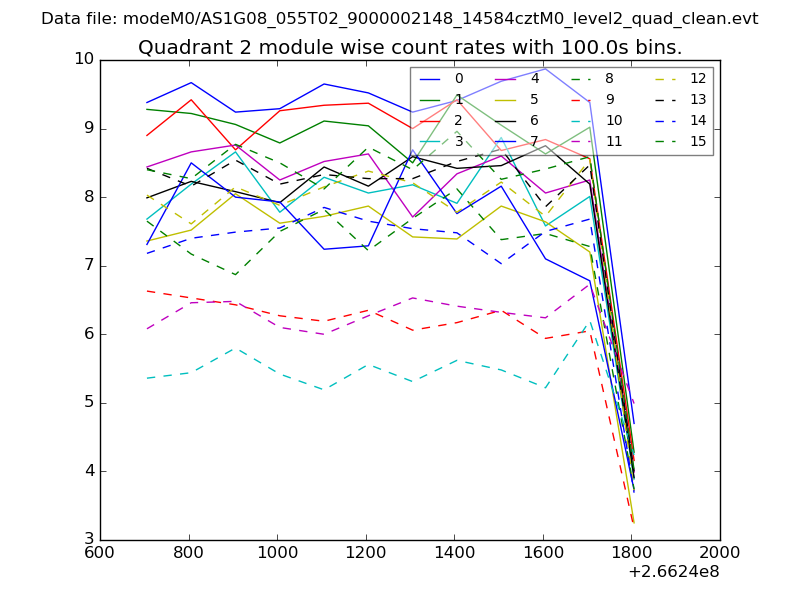

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

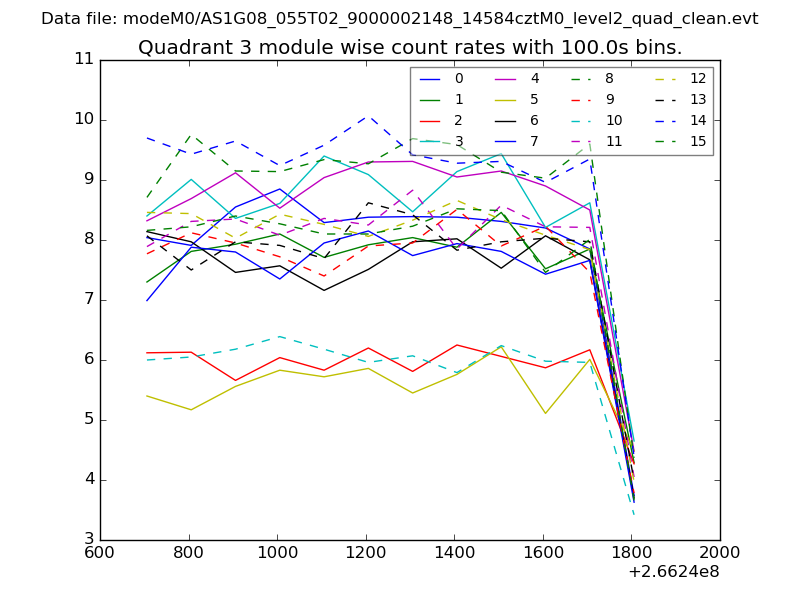

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

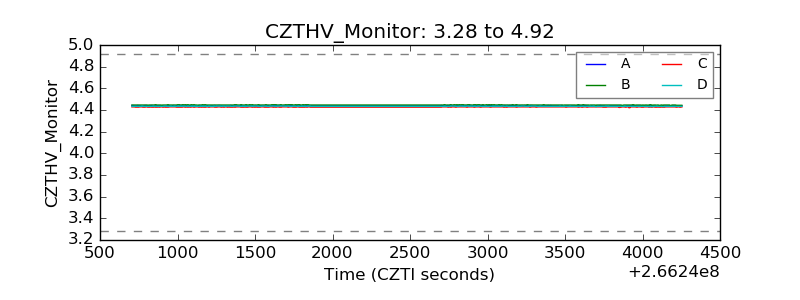

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
