| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_055T02_9000002148_14603cztM0_level2.evt | modeM0/AS1G08_055T02_9000002148_14603cztM0_level2_quad_clean.evt |
| Size (bytes) | 725,875,200 | 97,401,600 |
| Size | 692.2 MB | 92.9 MB |
| Events in quadrant A | 10,045,424 | 599,658 |
| Events in quadrant B | 3,489,955 | 647,020 |
| Events in quadrant C | 3,995,602 | 636,912 |
| Events in quadrant D | 4,017,179 | 615,861 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34341 | 3 |
| B | 0 | 14589 | 2 |
| C | 0 | 16505 | 2 |
| D | 0 | 16246 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6456 | 1444 | 22.366791% |
| B | 6456 | 104 | 1.610905% |
| C | 6456 | 84 | 1.301115% |
| D | 6456 | 280 | 4.337051% |

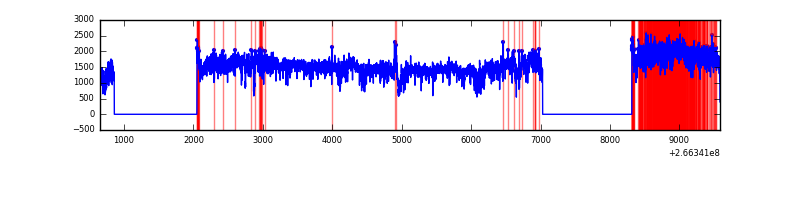

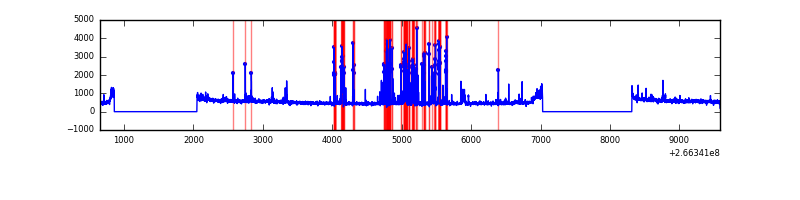

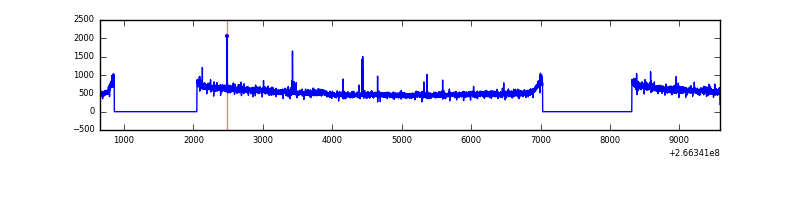

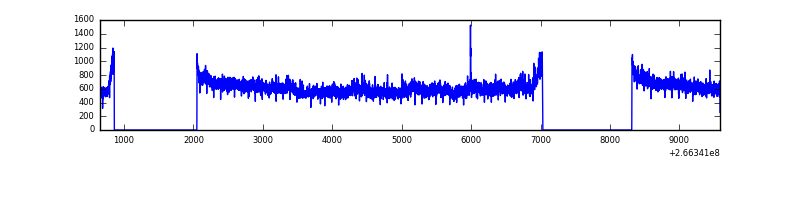

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8932 | 6457 | 486 | 486 | 5.44% | 7.53% |  |
| B | 8932 | 6457 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8932 | 6458 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8932 | 6458 | 163 | 163 | 1.82% | 2.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 5999754 | 35684.63 | 836 | 822 | 168.1 |
| A | 0 | 226 | 364474 | 2163.18 | 836 | 822 | 168.1 |
| A | 8 | 15 | 190661 | 1129.26 | 836 | 822 | 168.1 |
| B | 12 | 111 | 19292 | 111.01 | 877 | 855 | 166.1 |
| B | 11 | 111 | 16509 | 94.26 | 877 | 855 | 166.1 |
| B | 0 | 189 | 14928 | 84.74 | 877 | 855 | 166.1 |
| C | 3 | 233 | 616319 | 3072.74 | 867 | 875 | 200.3 |
| C | 13 | 61 | 6003 | 25.6 | 867 | 875 | 200.3 |
| C | 10 | 22 | 2326 | 7.24 | 867 | 875 | 200.3 |
| D | 10 | 199 | 598868 | 2984.86 | 854 | 837 | 200.4 |
| D | 2 | 152 | 71627 | 353.32 | 854 | 837 | 200.4 |
| D | 12 | 110 | 48173 | 236.26 | 854 | 837 | 200.4 |

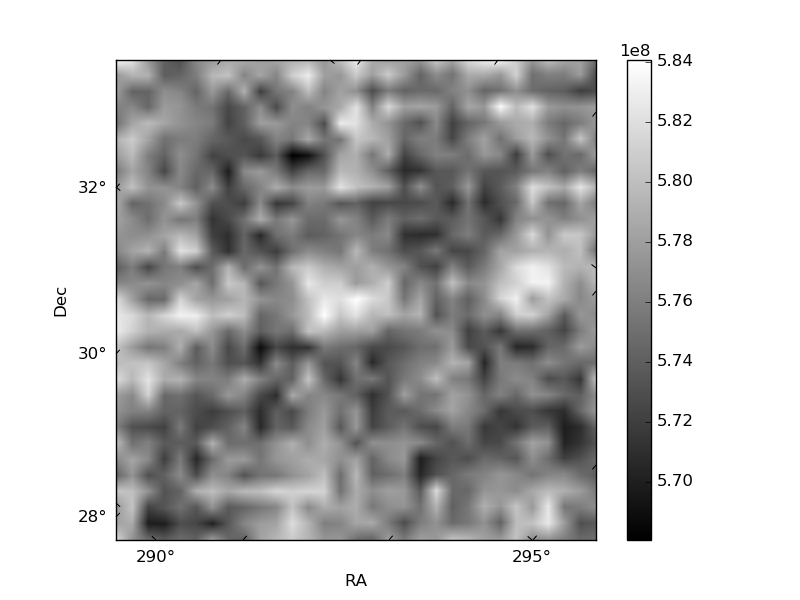

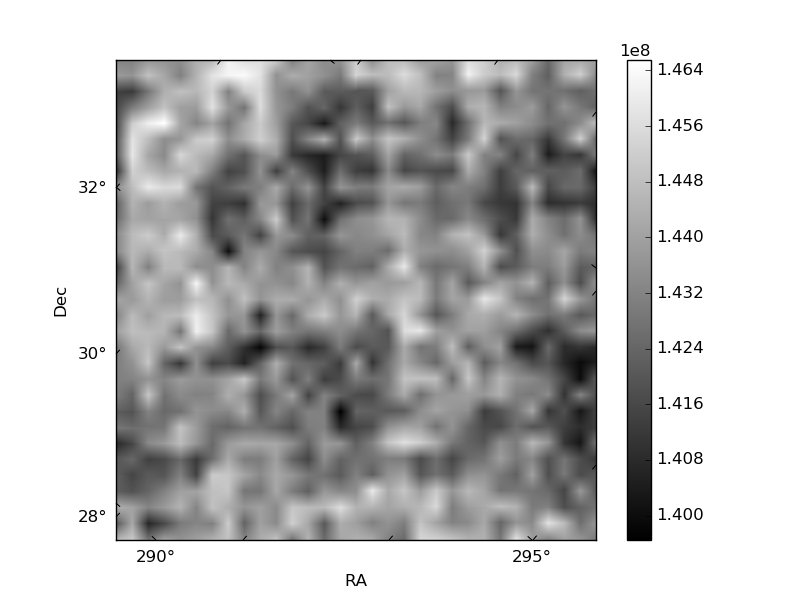

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

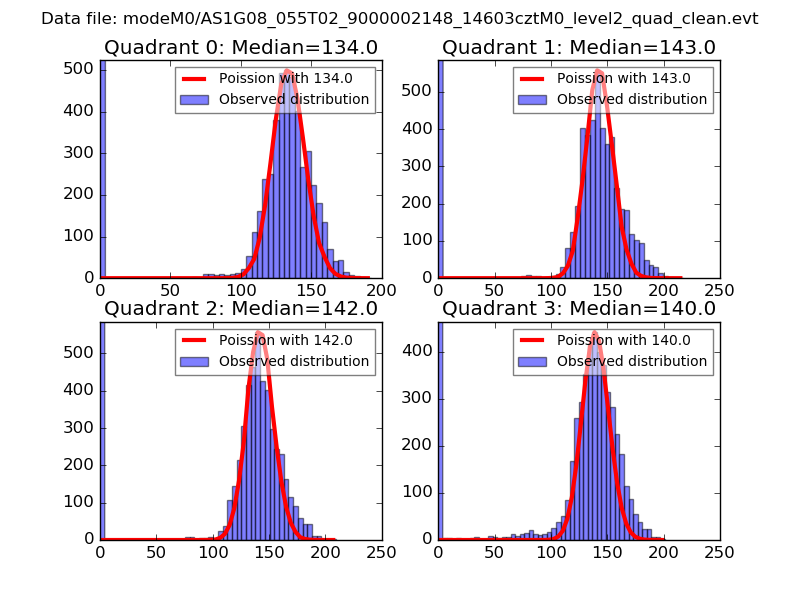

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

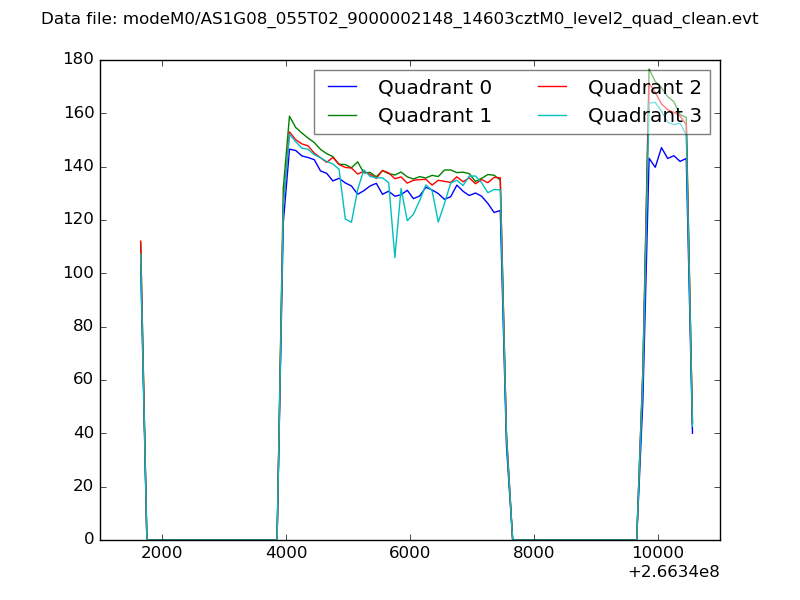

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

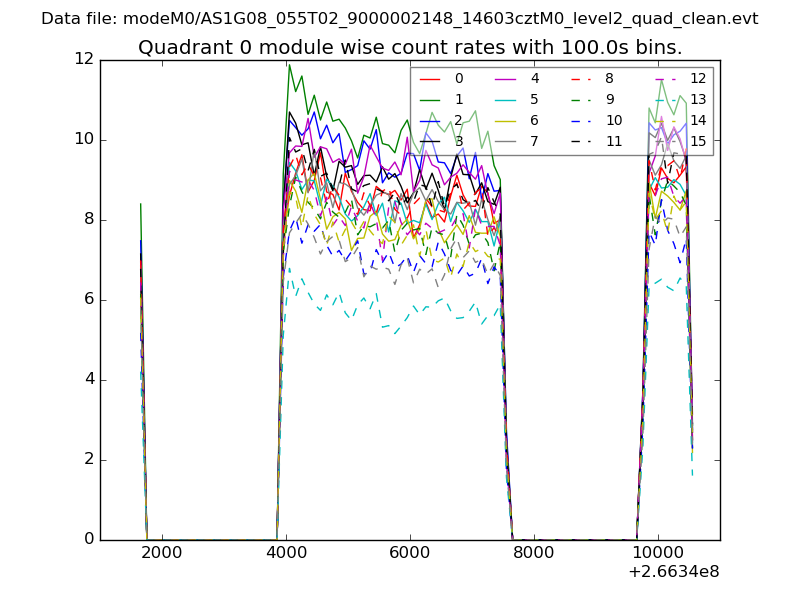

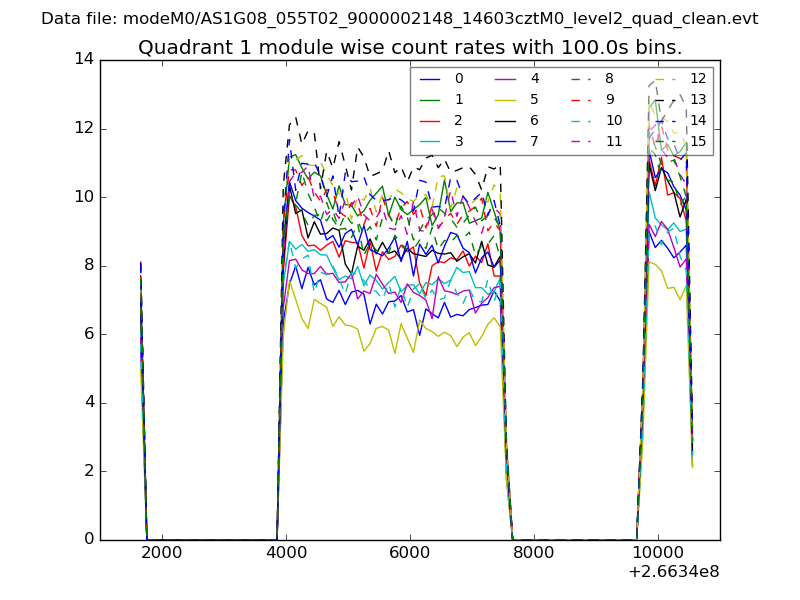

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

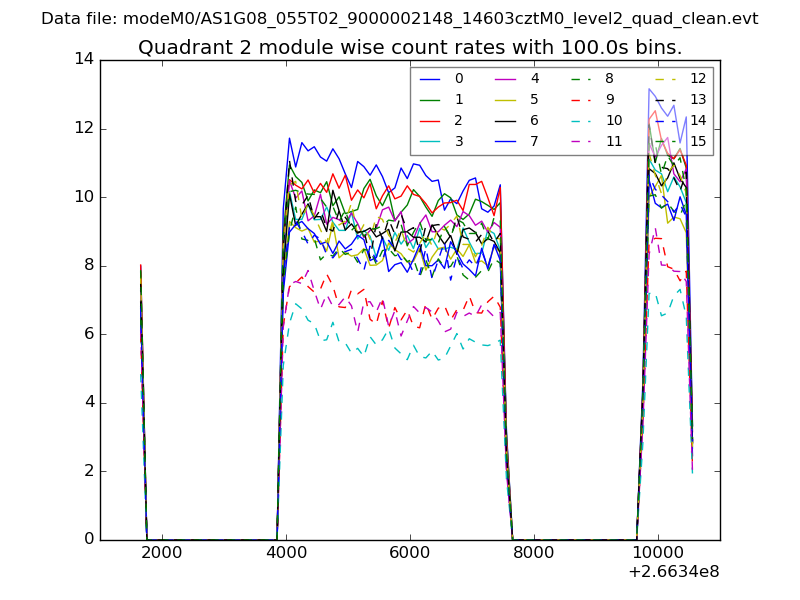

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

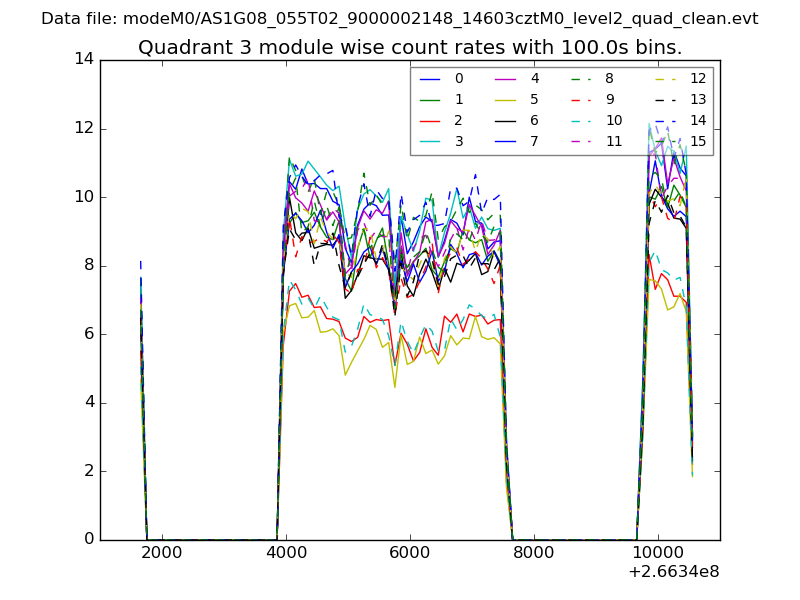

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

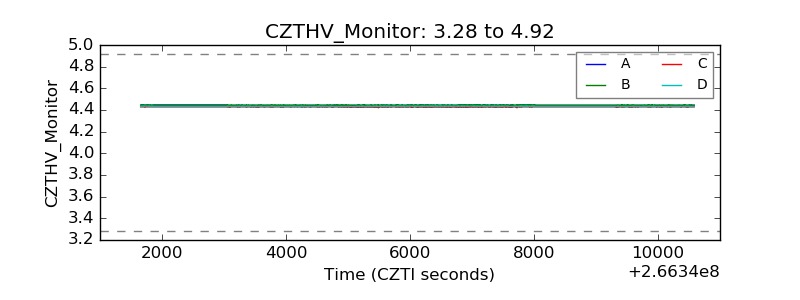

| CZT HV Monitor |  |

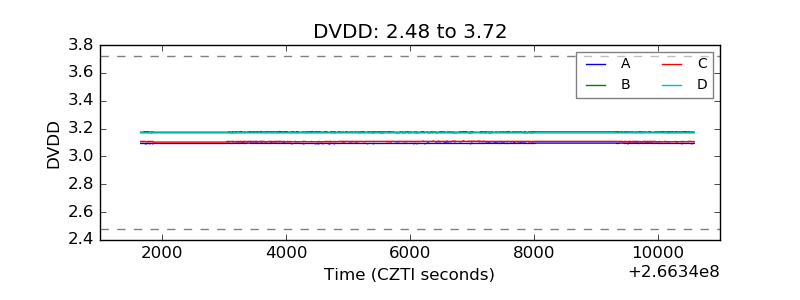

| D_VDD |  |

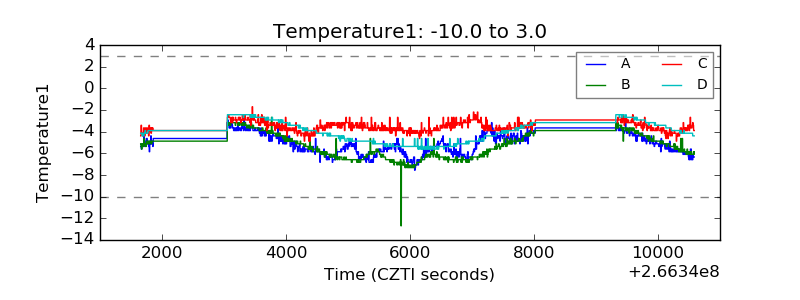

| Temperature 1 |  |

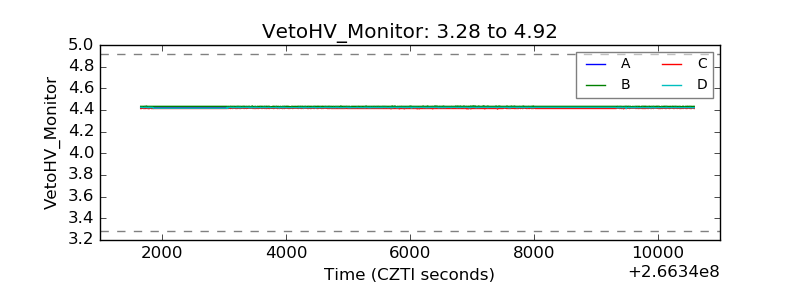

| Veto HV Monitor |  |
| Veto LLD |  |

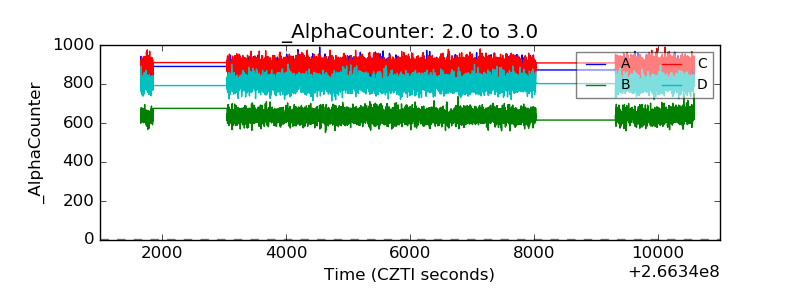

| Alpha Counter |  |
| _CPM_Rate |  |

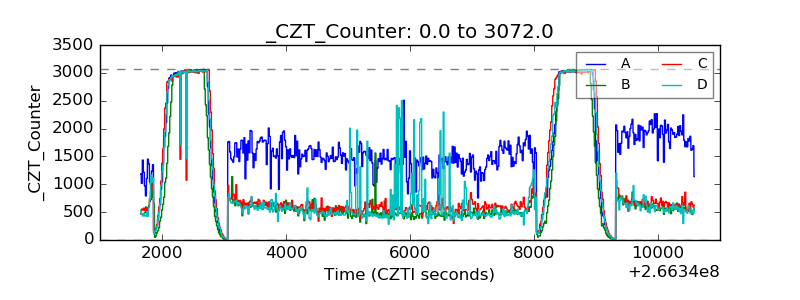

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

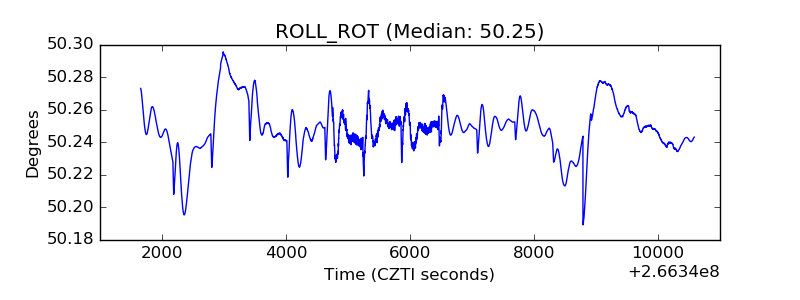

| _ROLL_ROT |  |

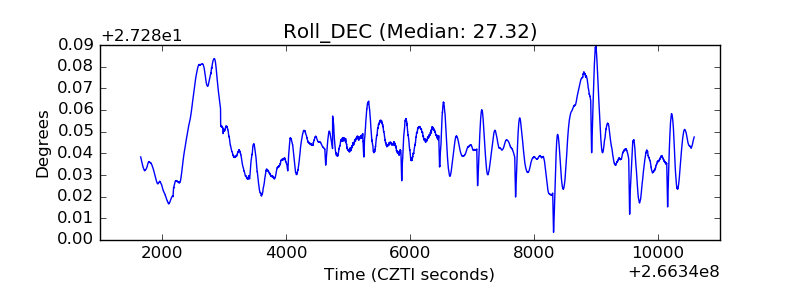

| _Roll_DEC |  |

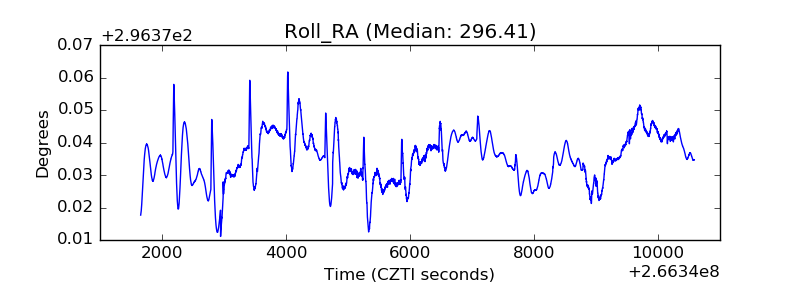

| _Roll_RA |  |

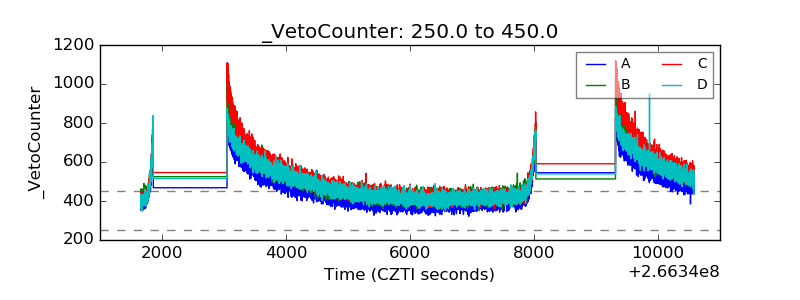

| Veto Counter |  |
