| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_059T01_9000002150_14610cztM0_level2.evt | modeM0/AS1G08_059T01_9000002150_14610cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,388,480 | 75,813,120 |
| Size | 400.0 MB | 72.3 MB |
| Events in quadrant A | 3,028,323 | 474,447 |
| Events in quadrant B | 2,893,588 | 474,773 |
| Events in quadrant C | 3,540,751 | 467,217 |
| Events in quadrant D | 2,835,416 | 464,981 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12810 | 1 |
| B | 0 | 12451 | 1 |
| C | 0 | 14724 | 1 |
| D | 0 | 12416 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5931 | 69 | 1.163379% |
| B | 5931 | 80 | 1.348845% |
| C | 5931 | 32 | 0.539538% |
| D | 5931 | 42 | 0.708144% |

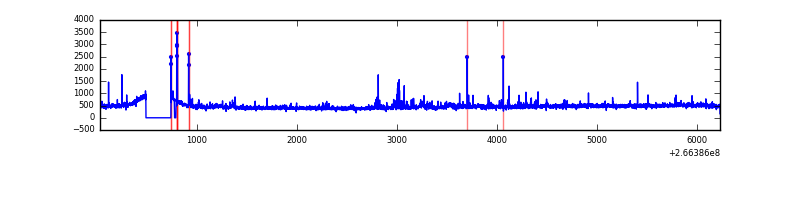

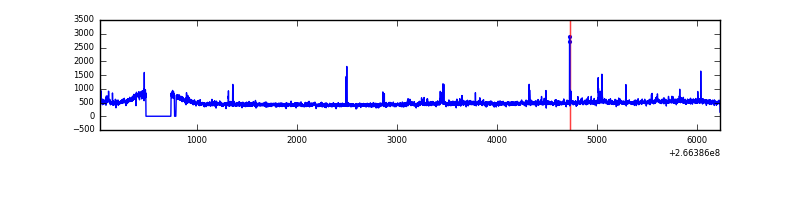

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6197 | 5934 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6197 | 5934 | 2 | 2 | 0.03% | 0.03% |  |
| C | 6197 | 5934 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6197 | 5934 | 10 | 10 | 0.16% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 107482 | 725.56 | 715 | 697 | 147.2 |
| A | 1 | 178 | 37391 | 249.32 | 715 | 697 | 147.2 |
| A | 1 | 161 | 33794 | 224.88 | 715 | 697 | 147.2 |
| B | 0 | 229 | 19612 | 137.05 | 710 | 690 | 138.1 |
| B | 0 | 189 | 19521 | 136.39 | 710 | 690 | 138.1 |
| B | 0 | 214 | 16699 | 115.95 | 710 | 690 | 138.1 |
| C | 3 | 233 | 820886 | 5105.91 | 691 | 694 | 160.6 |
| C | 8 | 128 | 12128 | 71.18 | 691 | 694 | 160.6 |
| C | 8 | 112 | 6958 | 39.0 | 691 | 694 | 160.6 |
| D | 10 | 199 | 91735 | 549.63 | 695 | 677 | 165.7 |
| D | 2 | 152 | 43262 | 257.04 | 695 | 677 | 165.7 |
| D | 10 | 70 | 22092 | 129.26 | 695 | 677 | 165.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

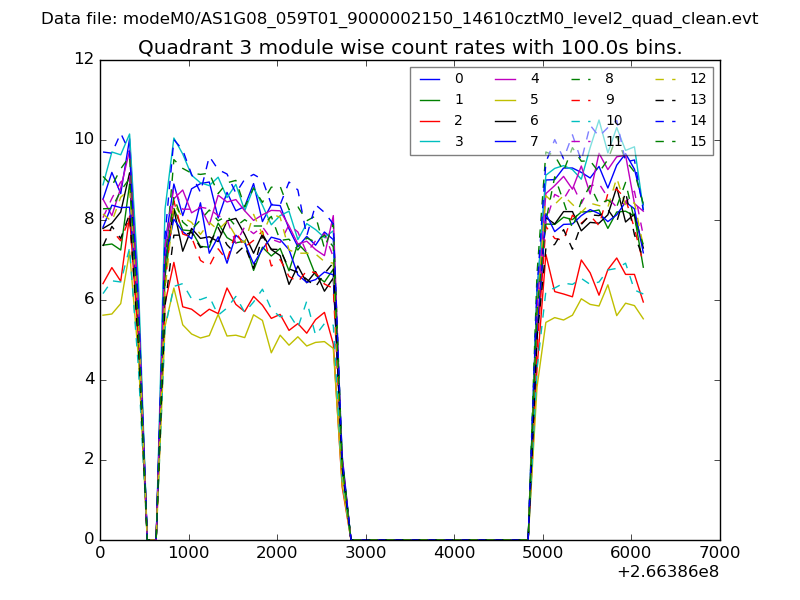

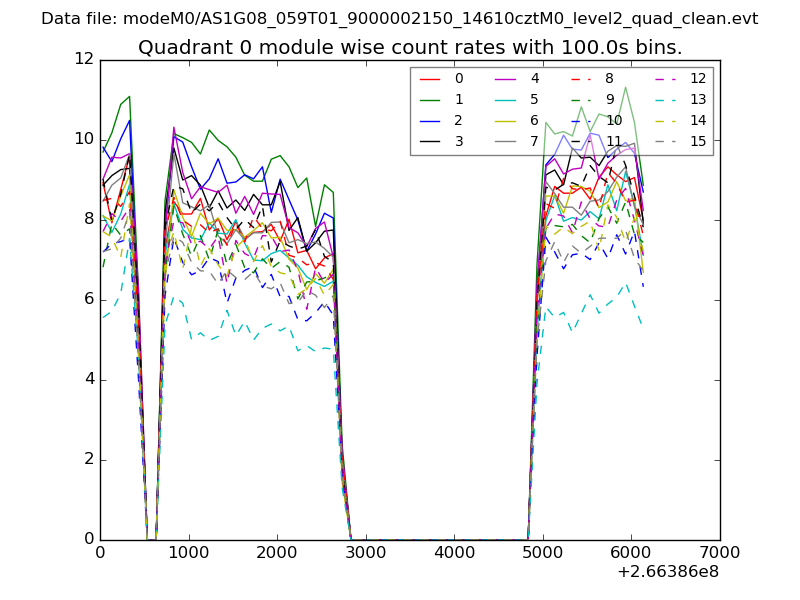

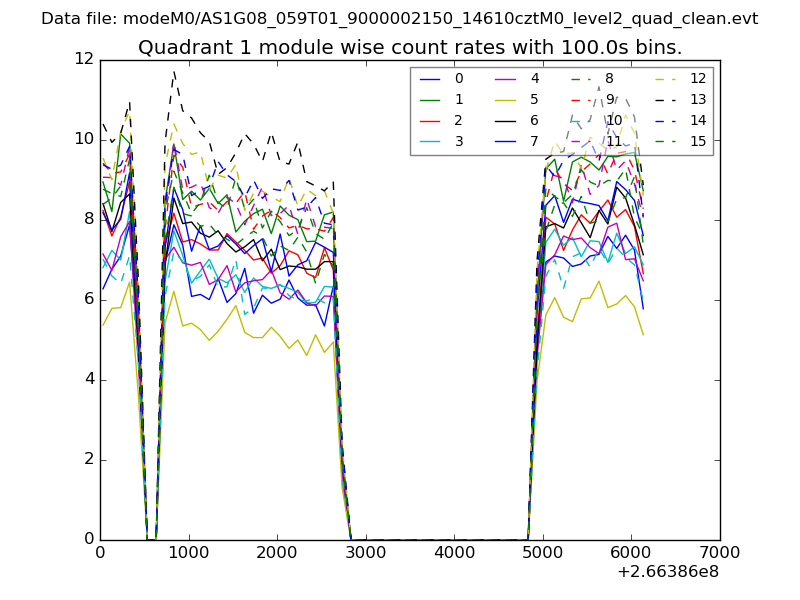

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

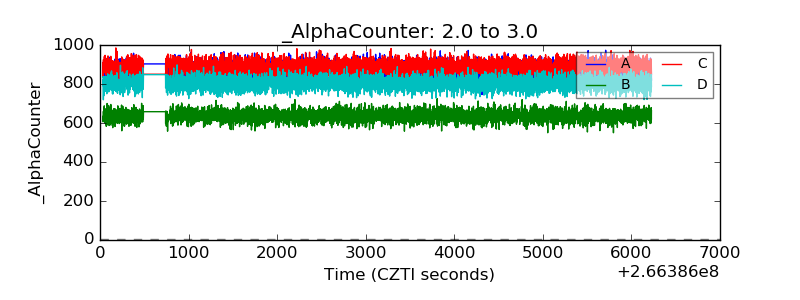

| Alpha Counter |  |
| _CPM_Rate |  |

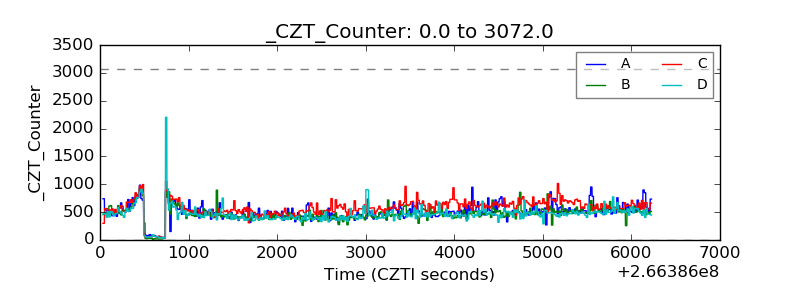

| CZT Counter |  |

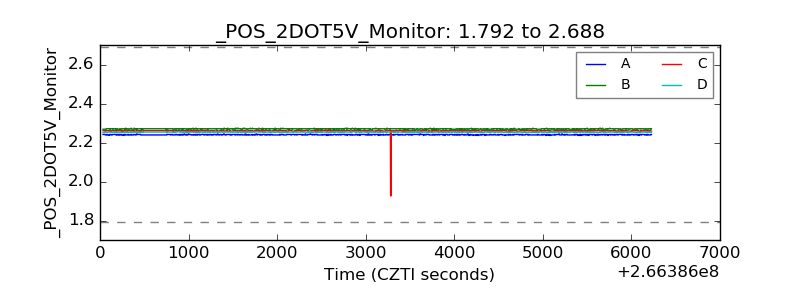

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
